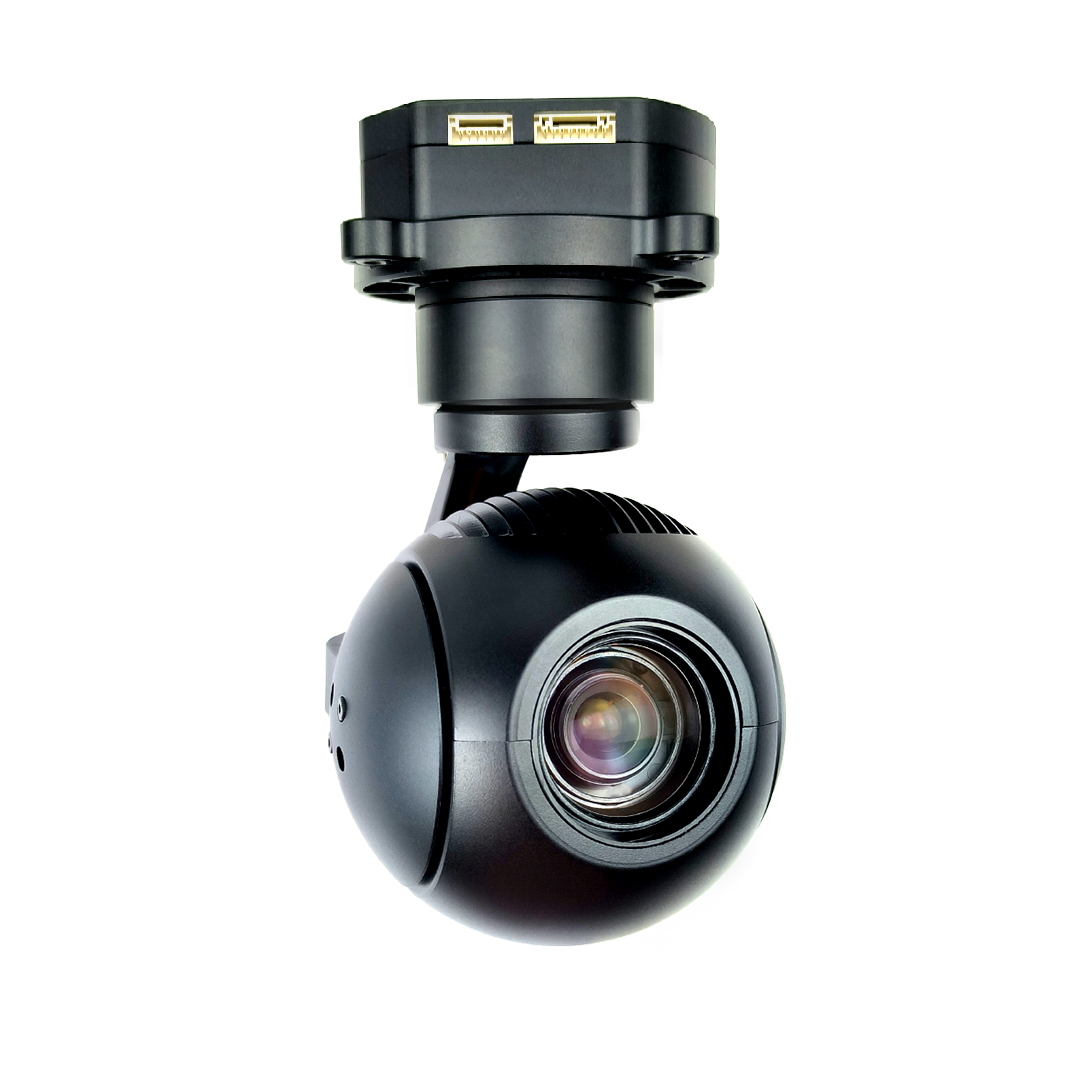

DIY10S62-E is a gimbal camera system integrated 90x Hybrid zoom, 3-axis stabilized PTZ, with additional Electronic Image Stabilization (EIS) function. It adopts IP output. The PTZ adopts high-precision encoder FOC control scheme, which has the characteristics of high stability, small volume, light weight and low power consumption. The camera adopts COMS SENSOR with 2 mega effective pixels; Supports 1080P network RTSP code stream output. Both UART and IP can control the camera and PTZ, and support local TF storage.
Voltage：
DC12V-26.2V
Power：
Dynamic 5W
Roll angle action range：
-45°～ +45°
Pitch angle action range：
-45°～ +120°
Yaw angle action range：
-285°～ +285°
Pitch and Roll Jitter Angle：
±0.02°
Horizontal Jitter Angle：
±0.03°
One-Click Restore：
One-click restore to the initial position
SENSOR：
1/2.8 inch 2 mega pixels wide dynamic CMOS SENSOR
Optical Zoom：
10x HD optical zoom lens, f=5.15±5%～47.38±5%mm
AF Time：
Real time fast focusing, focusing time < 1s
Video Output：
RTSP stream IP network output, 1080P video stream local TF card storage
Local Record：
photos and videos storage on local TF card; 1080P video stream real-time output
Field Angle (FOV)：
D : WIDE 69.5º±5% TELE 7.95º±5% H : WIDE 61.5º±5% TELE 7.00º±5% V : WIDE 35.0º±5% TELE 3.97º±5%
