MDN30 Handheld Digital Binoculars

China Moneypro

Experience 4K ultra-high-definition visuals with the DN Series. Its 3840×2160@2μm moonlight low-light CMOS sensor and 1920×1080 AMOLED display create stunning images day and night. In the case of sufficient light, the 4K low-light detector has a strong color rendition ability, presenting more delicate and colorful images; and in the morning, dusk, and night when there is insufficient light, turn on the infrared fill light, and you can “see through” the dark night from a long distance to observe, identify, and monitor hidden targets ahead.

3840×2160@2µm4K UHD sensor
1920×1080AMOLED display
1000mLaser ranging
6 HoursStrong battery life

Get in Touch

Core Sensor with Clear Imaging

Equipped with a 4K ultra-HD sensor, it captures clear images without being restricted by time and light, revealing the true appearance of animals in the darkness.

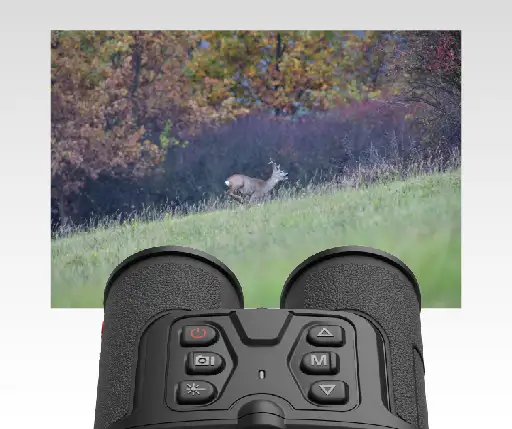

High-definition Display for the Ultimate Vision

A high-resolution, high-contrast, and wide-gamut 0.39-inch display brings better image quality and visual effects.

Outdoor hunting with 24/7 animal observation

In outdoor or forest environments, DN Series can quickly search for, locate, and identify prey. Even at night, it is possible to see the physical characteristics of animals and determine their species.

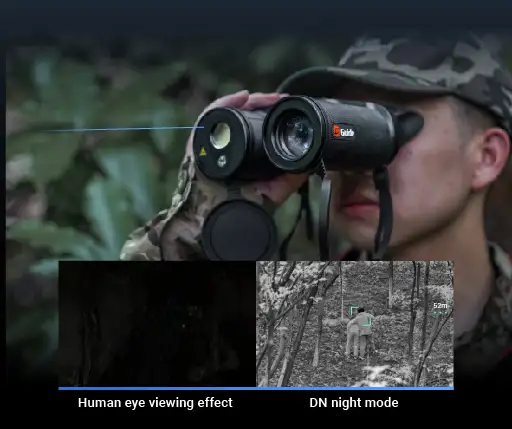

Instant Possession of “X-ray Vision”

In dimly lit mornings, evenings, or nights, as long as there is a little moonlight, it can provide users with a clear field of vision and assist in discreet observation to leave no place for prey to hide.

Three Scene Modes to Choose

Users can choose different scene modes based on the light and time to ensure high-definition images caught by human eyes, and to reveal the target details.

Night mode: Excellent sensitivity, capturing every frame of motion

Day mode: Rich colors, restoring every moment of reality

Twilight mode: Green light, protecting your eyes and showing every detail

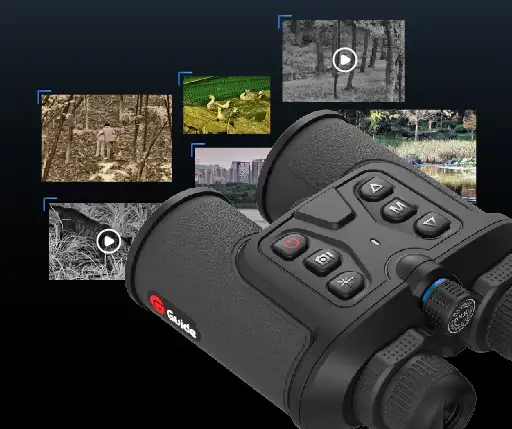

Photo and Video by One-touch

The DN Series can be used by outdoor enthusiasts to record beautiful moments and share happiness. Short press to take a photo and long press to make a video.

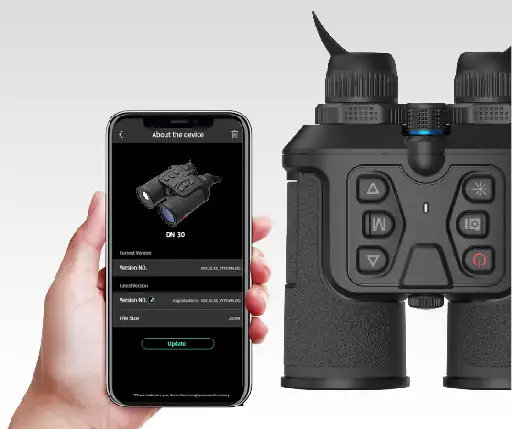

OTA Upgrade for Easy Updating

The device firmware can be upgraded remotely via the TargetIR App to improve and optimize functions and interactions, keep the product in the best condition, and bring users a better experience.

WIFI Interconnecting for Wonderful Sharing

Supports local WiFi connection with the TargetIR App, allowing peers to synchronize real-time previews and remote control. It’s also easy to share the visuals on social media.

Ergonomics for Better Experience

The large field of view of the DN Series allows for comfortable observation, and its easy-to-grip is user-friendly.

Technical Parameters

Sensor
Type	CMOS
Resolution	3840×2160@2μm
Frame rate	50Hz

Lens
Objective lens	35mm, F1.0
Field of view	12.57°×7.12°
FOV m@100m	22×12
Magnification	1.96x~15.68x
Detection range	600m/650yd

Display
Display type	0.39” AMOLED 1920×1080
Scene modes	Day, Night, Low-light
Eyepiece	Eye relief: 16 mm; Diopter: -4 to+2; Interpupillary distance adjustment: 60mm to 70mm; Zoom: 13.8x

Hardware
Laser rangefinder	1000m/1090yd
IR illuminator	940 nm
WIFI	2.4G
Interface	USB Type-C
Others	GPS, Compass, Gyroscope, Bluetooth

System
Recording function	Photo/Video
Memory capacity	32GB

Power
Battery type	2 replaceable 18650 batteries
Operating time	6 hours

Environmental
Operating temp.	-30°C to 50°C / -22°F to +122°F
Encapsulation	IP66

Physical
Weight (g/oz)	940/33.16
Size (mm/in)	162×146×70/6.38×5.75×2.76
Standard	Device, lens cap, 2 detachable eye masks, carry bag, shoulder strap, 5V2A adapter (US, Britain, Australia and Europe), 2 replaceable 18650 batteries, Battery charger, USB Type-C cable, micro HDMI cable, quick start guide
Optional	Bluetooth remote control, Extended bracket
