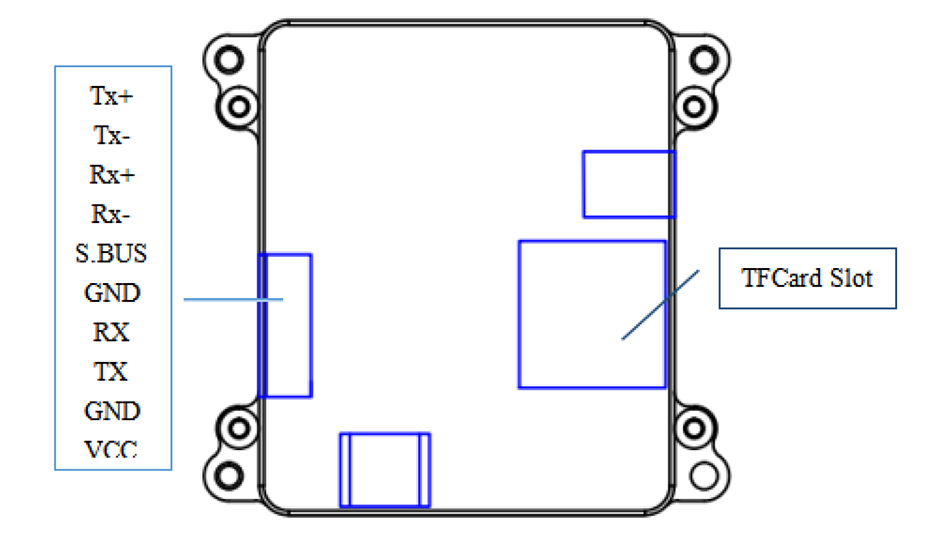

DYD05L12 is a high-precision two-axis stabilized camera gimbal integrated with a 45X hybrid zoom visible camera and a 1200m laser range finder, for providing high stability, tiny figure, light weight and low power consumption. The camera uses a 4 mega pixels sensor and supports UART, S.BUS and IP control, back up with TF card pictures and videos storage. The system supports RTSP video format and both IP output.

Voltage：	DC 12V-26.2V	Power：	Static 5W
Control Modes：	IP and UART and S.BUS control（or PWM for Option）	Pitch Angle Range：	-30～+100°
Course Angle Range：	-145°～+145°	Pitch and Roll Angle Jitter：	±0.02°
Horizontal Angle Jitter：	±0.03°	One-click Return Function：	Quick return to initial position with one click

Laser wave：	905nm (class 1 laser)
Detect range：	5～1200m
Accuracy / Resolution：	±1m

Min tracking target size：	16×16 pixels	Max tracking target size：	256×256 pixels
Target Memory Time：	2 seconds	Tracking speed：	50 Pixel/Frame max
Simultaneous detection qty：	100 targets max	Recognized categories：	Human and Vehicle
Min detection target size：	32×32 pixels	Debounce：	Dynamic stabilization

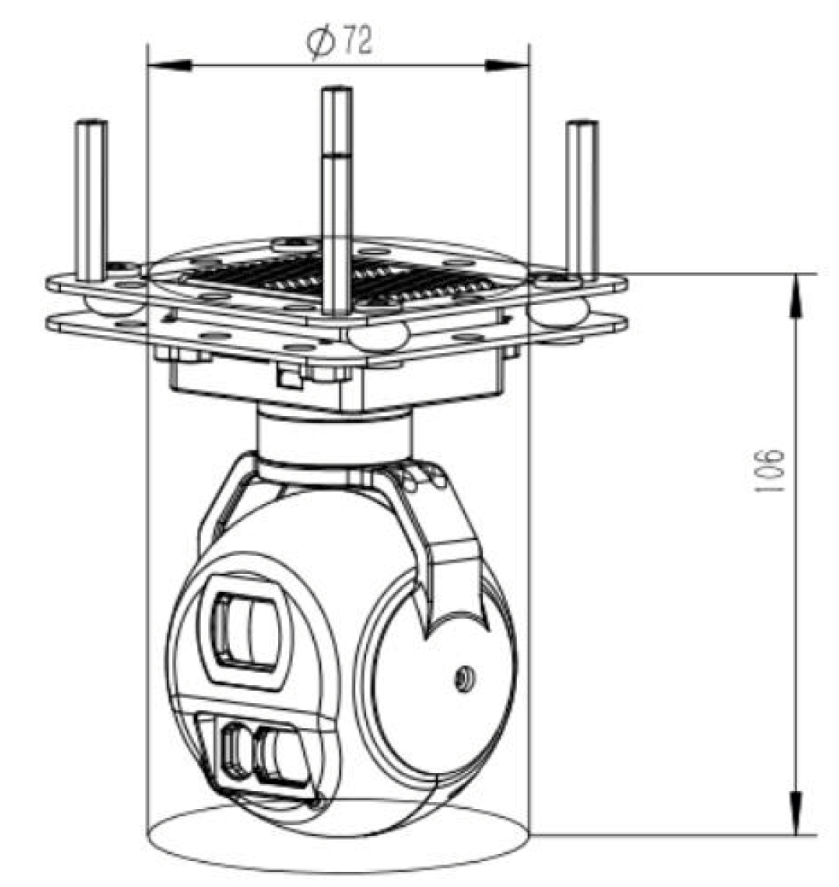

Dimensions：	72mm × 106mm	Operating Temperature：	-10℃ to +55℃ / 20% to 80% RH
Storage Temperature：	-20℃ to +60℃ / 20% to 95% RH	Weight：	210±10
