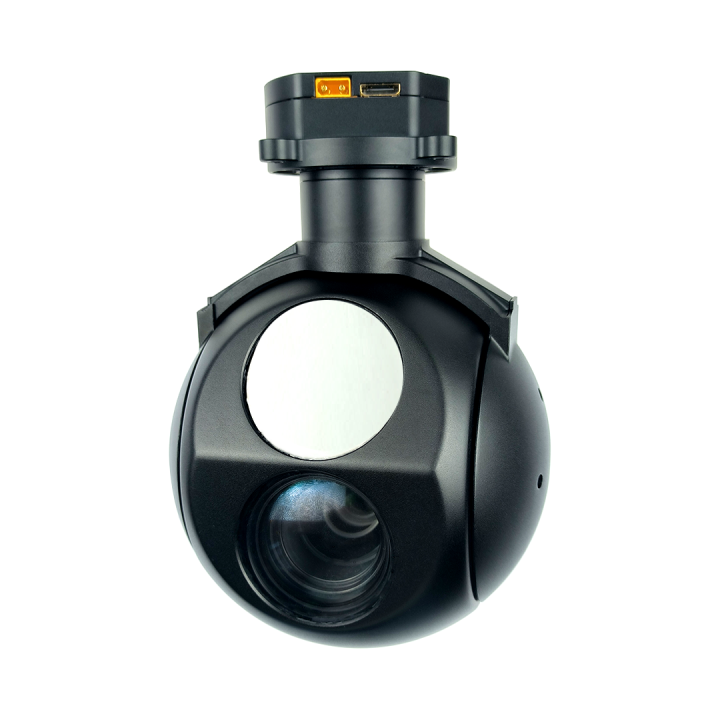

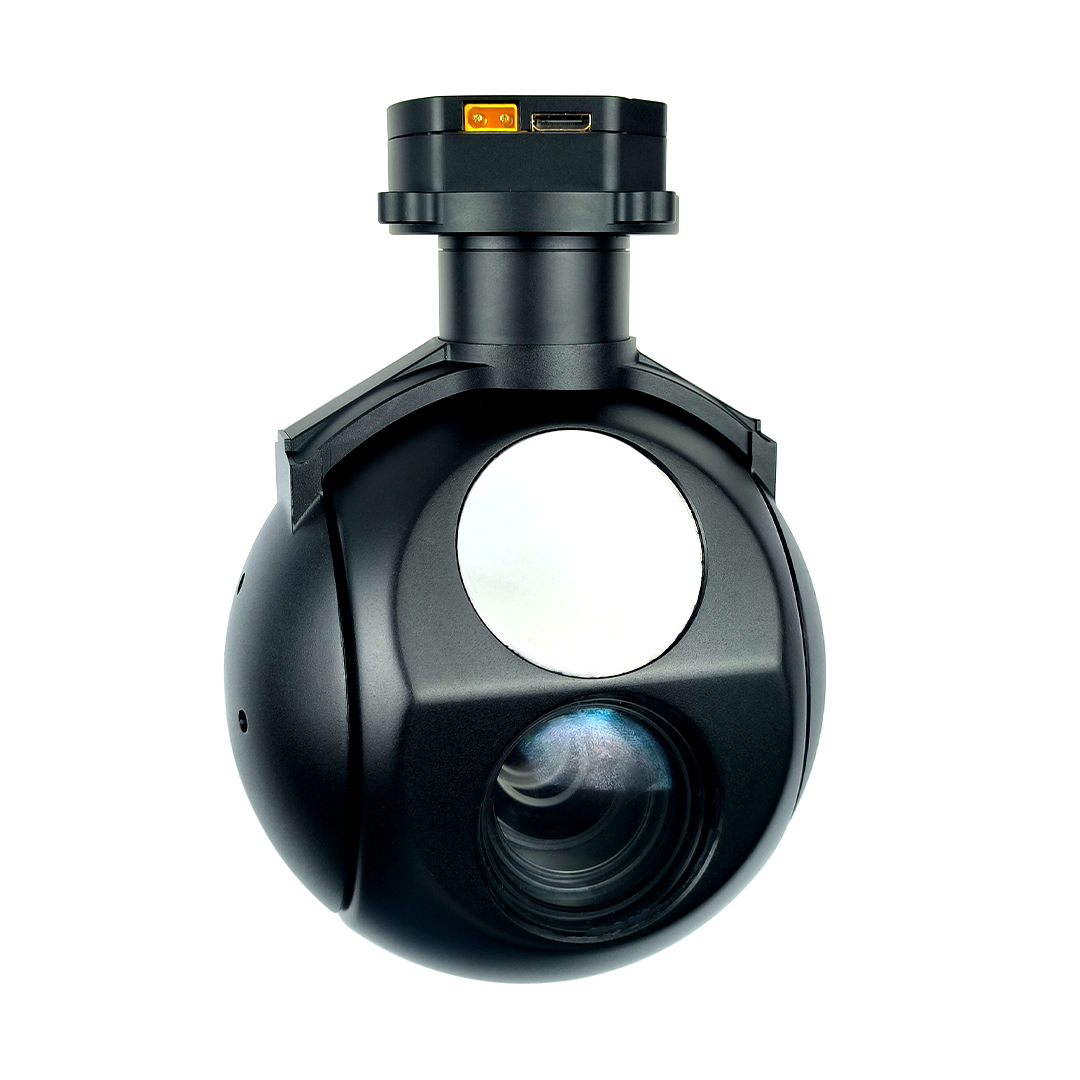

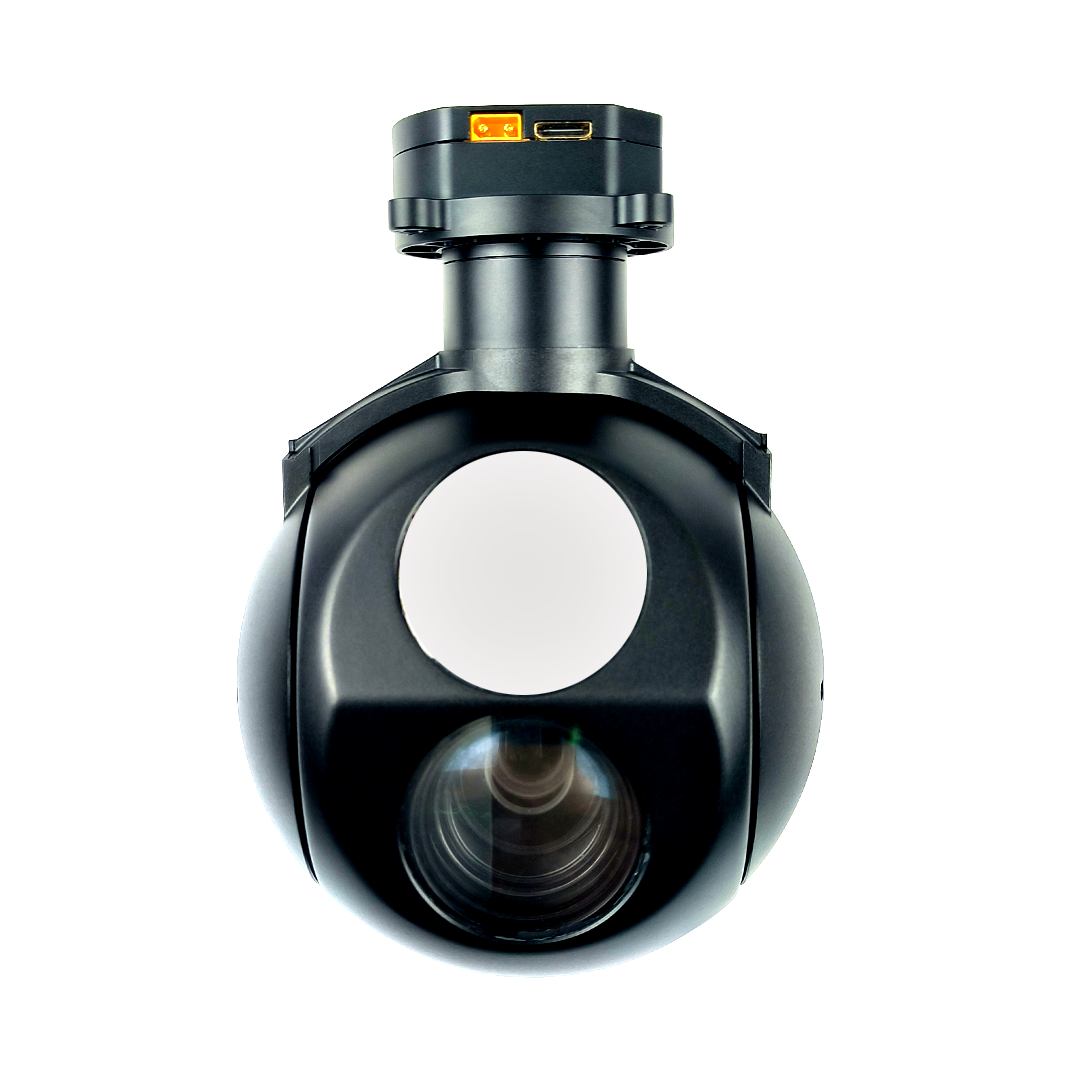

MDYD20G635 High Performance Dual Sensor Gimbal 20X Optical Zoom+35mm 640×512 Thermal
China Moneypro
DYD20G635 is a professional 2-axis stabilization pod with 140x hybrid zoom daytime CMOS sensor, and 35mm focal length 640×512 thermal imaging sensor. This pod adopts a compact design with high stability, high integration and low power consumption. The visible light camera uses a wide dynamic sensor with 8 mega effective pixels, while the thermal adopts s a vanadium oxide detector. The system supports network RTSP picture-in-picture stream output, offers various picture-in-picture modes, multiple false color displays, and supports global temperature measurement functions. S.BUS, UART, and network can all control the camera and gimbal, and it supports local TF card recording and photography for both visible light and thermal imaging.
| Voltage： | DC12～26.2V | Power： | Dynamic 12W |
| Yaw Angle： | -285°～ +285° | Pitch Angle： | -15°～ +110° |
| Horizontal angle jitter： | One-click restore to the initial position | Tilt and roll direction angle jitter： | ±0.02° |
| One-Click Restore： | ±0.03° | Adjustable Gimbal Speed： | When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple. |
| CMOS Size： | 1/1.8 Inch 8 mega pixel wide dynamic CMOS SENSOR |
| Optical Zoom： | 20x HD optical zoom lens, f=6.7～125 mm ±5% |
| Focusing time： | Real time fast focusing, focusing time < 1s |
| Video Output： | Network output RTSP stream, local TF card storage |
| Field Angle(FOV)： | D : WIDE 66.6º±5% TELE 4.0º±5% H : WIDE 59.6º±5% TELE 3.5º±5% V : WIDE 35.7º±5% TELE 2.0º±5% |
| Resolution ratio： | 640×512pixel |
| Space between pixels： | 12μm |
| Type： | Uncooled vanadium oxide |
| Wavelength Range： | 8～14μm |
| Temperature measurement range： | -20℃ ~+150℃，0~550℃ |
| Field angle： | 35mm Lens，Field of view：12.5°x 10.0° |
| Min tracking target size： | 16×16 pixels | Max tracking target size： | 256×256 pixels |
| Target Memory Time： | 2 seconds | Tracking speed： | 50 Pixel/Frame max |
| Simultaneous detection qty： | 100 targets max | Recognized categories： | Human and Vehicle |
| Min detection target size： | 32×32 pixels | Debounce： | Dynamic stabilization |

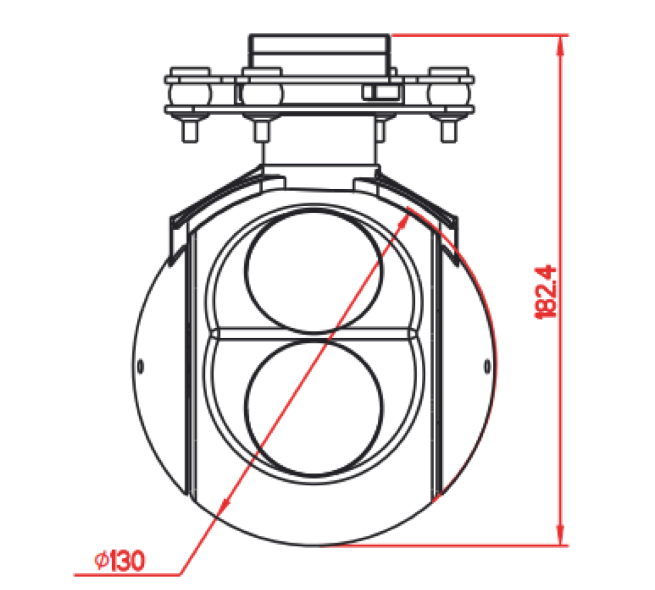

| Dimensions： | φ130mm*182.4mm | Operating Environment： | -10℃ to +55℃ / 20% to 80% RH |
| Storage Condition： | -20℃ to +60℃ / 20% to 95% RH | Weight： | 988±20g |
