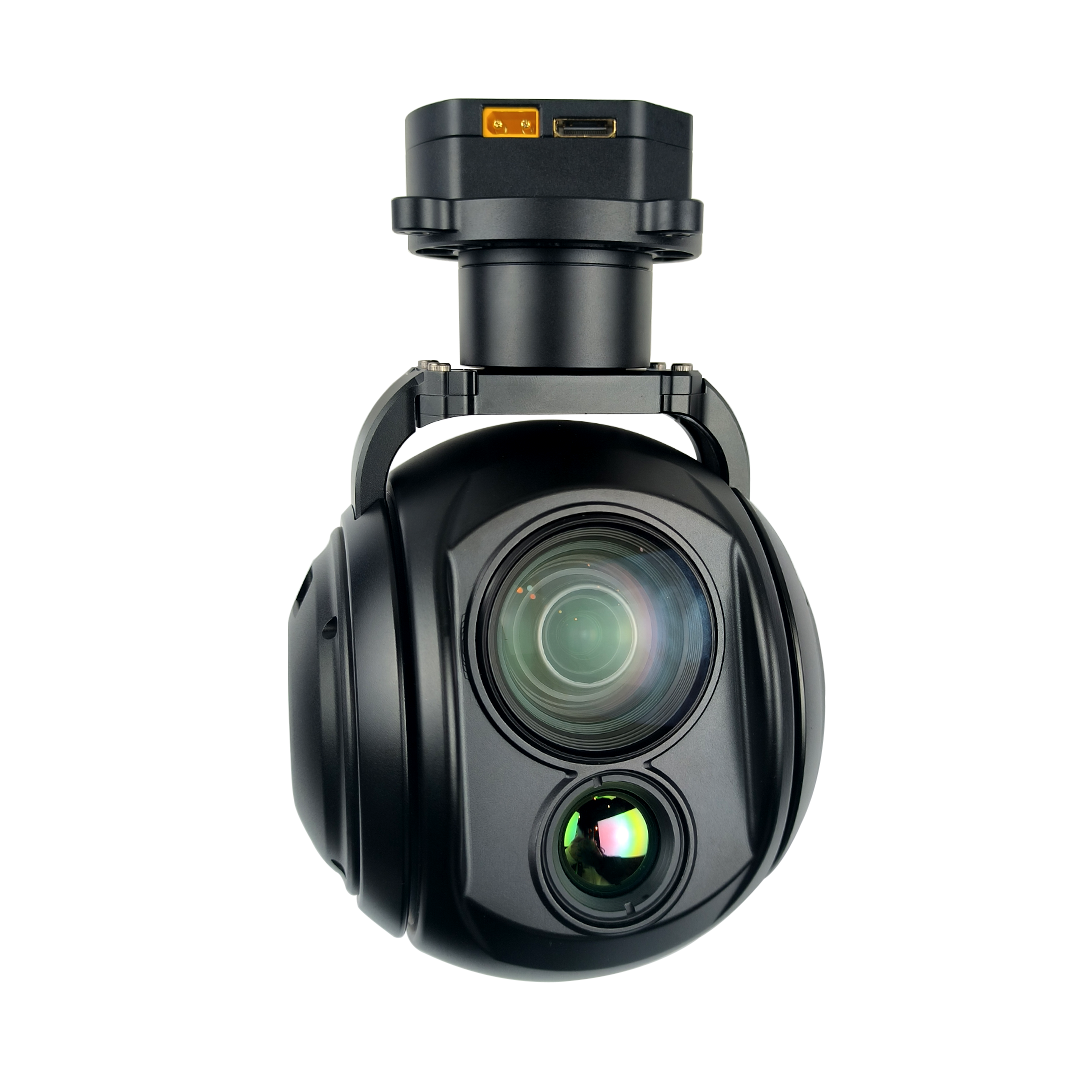

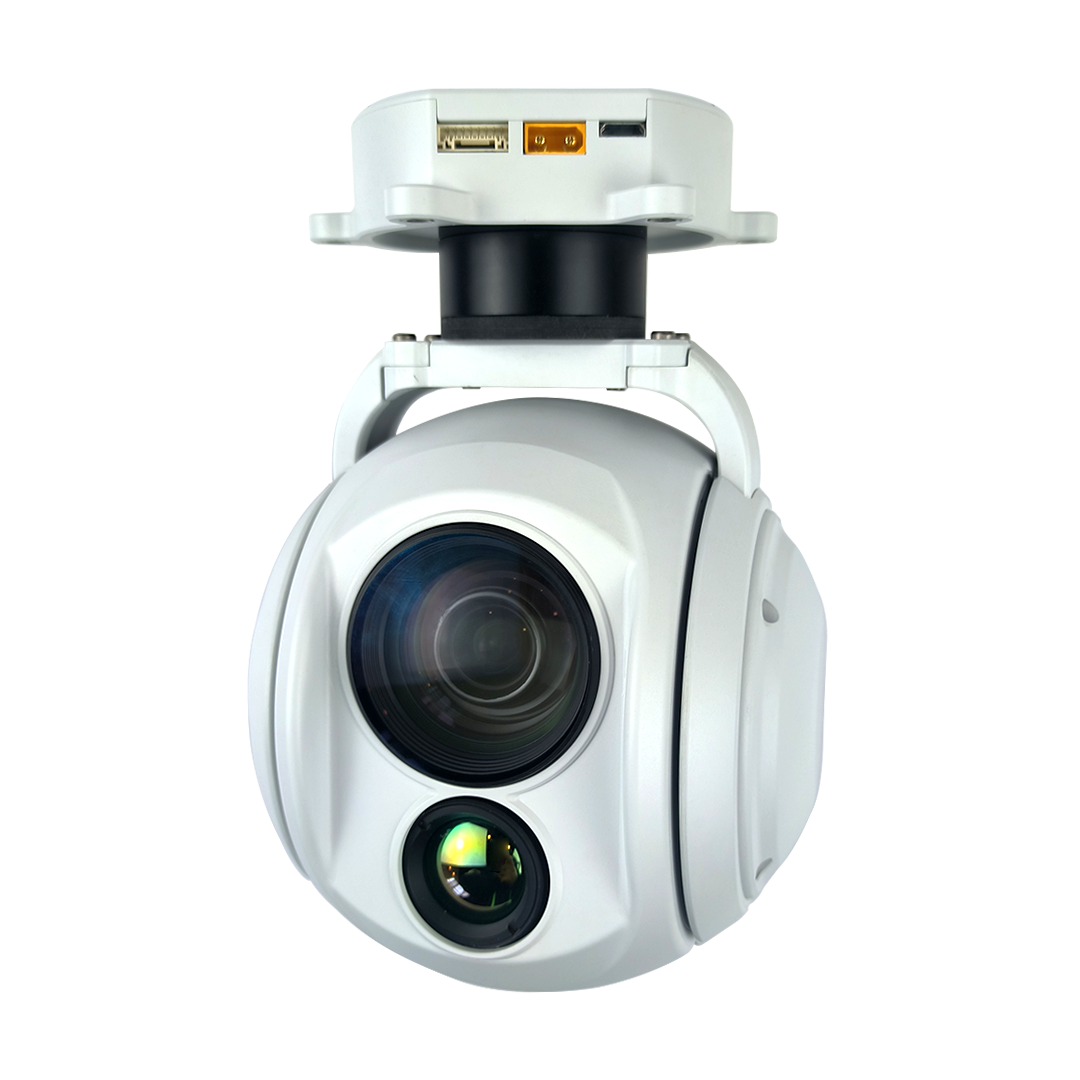

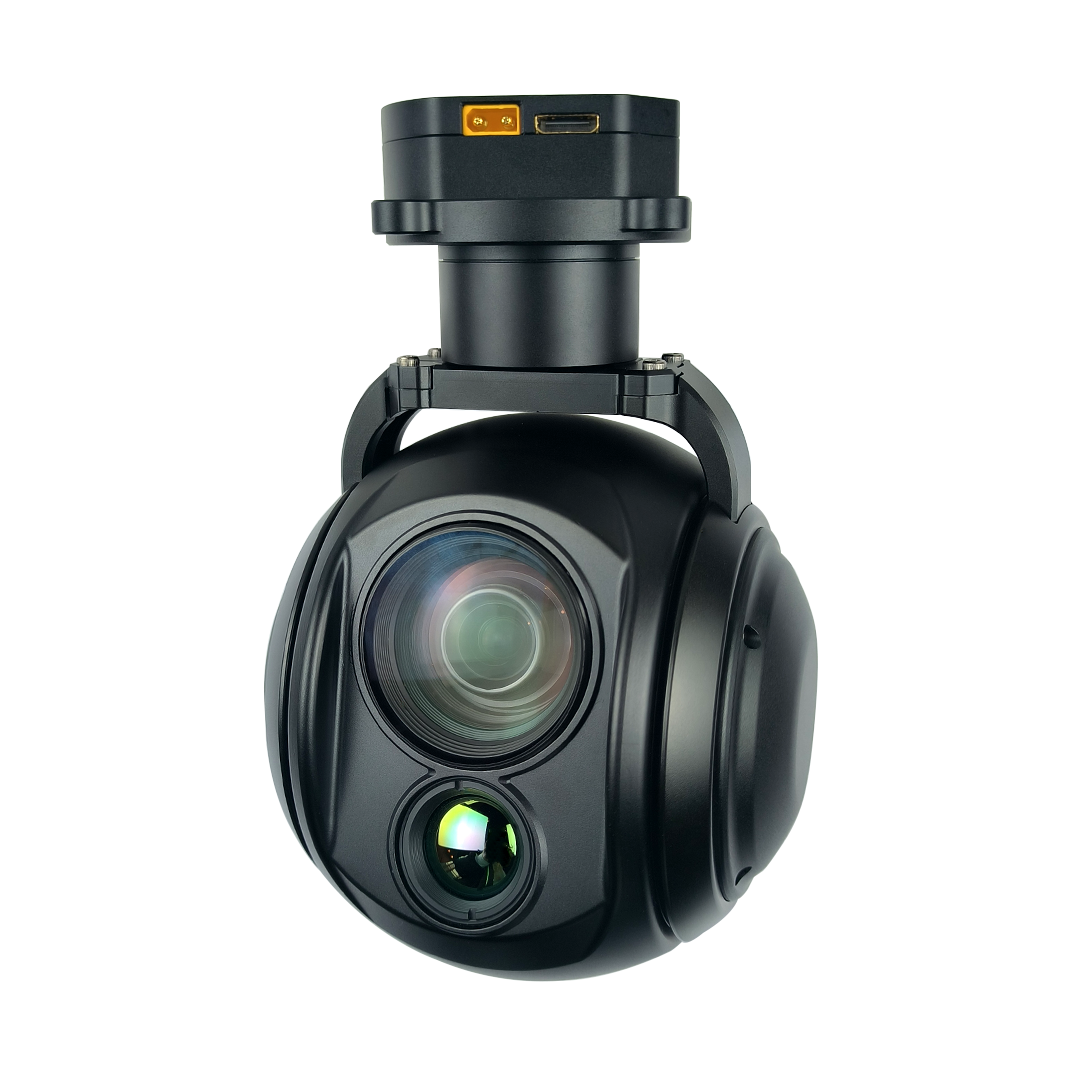

MDYD30G619 High Performance Dual Sensor Gimbal 30X Optical Zoom+19mm 640*512 IR
China Moneypro
DYD30G619 is a professional two-axis stabilization gimbal camera with integrated 270x hybrid zoom daytime CMOS sensor and 19mm focal length 640×512 thermal imaging sensor, supporting Ethernet RTSP output. Its housing is full metal. The gimbal uses a high-precision encoder FOC control scheme, characterized by high stability, small size, light weight, and low power consumption. The visible light sensor employs a wide dynamic CMOS sensor with an effective pixel of 2 million, while the thermal imaging sensor uses a 640×512 resolution vanadium oxide detector with a baffle design. The camera supports RTSP streaming output, 4 Picture-in-Picture modes and 10 pseud-color modes for thermal. Both network and serial port as well as S.BUS can control the camera and gimbal, and it supports local TF card storage.

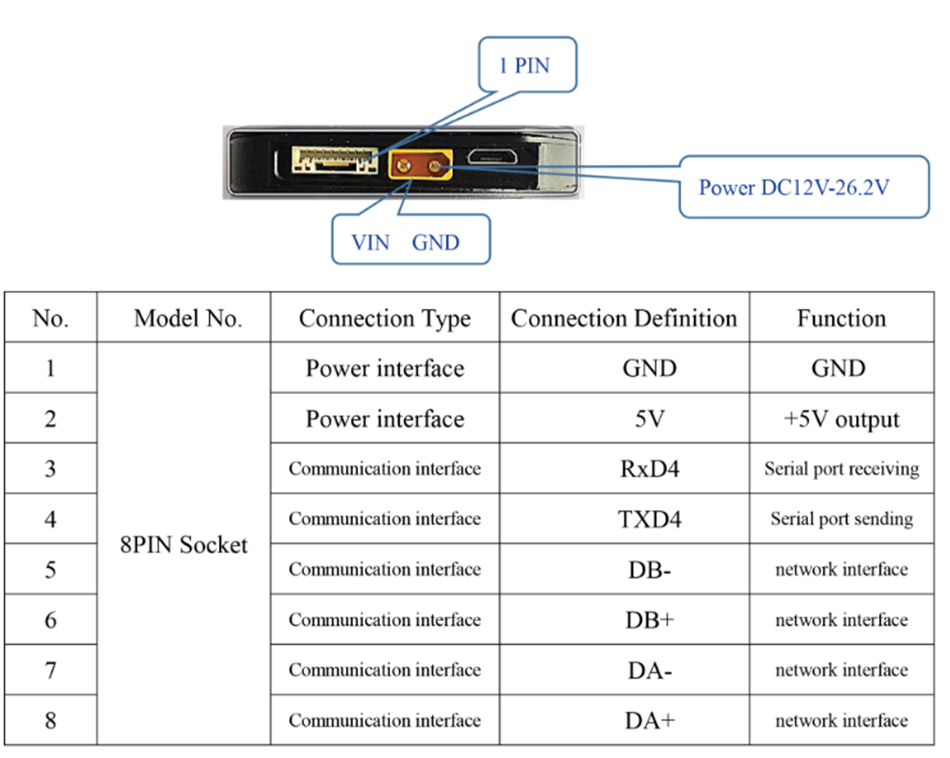

| Voltage： | DC12～26.2V | Power： | Dynamic 7.5W |
| Pitch Angle： | -30°～ +120° | Yaw Angle： | ±360°*N |
| Horizontal angle jitter： | ±0.03° | Tilt and roll direction angle jitter： | ±0.02° |
| One-Click Restore： | One-click to center | Adjustable Gimbal Speed： | When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple |
| CMOS Size： | 1/2.8 INCH 2 mega pixel wide dynamic CMOS SENSOR |
| Optical Zoom： | 30x HD optical zoom lens, f=4.5±10%～135±10%mm |
| AF Time： | Real time fast focusing, focusing time < 1s |
| Video Output： | Network output RTSP 1080P stream, 1080P local TF card storage |
| Field Angle(FOV)： | D : WIDE 67.8º±5% TELE 2.77º±5% H : WIDE 59.8º±5% TELE 2.34º±5% V : WIDE 40.5º±5% TELE 1.48º±5% |
| Support Mode： | 1080P 30fps |
| Resolution ratio： | 640×512pixel |
| Space between pixels： | 12μm |
| Type： | Uncooled vanadium oxide |
| Wavelength Range： | 8～14μm |
| Thermal sensitivity(NETD)： | ≤50mk@25℃@F1.0 |
| Video Output： | IP Output |
| Field of view： | 19mmLens，Field of view：22.9°x18.4° |
| Measurement function (optional)： | Highest, Average, Lowest temperature display, Support global temperature measurement, optional full pixel temperature saving function |
| Min tracking target size： | 16×16 pixels | Max tracking target size： | 256×256 pixels |
| Target Memory Time： | 2 seconds | Tracking speed： | 50 Pixel/Frame max |
| Simultaneous detection qty： | 100 targets max | Recognized categories： | Human and Vehicle |
| Min detection target size： | 32×32 pixels | Debounce： | Dynamic stabilization |

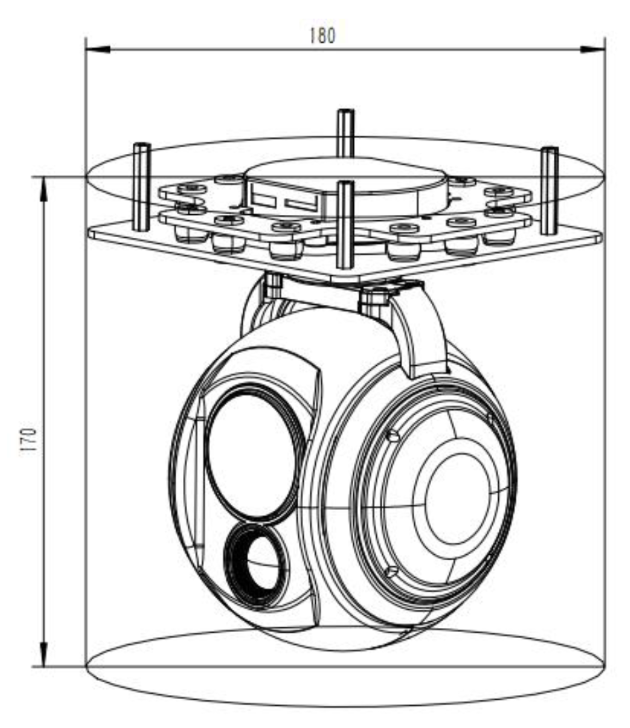

| Dimensions： | 180mm×170mm | Operating Environment： | -10℃ to +60℃ / 20% to 80% RH |
| Storage Conditions： | -20℃ to +80℃ / 20% to 95% RH | Weight： | 865±20g |
