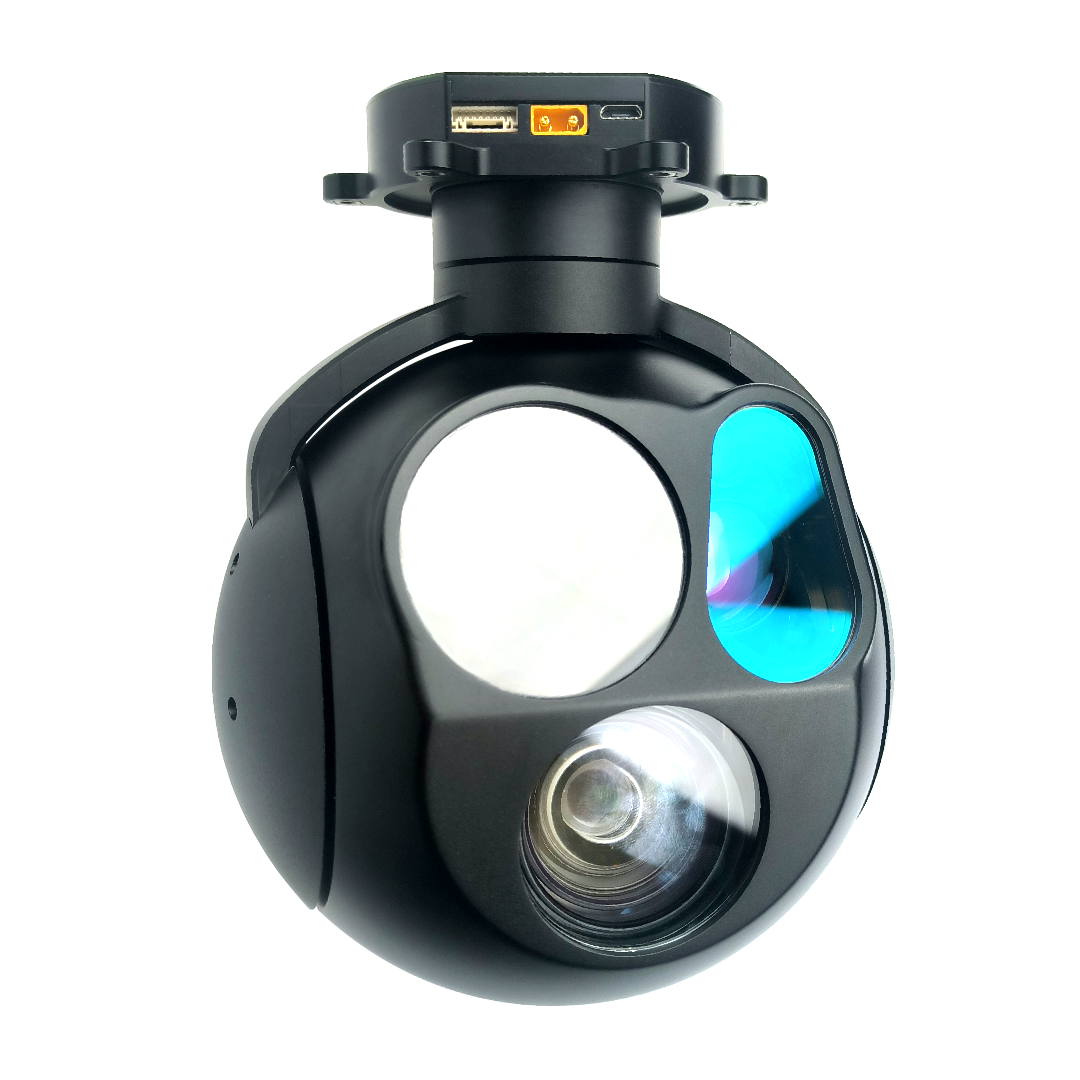

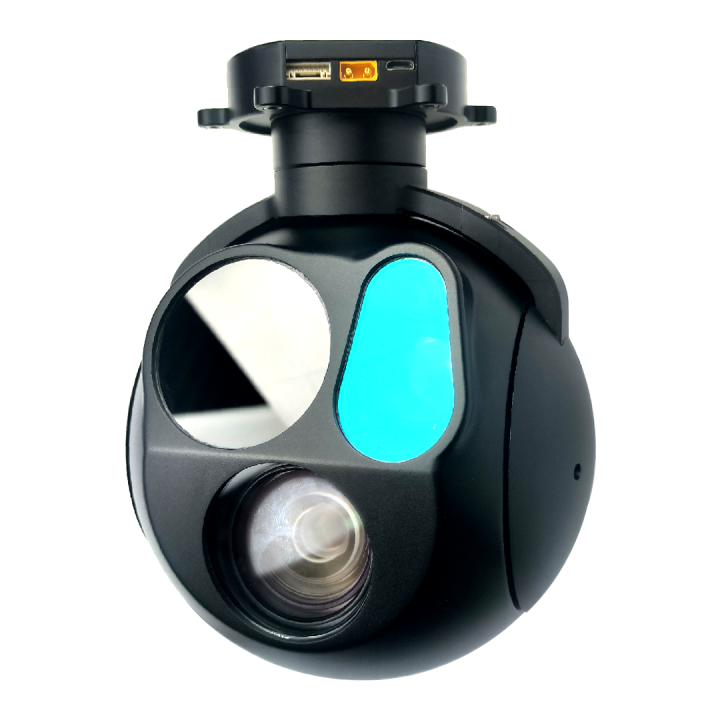

DYD40G635L40 is a three-sensor two-axis stabilization gimbal camera system that integrates an 8MP 140 hybrid zoom, 2x lossless zoom visible light sensor, a 35mm focal length 640*512 thermal sensor, and an up to 4000-meter laser rangefinder. The gimbal uses high-precision encoder FOC control scheme, characterized by high stability, small size, light weight, and low power consumption, supporting network RTSP video output. The visible light sensor employs a high sensitivity, high dynamic range CMOS sensor with an effective pixel of 8 million. The camera supports IP RTSP streaming output, Picture-in-Picture modes and pseud-color modes. Both network and serial port as well as S.BUS can control the camera and gimbal, and it supports local TF card storage.
Voltage：
DC 12V-26.2V
Power：
Dynamic 8W
Pitch Angle：
-20~+100°
Yaw Angle：
±360°*N
Angle jitter in pitch and roll：
±0.02°
Horizontal angle jitter：
±0.03°
One-click return to center function：
Automatically and quickly return to the initial position with one click
Adjustable control speed：
When the gimbal rotates, speed adaptation is based on the current speed mode and visible light camera magnification
CMOS Size：
1/1.8inch 8 mega pixel high dynamic range CMOS SENSOR with 2x lossless zoom
