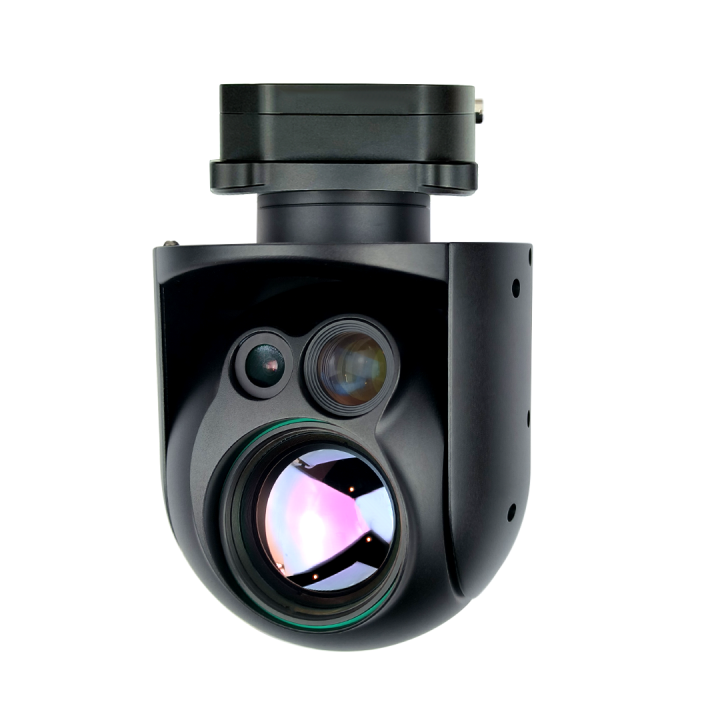

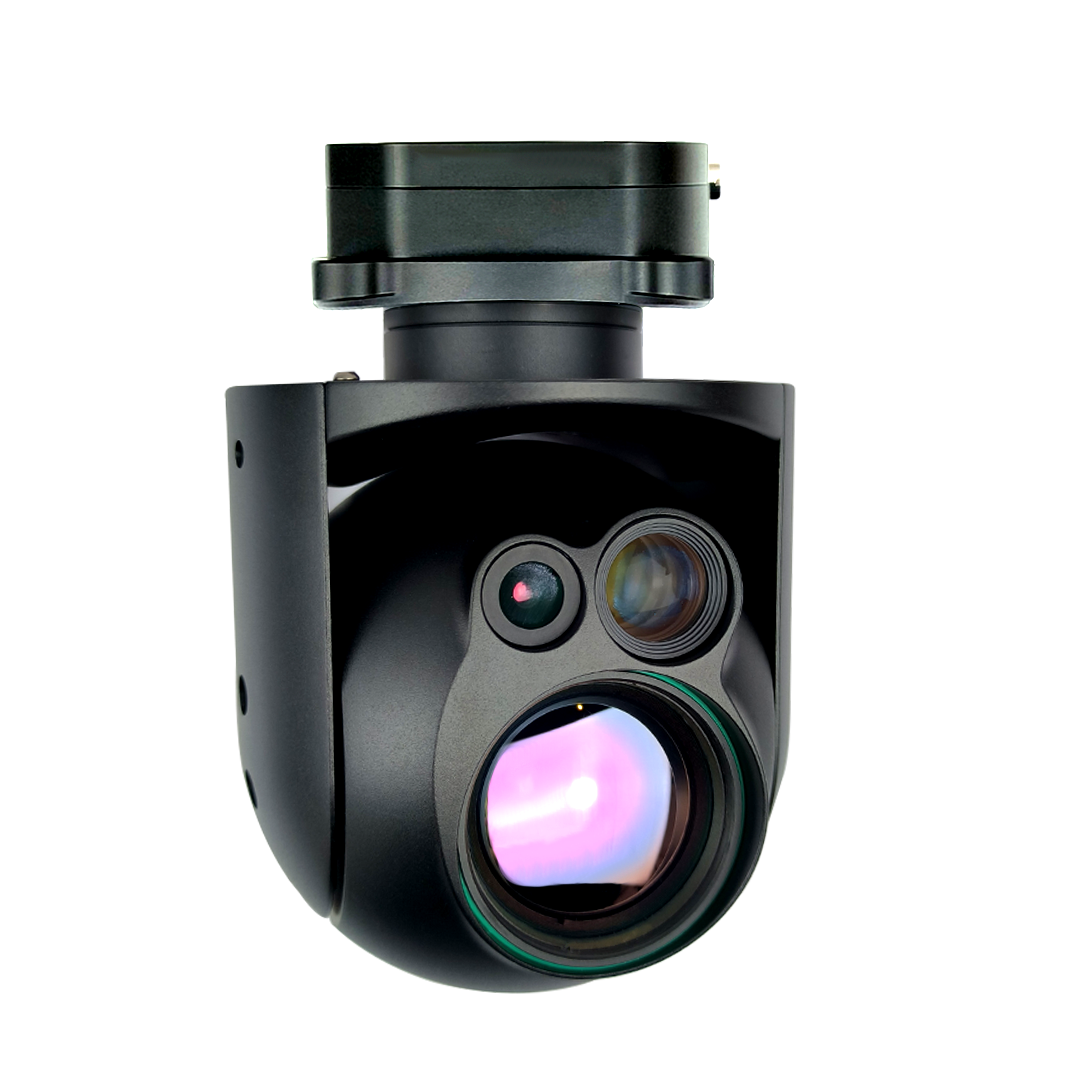

DYD415S90G645 is a three-light and two-axis stabilization small pod that integrates two visible light cameras, one of which is 8 million pixels and the other is 2 million pixels. 45mm focal length 640×512 thermal imaging module. It has the characteristics of high stability, small size, light weight and low power consumption; the system supports network RTSP stream output, three video streams can be combined into picture-in-picture output, supports multiple picture-in-picture modes, and local TF card dual-channel synchronization Video and photo taking. Serial port , network, and S.BUS can control the camera and gimbal, and support 9x digital zoom. The focal lengths of visible light are 35mm and 6mm respectively.
Voltage：
DC 12V-26 .2V
Power：
Dynamic 6.6w
Yaw Angle：
-20°～+180°
Pitch Angle：
360°
Pitch and Roll Jitter Angle：
±0.02 °
Horizontal Jitter Angle：
±0.03 °
One-Click Restore：
One-click restore to the initial position
Adjustable Gimbal Speed：
When the gimbal rotates, the speed is adapted based on the current speed mode the visible light camera multiple
CMOS Size：
CMOS SENSOR ：8MP
Dogital zoom：
Suport 7x digital zoom
Compressed storage mode：
H264，H265,Video streaming local TF card storage 4K
Field Angle（FOV）：
35mm focal-length, FOV： 10.1 °x 7.6 °
CMOS Size：
CMOS SENSOR ：2MP
Dogital zoom：
Suport 9x digital zoom
Compressed storage mode：
H264，Video streaming local TF card storage 4K
Field Angle（FOV）：
6mm focal-length，FOV： 60 °x 43 °
Resolution：
640×512 pixel
Pixel spacing：
12μm
Type：
Uncooled vanadium oxide
Wavelength range：
8～14μm
Thermal sensitivity (NETD)：
≤50mk@25℃@F1.0
Field of view：
45mm focal-length，FOV：9.8° ×7.8°
Global temperature measurement：
Support global temperature measurement, optional full-pixel temperature saving function
