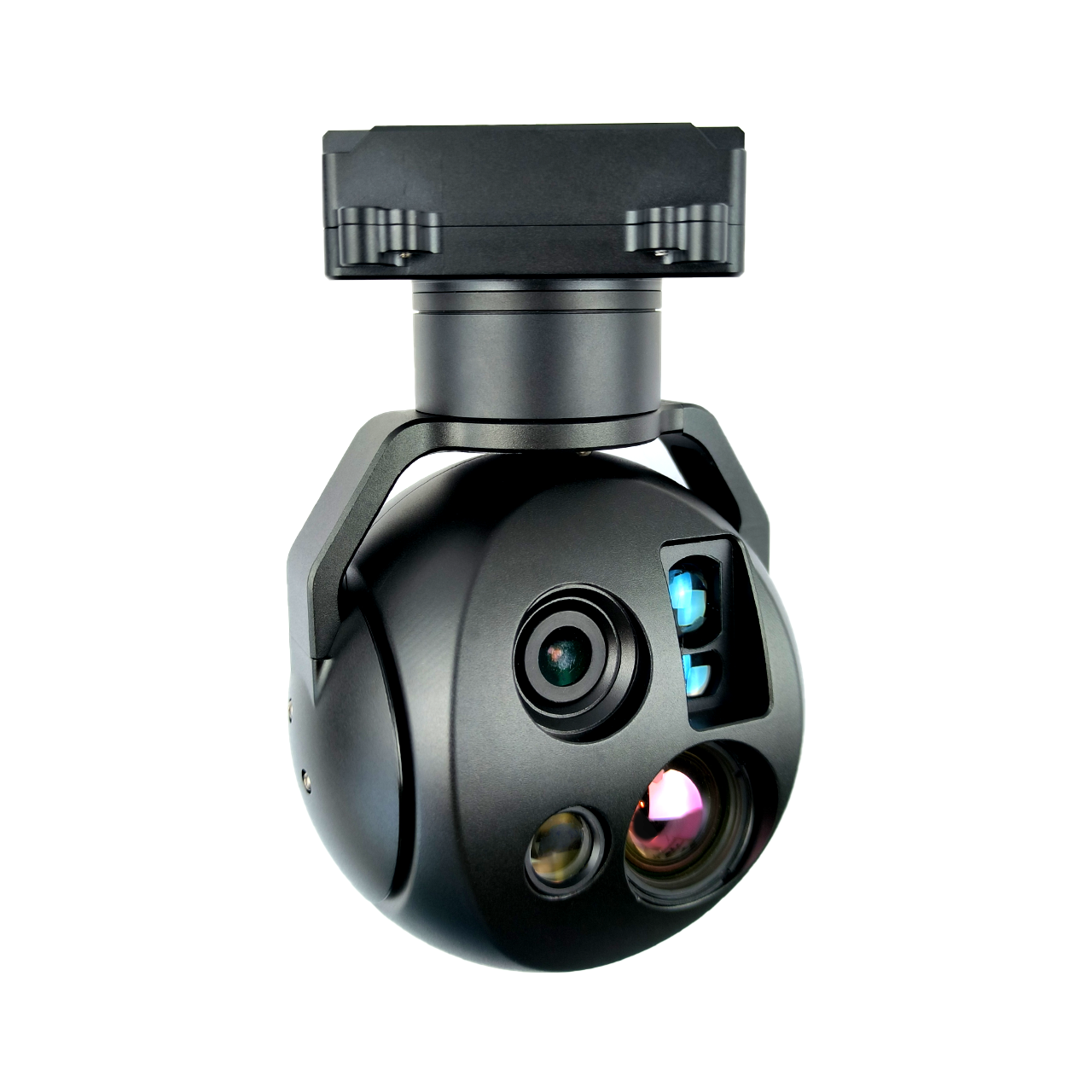

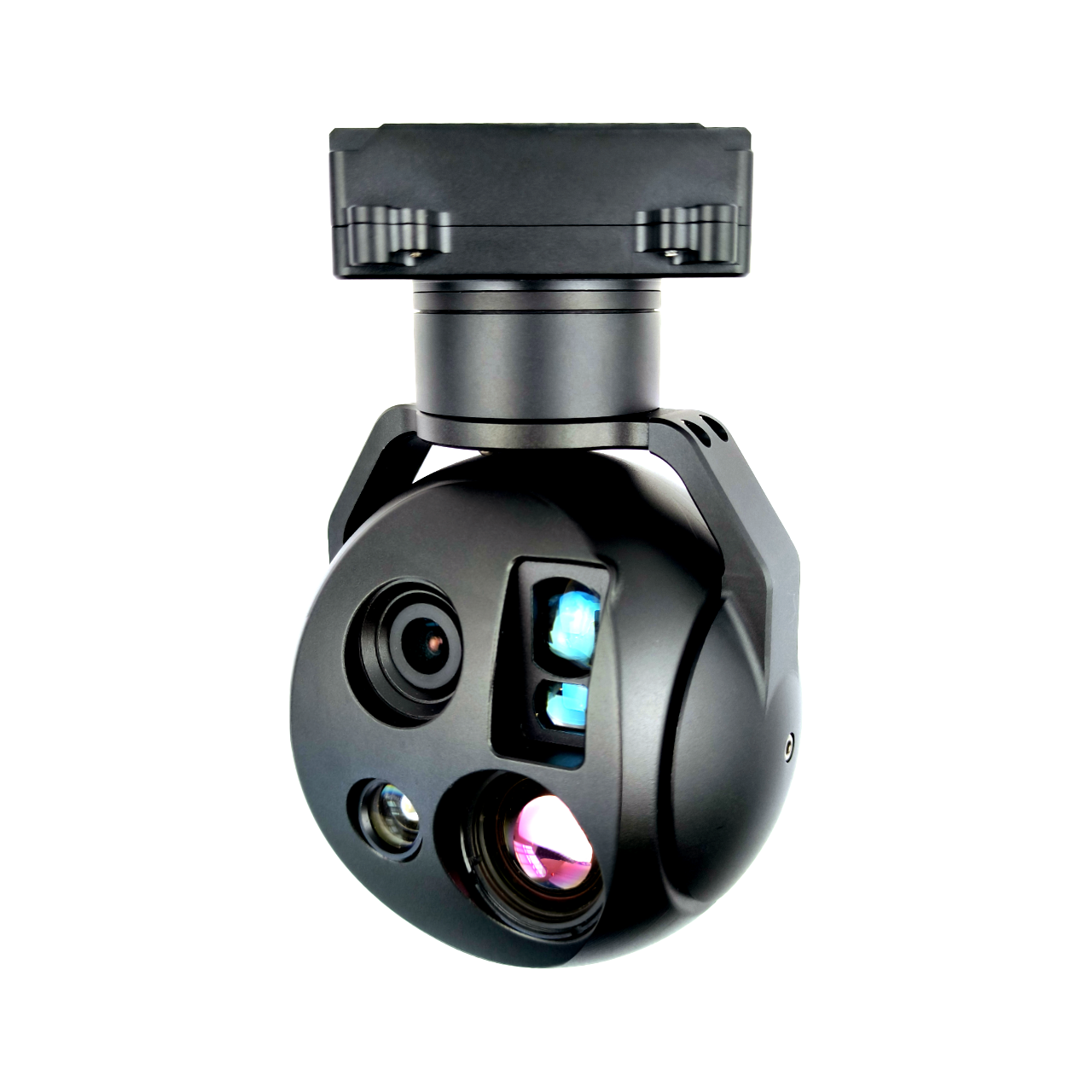

DYDG25D15 is a four-sensor two-axis stabilization small optical pod that integrates two visible light cameras, one with a 25mm focal length of 8 mega pixel, and one with a 6mm focal length of 2 mega pixel.,It supports digital zoom.25mm Lens 640×512 thermal imaging camera and 1500-meter laser rangefinder. The pod uses network IP and HDMI dual output, which has the characteristics of high stability, small size, light weight and low power consumption; the system supports network RTSP code stream output, and the two video streams can be combined and output in picture-in-picture, supporting a variety of picture in picture modes, supporting local TF card 2-ways recording and photography, one channel is 4K, the other is 1080P. UART, network, and S.BUS can all control the camera and gimbal.
Voltage：
DC 12V-26.2V
Power Supply：
Dynamic 6W
Roll Angle：
-30°～+100°
Yaw Angle：
-140°～+140°
Horizontal angle jitter：
±0.03°
Angle jitter in pitch and roll directions：
±0.02°
Adjustable control speed：
When the gimbal rotates, speed adaptation is based on the current speed mode and visible light camera magnification
One-click return to center function：
Automatically and quickly return to the initial position with one click
CMOS Size：
CMOS SENSOR：8 mega pixel
Digital Zoom：
7x Digital Zoom
Compressed Storage Mode：
H264，H265,video streaming local TF storage 4K
Field of View (FOV)：
25mm lens, FOV： 10.5°× 7.8°
CMOS Size：
CMOS SENSOR：2 mega pixel
Digital Zoom：
9x Digital Zoom
Compressed Storage Mode：
H264，H265,video streaming local TF storage 1080p
Field of View (FOV)：
6mm lens，FOV： 60°× 43°
Resolution：
640*512 pixel
Pixel spacing：
12μm
Type：
Uncooled Vanadium Oxide Detectorr
Wavelength range：
8～14μm
Thermal sensitivity (NETD)：
≤40mk@f1.0/25℃
Field of view：
25mm focal length，FOV:17.3×14.0°
Measuring function：
Support global temperature measurement, optional full pixel temperature saving function
