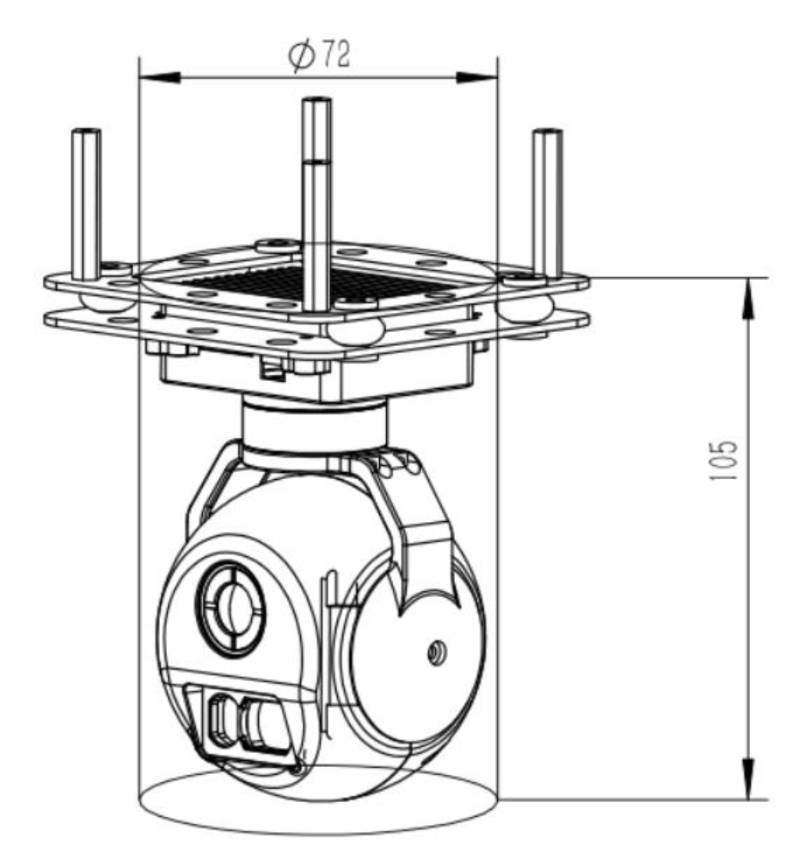

DYDG609L12 is a high-precision two-axis stabilized camera gimbal integrated with a 640*512 thermal imaging sensor and a 1200m laser rangefinder, supporting IP and HDMI video output. The gimbal uses a high-precision encoder FOC control scheme, characterized by high stability, small size, light weight, and low power consumption. The thermal imaging sensor uses a 640×512 resolution vanadium oxide detector, and its focal length is 9.1mm. The camera supports serial port, S.BUS and IP control, back up with TF card pictures and videos storage.
Voltage：
DC 12V-26.2V
Power：
Dynamic 6W
Pitch Angle Range：
-30～+100°
Yaw Angle Range：
-140°～+140°
Horizontal Angle Jitter：
±0.03°
Pitch and Roll Angle Jitter：
±0.02°
One-click Return Function：
Quick return to initial position with one click
Adjustable PTZ Speed：
The current speed mode based on the multiple zoom of camera
Resolution：
640*512
Pixel spacing：
12μm
Type：
Uncooled vanadium oxide
Wavelength range：
8～14μm
Thermal sensitivity (NETD)：
≤40mk@F1.0@25℃
Field of view：
9.1mm Lens，Field of view：48.3°×38.7°
Measurement function (optional)：
Highest, Average, Lowest temperature display, Support global temperature measurement, optional full pixel temperature saving function
