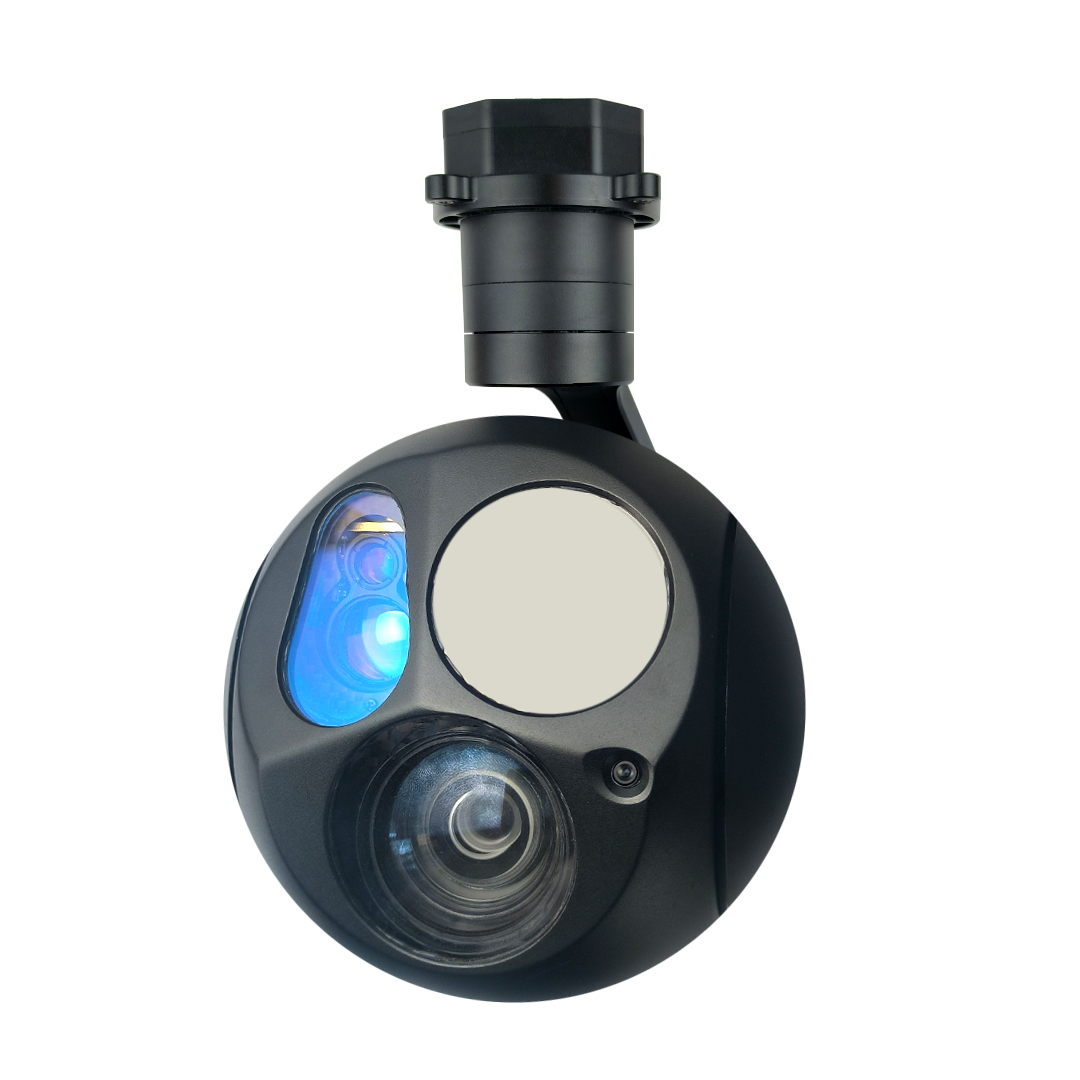

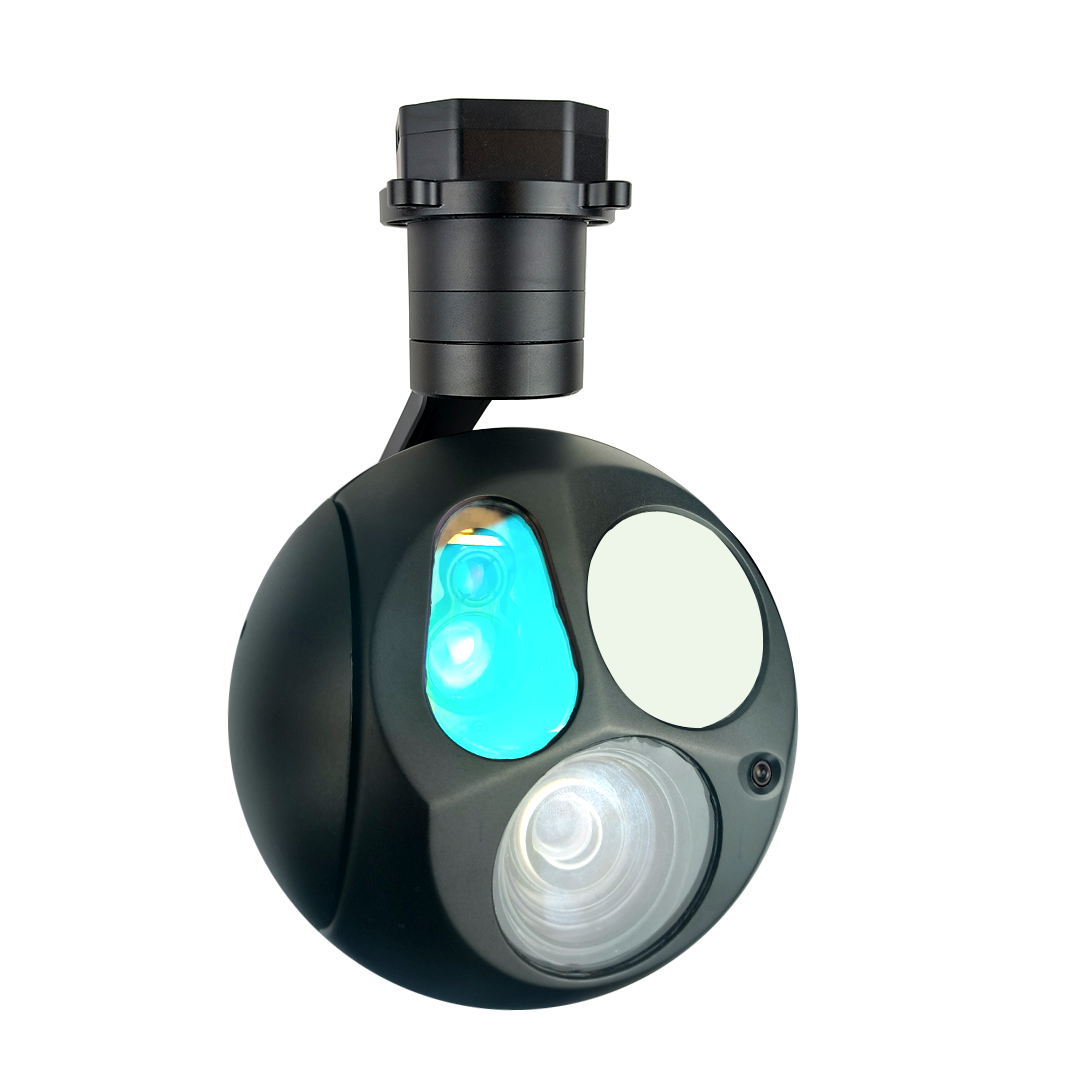

E40S48A645L30 is a high-precision professional three-axis stabilization pod with integrated 180x hybrid zoom, 48MP fixed focus, 640×512 thermal imager, 45mm focal length, and 3000m laser ranging. This pod adopts a compact design with high stability, high integration, and low power consumption. The camera uses a SENSOR with an effective pixel of 48 million; 40x lossless zoom; thermal imaging uses a vanadium oxide 1280 resolution detector. 3000m high-precision ranging function. Provides software ground station, supports picture-in-picture display of dual-channel video, network, S.BUS and serial port can directly control the PTZ and camera, supports local TF storage and network file read and write operations, supports dual-channel synchronous recording, supports multiple picture-in-picture modes and pseudo-color switching.
Voltage：
DC12～26.2V
Power Supply：
Dynamic 10W
Roll angle range：
﹣45°～ ﹢45°
Pitch angle range：
-30°～ +110°
Heading angle range：
-285°～ +285°
Angle jitter in pitch and roll directions：
±0.02°
Horizontal angle jitter：
±0.03°
One-click return to center function：
One-click automatic quick return to initial position
PTZ control speed adjustable：
When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple
Control method：

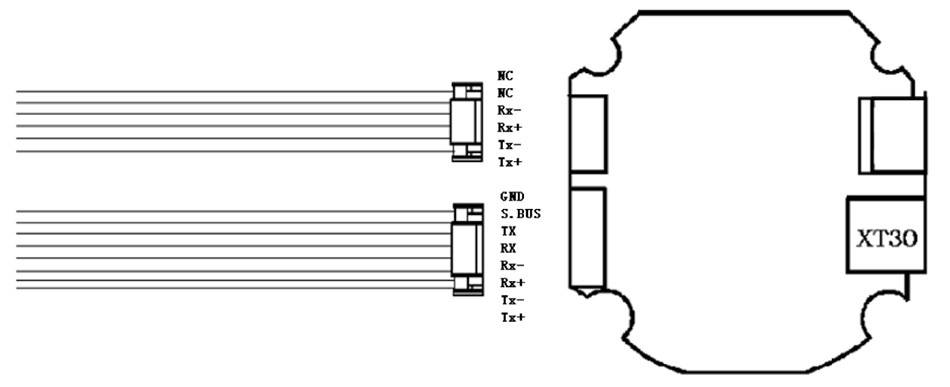

Support network IP control, S.BUS control, serial port control (PWM control is optional)
CMOS Size：
1/1.8 inch 8 megapixel wide dynamic range CMOS SENSOR
Optical zoom：
20x high-definition optical zoom lens, f=6.7～125 mm ±5%
Focus time：
Real-time fast focus function, focusing time <1S
Video Output：
Network output RTSP 1080P stream, local TF 1080P storage
Field of View（FOV）：
D : WIDE 66.6º±5% TELE 4.0º±5% H : WIDE 59.6º±5% TELE 3.5º±5% V : WIDE 35.7º±5% TELE 2.0º±5%
Support Mode：
1080P 30fps
CMOS Size：
1/2 inch 48 million pixels
Focal length：
3.5mm
Field of view：
53.2*67.2
Resolution：
640*512 pixel
Pixel spacing：
12μm
Type：
Uncooled focal plane microbolometer
Wavelength range：
8～12μm
Thermal sensitivity (NETD)：
≤50mk@F1.0@25℃
Field of view：
45mm lens, field of view: 9.7° x 7.8°
Measurement Functions：
Support global temperature measurement, optional full pixel temperature saving function
