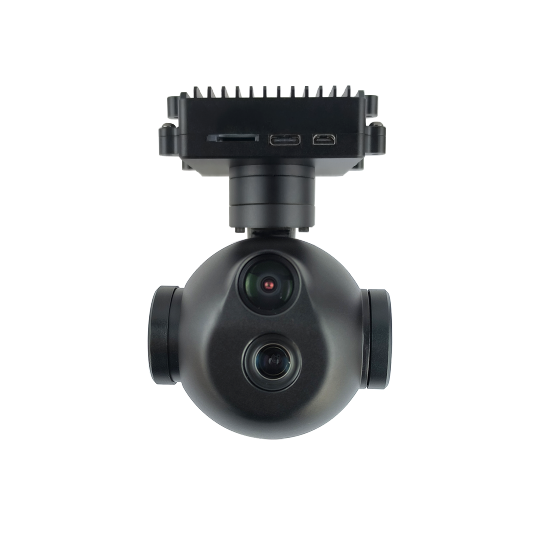

The EHP03S86 is a dual-light integrated system featuring a 3x optical zoom and a 48-megapixel fixed-focus high-precision professional three-axis stabilized gondola. The gimbal adopts a high-precision encoder FOC control scheme, which is characterized by high stability, small size, light weight, and low power consumption. The fixed-focus and zoom visible light cameras are equipped with a 48-megapixel sensor. The system supports network RTSP picture-in-picture stream output and multiple picture-in-picture modes. Both serial port and network S.BUS can control the camera and gimbal, and it supports local TF card dual-channel video recording and photo taking.
Voltage：
DC 12V-26.2V
Power：
Dynamic 8W
Roll Angle action range：
-45°～+45°
Pitch action range：
-50°～ +130°
Yaw angle action range：
-150°～ +150°
Angle jitter in pitch and roll directions：
±0.02°
Horizontal angle jitter：
±0.03°
One-click return function：
One-click automatic quick return to the initial position
Gimbal control speed adjustable：
When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple
Control mode：
Support network IP control, serial port control, S.BUS control (PWM control is optional)
CMOS Size：
1/2 inch 48 million pixel CMOS SENSOR
Optical zoom：
3x HD optical zoom lens,15mm(Wide)-50mm(Tele)±5%
Focus time：
Real-time fast focus function, focusing time <1S
Video Output：
Network HD RTSP output 1080P, video stream local TF storage
Field Angle(FOV)：
D : WIDE 28.98º±3% TELE 9.06º±3% H : WIDE 23.48º±3% TELE 7.29º±3% V : WIDE 17.81º±3% TELE 5.49º±3%
