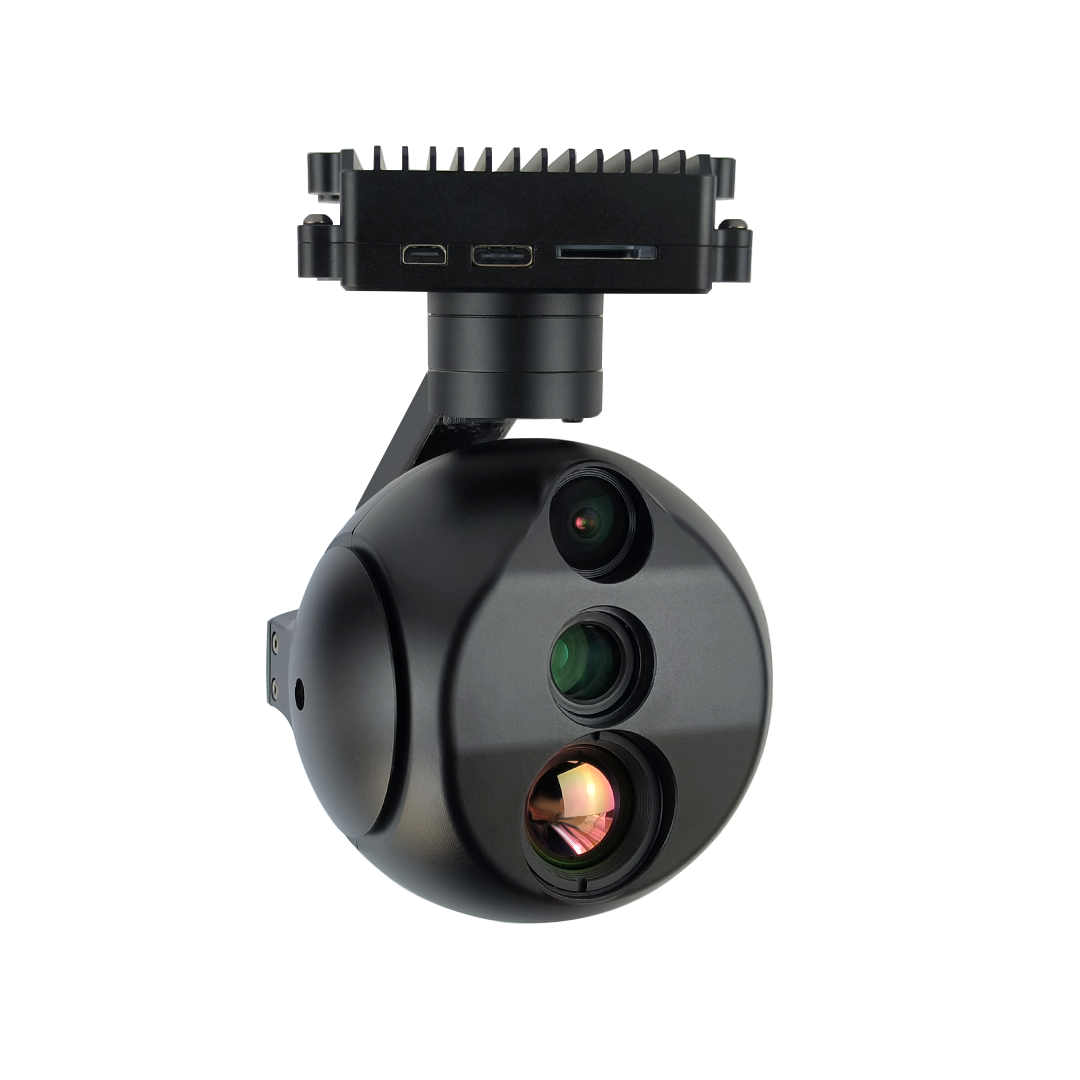

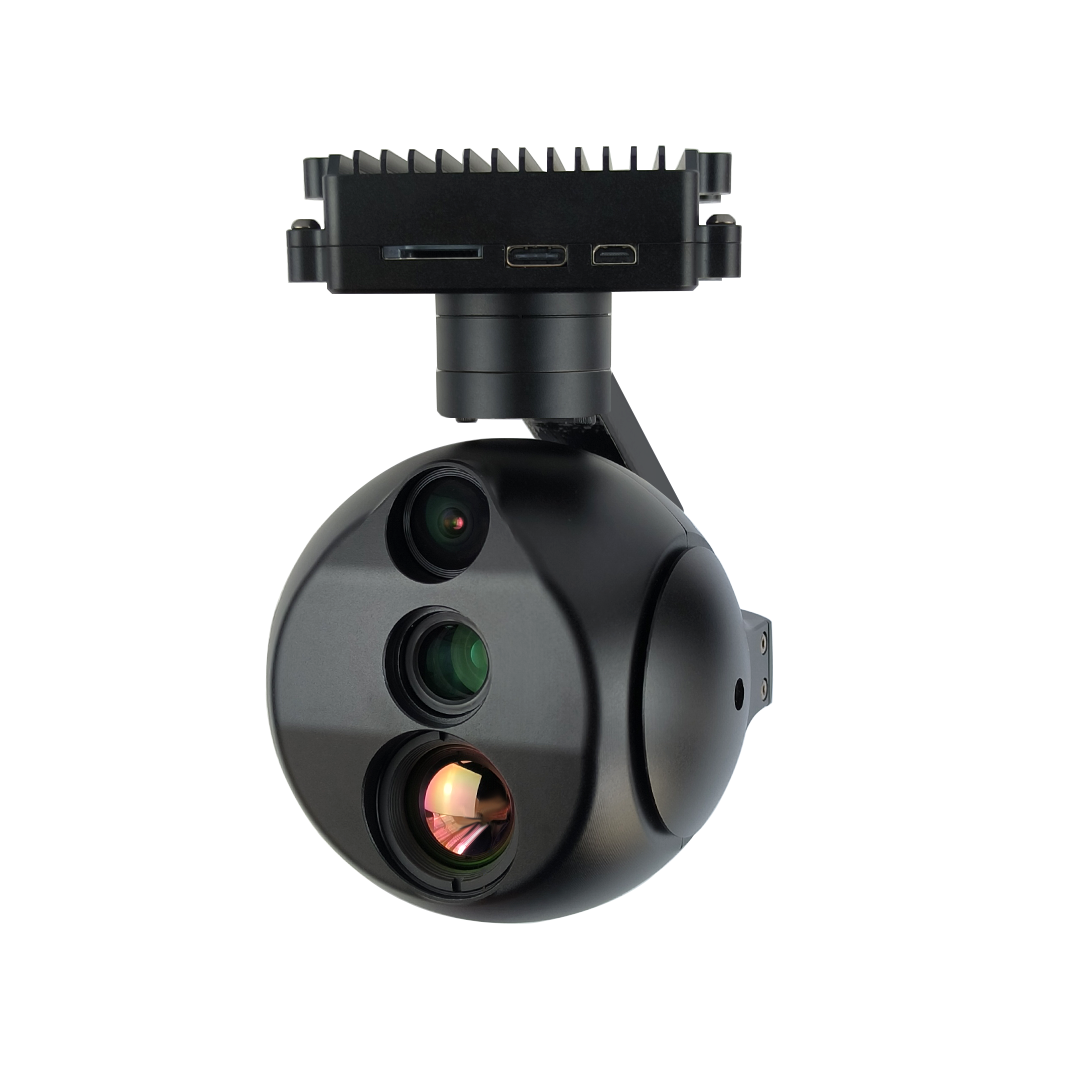

EHP03S86G19 is a three-in-one system with 3X optical zoom, 48MP fixed focus, and 640×512 thermal imaging high-precision professional three-axis stabilization pod. The gimbal adopts a high-precision encoder FOC control solution, which has the characteristics of high stability, small size, light weight, and low power consumption; the fixed-focus and zoom visible light cameras use a SENSOR with an effective pixel of 48 million; the thermal imaging uses a vanadium oxide detector. The system supports network RTSP picture-in-picture stream output, supports multiple picture-in-picture modes, multiple pseudo-color displays, and supports global temperature measurement functions. Both the serial port and the network S.BUS can control the camera and the gimbal, and support local TF card dual-channel video recording and photography. The focal length of this thermal imaging lens is 19mm.
Voltage：
DC 12V-26.2V
Power：
Dynamic 8W
Roll angle range：
-45° ～ +45°
Pitch angle range：
-60°～ +125°
Yaw angle range：
-150°～ +150°
Angle jitter in pitch and roll directions：
±0.02°
Horizontal Angle jitter：
±0.03°
One-click return function：
One-click automatic quick return to the initial position
Gimbal control speed adjustable：
When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple
Control mode：

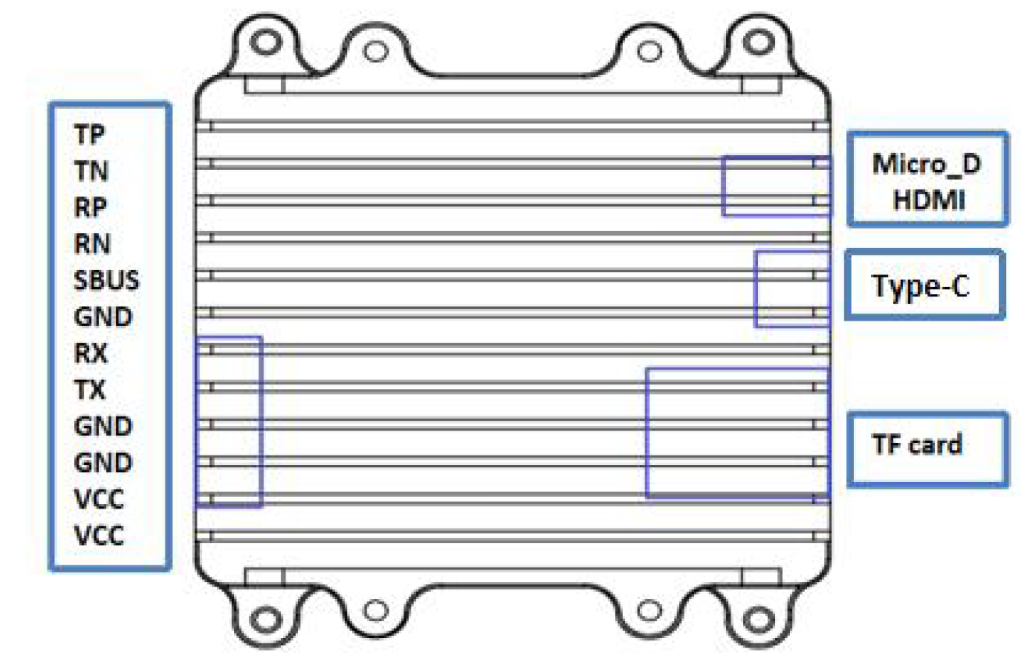

Support network IP control, serial port control, S.BUS control (PWM control is optional)
CMOS Size：
1/2 inch 48 million pixel CMOS SENSOR
Optical Zoom：
3x HD optical zoom lens,15mm(Wide)-50mm(Tele)±5%
Focus time：
Real-time fast focus function, focusing time <1S
Video Output：
Network HD RTSP output 1080P, video stream local TF storage
Field Angle（FOV）：
D : WIDE 28.98º±3% TELE 9.06º±3% H : WIDE 23.48º±3% TELE 7.29º±3% V : WIDE 17.81º±3% TELE 5.49º±3%
CMOS Size：
CMOS SENSOR pixels: 48 million pixels
Digital zoom：
Support 9x digital zoom
Compressed storage mode：
H264，H265,Video stream local TF card storage
Network support mode：
1080P 30fps
Field Angle（FOV）：
FOV：120°× 94°× 70°
Resolution：
640*512
Pixel spacing：
12μm
Type：
Uncooled focal plane microbolometer
Wavelength range：
8～14μm
Thermal sensitivity (NETD)：
≤50mk@F1.0@25℃
Field of view：
19mm lens，angle：32.9°× 26.6°
Measurement function (optional)：
Support global temperature measurement, optional full pixel temperature saving function
