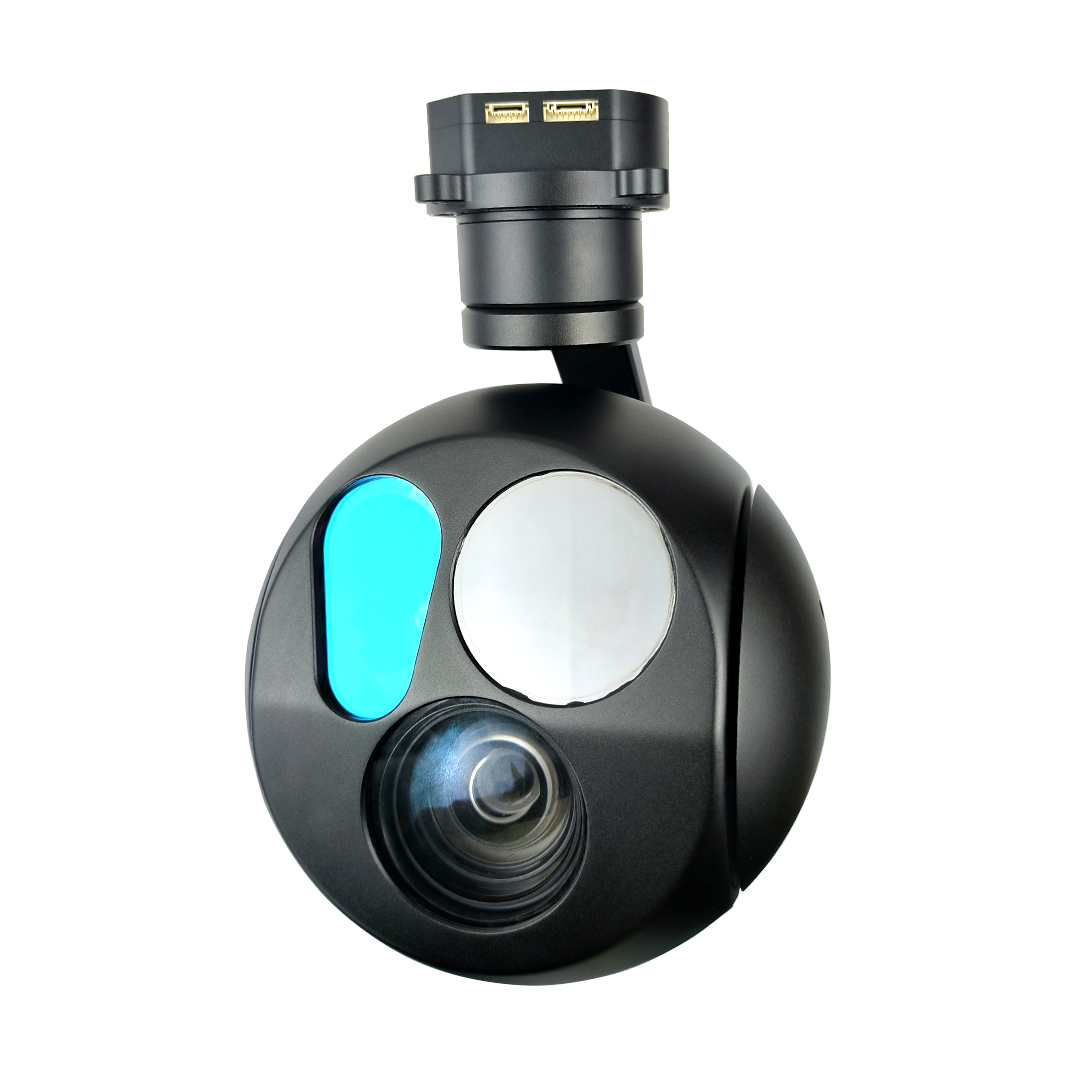

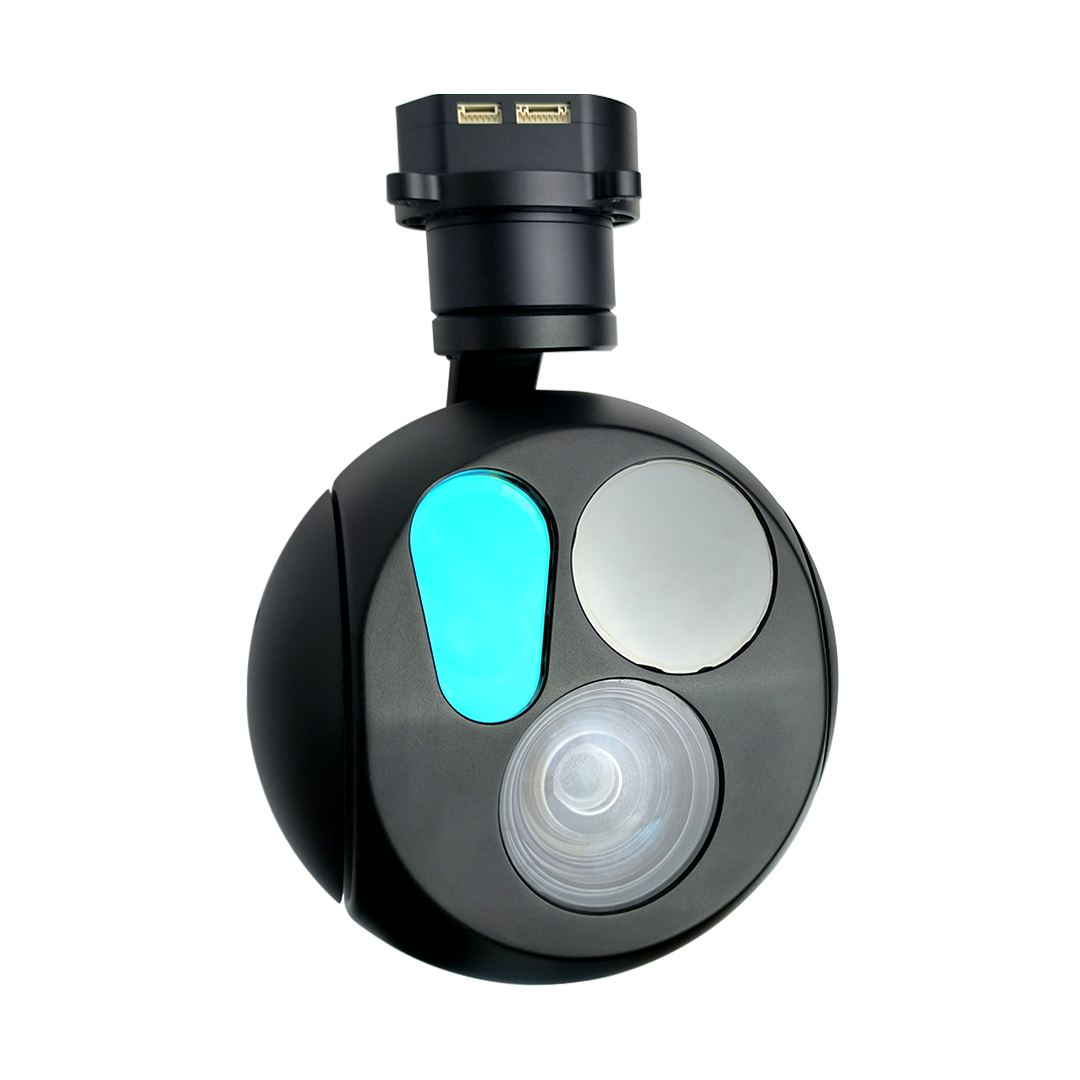

EHP20G12L30 is a high-precision professional three-axis stabilization pod with integrated 140x hybrid zoom, 1280×1024 thermal imager with 25mm focal length, and 3000m laser ranging. This pod adopts a compact design with high stability, high integration, and low power consumption. The visible light camera uses a wide dynamic sensor with an effective pixel of 8 mega; the thermal imaging uses a vanadium oxide 1280 resolution detector with a built-in baffle. 3000m high-precision ranging function. Provides software ground station, supports picture-in-picture display of dual-channel video, network, S.BUS and serial port can directly control the PTZ and camera, supports local TF storage and network file read and write operations, supports dual-channel synchronous recording, supports multiple picture-in-picture modes and pseudo-color switching.
Voltage：
DC12～26.2V
Power：
Dynamic 10W
Roll angle：
﹣45°～ ﹢45°
Pitch Angle：
-30°～ +110°
Yaw Angle：
-285°～ +285°
Angle jitter in pitch and roll directions：
±0.02°
Horizontal angle jitter：
±0.03°
One-click return to the center function：
Quick return to initial position with one click
Adjustable Gimbal Speed：
When the gimbal rotates, speed adaptation is based on the current speed mode and visible light camera magnification
Control Mode：

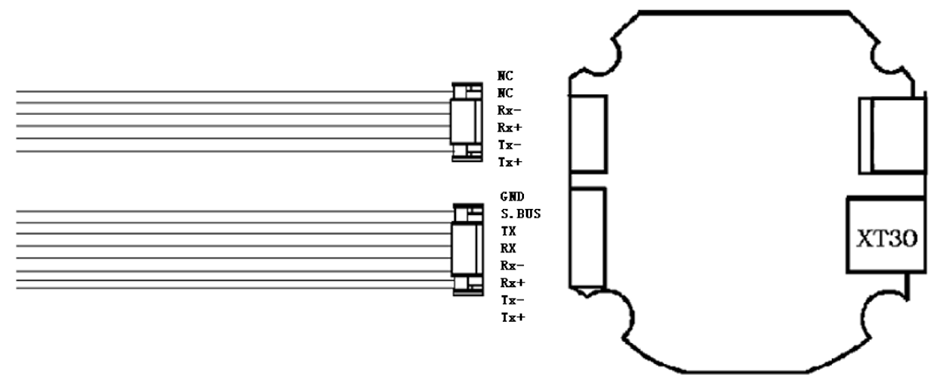

Support network IP control, serial port control, S.BUS control (PWM control is optional)
CMOS Size：
1/1.8 INCH mega pixel Wide dynamic range CMOS SENSOR
Optical Zoom：
20x HD optical zoom lens, f=6.7～125 mm ±5%
Focus time：
Real-time fast focus function, focusing time <1S
Field Angle（FOV）：
D : WIDE 66。6º±5% TELE 4.0º±5% H : WIDE 59.6º±5% TELE 3.5º±5% V : WIDE 35.7º±5% TELE 2.0º±5%
Video output：
Network output RTSP 1080P stream, local TF 1080P storage
Support Mode：
1080P 30fps
Resolution：
1280×1024 pixel
Pixel spacing：
12μm
Type：
Uncooled Vanadium Oxide Detector
Wavelength range：
8～14μm
Thermal sensitivity (NETD)：
≤50mk@F1.0@25℃
Field of view：
25mm lens，Field of Angle：34.2°x 27.6°
Global temperature measurement：
Support global temperature measurement, optional full pixel temperature saving function
