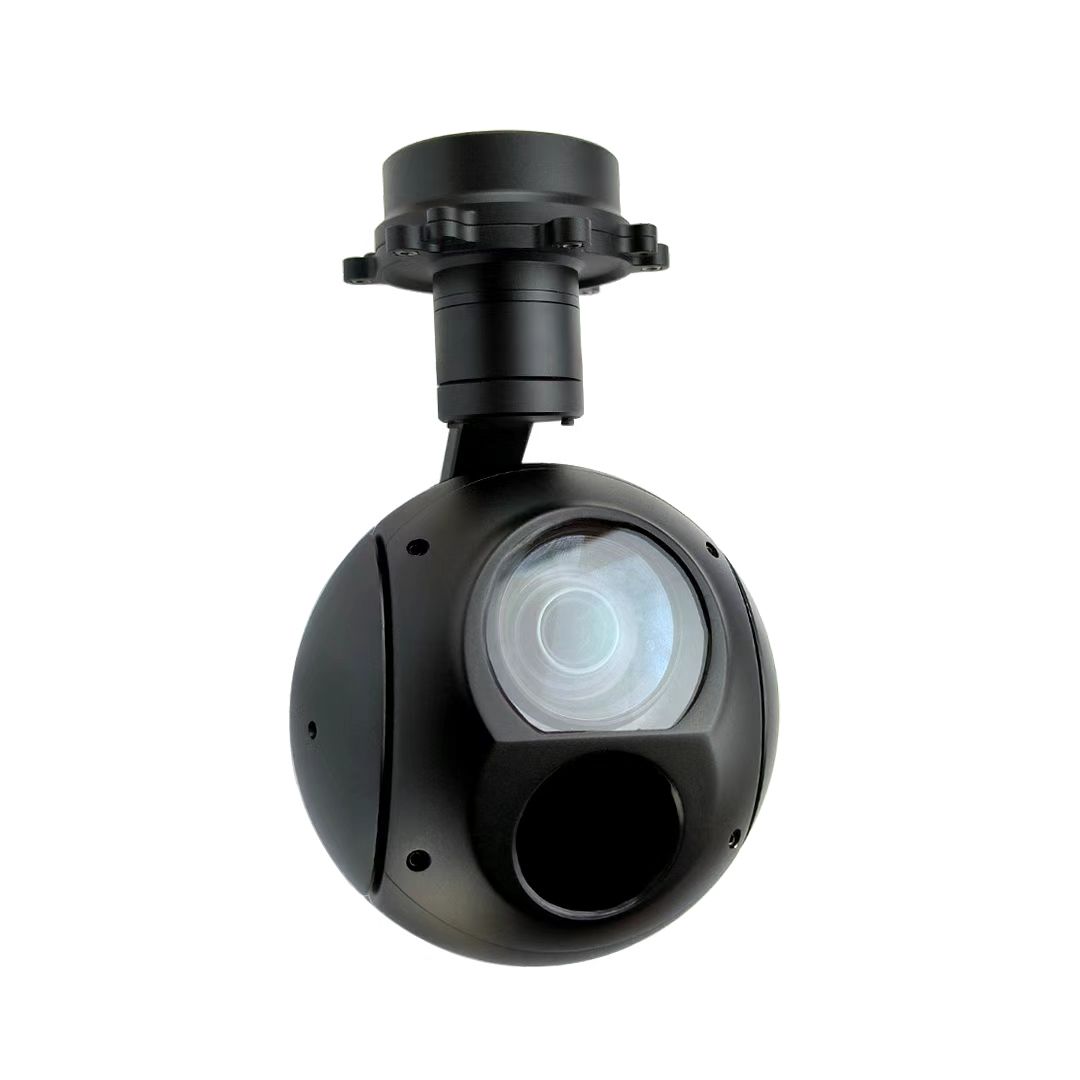

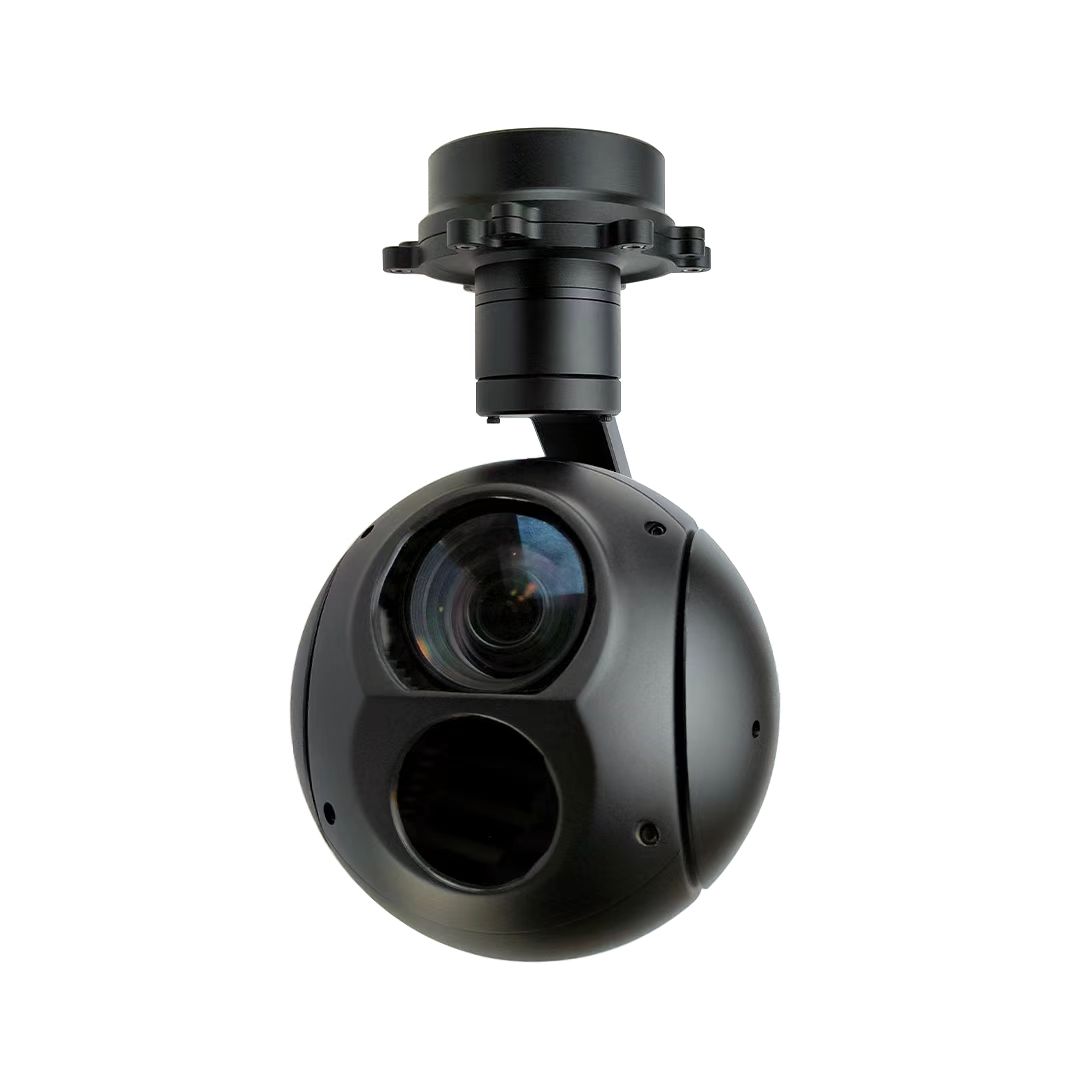

The FSD20G619 is an integrated high-precision three-axis stabilized dual-light waterproof network gimbal, featuring a 20x optical zoom camera and a 640×512 thermal imager. This dual-light waterproof dome camera employs an aviation-grade waterproof interface and an external network IP communication interface. It adopts a high-precision encoder FOC control scheme, characterized by high stability, compact size, light weight, and low power consumption. The visible light camera uses an 8-megapixel wide dynamic range sensor, while the thermal imager features a 640×512 resolution detector with a shutterless design. It provides ground control system, supporting picture-in-picture display of dual video streams, direct network control of the gimbal and camera, local TF card storage, and network file read/write operations. It also supports dual-channel synchronous recording, multiple picture-in-picture modes, pseudo-color switching, and IP67 protection.
Voltage：
3S -6S（12V-26V）
Power：
Static 7.8W
Roll Angle：
-40°~+40°
Pitch Angle：
-40°~+120°
Yaw Angle：
-280°~+280°
Tilt and roll direction angle jitter：
±0.02°
Horizontal angle jitter：
±0.03°
One-key return function：
One-click automatic quick return to the initial position
PTZ control speed adjustable：
When the PTZ rotates, the speed is adaptive based on the current speed mode and the multiple of the visible camera
Control mode：
Support network IP control and serial port control (optional SBUS and PWM control)
CMOS Size：
1 / 1.8 Inch 8 mega pixel wide dynamic range CMOS sensor
Optical Zoom：
20x HD optical zoom lens, f=6.7～125 mm ±5%
Focusing time：
Real time focusing, fast focusing time < 1s
Video Output：
Network HD RTSP output 1080p, 1080p video recording
Field Angle(FOV)：
D : WIDE 66。6º±5% TELE 4.0º±5% H : WIDE 59.6º±5% TELE 3.5º±5% V : WIDE 35.7º±5% TELE 2.0º±5%
Support Mode：
1080P 30fps
Resolution ratio：
640×512 pixel
Space between pixels：
12μm
Type：
Uncooled vanadium oxide
Wavelength Range：
8～14μm
Thermal sensitivity(NETD)：
≤50mk@25℃@F1.0
Field angle：
19mm lens，FOV：22.9°x18.4°
Measurement function (optional)：
Center point, maximum temp and minimum temp display; Support all area temp measurement
