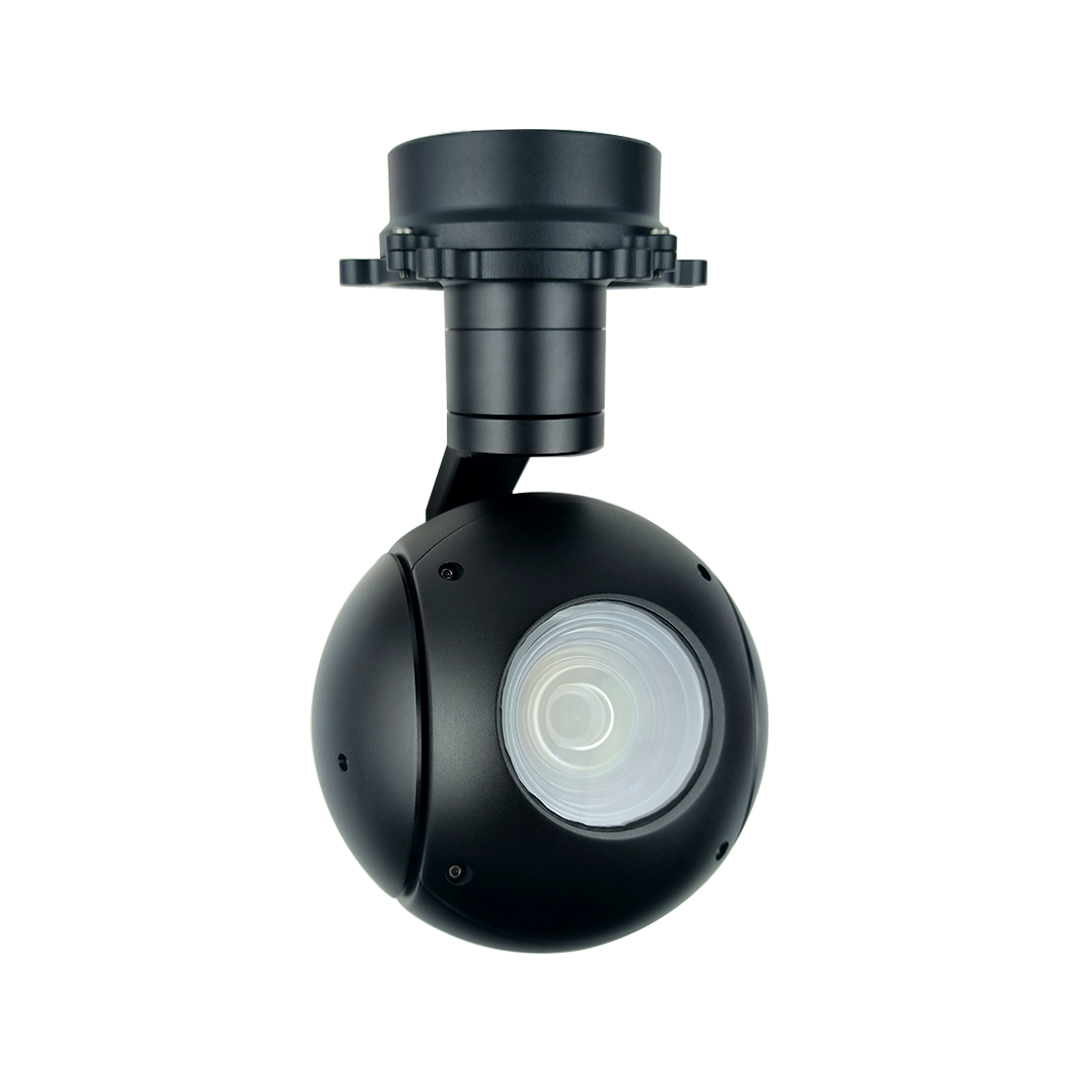

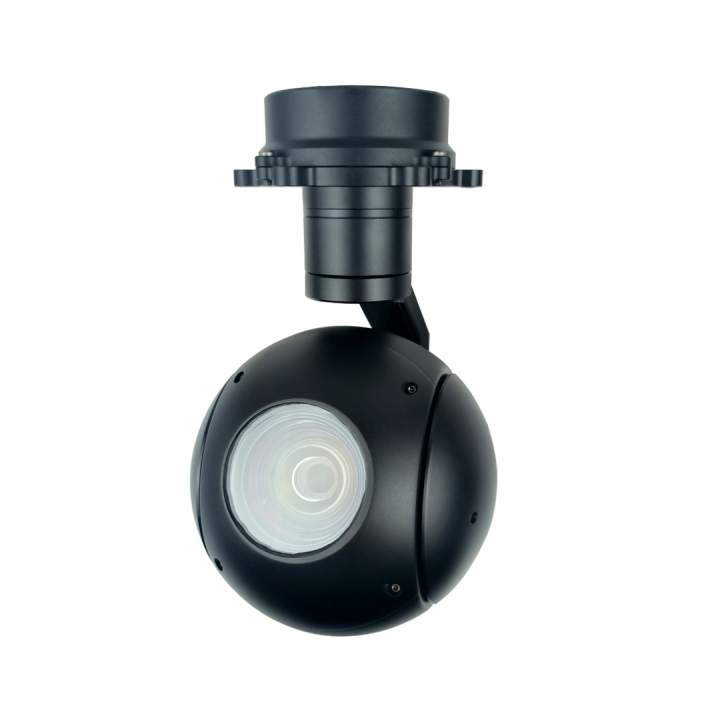

FSD20S78 is a high-precision professional three-axis stabilized waterproof network housing that integrates a 20x optical zoom camera. This dual-light waterproof dome camera features an aviation waterproof interface and an external network IP communication interface. It adopts a high-precision encoder FOC control scheme, with the characteristics of high stability, small size, light weight, and low power consumption. The camera uses a STARVIS2 sensor with 8 million effective pixels and a low-noise SENSOR; it supports local TF card storage and wireless transmission for 4K and 1080P resolutions. It supports IP67 protection.

Voltage：	3S-6S(12V-26V)	Power：	Static 8.4W, dynamic 11W
Roll angle action range：	-40°～ +40°	Pitch angle action range：	-40°~+110°
Yaw angle action range：	-280°~+280°	Pitch and Roll Jitter Angle：	±0.02°
Horizontal Jitter Angle：	±0.03°	One-Click Restore：	One-click restore to the initial position
PTZ control speed adjustable：	When the PTZ rotates, the speed is adaptive based on the current speedmode and the multiple of the visible camera	Control mode：	Support network lP control and serial port control(optional SBuS and PWM control)

SENSOR：	1 / 1.8 Inch 8 mega pixel wide dynamic range CMOS sensor
Optical Zoom：	20x HD optical zoom lens, f=6.7～125 mm ±5%
Focusing time：	Real time focusing, fast focusing time < 1s
Video output：	Network HD RTSP output 1080p, 1080p video recording
Field Angle (FOV)：	D : WIDE 66。6º±5% TELE 4.0º±5%   H : WIDE 59.6º±5% TELE 3.5º±5%   V : WIDE 35.7º±5% TELE 2.0º±5%

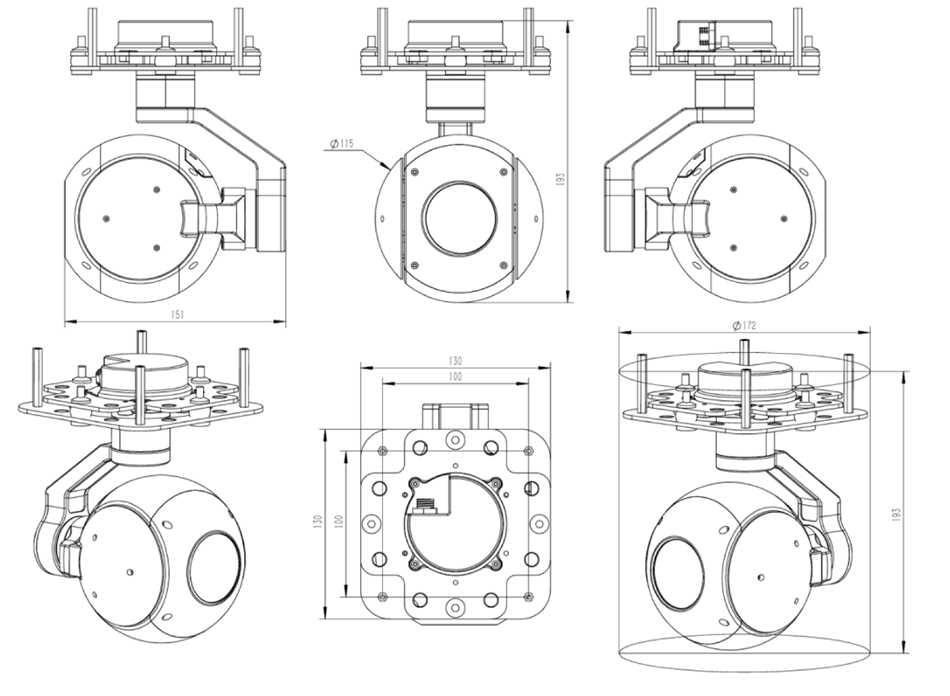

Device Size：	φ:183mm H:204 mm	Work Condition：	-10°℃ to +45℃℃/20% to 80% RH
Storage Condition：	-20°℃ to +65℃℃ /20% to 95% RH	Weight (Not including dampers)	1120±20g

Min tracking target size：	16×16 pixels	Max tracking target size：	256×256 pixels
Target Memory Time：	2 seconds	Tracking speed：	50 Pixel/Frame max
Simultaneous detection qty：	100 targets max	Recognized categories：	Human and Vehicle
Min detection target size：	32×32 pixels	Debounce：	Dynamic stabilization
