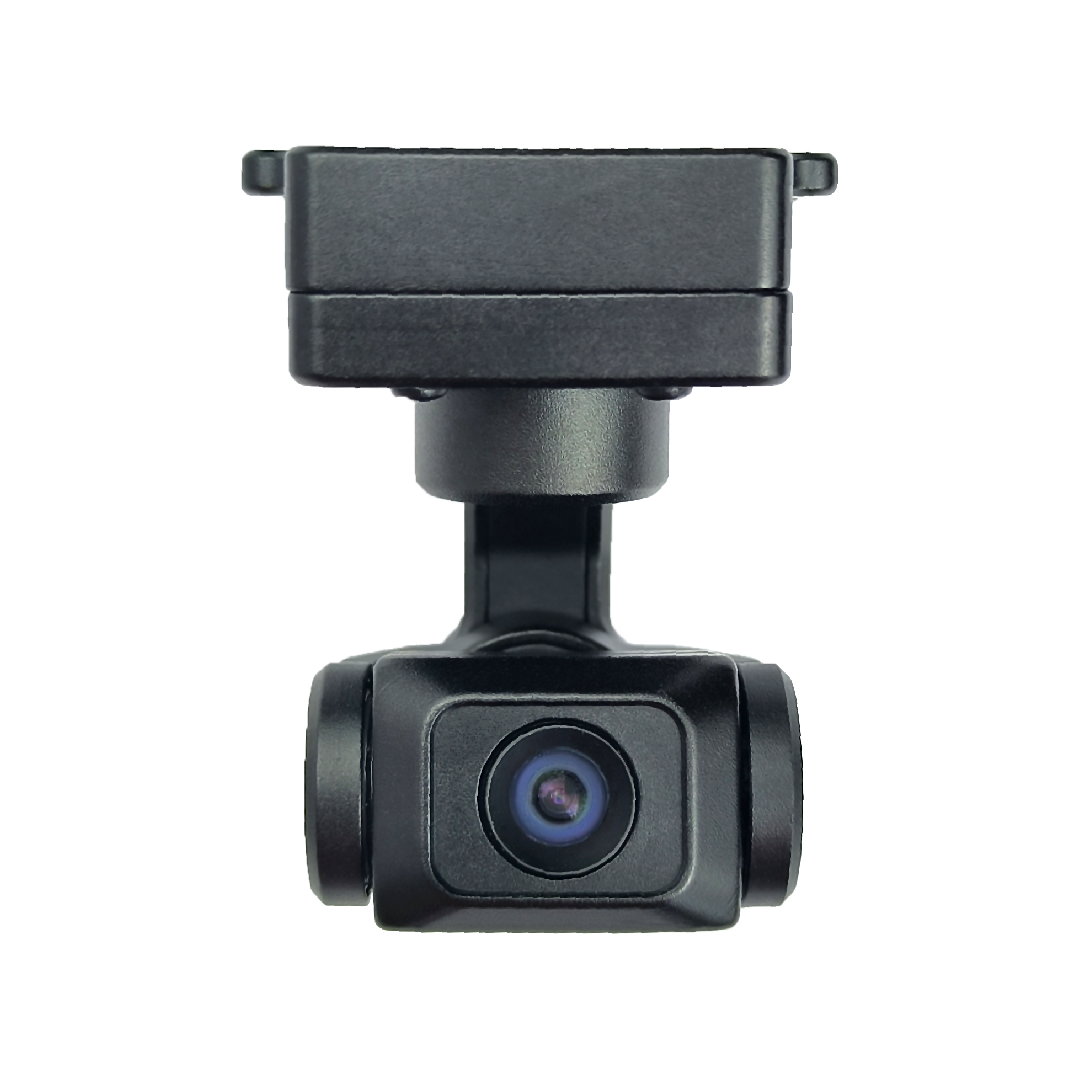

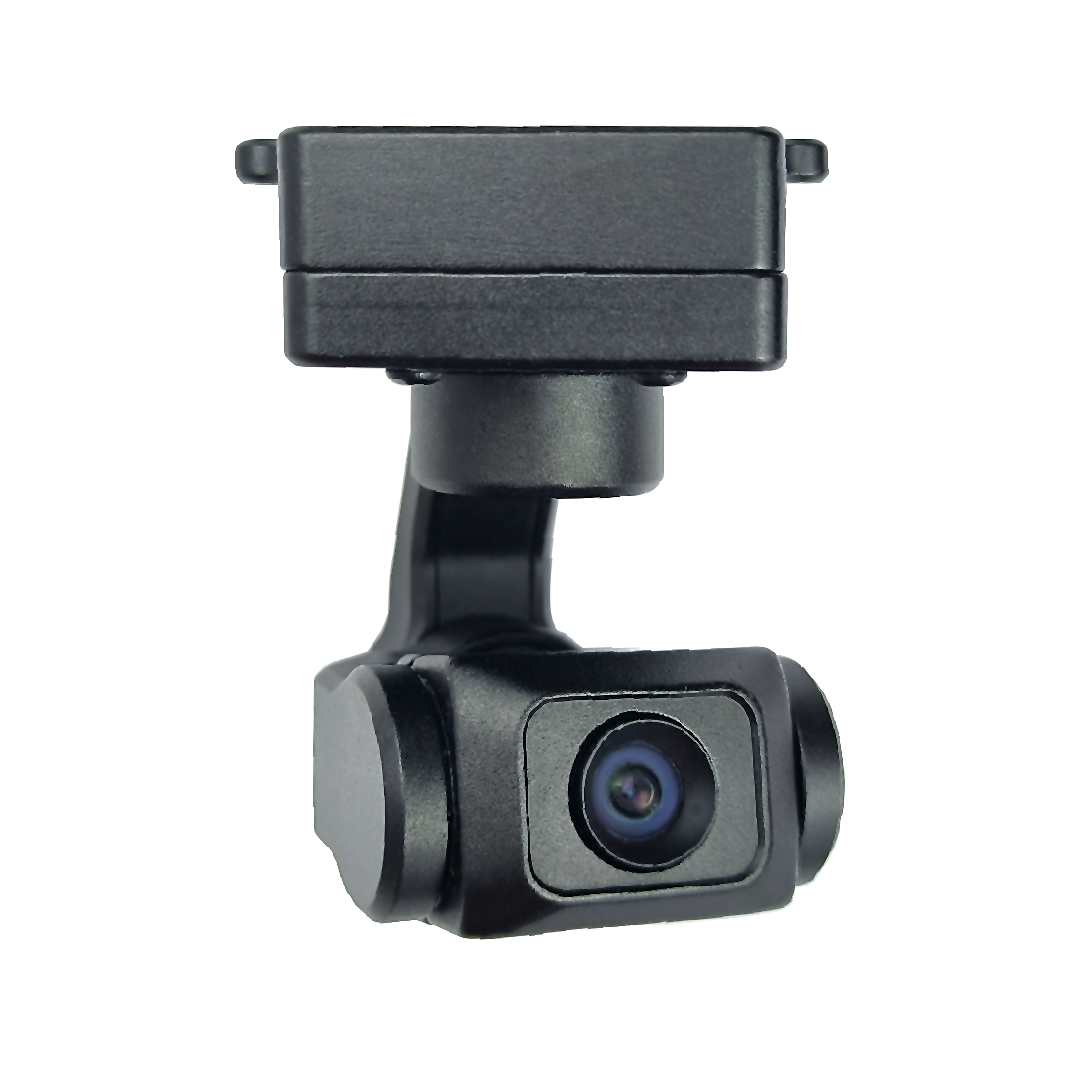

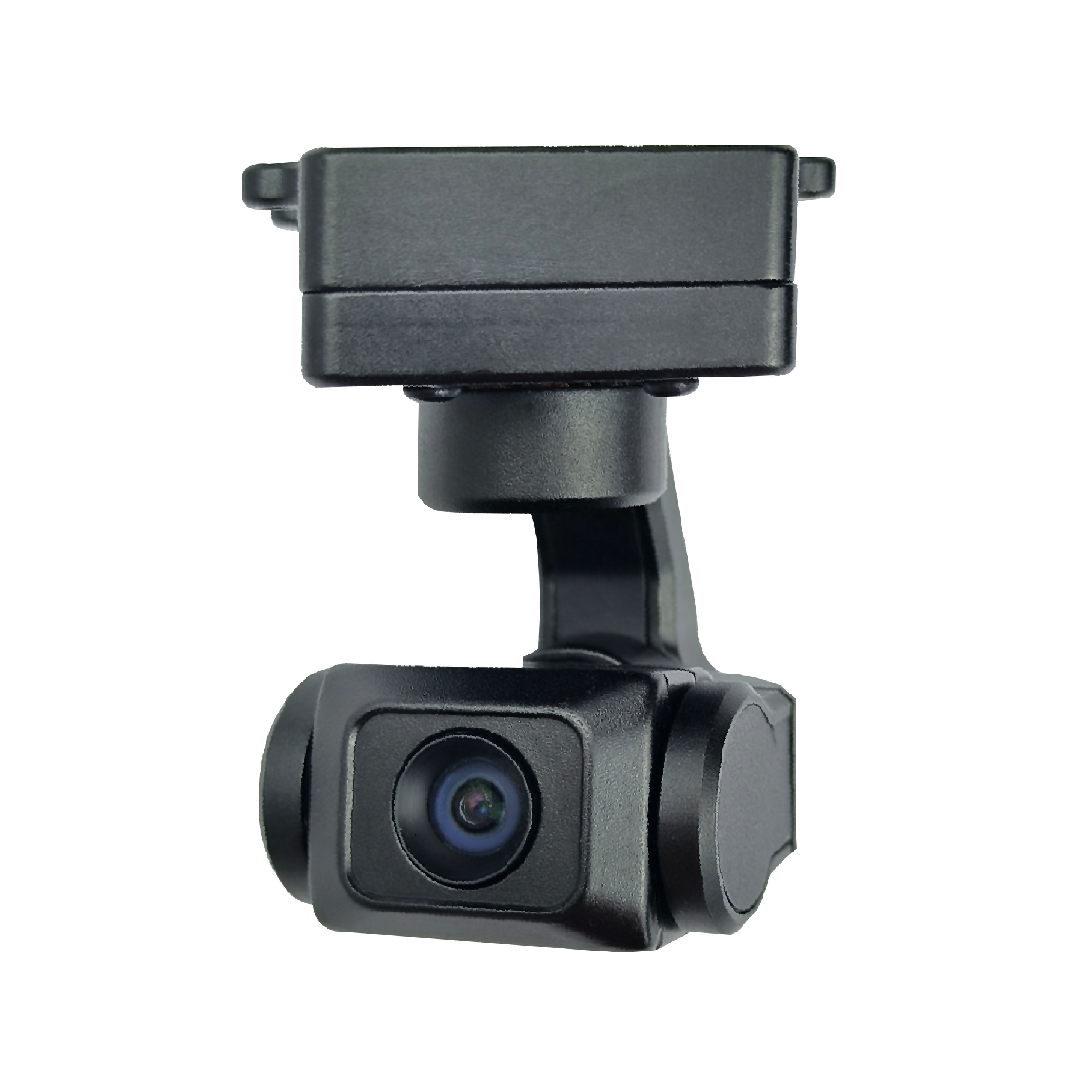

The GIP335 is a network output camera integrated with a 9x digital zoom and a high-precision professional three-axis stabilized gimbal. The gimbal uses a Hall effect scheme, characterized by high stability, small size, light weight, and low power consumption. The visible light camera employs a high-definition SENSOR with an effective pixel of 4 million. The camera supports 1080P network RTSP streaming output. Both network and serial port as well as S.BUS can control the camera and gimbal, and it supports local TF card storage.

Voltage：	DC 3S-6s	Power：	Dynamitic 3W
Roll angle action range：	-40°～ +40°	Pitch angle action range：	-30°~+90°
Yaw angle action range：	-130°~+130°	Pitch and Roll Jitter Angle：	±0.02°
Horizontal Jitter Angle：	±0.03°	One-Click Restore：	One-click restore to the initial position
Adjustable Gimbal ControlSpeed：	Gimbal rotation is speed-adaptive based on the currentspeed mode and the visible light camera magnification	Control Methods：	Supports network lP control, SBUS control, serial portcontrol(optional PWM control available)

SENSOR：	4-megapixel high-definition CMOS SENSOR
Digital Zoom：	9X digital zoom
Compression Storage Mode：	H264,H265 video stream local TF storage
Network Output Mode：	1080P 30fps
Focal Length：	3mm
Field of View (FOV)：	FOV:D=78°H=68°V=46°

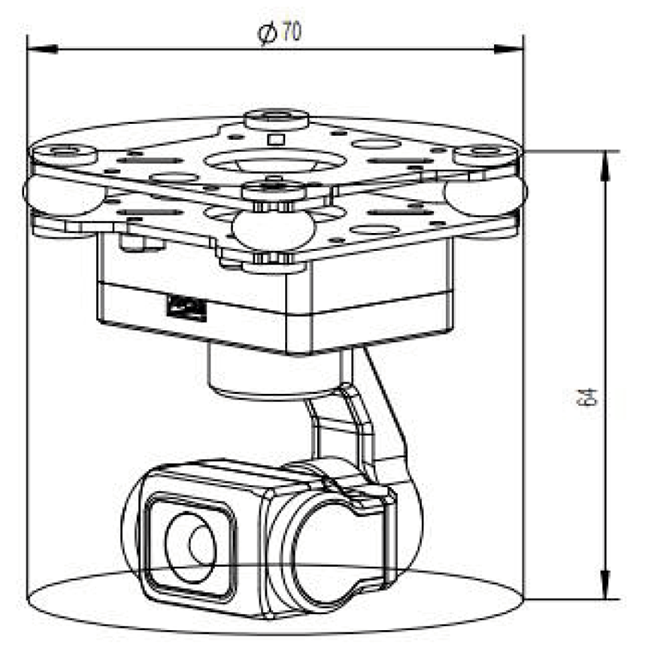

Device Size：	φ:70mm H:64mm	Work Condition：	-10℃ to +45℃ /20% to 80% RH
Storage Condition：	-20℃ to +60’℃ /20% to 95% RH	Weight (Not including dampers)	60±10g
