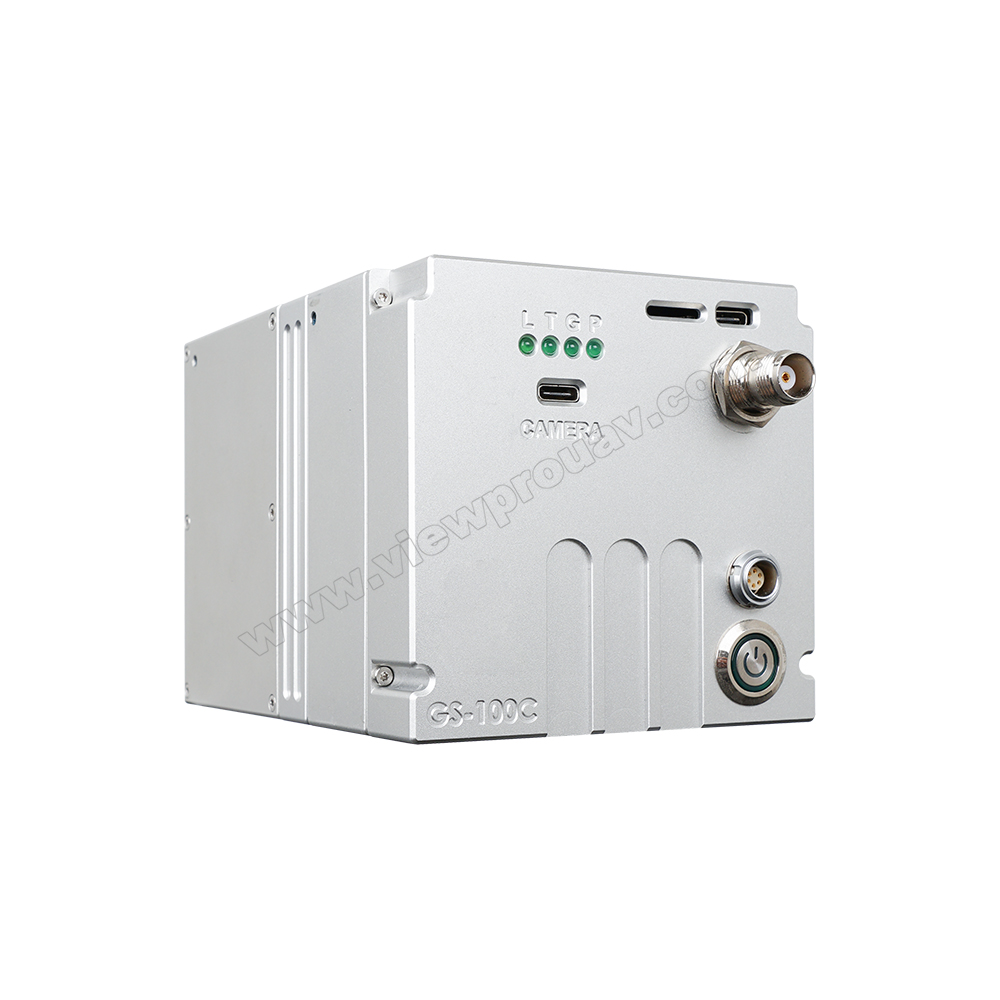

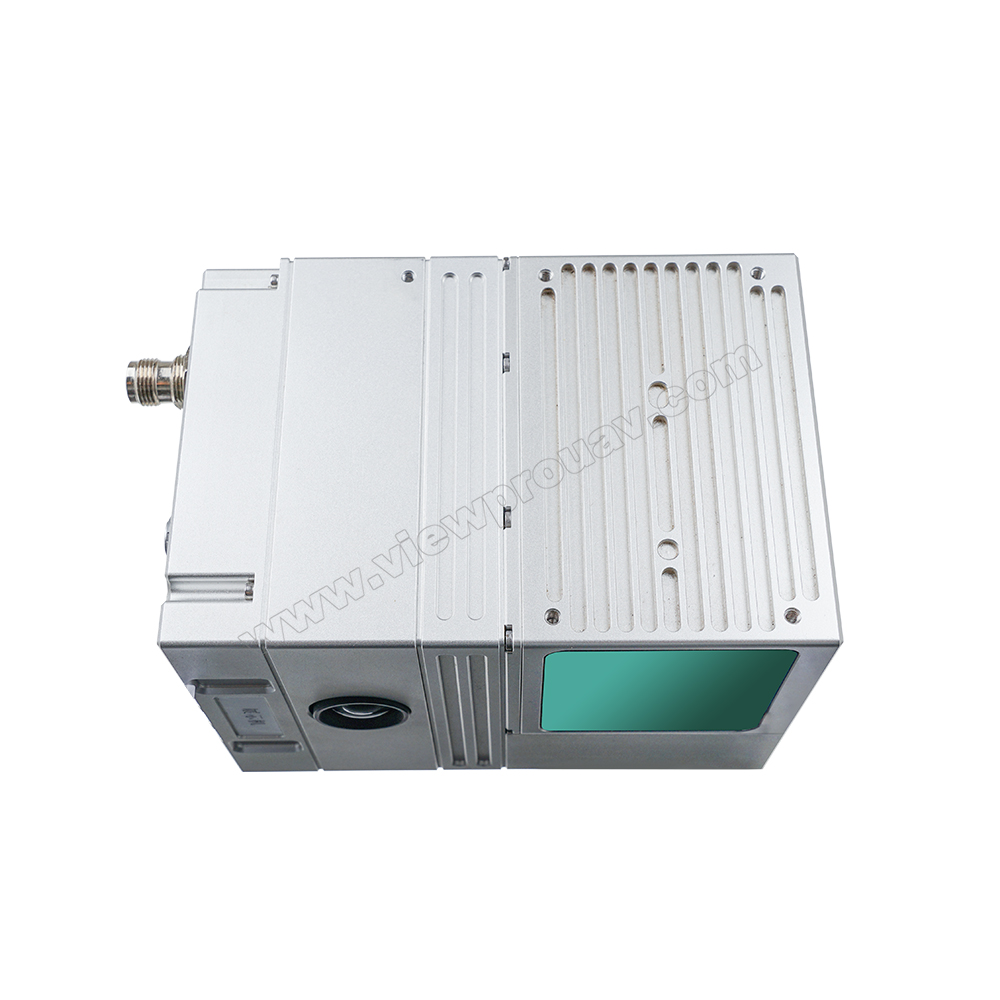

MGS-100C UAV Laser Lidar Scanning System with 24MP Camera for Drone 3D Mapping and Surveying

China Moneypro

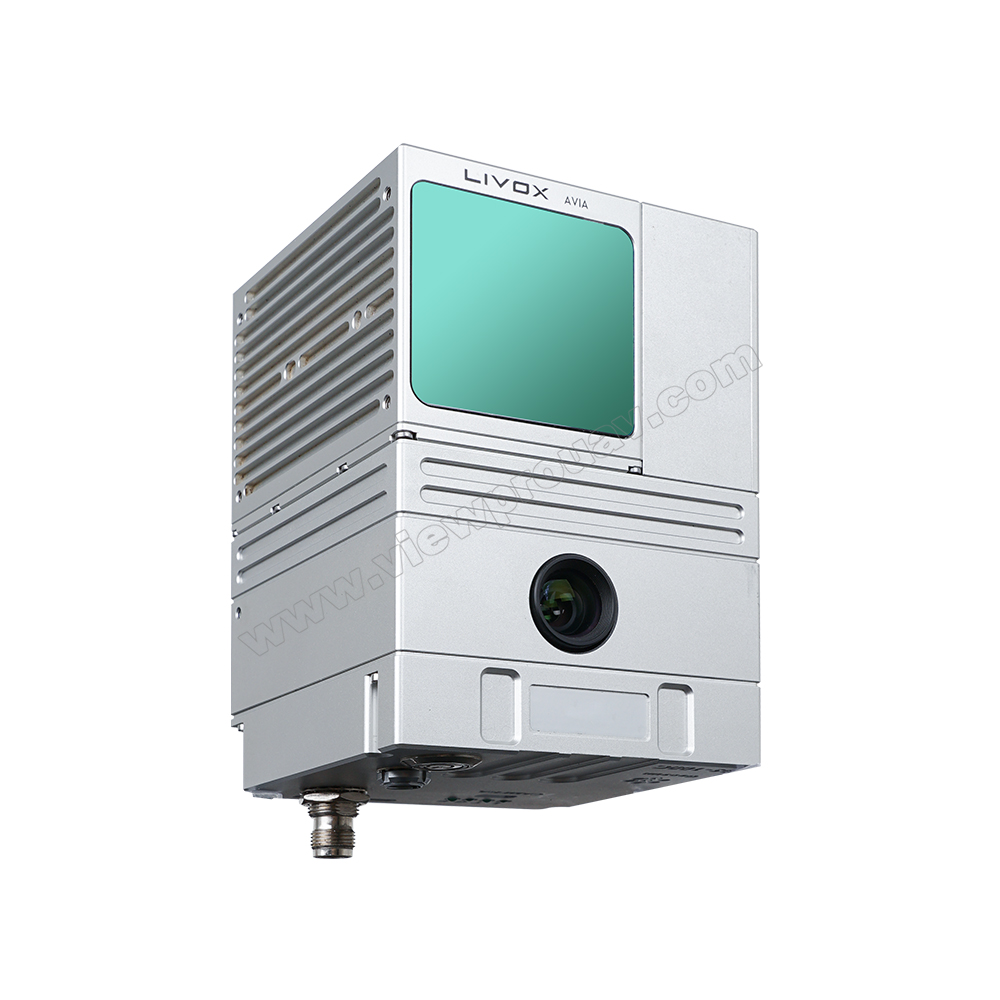

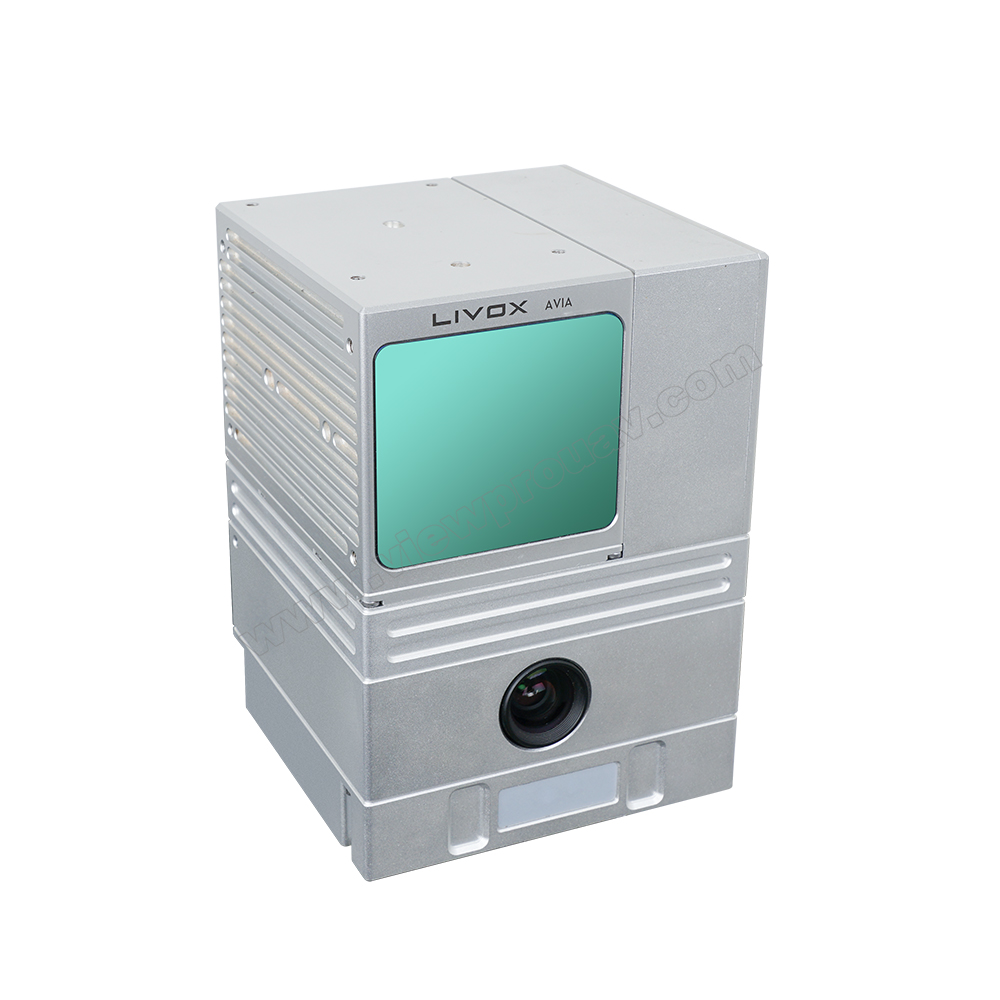

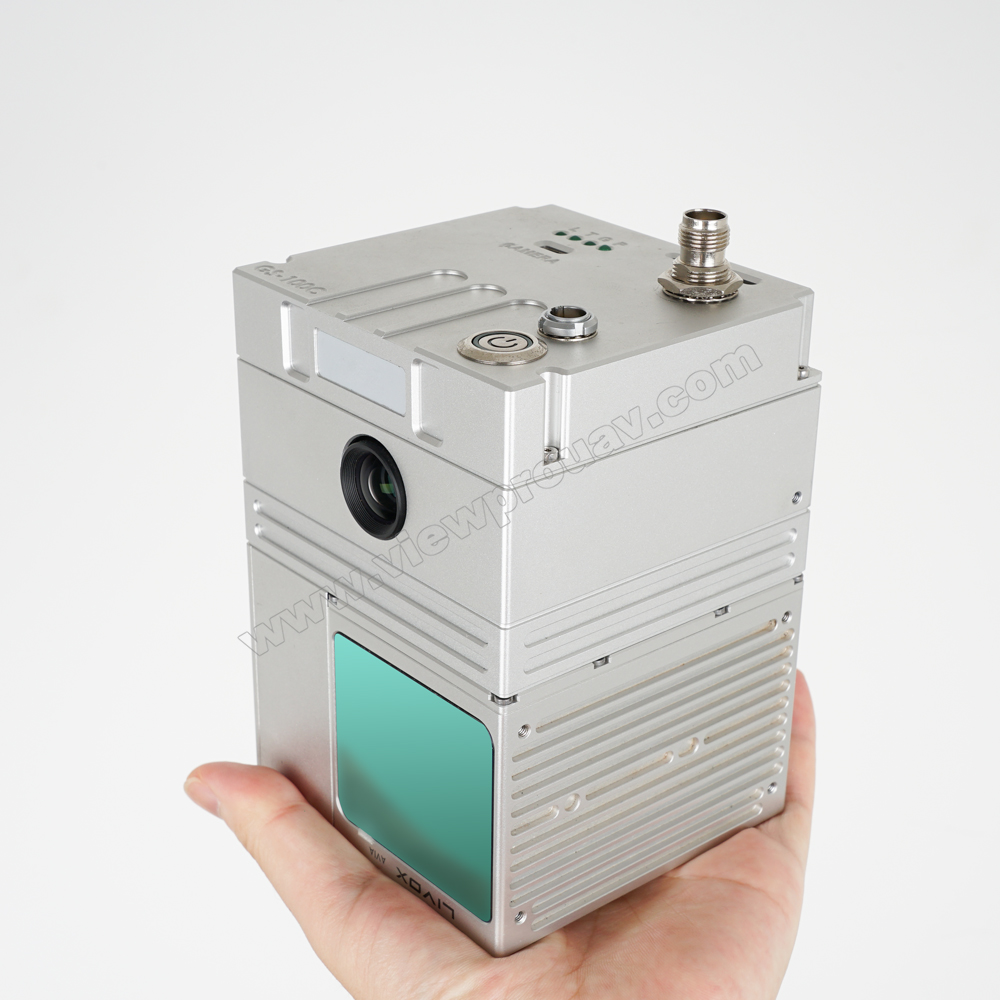

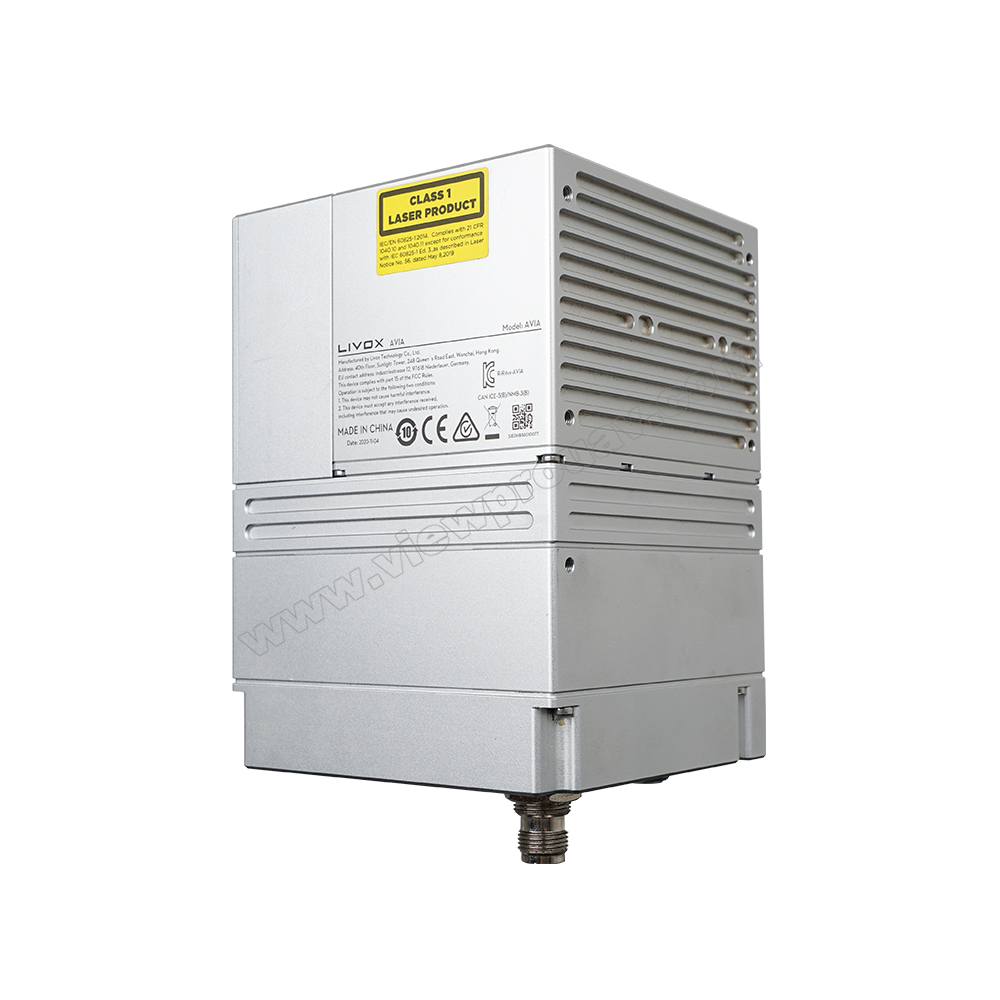

MGS-100C LiDAR scanning system integrates with Livox new generation laser scanner, GNSS satellite precise positionsystem, INS (inertial navigation system) and Sony A6000 24mp camera which is a compact LIDAR point cloud data acquisition system to enable real-time,dynamic and massive collection of high-precision point cloud data and image information.

Get in Touch

Model: GS-100C	Item	Parameter

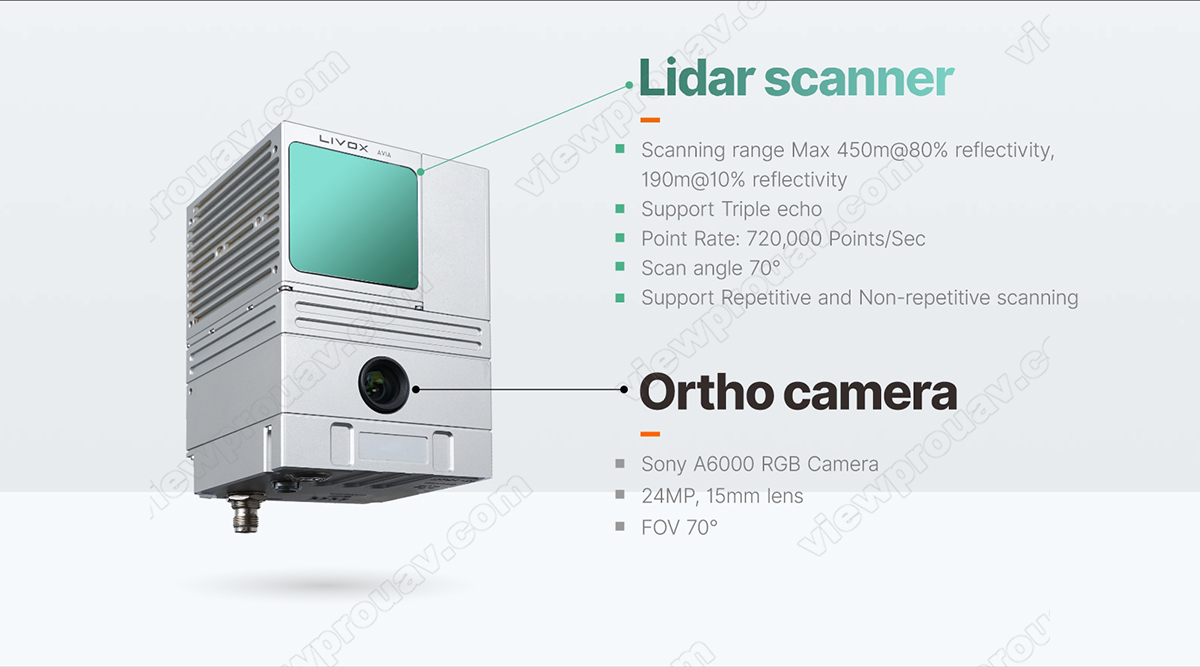

Laser Scanner	Measuring Range	190m@10% reflectivity
	Laser Class	905nm Class1 (IEC 60825-1:2014)
	Laser Line Number	Equivalent to 64-beam
	FOV	70°the circular view
	Range Accuracy (1σ @ 20m)	2 cm
	Data	Triple echo,720,000 Points/Sec
Camera	FOV	70°
	Resolution	24MP
	Focus length (mm)	15mm

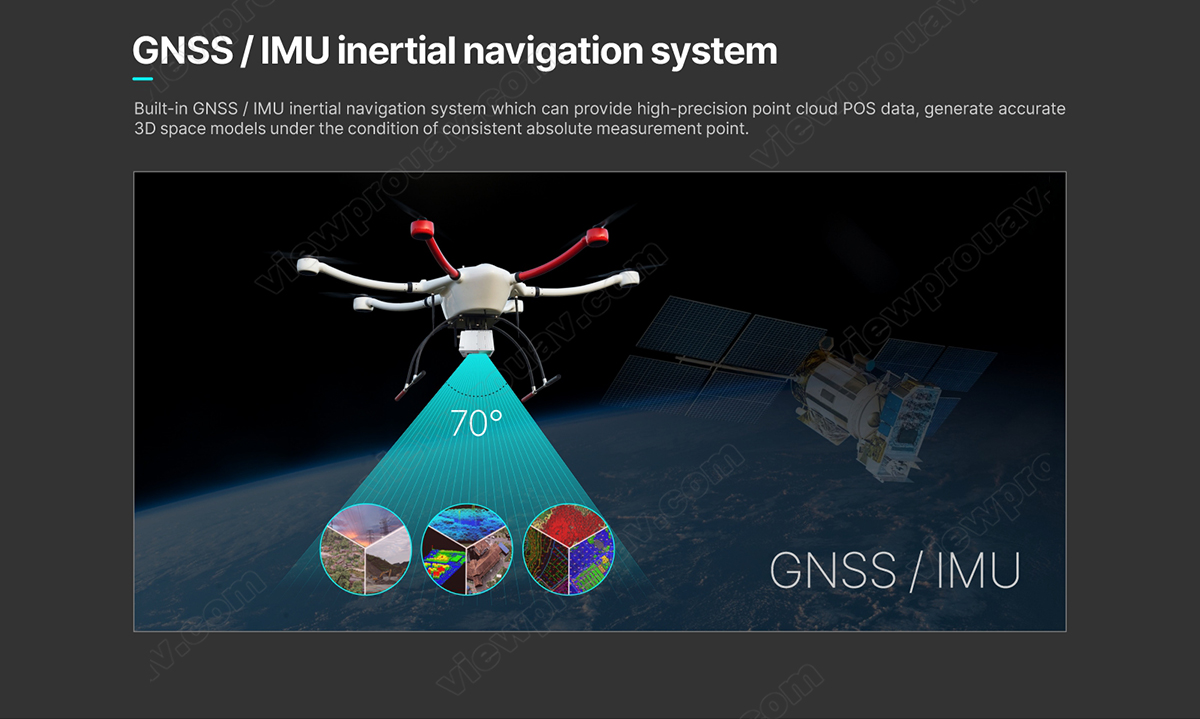

POS	Update Frequency	200HZ
	Pitch /Roll Accuracy	0.015°
	Heading Accuracy	0.040°
	Position Accuracy	≤0.05m
	GNSS Signal Type	GPS L1/L2/L5,GLONASS L1/L2BDS B1/B2/B3,GAL E1/E5a/E5b
System Parameter	Accuracy	≤10cm@110m
	Weight	1050g
	Working Temperature	-20°~＋55°

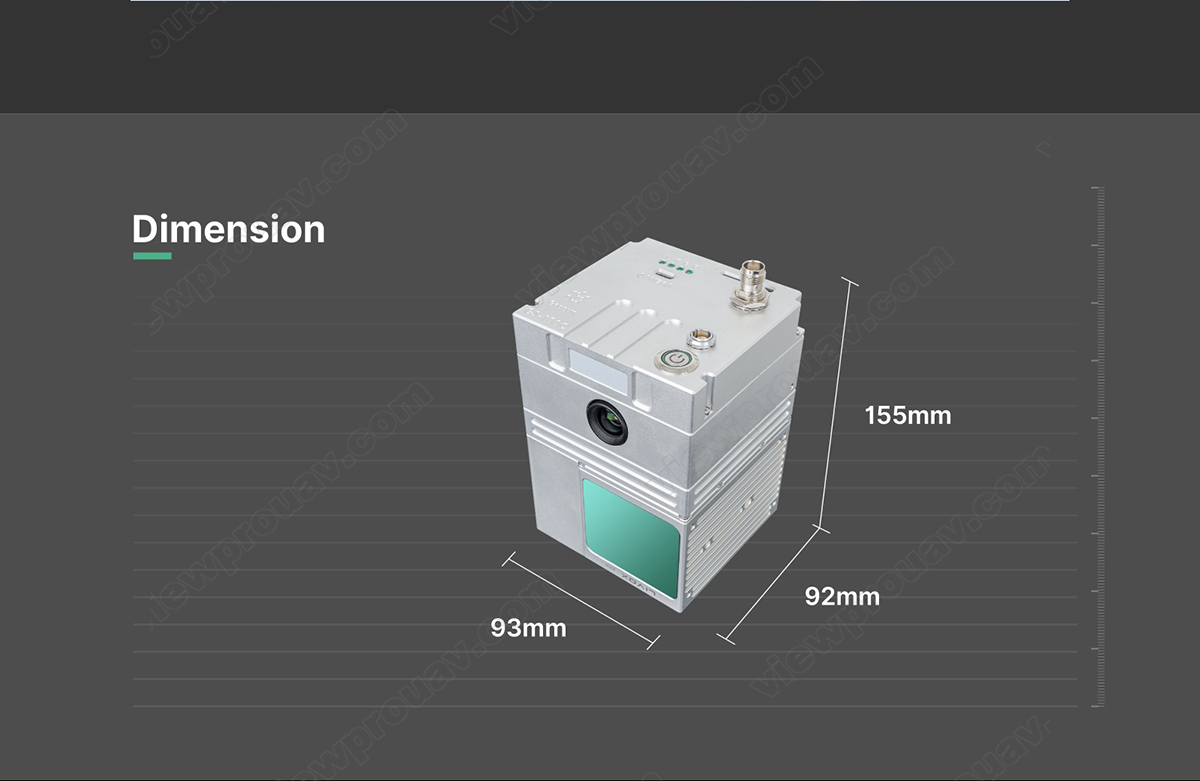

	Dimension	15.59.29.3cm
	Storage	Internal 64 GB, Max support 128GB TF card

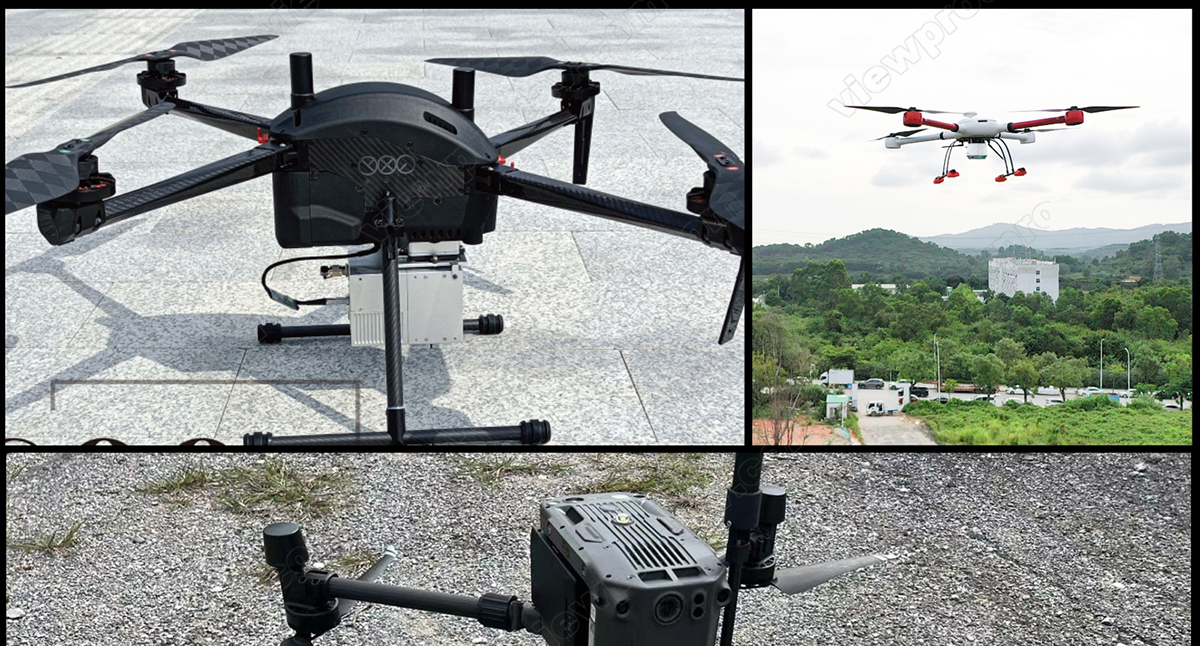

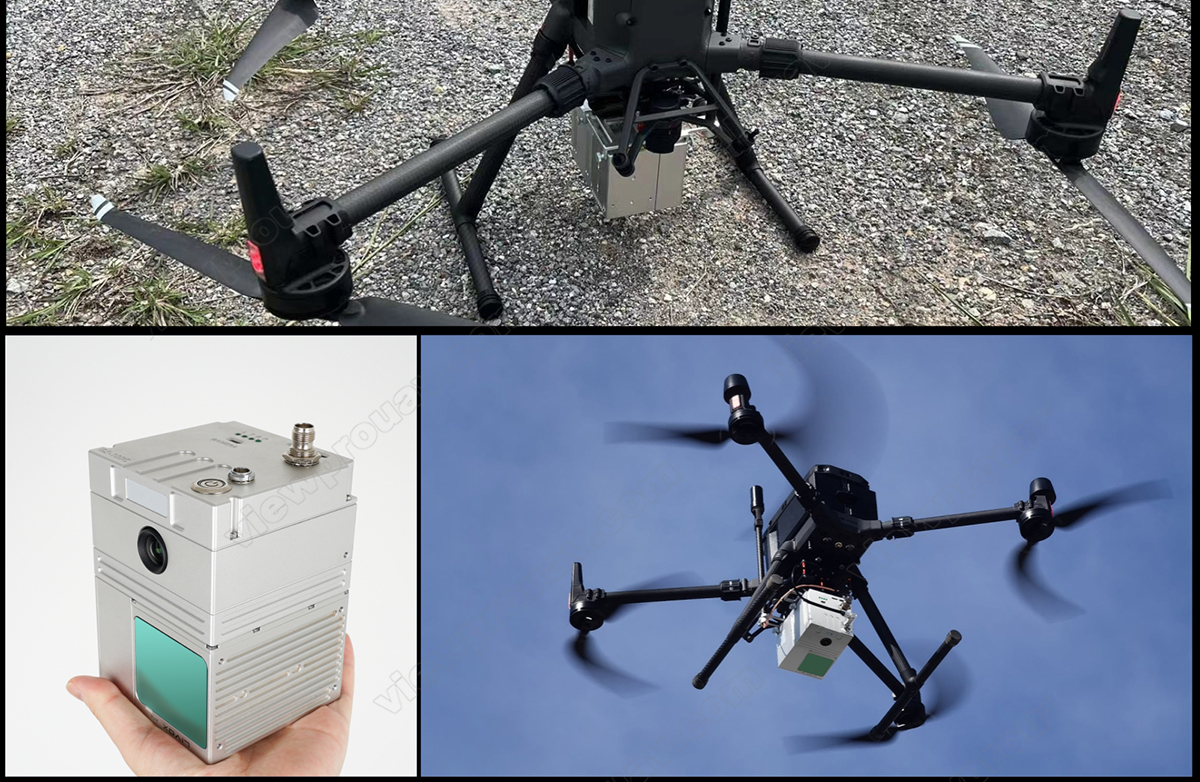

	Carrying Platform	Multicopter with 10m/s flight speed

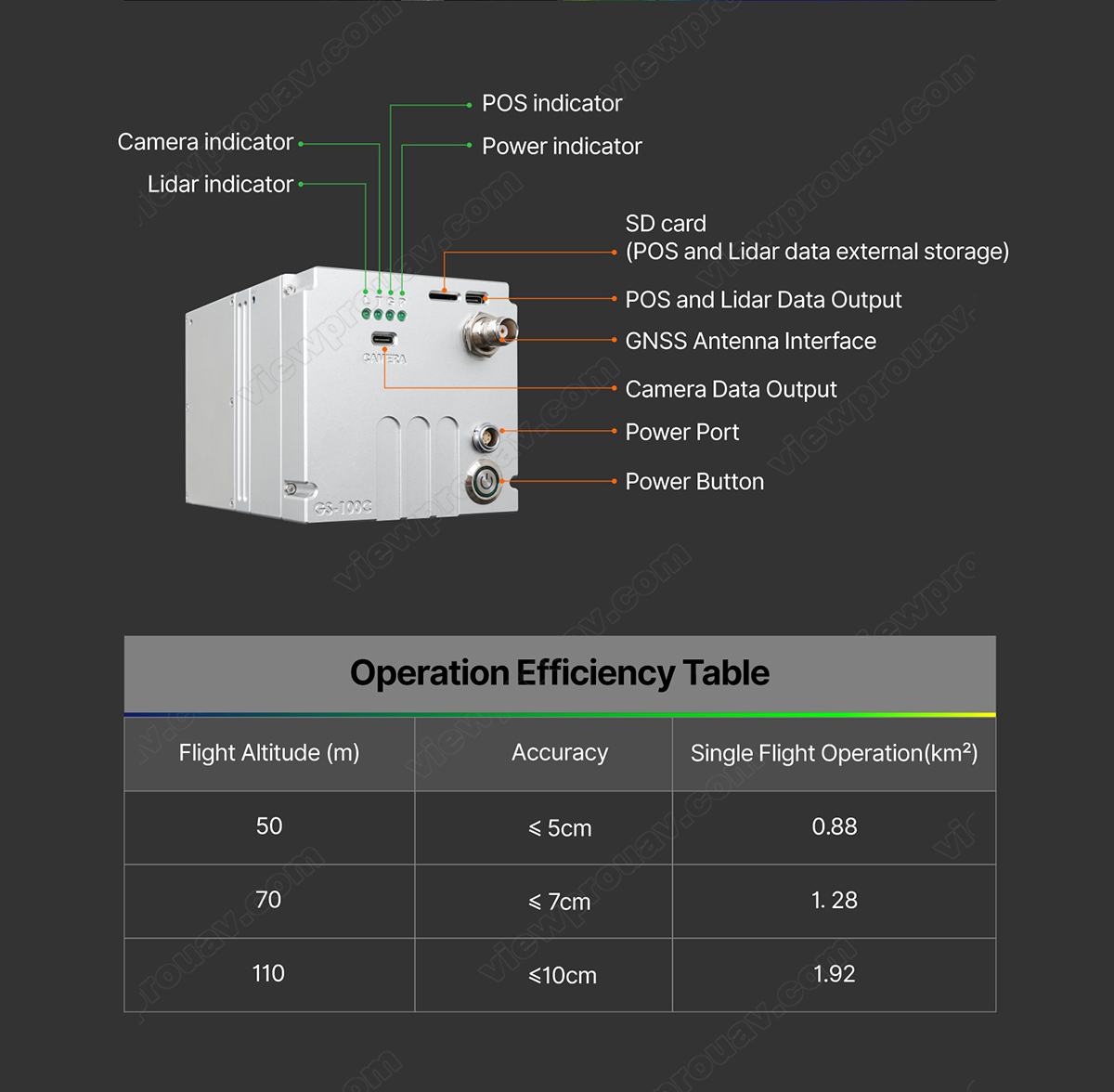

Operation Efficiency Table
Flight Altitude (m)	Accuracy	Single Flight Operation(km²)
50	≤5cm	0.88
70	≤7cm	1.28
110	≤10cm	1.92
