| Hardware Parameter |
| Working voltage |
16V |
| Input voltage |
4S ~ 6S |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
1100~2500mA @ 16V |
| Working environment temp. |
-20℃ ~ +60℃ |
| Output |
micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps) |
| Local-storage |
TF card (Up to 256G, class 10, FAT32 format) |
| Photo storage format |
JPG(1920*1080) |
| Video storage format |
MP4(1080P 30fps) |
| Card reading online |
HTTP read pictures |

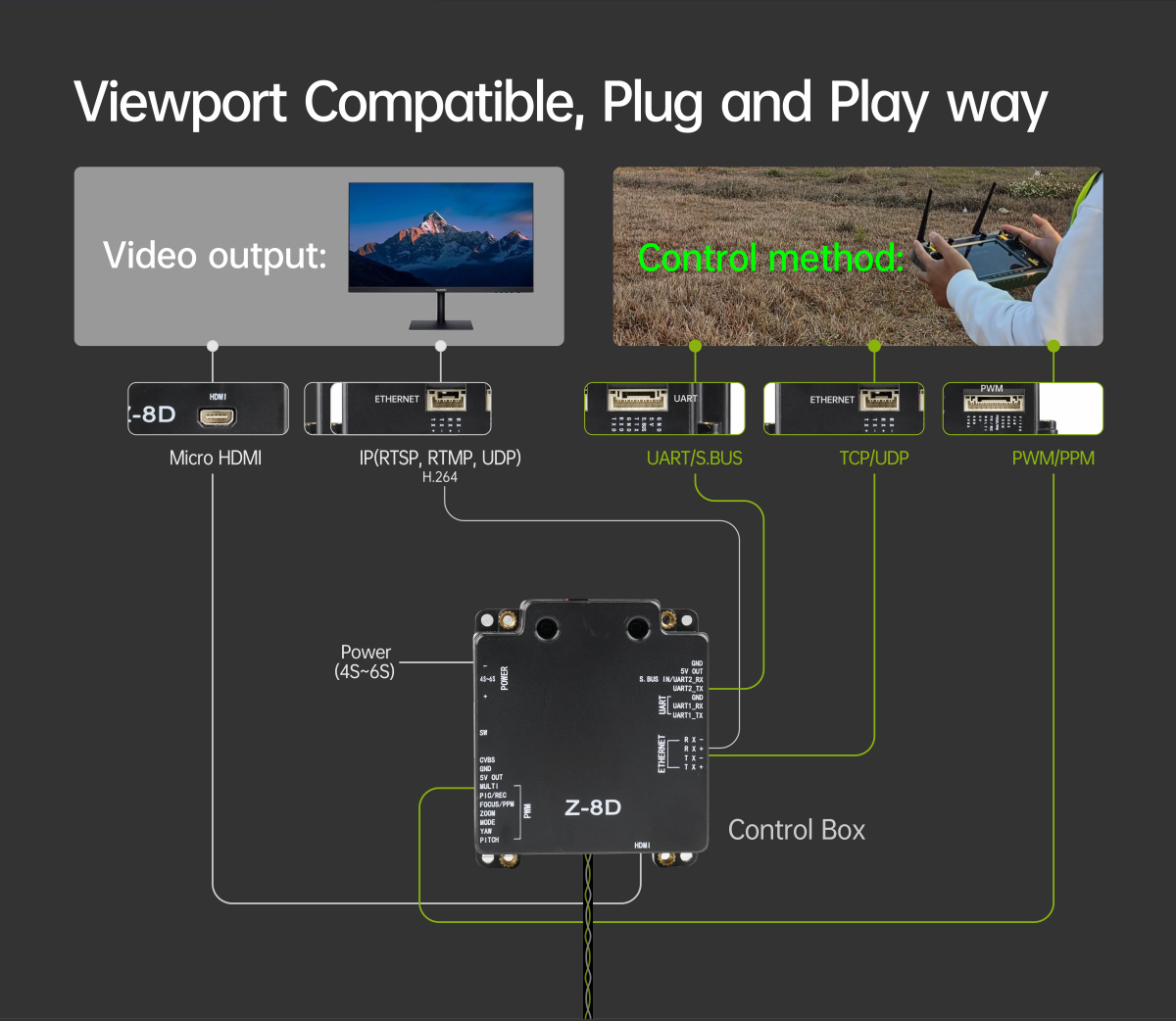

| Control method |
PWM / TTL / S.BUS / TCP(IP output version)/UDP(IP output version) |
| Geotagging |
Support, display time and GPS coordinate in picture exif |

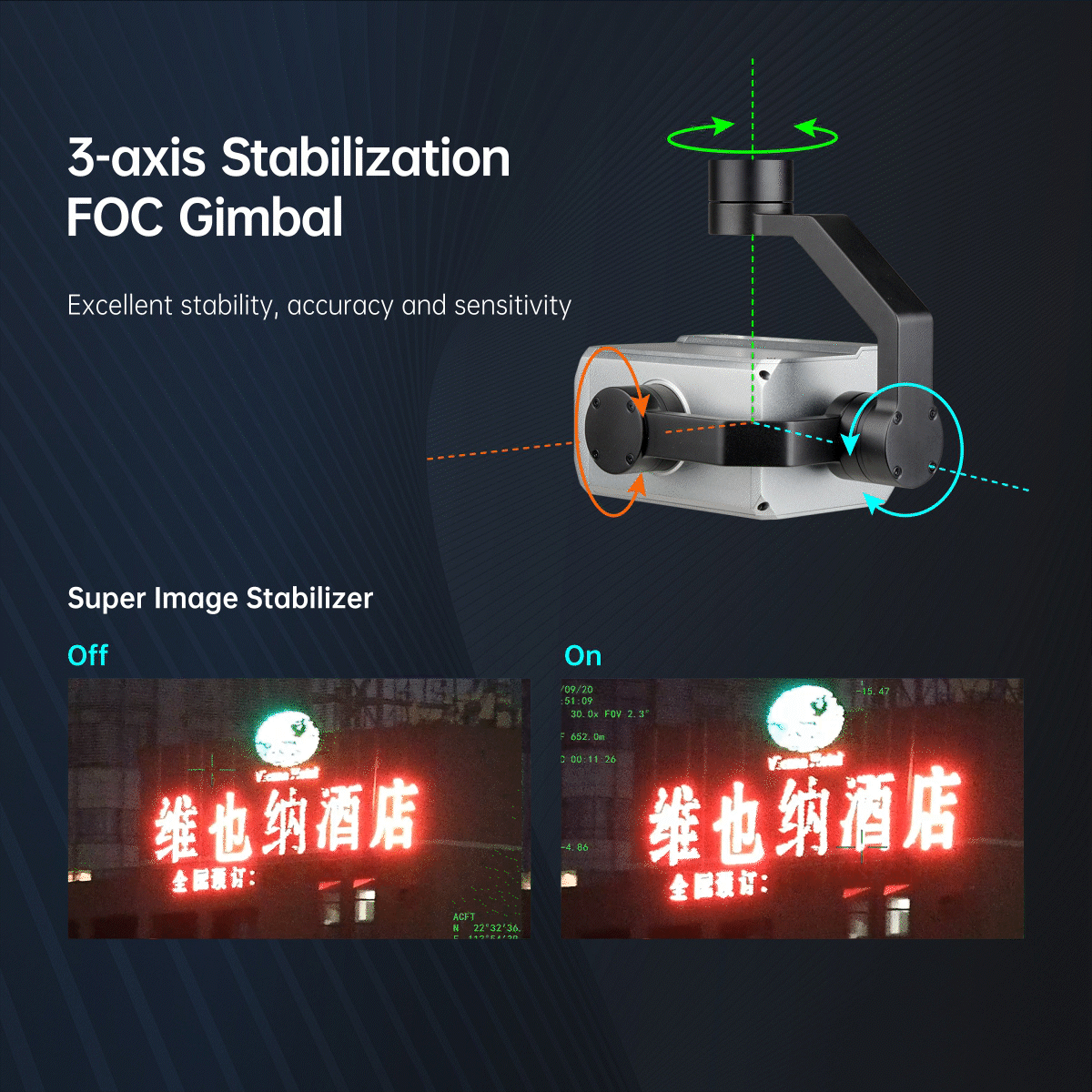

| Gimbal Spec |
| Mechanical Range |
Pitch/Tilt:-110°～130°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range |
Pitch/Tilt: -45°～125°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle |
Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center |
√ |

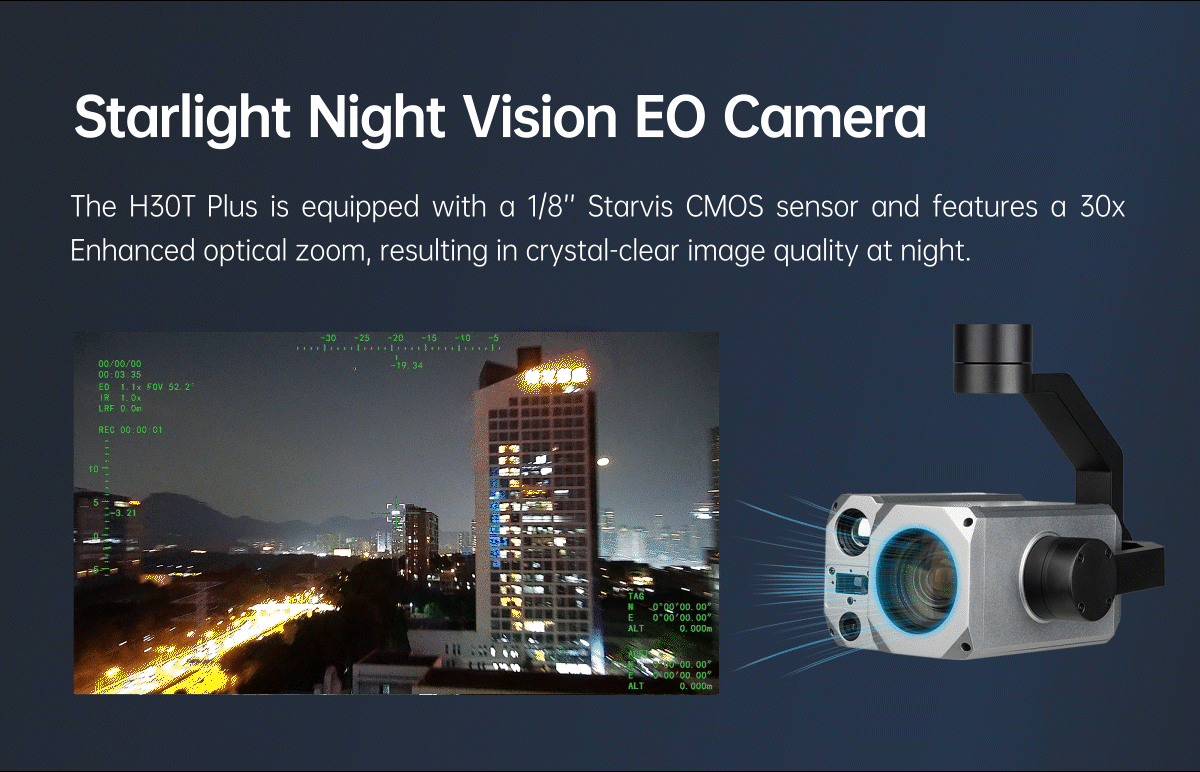

| EO1 Camera spec |
| Imager Sensor |
1/1.8 Type STARVIS CMOS Sensor |

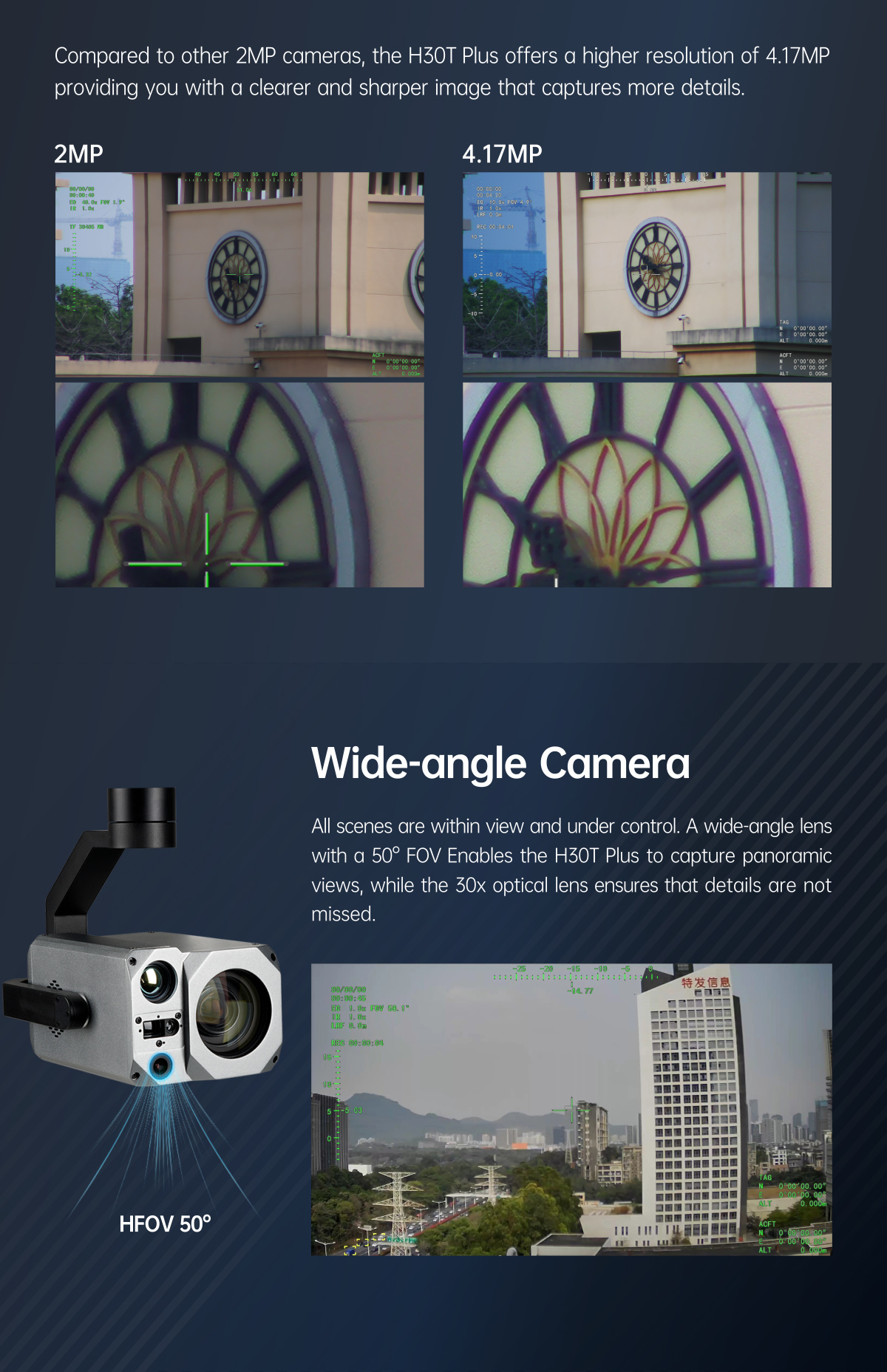

| Picture quality |
4.17MP |
| Lens optical zoom |
30x, f=6.5~162.5mm, F1.6 to F4.8 |
| Digital zoom |
12x (max. 432x with StableZoom) |
| Min object distance |
100 mm (Wide end), 1200 mm (Tele end) |
| Horizontal viewing angle |
58.1°(wide end) ~ 2.3°(tele end) |
| Sync system |
Internal |
| Image S/N |
50 dB (Weight On) |
| Min illumination |
In the case of ICR-Off
(Typical value) 0.009 lx (1/30 sec, 50%, High Sensitivity mode On)
0.09 lx (1/30 sec, 50%, High Sensitivity mode Off)
0.0012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode On)
0.012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode Off)
In the case of ICR-On
0.00008 lx (1/30 sec, 50%, High Sensitivity mode On)
0.00063 lx (1/30 sec, 50%, High Sensitivity mode Off)
0.000005 lx (1/4 sec, 1/3 sec, 30%, High Sensitivity mode On) |
| High Sensitivity mode On/Off |
Off |
| Recommended illumination |
100 lx to 100,000 lx |
| Gain |
Auto/Manual (0 to 50.0 dB (0 to 28 step))
Max. Gain Limit (10.7 to 50.0 dB (6 to 28 step)) |
| White balance |
Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Wide Dynamic Range Mode |
On/Off |
| Shutter speed |
1/1 sec to 1/10000 sec (22 steps) |
| Backlight compensation On/Off |
Off |
| Image Stabilizer On/Off/Hold |
Off |
| ICR On/Off |
Off |
| Aperture control |
16 steps |
| Noise Reduction |
On/Off (level 5 to 1 / Off, 6 steps) |
| Defog |
On/Off (low, mid, high) |
| OSD |
Yes |
| EO2 Camera spec |
| Imager Sensor |
1/2.9″ CMOS Sensor |
| Image pixel |
2MP |
| Picture quality |
Full HD 1080 (1920*1080) |

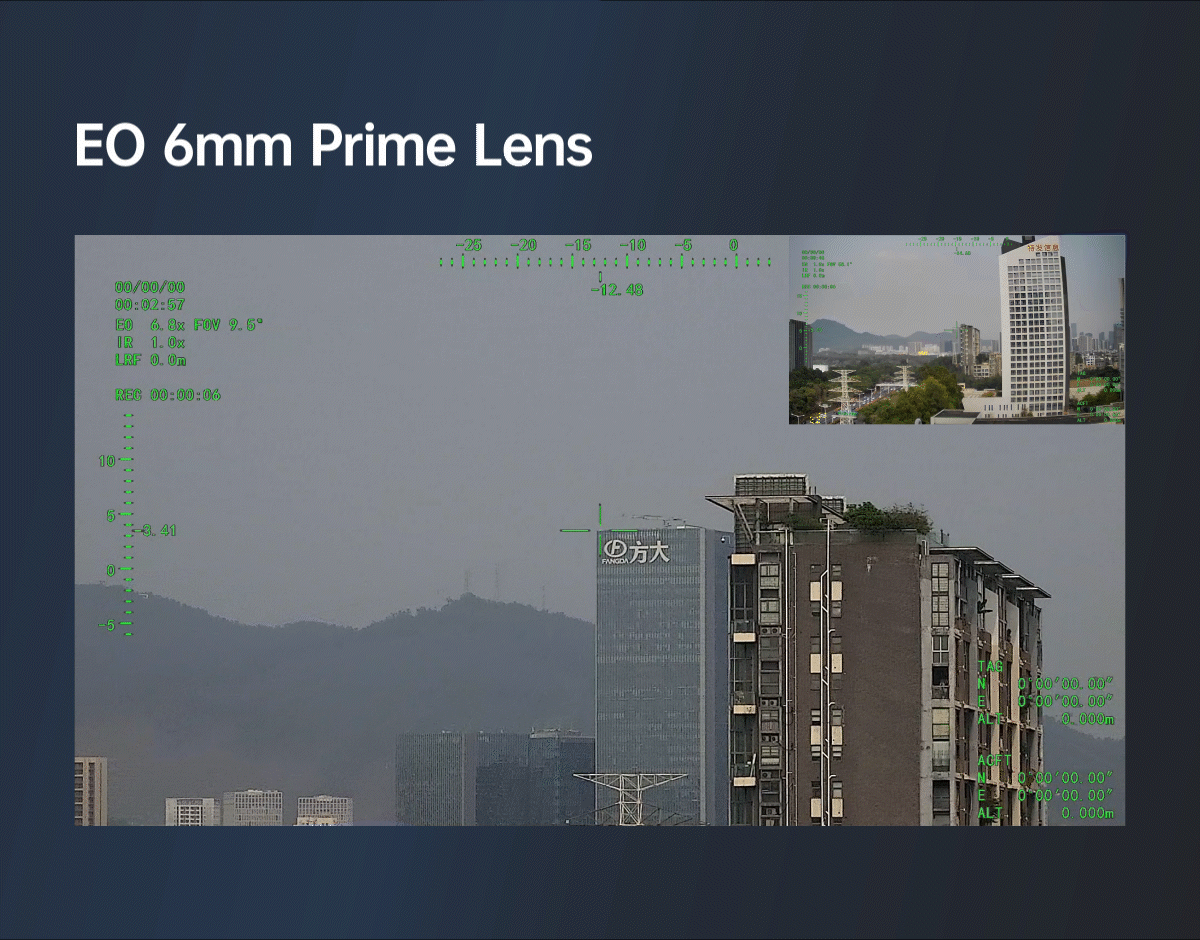

| Lens |
Focus Length 6mm |
| Angle of View (D,H,V) |
FOV：D 60° H 50° V 28° |
| IR Thermal Imager Spec |
| Focus Length |
19mm |
| Horizontal FOV |
22.9° |
| Vertical FOV |
18.4° |
| Diagonal FOV |
29.0° |
| Detective Distance (Man: 1.8×0.5m) |
792 meters |
| Recognize Distance (Man: 1.8×0.5m) |
198 meters |
| Verified Distance (Man: 1.8×0.5m) |
99 meters |
| Detective Distance (Car: 4.2×1.8m) |
2428 meters |
| Recognize Distance (Car: 4.2×1.8m) |
607 meters |
| Verified Distance (Car: 4.2×1.8m) |
303 meters |
| Working mode |
Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel |
640*512 |
| Pixel size |
12μm |
| Focusing method |
Athermal prime lens |
| NETD |
≤50mK@25℃, F#1.0 (<=40mk Optional) |
| Color palette |
White, iron red, pseudo color |
| Digital zoom |
1x ~ 8x |
| Sync correct time |
Yes |
| Radiometric function |
Optional （-20℃~+150℃, +100℃~+550℃） |

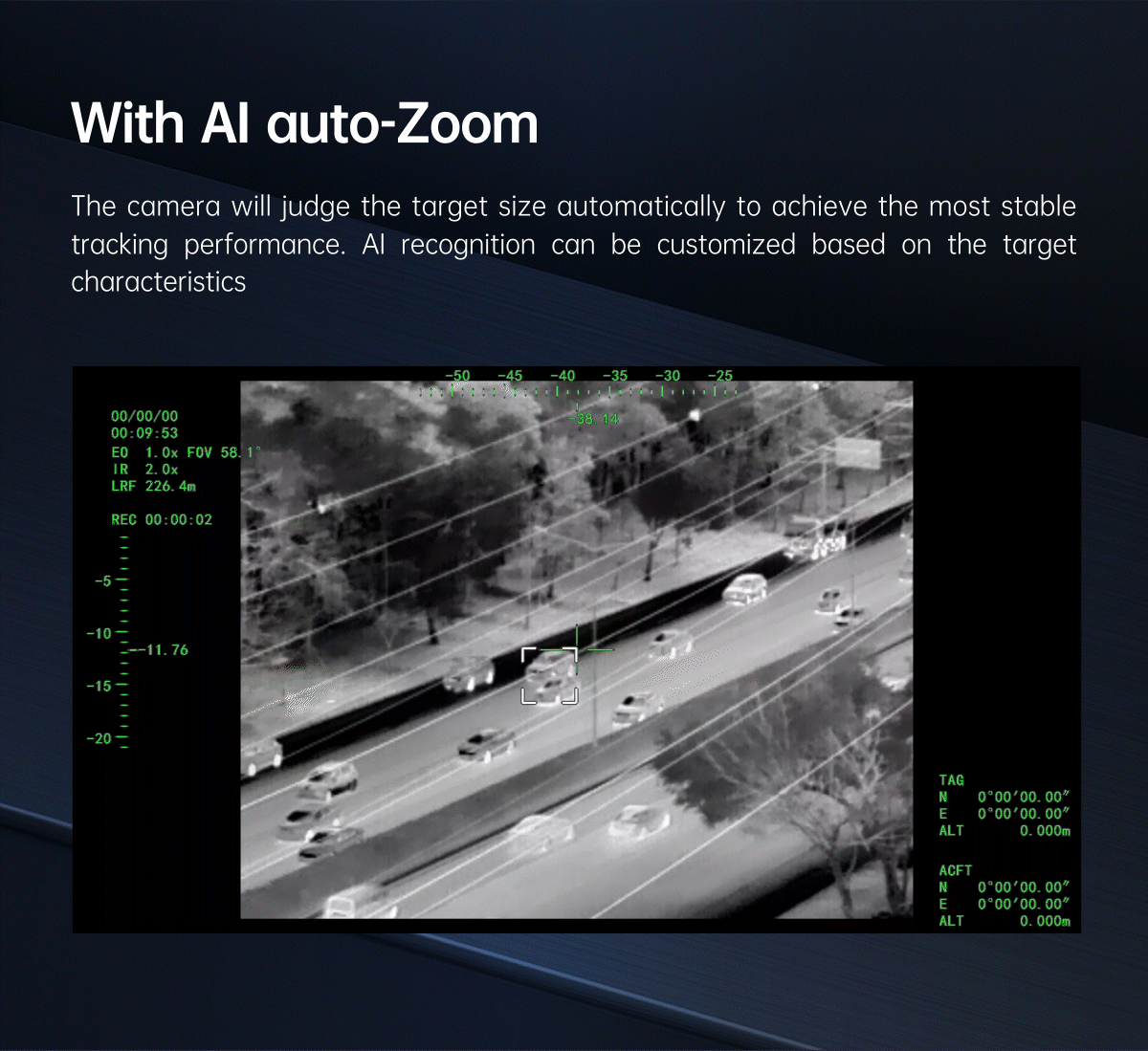

| EO/IR Camera Object Tracking |
| Update rate of deviation pixel |
30Hz |
| Output delay of deviation pixel |
<30ms |
| Minimum object contrast |
5% |
| SNR |
4 |
| Minimum object size |
16*16 pixel |
| Maximum object size |
256*256 pixel |
| Tracking speed |
±48 pixel/frame |
| Object memory time |
100 frames |
| IR Laser Rangefinder |
| Range |
5~1500 meters |
| Accuracy |
1m: <400±1 2m: >400±0.4% |
| Light Beam |
905nm pulse laser |
| Divergent Angle |
12 mrad |
| Laser pulse frequency |
0.1–1Hz |
| Location Resolving |
Latitude and longitude of target |
| Ranefinder |
Target distance measuring |
| EO Camera AI Performance |
| Targets type |
Car and human |
| Simultaneous detection quantity |
≥ 10 targets |
| Min contrast ratio |
5% |
| Min target size |
5×5 pixel |
| Car detection rate |
≥85% |
| False alarm rate |
≤10% |
| Packing Information |
| N.W. |
1030±10g(Viewport version with Viewport) |
| Product meas. |
178.3*136.5*200.6mm / 178.3*136.5*206.3mm(Viewport version with Viewport) |
| Accessories |
1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. |
2750g |
| Package meas. |
350*300*250mm |
