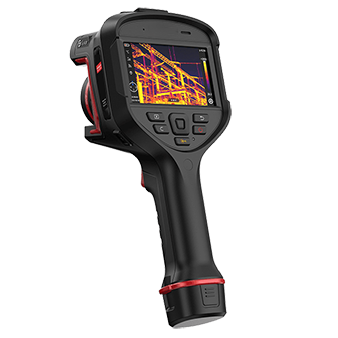

MH3+Intelligent Thermal Camera
China Moneypro
With a built-in self-developed high-sensitivity IR detector, a 8MP visible light camera, and 5 focusing modes, Hammer Series, the high-precision thermal camera designed specifically for the industrial field helps users intuitively view high-definition images and temperature details of the target, with the classic “hammer” shape. 30Hz infrared frame rate for fast and accurate access to more temperature data of moving targets, far beyond the same level of products.
384x288IR Resolution
8MP Visible Light
30Hz Frame Rate
OTA Upgrade
384x288IR Resolution
8MP Visible Light
30Hz Frame Rate
OTA Upgrade
High-sensitivity IR Detector
A new generation of self-developed infrared focal plane detectors with a resolution of 256×192 coupled with super-resolution reconstruction for high-quality imaging

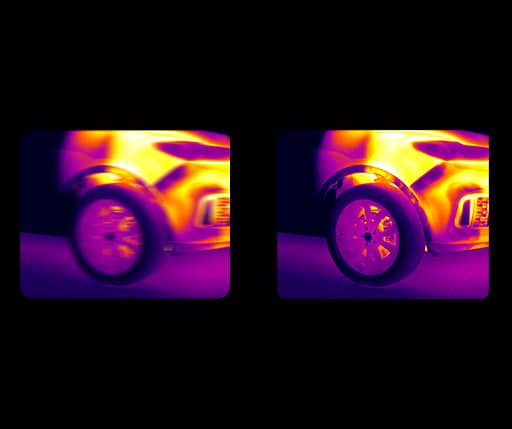

30Hz IRGD Frame Rate
IR video of raw data with frame rates up to 30Hz, ready to screenshot for temperature analysis

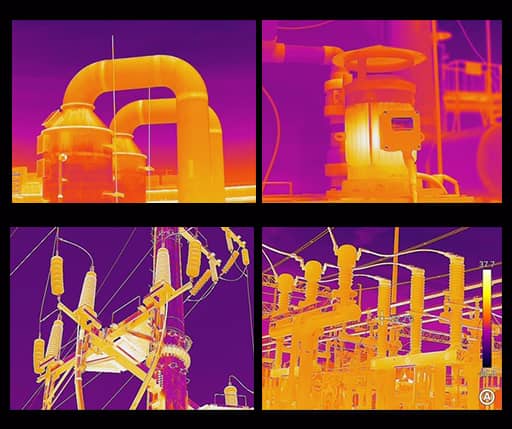

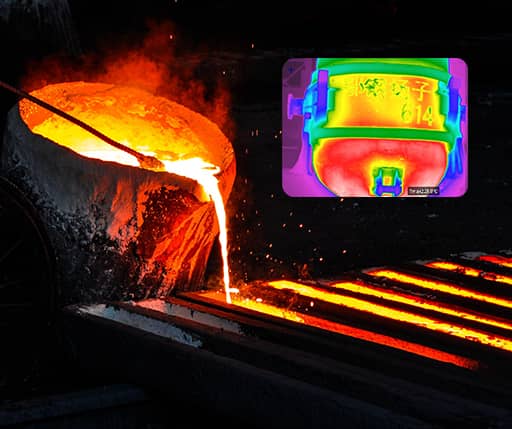

Wide-range Measurement with Rich Application Scenarios
Support auto-switching: -40℃ to 150℃, 0℃ to 650℃

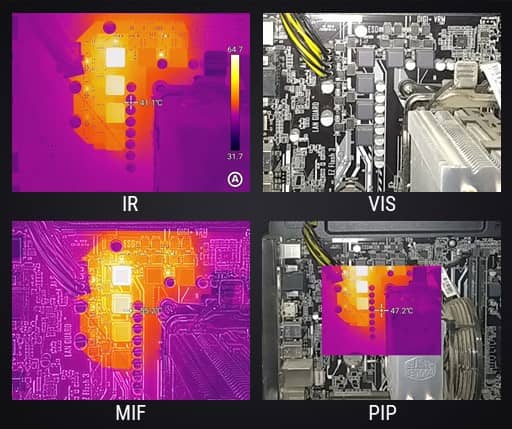

Real-time Presentation of Intuitive Temperature Data
IR, VL, MIF, and PIP modes provide a visual view of the target temperature data and automatically present the highest, lowest, and central temperatures of the full screen
OTA Upgrade for the Latest System Version
The device can be upgraded by connecting to the network.
Technical Parameters
| Imaging and optics | ||||
|---|---|---|---|---|
| Detector type | VOx, 7.5 to 14μm | |||
| Infrared resolution | 384×288@12μm | |||
| Super resolution | Yes, Upgrade to 768×576 | |||
| NETD | 35mK | |||
| Frame rate | 30Hz/9Hz | |||
| Focal length | 10.5mm | |||
| Field of view | 25°×19° | |||
| IFOV | 1.13mrad | |||
| Min. object distance | 0.15m | |||
| D:S | 885:1 | |||
| Focusing mode | Manual / Automatic / Touch autofocus / Continuous autofocus | |||
| Digital zoom | 1.1x to 10x | |||
| Measurement and analysis | ||||
|---|---|---|---|---|
| Measurement range | Support auto-switching: -40°C to 150°C, 0°C to 650°C, Optional 500°C to 2000°C (High temperature lens is required) | |||
| Measurement accuracy | ±2°C or ±2%, whichever is greater | |||
| Analyzed target | 10 in total (Spot/Line/Area) | |||
| Alarm | Full screen temperature threshold alarm (image, voice and flash) | |||
| Others | Customized physical button, OTA update | |||
