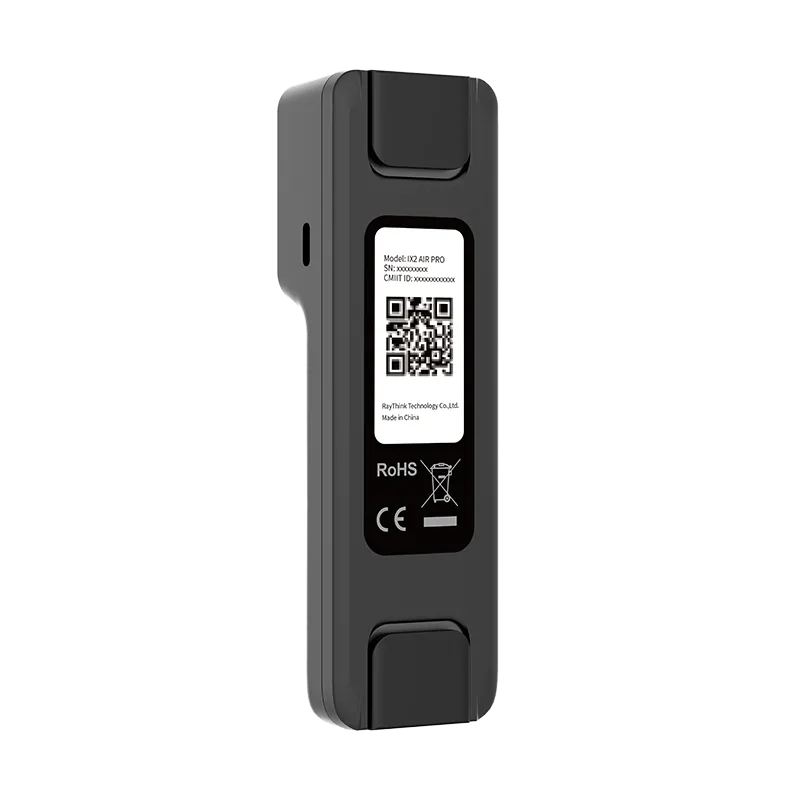

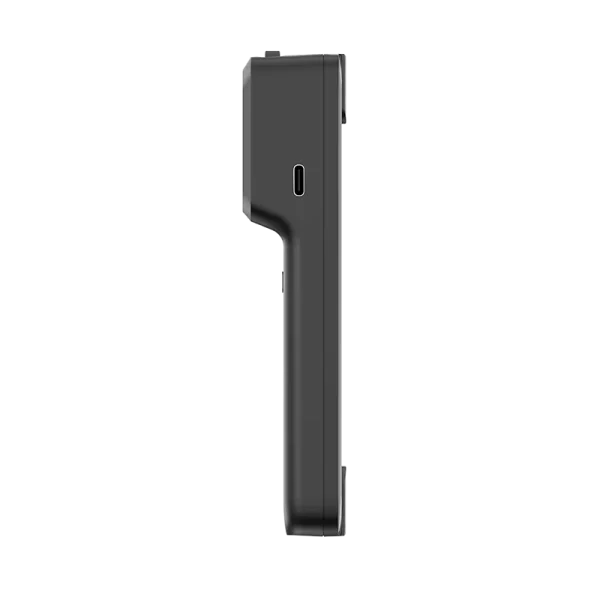

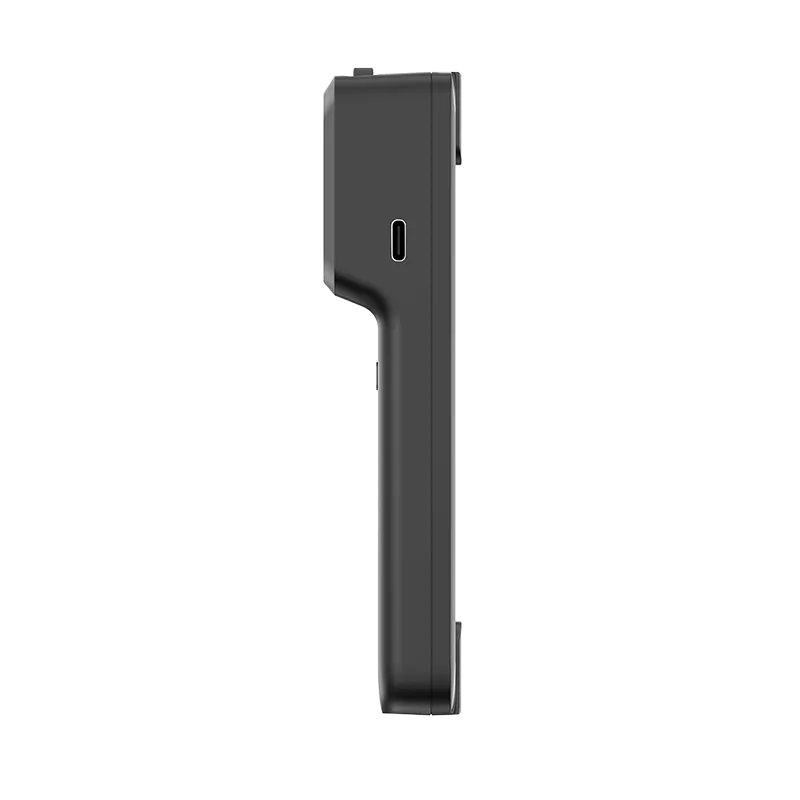

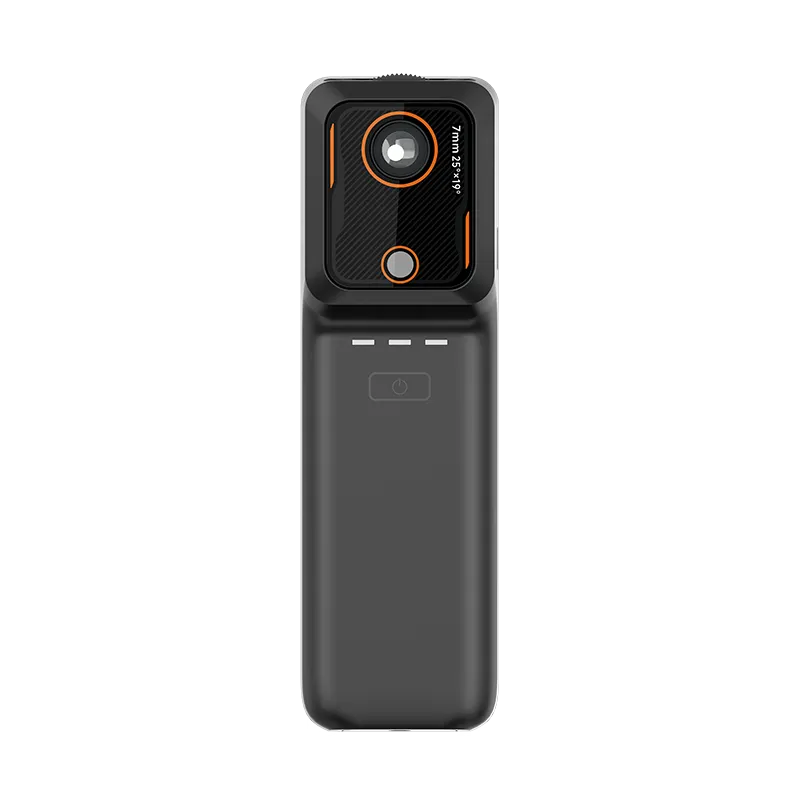

MIX2 AIR Pro Wireless Thermal Camera for Smart Devices
China Moneypro

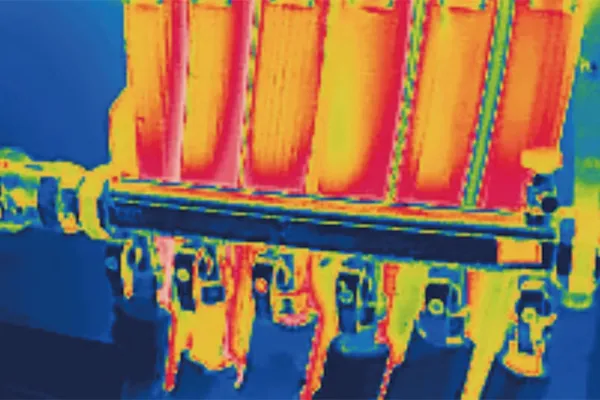

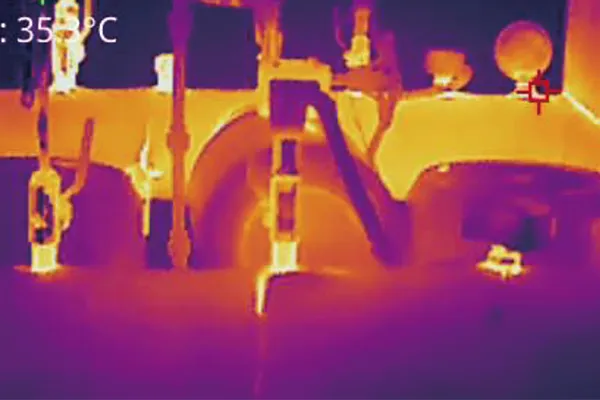

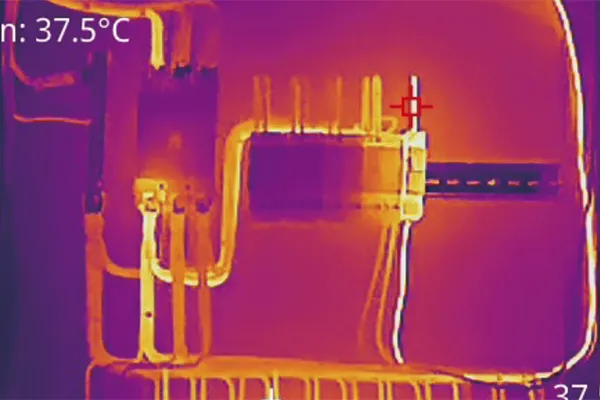

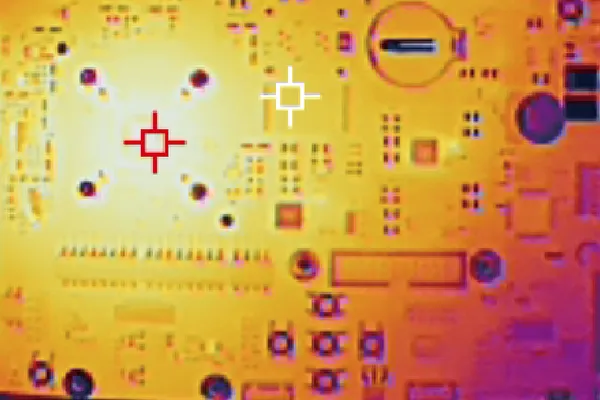

MIX2 AIR Pro new wireless thermal camera for smartphones is compatible with Android and iOS devices, enabling wireless image transmission up to 30m away. With the 256×192 thermal imaging resolution, it can achieve four times the AI real-time super-resolution up to 512×384. With the 7mm adjustable focus lens, it is capable of close-range HD imaging. AI Raya voice interaction enables quick parameter setting. It is suitable for industrial scenarios such as circuit board maintenance, electrical maintenance, equipment inspection and HVAC leak detection to efficiently locate thermal hazards.
Feature
Wireless measurement, smart portable thermal camera
7mm manual focus lens
30m wireless image transmission, with a delay of less than 300ms
AI voice assistant bringing about a thermal camera that understands needs
30m wireless image transmission, with a delay of less than 300ms
AI voice assistant bringing about a thermal camera that understands needs
High-definition thermal image, full-powered AI real-time super-resolution
256×192 resolution, AI real-time super-resolution up to 512×384
NETD as low as 40mK, real-time display of high-definition thermal images
25Hz frame rate, clearer subtle hot spots
Wide measurement range from -20°C to 550°C
NETD as low as 40mK, real-time display of high-definition thermal images
25Hz frame rate, clearer subtle hot spots
Wide measurement range from -20°C to 550°C
Software+: complete software ecosystem
Equipped with a professional mobile/PC temperature analysis platform, it supporting secondary analysis
Specification
| Thermal Imaging | |
| Detector Type | Uncooled infrared detector |
| Infrared Resolution | 256×192 |
| Pixel Size | 12μm |
| Super Resolution | 512×384 |
| Spectral Band | 7.5-14μm |
| NETD | 40mK |
| Frame Rate | 25 Hz |
| Lens Focal Length | 7mm |
| FOV | 25°×19° |
| IFOV | 1.71mrad |
| Focusing Mode | Manual focusing |
| Minimum Imaging Distance | 0.1m |
| Measurement Range | -20°C ~ +550°C |
| Measurement Accuracy | ±2ºC or ±2% of readings, whichever is greater |
| Imaging Display | |
| Visible Light Camera | 2 megapixels |
| Digital Zoom | 1×, 2×, 4× |
| Palettes | 10 |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion |
| Temperature Width Stretch | Automatic/Manual |
| Image Storage | |
| Storage Medium | lmages stored in the APP by default and downloadable to a local album |
| Measurement and Analysis | |
| Analysis Functions on the Device | Up to 3 movable points, lines, and frames; up to 3 preset templates |
| Analysis Report | PDF format, supporting APP-side report generation |
| Supporting Software | PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP) |
| Video Functions | |
| Radiation Infrared Video Recording | Standard MP4 |
| Radiation Infrared Video Stream Transmission | TYPE-C/WLAN connection to PC, for real-time transmission of radiation infrared video streams |
| Video Resolution | 512×384 |
| System Functions | |
| Communication Protocol | Wi-Fi, USB, Bluetooth |
| Voice Control | Voice assistant, quick command recognition |
| Others | |
| Battery | Built-in 1050mAh lithium-ion battery |
| Charging Mode | USB Type-C direct charging |
| Battery Life | About 2h |
| External Interface | USB Type-C |
| Tripod Socket | UNC 1/4-20 interface for tripod |
| Operating Temperature | -10°C~+50°C |
| Operating Humidity | 10%~90% (non-condensing) |
| Storage Temperature | -20°C~+60°C |
| Ingress Protection Rating | IP54 |
| Shock and Vibration | Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6) |
| Weight and Dimensions | About 142g,136.2x41x29.3mm |
| Certificates | CE/FCC/ROHS/SRRC/DGM/CMA |
| Package Contents | Thermal camera, Type-C cable, quickstart guide n certificate, certificate of conformity, portable bag |
Application Scenariosa
