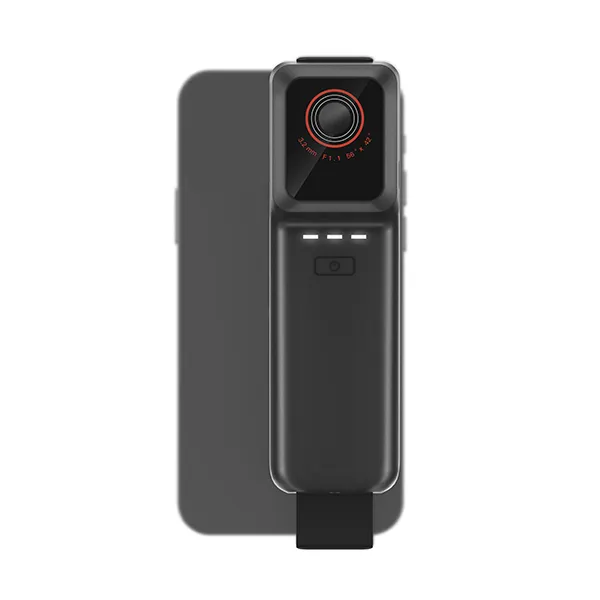

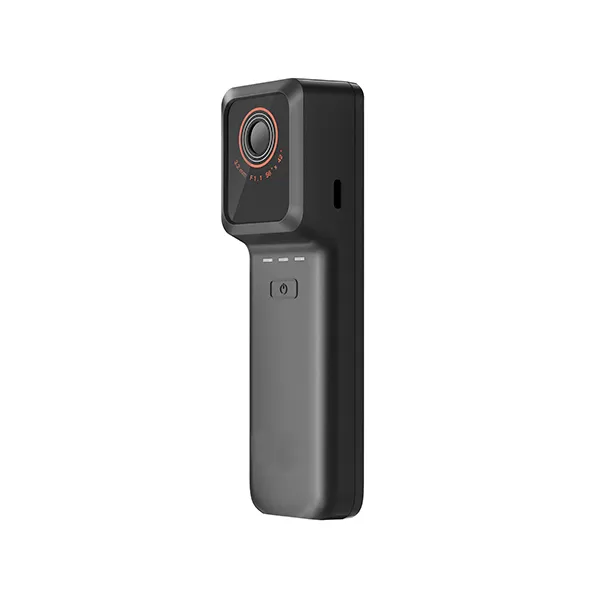

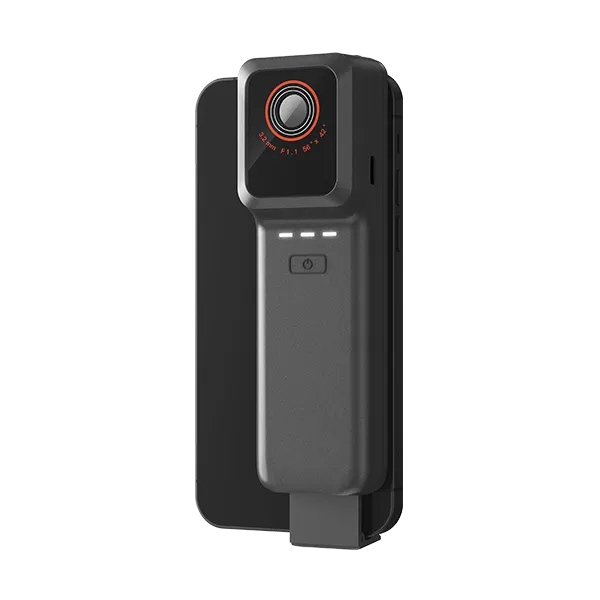

MIX2 AIR SE Wireless Thermal Camera for Smart devices
China Moneypro

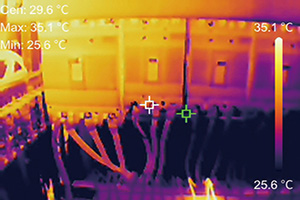

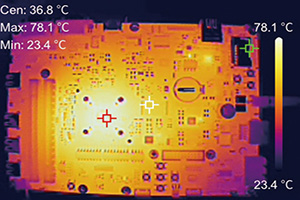

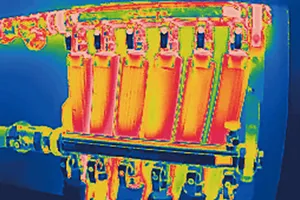

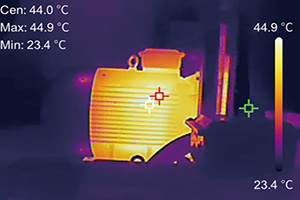

Equipped with a high-sensitivity 256×192 resolution infrared detector, the IX2 AIR SE can be freely combined or separated with a smartphone according to the scenarios. It supports wireless image transmission and operation. With the supporting App for functions such as real-time analysis and transmission, the device can be widely used in electrical maintenance, equipment inspection, HVAC leak detection, and other fields.
Feature
Wireless Measurement, Unlocking New Scenarios
1. Image transmission delay < 300ms.
2. With 2 hours of battery life, productivity is always alive.

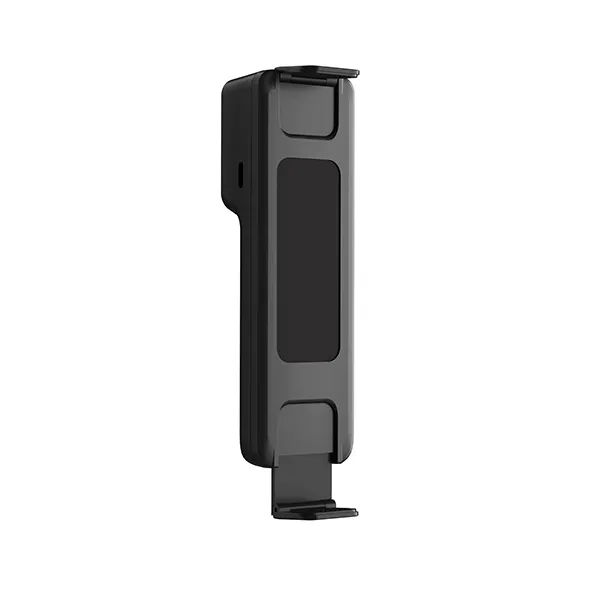

3. The fuselage comes with a back clip and standard threaded holes, which can be matched with various accessories to facilitate users to observe targets at different angles.
2. With 2 hours of battery life, productivity is always alive.
3. The fuselage comes with a back clip and standard threaded holes, which can be matched with various accessories to facilitate users to observe targets at different angles.
Clear Thermal Images, Precise Temperature Measurement
Built-in 12μm 256×192 infrared detector, featuring low power consumption and small size.
40mK professional-grade high thermal sensitivity, capturing smaller temperature differences; wider temperature measurement range of up to 550°C.
Four image modes + 7 palettes, suitable for temperature observation of different targets and different scenes.
40mK professional-grade high thermal sensitivity, capturing smaller temperature differences; wider temperature measurement range of up to 550°C.
Four image modes + 7 palettes, suitable for temperature observation of different targets and different scenes.
Hard-core Configuration, Easy to Use and Convenient
IP54 waterproof and dustproof, 2m drop protection, light and slim design that fits your hand.
Faster Wi-Fi connection with the assistance of Bluetooth; OTA upgrade can be easily completed through the mobile app.
Professional app that supports full-scenario applications such as real-time analysis and offline analysis of temperature measurement images.
*The 8-meter image transmission distance is the test value taken when the space is without obstruction.
Faster Wi-Fi connection with the assistance of Bluetooth; OTA upgrade can be easily completed through the mobile app.
Professional app that supports full-scenario applications such as real-time analysis and offline analysis of temperature measurement images.
*The 8-meter image transmission distance is the test value taken when the space is without obstruction.
Specification
| Thermal Imaging | |
| Detector Type | 12μm uncooled infrared detector |
| Infrared Resolution | 256×192 |
| Spectral Band | 7.5-14μm |
| NETD | ＜40mK (25°C,F1.0) |
| Frame Rate | 25 Hz |
| Lens Focal Length | 3.2mm |
| FOV | 56°×42° |
| IFOV | 3.75mrad |
| Focusing Mode | Fixed focus |
| Minimum Imaging Distance | 0.3m |
| Measurement Range | -20°C ~ +150°C, 100°C ~ +400°C |
| Measurement Accuracy | ±2ºC or ±2% of readings, whichever is greater |
| Imaging Display | |
| Palettes | 7 options |
| Image Mode | Infrared |
| Temperature Width Stretch | Auto |
| Measurement and Analysis | |
| App Analysis Function | Central temperature point/Highest temperature point/Lowest temperature point, 1 preset analysis template (support 3 custom points, 3 custom lines, and 3 custom frames) |
| System Functions | |
| Communication Protocol | Wi-Fi, USB, Bluetooth |
| Remote Access and Control | WiFi, Type-C |
| Others | |
| OTA | Support OTA upgrade |
| Battery | 1050mAh |
| Charging Mode | USB Type-C |
| Battery Life | About 2h |
| Clamp Width | Minimum 131mm/Maximum 172mm |
| Tripod Socket | UNC 1/4-20 interface for tripod |
| Operating Temperature | -10°C~+50°C |
| Operating Humidity | 10%~90% (non-condensing) |
| Storage Temperature | -20°C~+60°C |
| Ingress Protection Rating | IP54 |
| Shock and Vibration | 2G(EC60068-2-6)、25G(EC60068-2-29) |
| Weight and Dimensions | 130g |
| Authentication | CE/RoHS/DGM/WEEE/Measure |
| Packing List | Data cable×1, complete machine×1, quick start guide×1, packing list×1, quality certifcate×1 |
