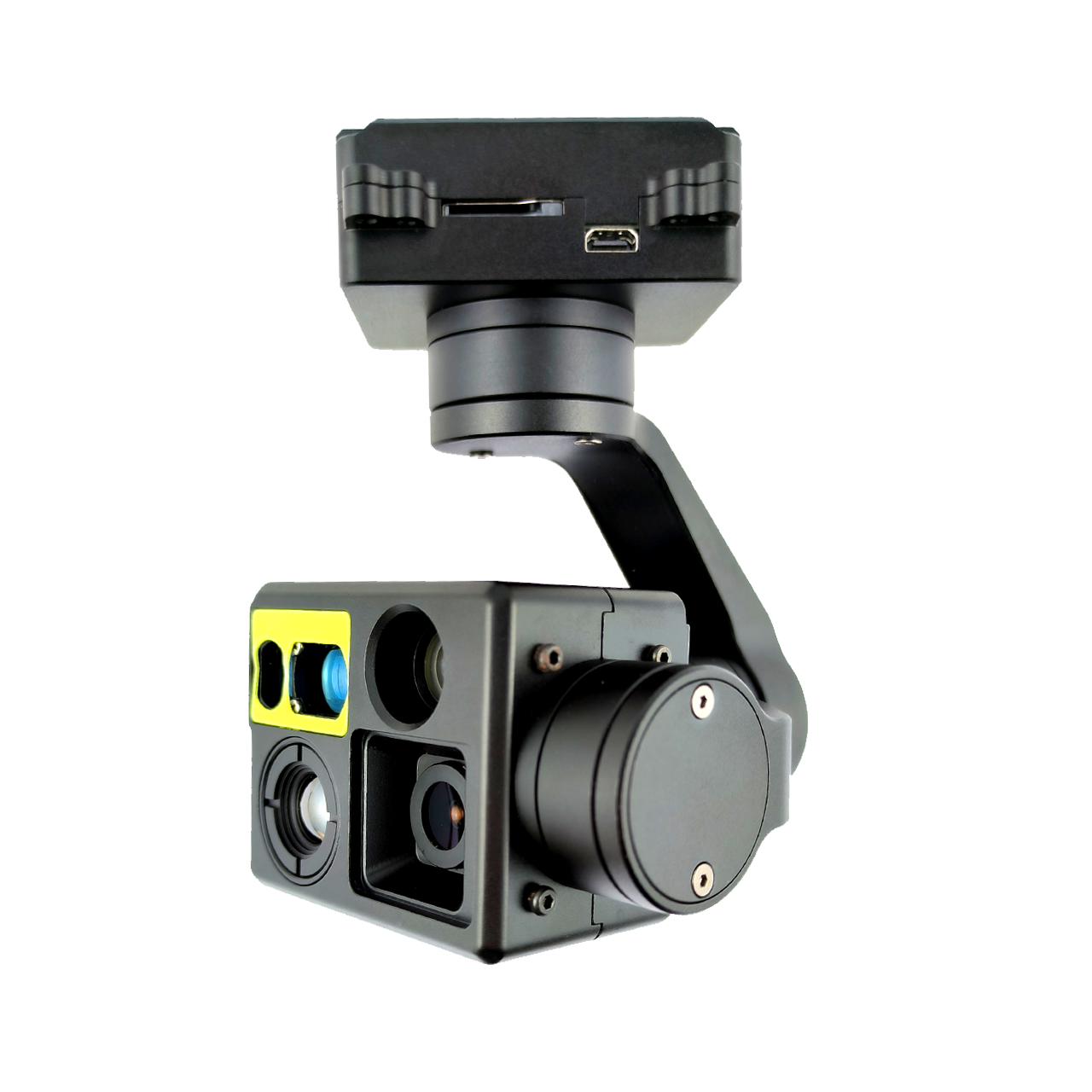

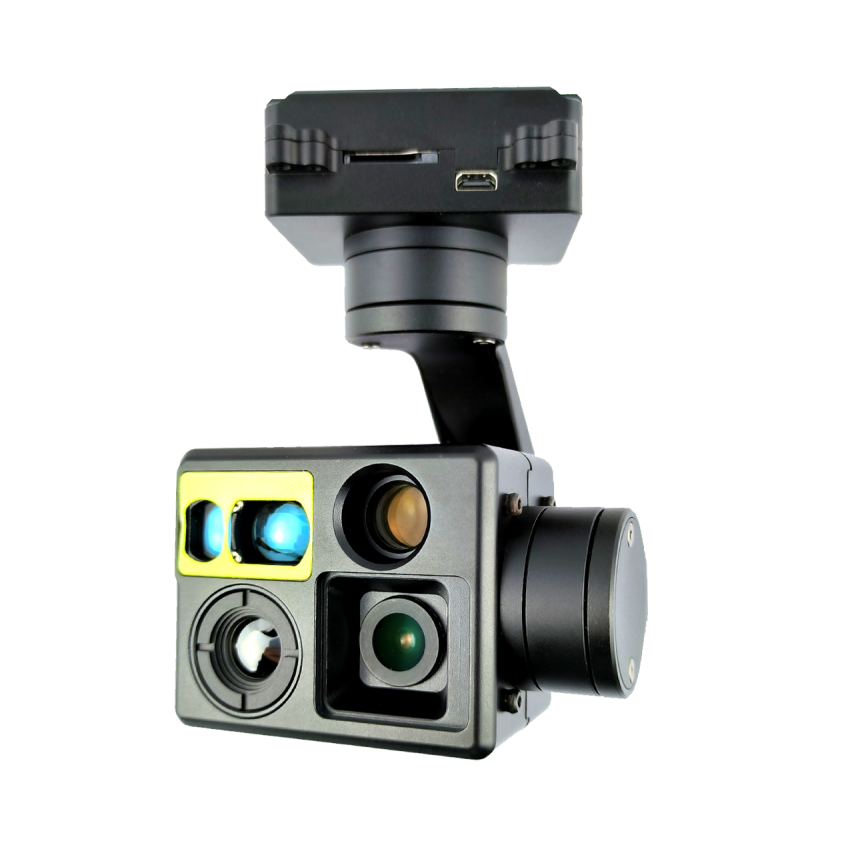

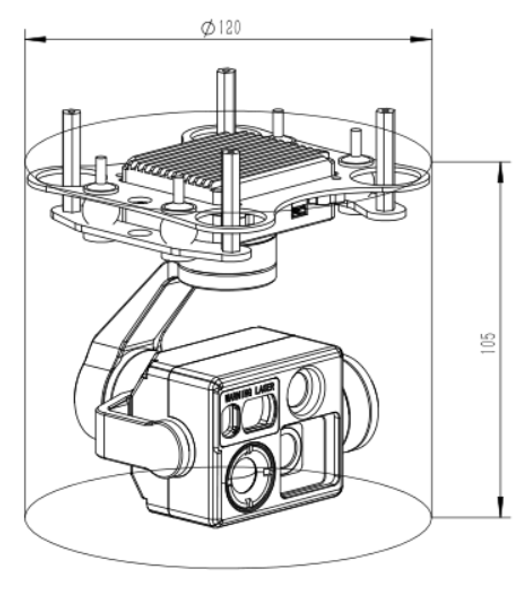

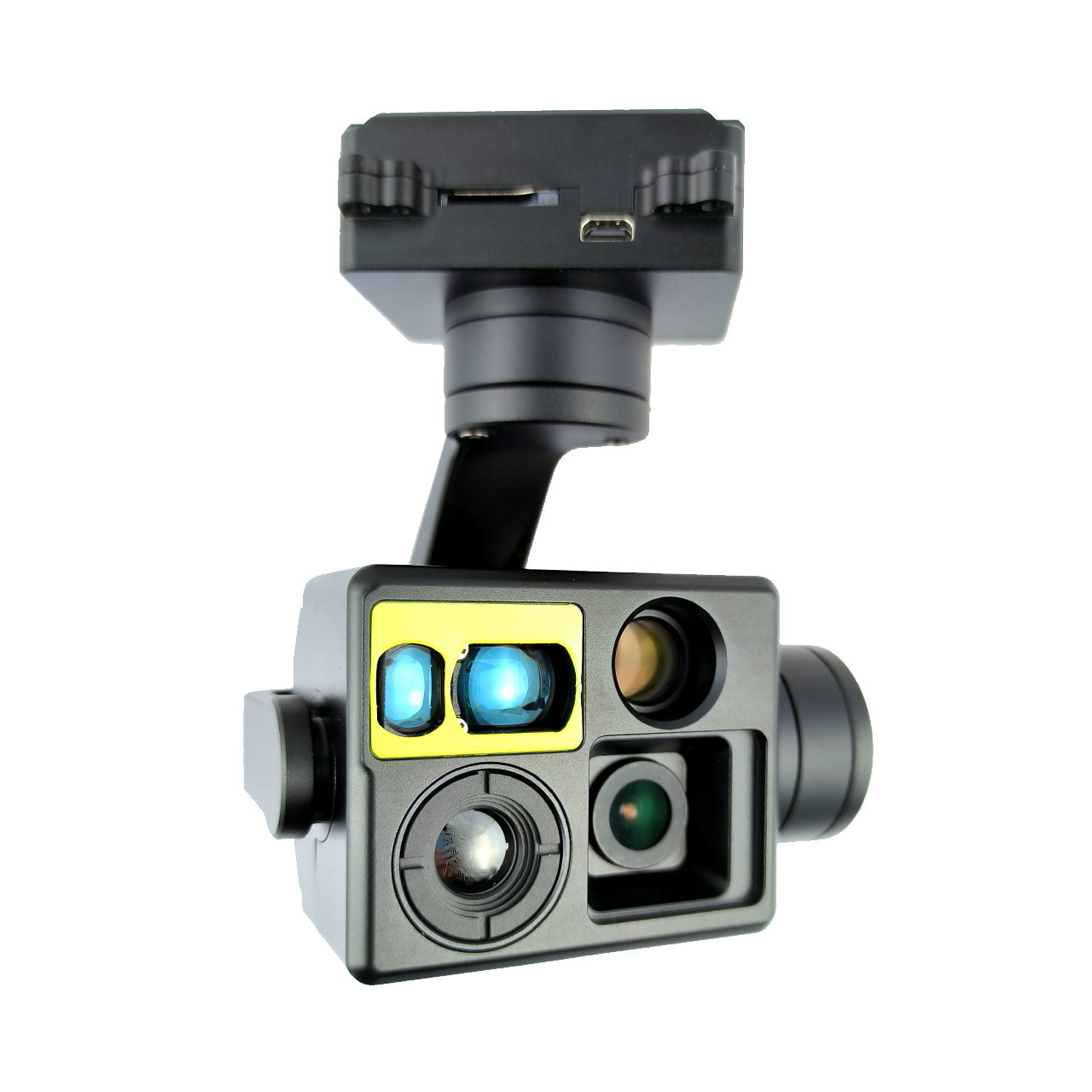

KHDA609L12 is a four-sensor integrated system integrating fixed focus 4K 8MP EO camera, fixed focus 1080P 2MP EO camera, 9.1mm lens 640×512 IR camera (uncooled vanadium oxide detector), up to 1200m laser rangefinder, and a high-precision encoder FOC control scheme 3-axis stabilization gimbal. It adopts Ethernet and HDMI dual output. The gimbal camera features the characteristics of high stability, compact size, light weight and low power consumption; This integrated camera system supports RTSP stream real-time video output, 5 Picture-in-Picture modes, 10 pseudo-color display modes, and global temperature measurement function. It can be controlled by serial port, S.BUS, UDP, UART and PWM. Local TF card dual-channel video recording and photography are supported.
Voltage：
DC 12V-26.2V
Power Supply：
Dynamic 6W
Roll Angle：
-45° ～ +45°
Pitch Angle：
-45°～ +100°
Yaw Angle：
-150° ～ +150°
Angle jitter in pitch and roll directions：
±0.02°
Horizontal angle jitter：
±0.03°
Gimbal Mode：
Support gimbal Lock/Follow mode; One key return to center
Adjustable control speed：
When the gimbal rotates, speed adaptation is based on the current speed mode and visible light camera magnification
Control method：

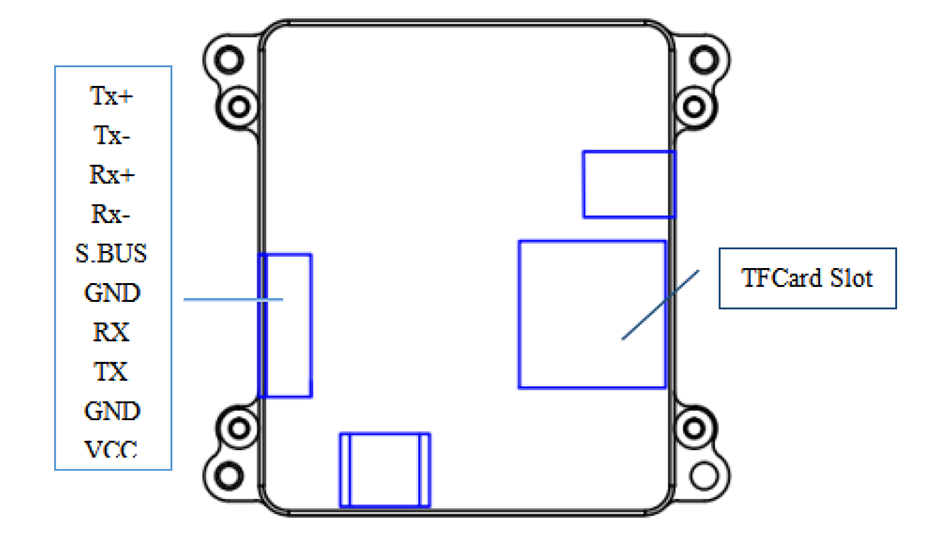

serial port, S.BUS, UDP, UART and PWM
CMOS Size：
8 Mega pixels CMOS SENSOR
Digital Zoom：
9x Digital Zoom
Compressed Storage Mode：
H264，H265,video streaming local TF storage 1080p
Field of View (FOV)：
25mm lens, FOV: 10.5°× 7.8°
CMOS Size：
2 Mega pixels CMOS SENSOR
Digital Zoom：
9x Digital Zoom
Compressed Storage Mode：
H264，H265,video streaming local TF storage 1080p
Field of View (FOV)：
6mm lens, FOV： 60°x 43°
Resolution：
640*512 pixel
Pixel spacing：
12μm
Type：
Uncooled Vanadium Oxide Detectorr
Wavelength range：
8～14μm
Thermal sensitivity (NETD)：
≤50mk@F1.0@25℃
Field of view：
9.1mm Lens; FOV：48°×38°
Measurement (Optional)：
Average temperature, highest temperature, lowest temperature display
