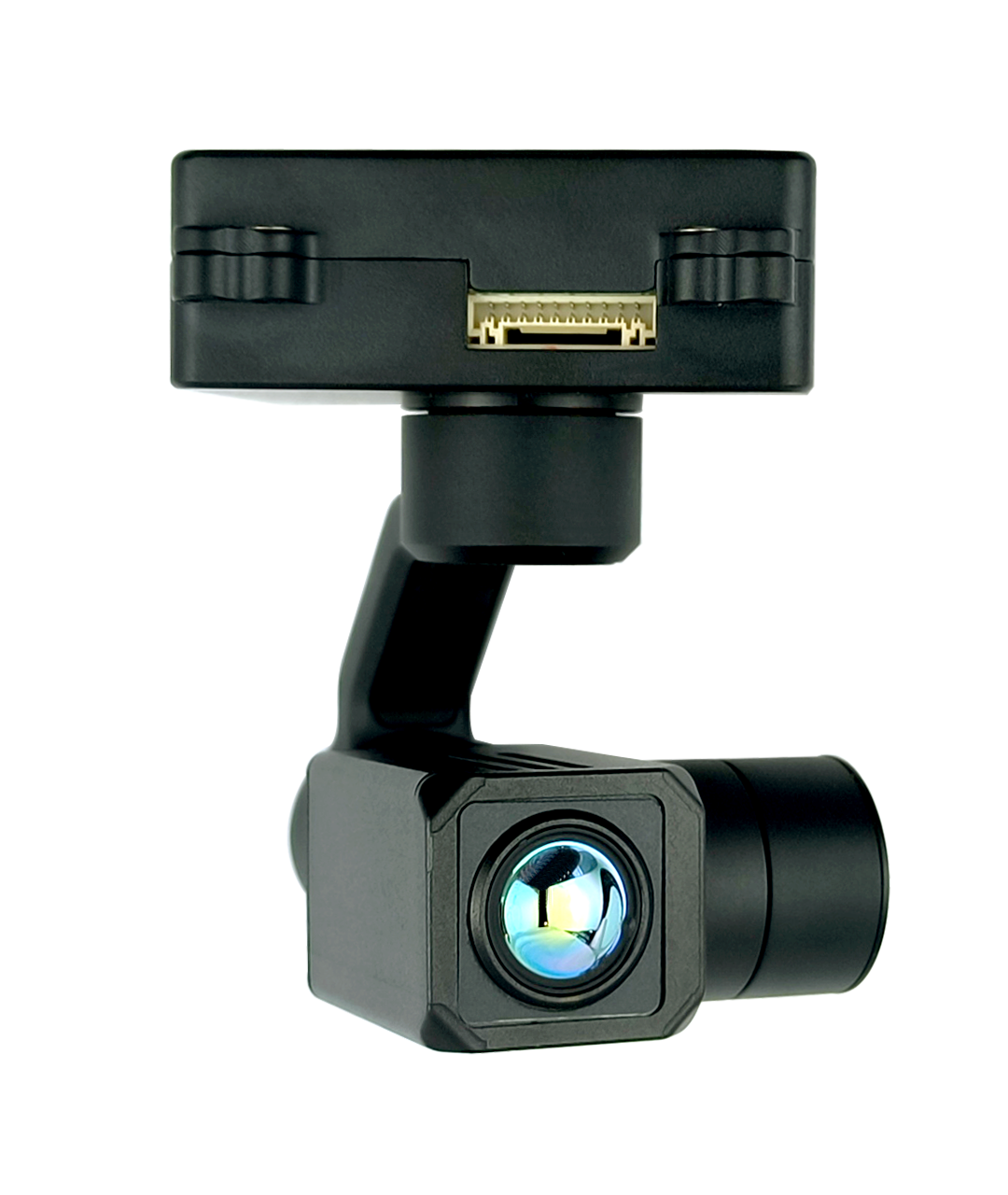

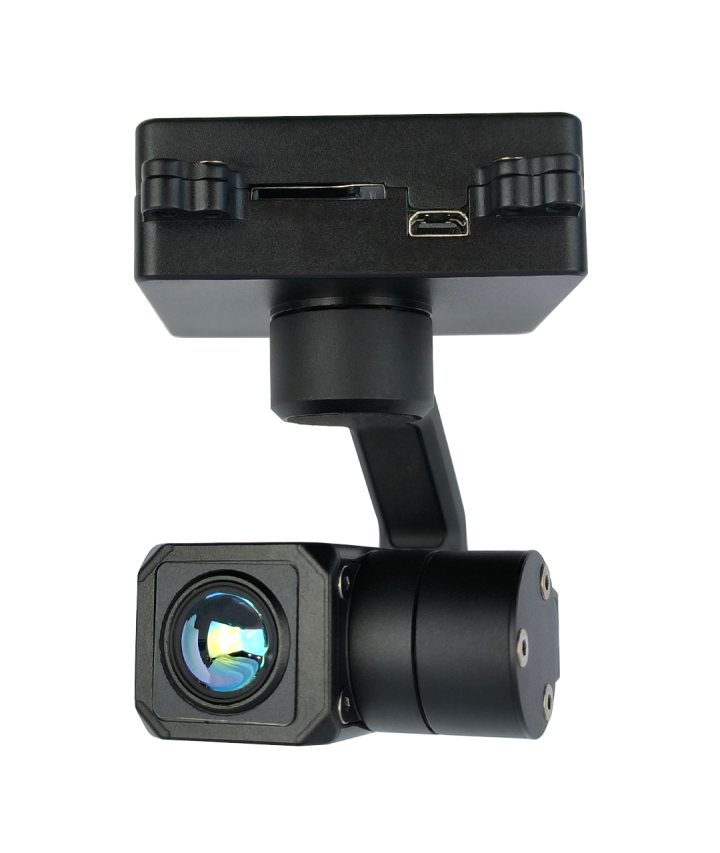

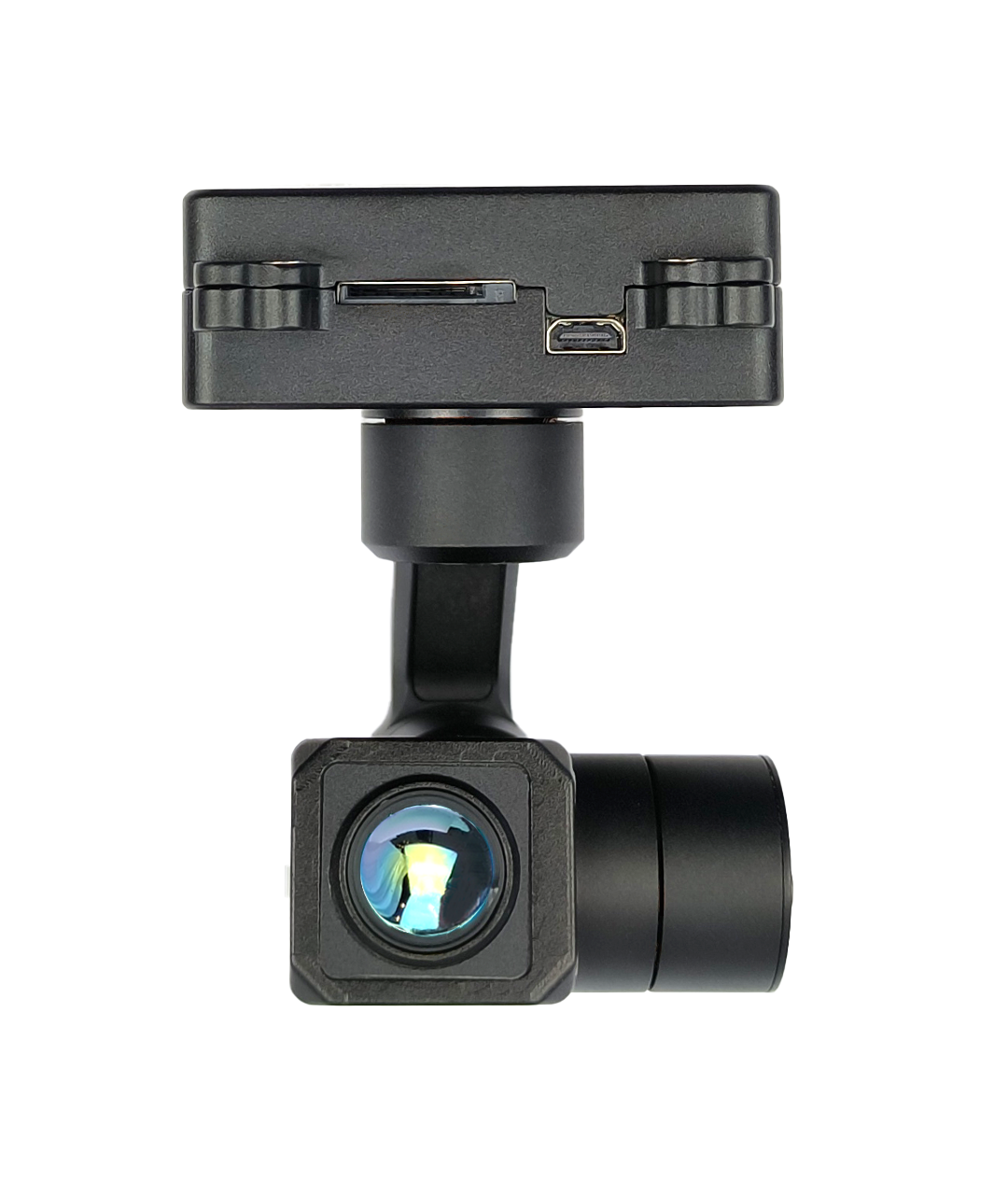

KHP640M5 is a 8.7mm 640 * 512 resolution 3-axis single thermal camera gimbal with both Network and HDMI outputs, which supports multi-pseudo color switching modes, full temperature measurement, and three-axis stability. Besides these, the gimbalsupports standard RTSP code stream, QGC control and local TF card storage. The pod can be controlled via UART ①, S.BUS and Nework.

V-IN：	DC 12V-26.2V	Power：	Dynamic 5W
Roll Angle：	-20°~+20°	Pitch Angle：	-40°~+110°
Course Angle：	-140°~+140°	Pitch and Roll Jitter Angle：	±0.02°
Horizontal Angle jitter：	±0.03	One-click back to center function：	One key automatic fast return to the initial position

Type：	Vanadium oxide uncooled infrared detector
Resolution：	640*512
Pixel Size：	10um
Spectrum：	8～14μm
NETD：	≤50mk@25℃F1.0
Measurement Range：	-20℃~650℃
Measurement Accuracy：	±3 or ±3%
Function：	Full pixels temperature measurement( full pixels temperature storage for option)
Lens：	8.7mm/F1.0, FOV：40°x32.2°
Video ：	IP RTSP Streaming，Mutual data transmission

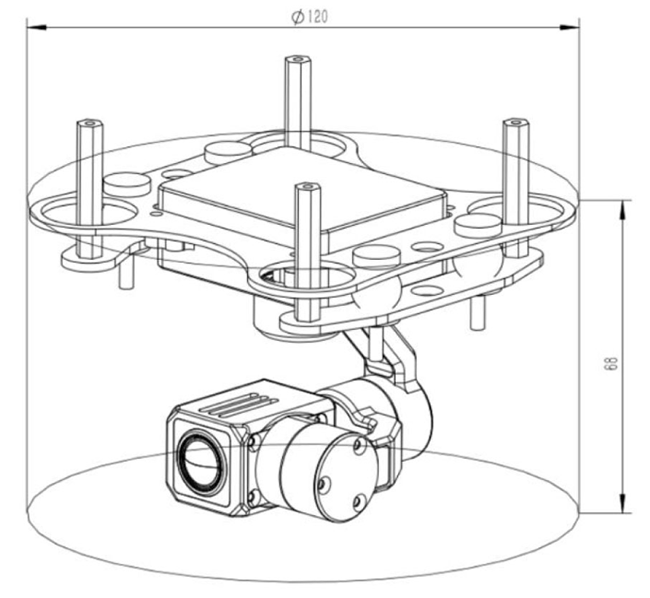

Device Size：	120mm×68mm	Work Condition：	-20℃ to +45℃ / 20% to 80% RH
Storage Condition：	-40℃ to +60℃ / 20% to 95% RH	Weight (Not including dampers)	110±10g
