KIP30L30A is an integrating 270 mixed optical zoom  camera,with 3000m laser range finder and professional 3-axis stabilization PTZ.This gimbal be designed with the characteristics of compact size ,light weight ,high stabilization and lower power consumption. The visible light camera adopts with 2MP HD COMS sensor and 3000m high precision LFR.Providing the ground station software ,the PTZ and camera can be directly controlled by both Network and UART,and reading the data of range finder. Supporting local TF storage and network file read and write and dual channel video recording & photography.

Voltage：	DC 12V-26.2V	Power：	Dynamic 8W
Roll angle range：	-45° ～ +45°	Pitch angle range：	-45° ～ +120°

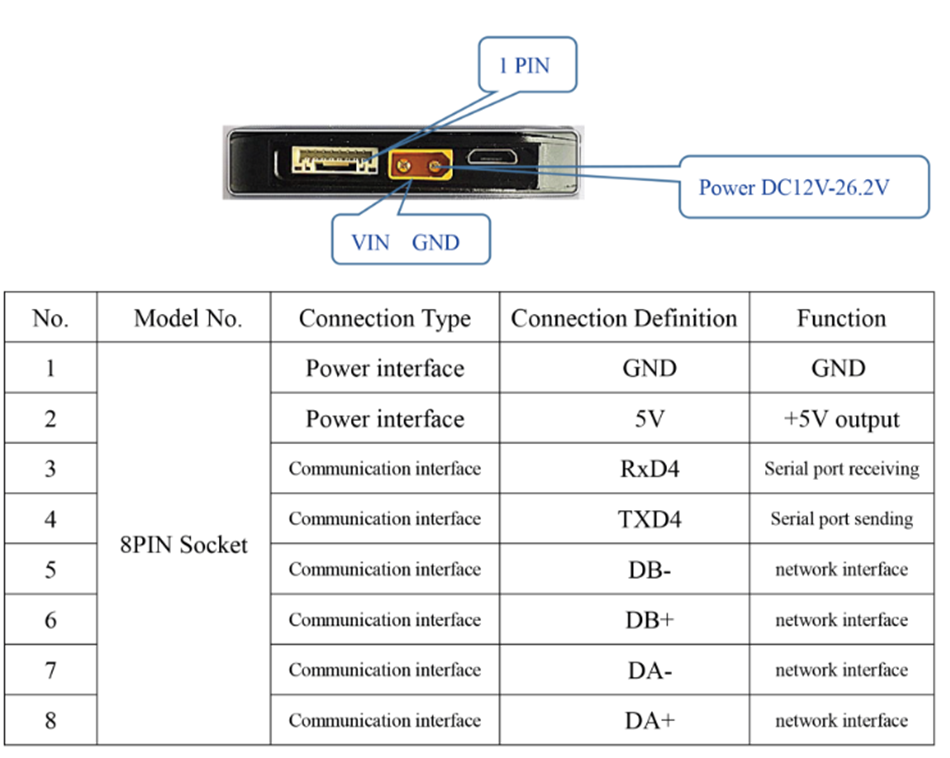

Yaw angle action range：	360°Polar rotation	Control mode：	The speed is adaptive and controllable ,Support network IP and UART Serial port control

CMOS Size：	1/2.8 inch 200 mega pixels wide dynamic COMOS Sensor
Optical zoom：	30x HD optical zoom camera f=4.5±10%～135±5%mm
Focusing time：	Real time focusing ,fast focusing time<1S
Video output：	Network RTSP 1080P and 480P output,Video stream ,local TF card storage
Field Angle（FOV）：	D : WIDE 67.8º±5% TELE 2.77º±5%   H : WIDE 59.8º±5% TELE 2.34º±5%   V : WIDE 40.5º±5% TELE 1.48º±5%
Support Mode：	1080P 30fps

Infrared Wavelength：	1535nm±5nm (class I safety laser)
measuring range：	20–3000m（not allowed to illuminate bojects less than 20m）
Accuracy/resolution：	Accuracy≤±2m；Ranging resolution≤20m
