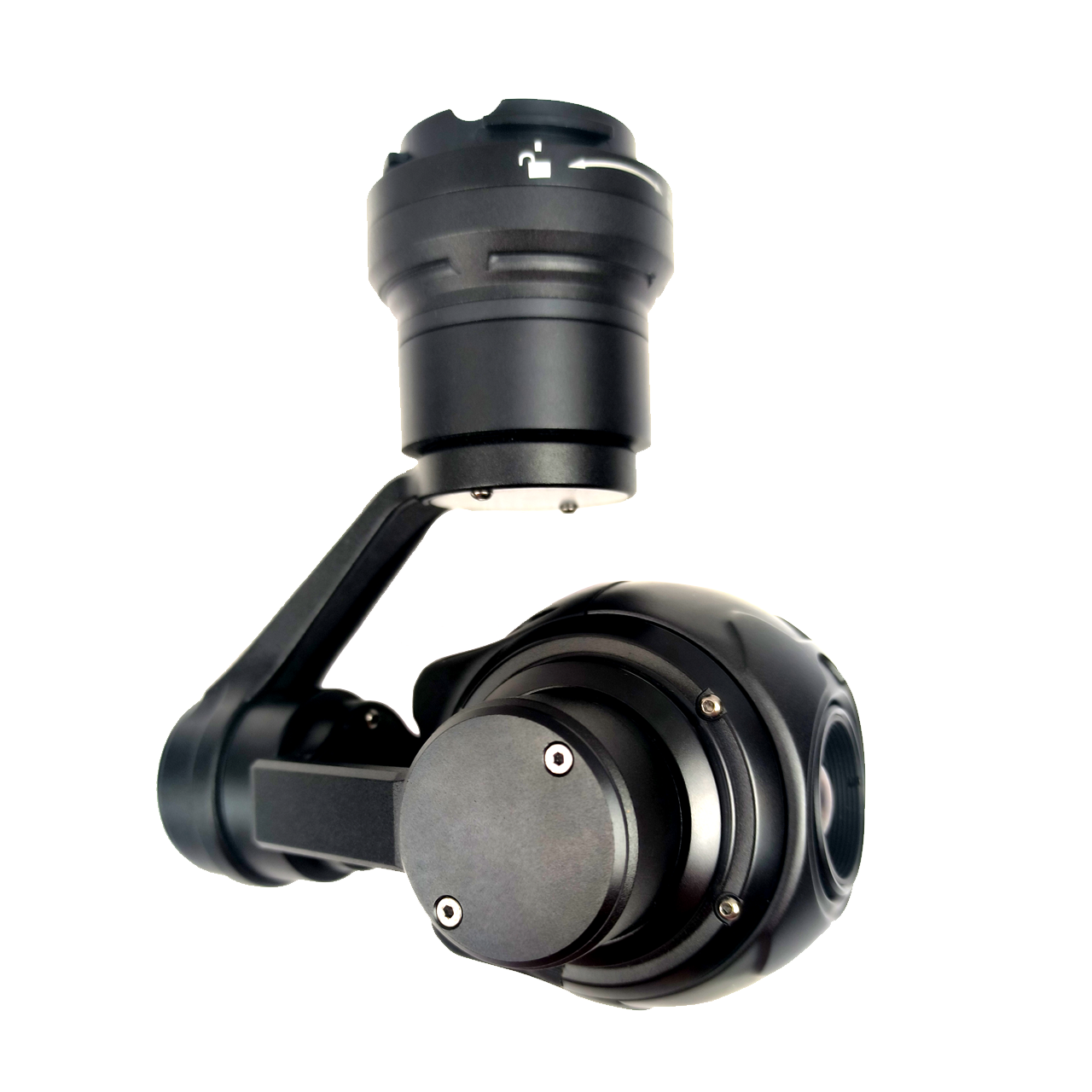

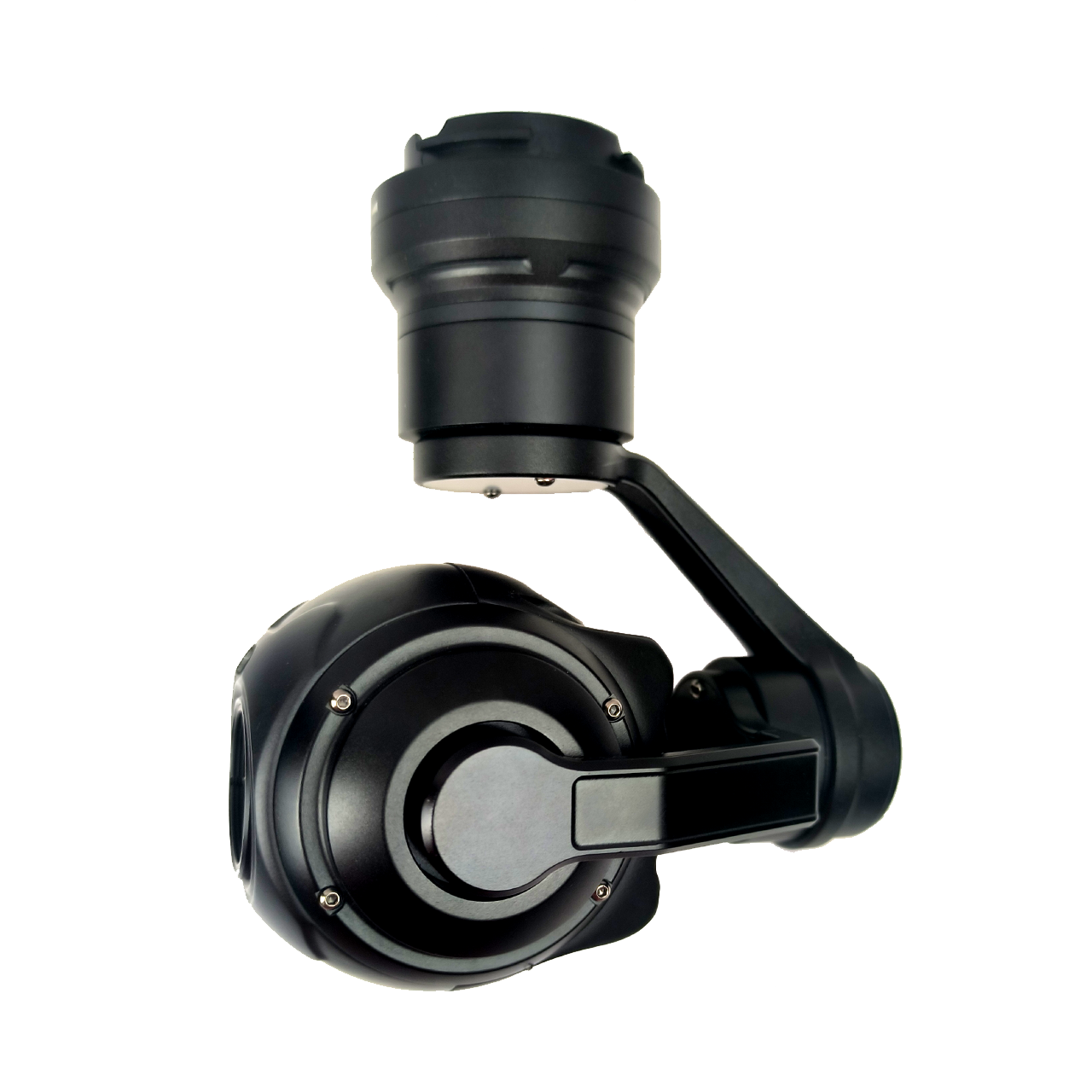

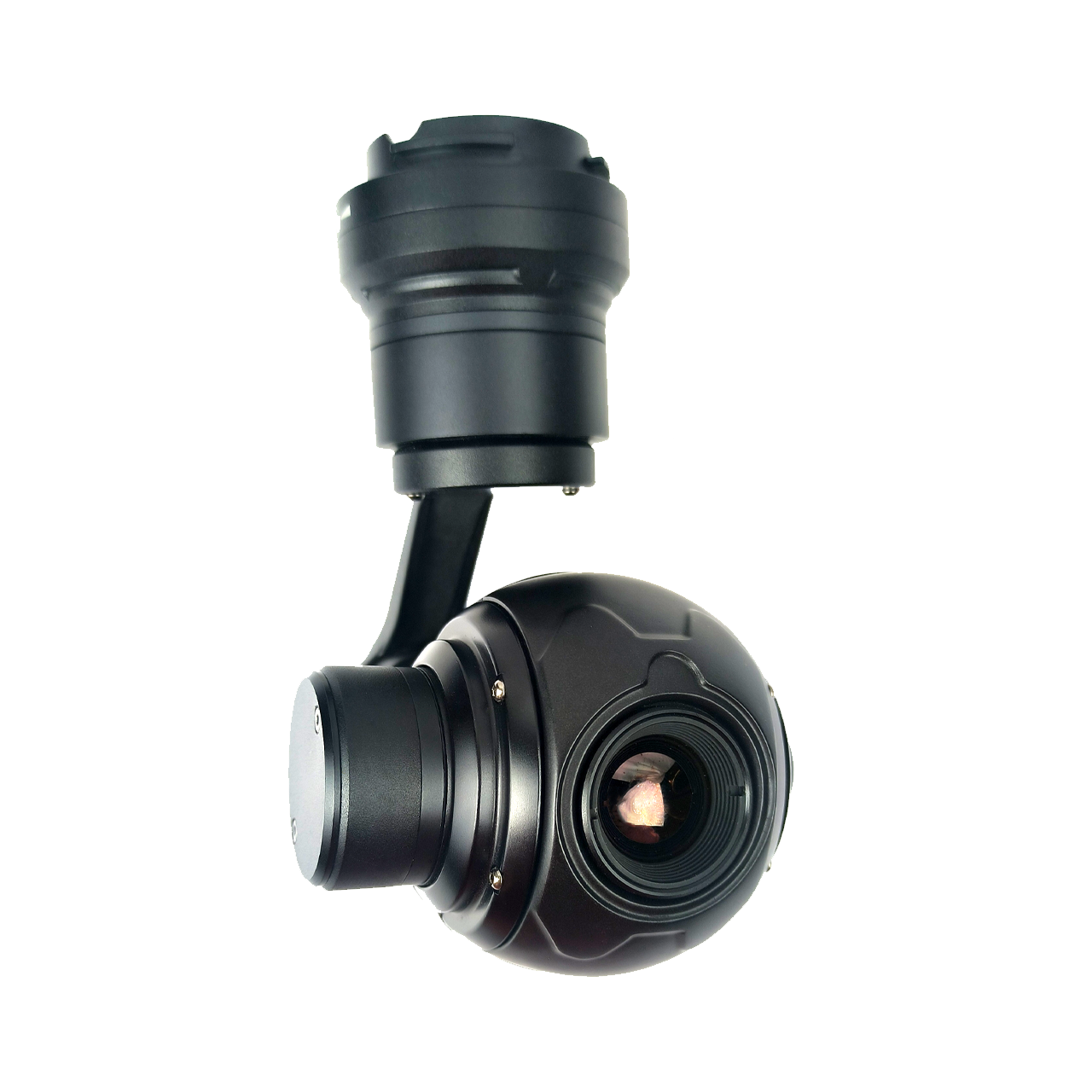

KIP640G19 is a single thermal imaging IP output gimbal camera, which adopts a 19mm focal length, 640×512 pixels resolution infrared thermal camera with 3-axis stabilization. It supports multi pseudo-color switching, area and point temperature measurement, Ethernet (standard RTSP stream) video output, local TF card storage. Our ground control software allows you to control the PTZ and the thermal imaging camera at the same time. You would also be able to control the gimbal camera and read parameters through UART or UDP. We also provide multiple serial control protocols.
Voltage：
DC12V-26.2V
Power Consumption：
Dynamic 4W
Roll angle action range：
-45°～ +45°, Jitter ±0.02°
Pitch angle action range：
-45°～ +120°
Yaw angle action range：
-280°～ +280°, Jitter±0.03°
Gimbal Mode：
Support one key back to center, Lock/Follow Mode; Angle setting, position reading
Resolution：
640×512 pixel
Pix Spacing：
12μm
Type：
Uncooled vanadium oxide infrared thermal imager
Wavelength coverage：
8～14μm
Thermal sensitivity NETD：
≤50mk@F1.0
Contrast, Pseudo color：
Adjustable, multiple pseudo-color mode
Lens specification：
19mm lens， F1.0, FOV：22.9°×18.4°
Temperature measuring range：
Center point, Lowest, highest temperature display; Area and point temperature measurement
