| Hardware Parameter |
| Working voltage |
24V |
| Input voltage |
6S (22.2V~25.2V) |
| Output voltage |
5V (connect with PWM) |
| Maximum current |
6000mA @ 24V |
| Power consumption |
Minimum power: 1W (LED off), Peak power: 144W (LED maximum consumption) |
| Working environment temp. |
-20℃ ~ +50℃ |

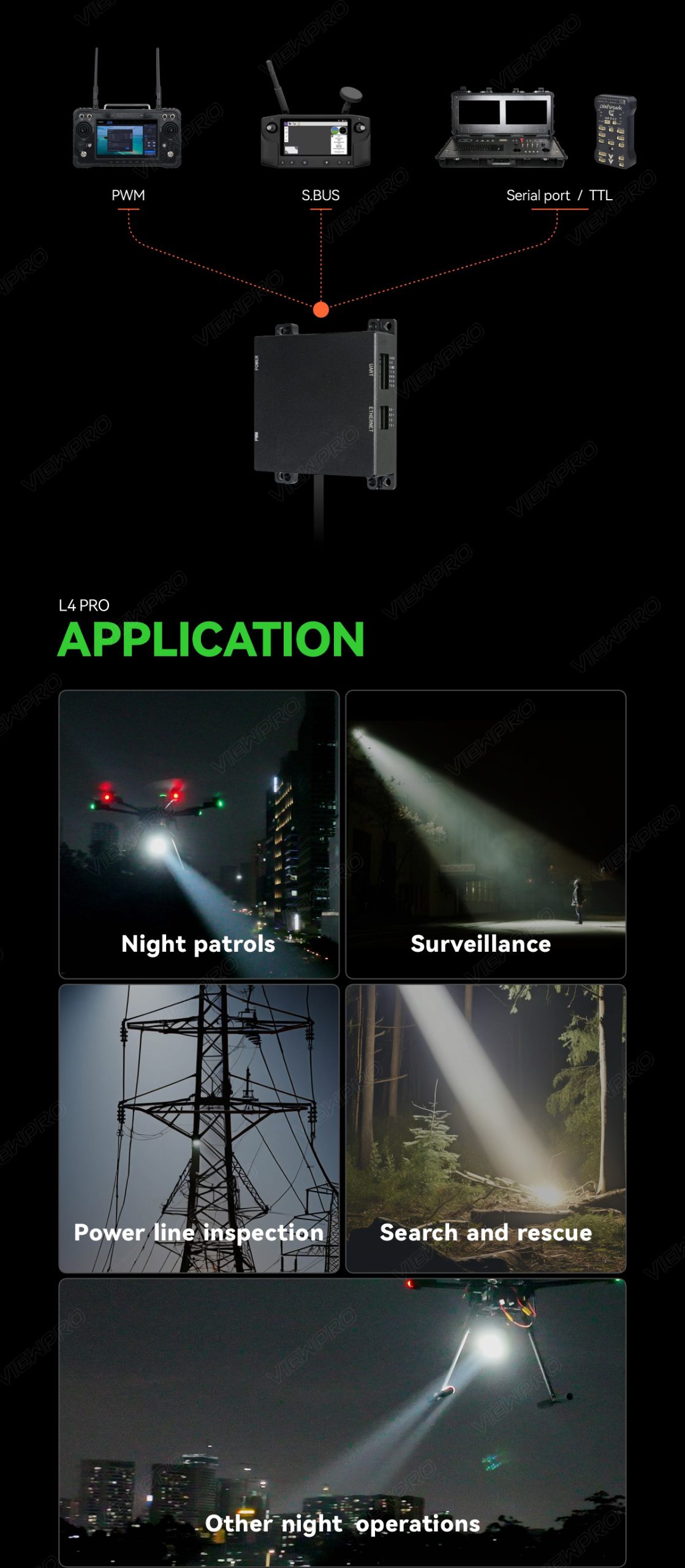

| Control method |
PWM / SBUS / TTL |
| Gimbal Spec |
| Mechanical Range |
Pitch/Tilt: -30°(Upward)～123°(Downward), Roll: ±70°, Yaw/Pan: ±120° |
| Controllable Range |
Pitch/Tilt: -25°～90°, Yaw/Pan: ±115° |
| Vibration angle |
Pitch/Roll/Yaw: ±0.02° |
| One-key to center |
√ |
| LED Spec |
| LED power |
0~128W(Adjustable) |
| Luminous flux |
13500lm+3% (power 128W) |
| 8050lm+3% (power 64W) |
| Luminous |
113lm/W (power 128W) |
| Spot diameter |
40m (power 128W, 50m distance) |
| 40m (power 128W, 50m distance) |
| Illumination area |
1230㎡ (power 128W,150m distance) |
| Central illuminance |
15Lux (power 128W,150m distance) |
| 8Lux (power 64W,150m distance) |
| Operating mode |

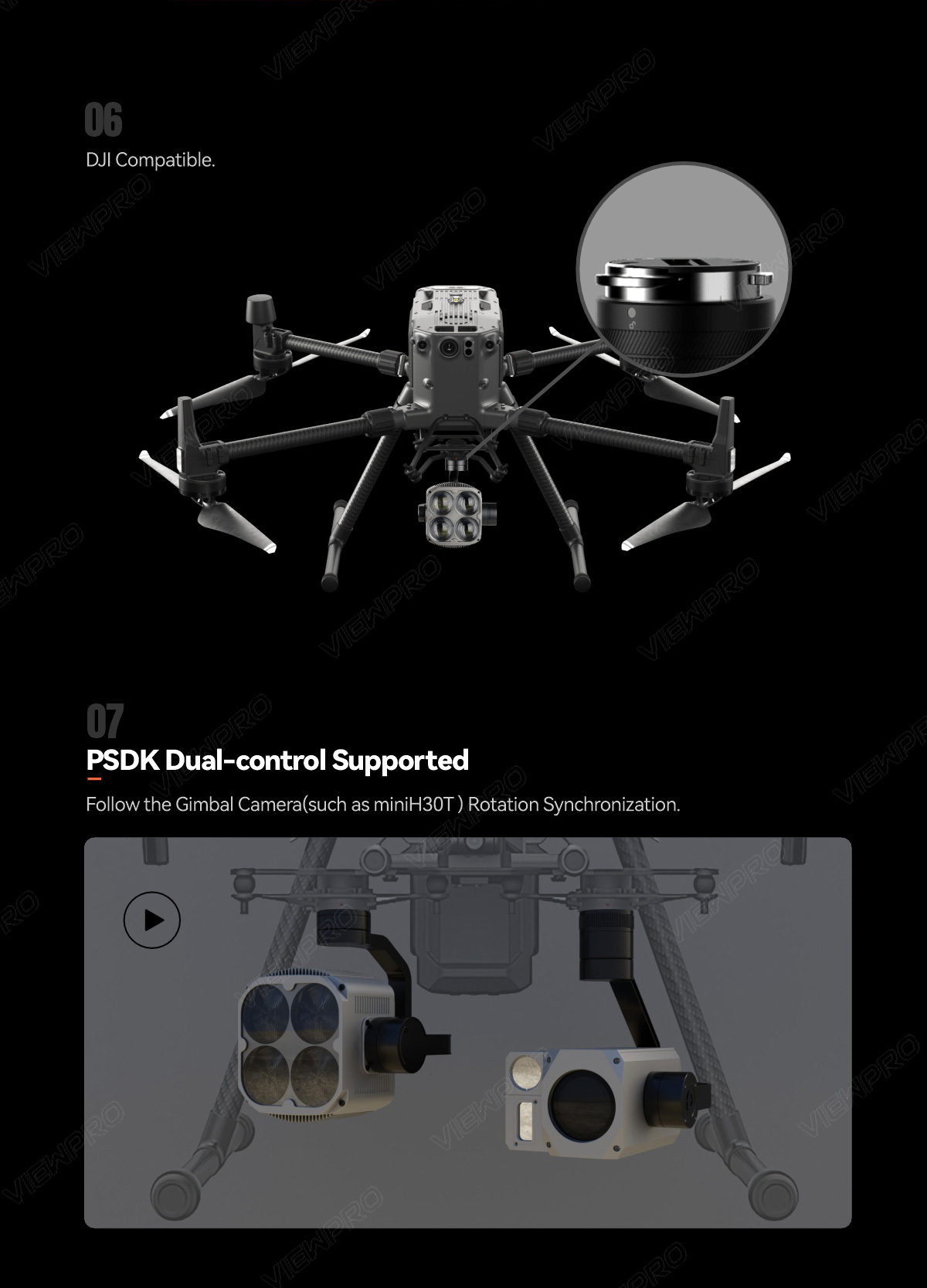

Normally on: 128W , 64W(DJI version) |
| Sharp flash: 128W , 64W(DJI version) |
| Packing Information |
| N.W. |
925±10g(Viewport version with Viewport) |
| Product meas. |

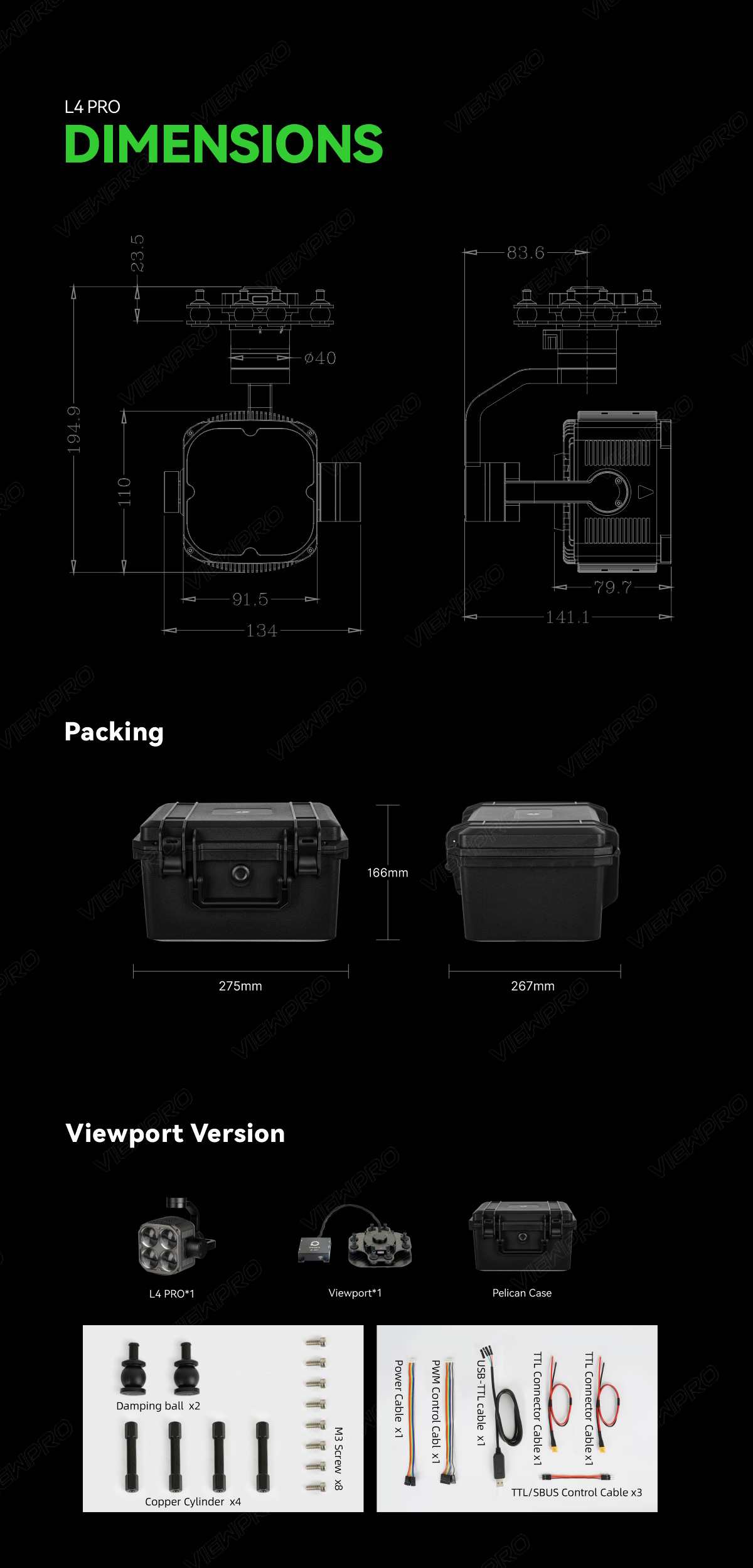

141.1*134*194.9mm(Viewport version with Viewport) |
| Accessories |
1pc gimbal device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion |
| G.W. |
2652g |
| Package meas. |
350*300*250mm |
