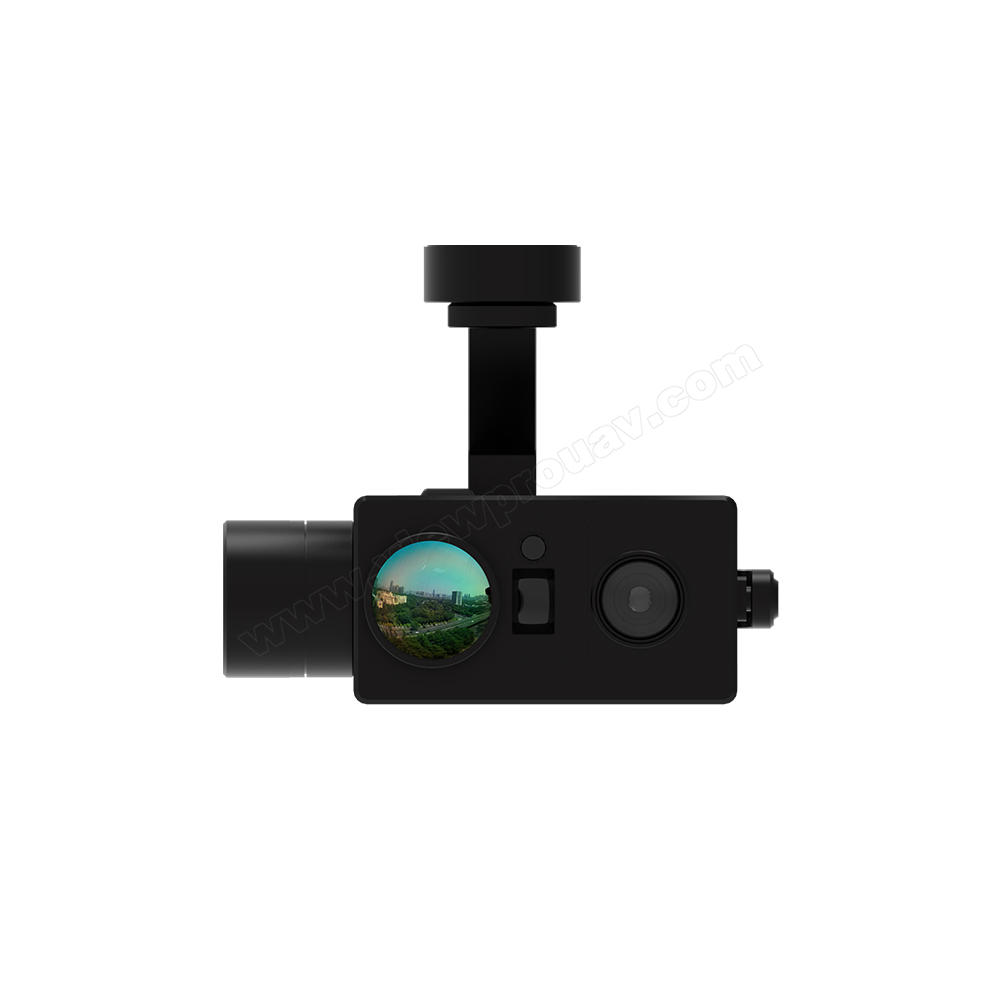

| Hardware Parameter |
| Working voltage |
12V |
| Input voltage |
3S ~ 6S |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
1250mA @ 12V |
| Idle current |
750mA @ 12V |
| Working environment temp. |
-20℃ ~ +60℃ |
| Output |
IP(1080P/720p 25/30fps) |
| Local-storage |
TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format |
JPG(1920*1080 / 1280*720) |
| Video storage format |
MP4 (1080P/720P 25fps/30fps) |
| Control method |

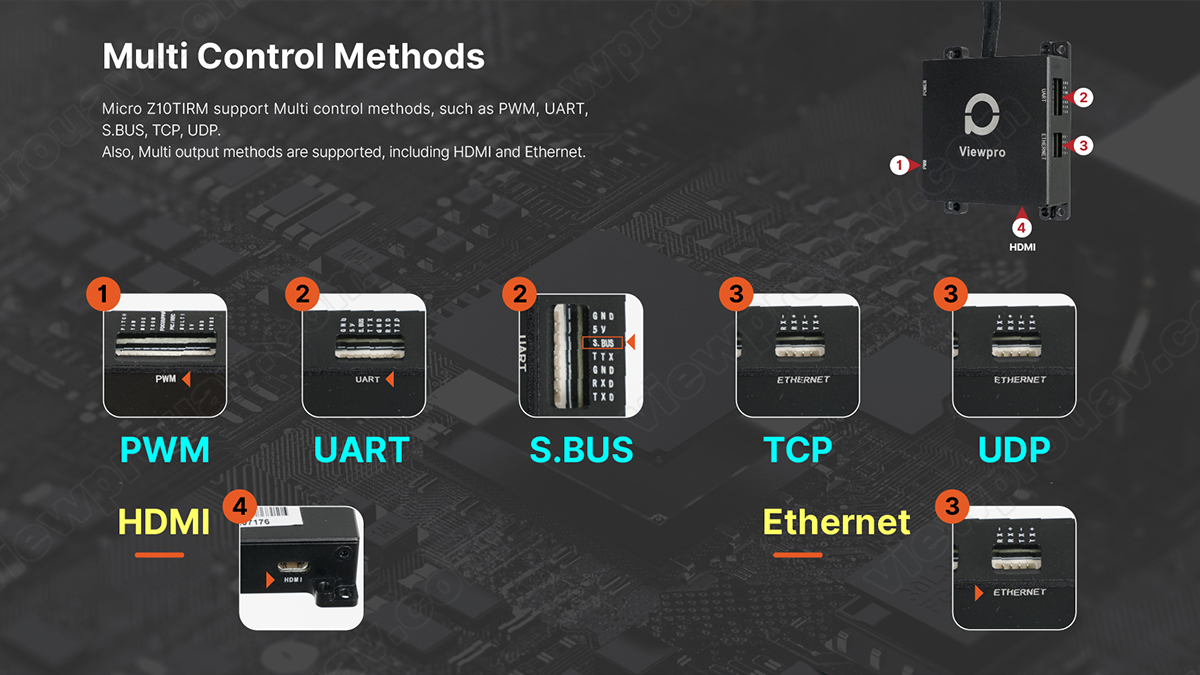

PWM / SBUS / TTL / TCP |

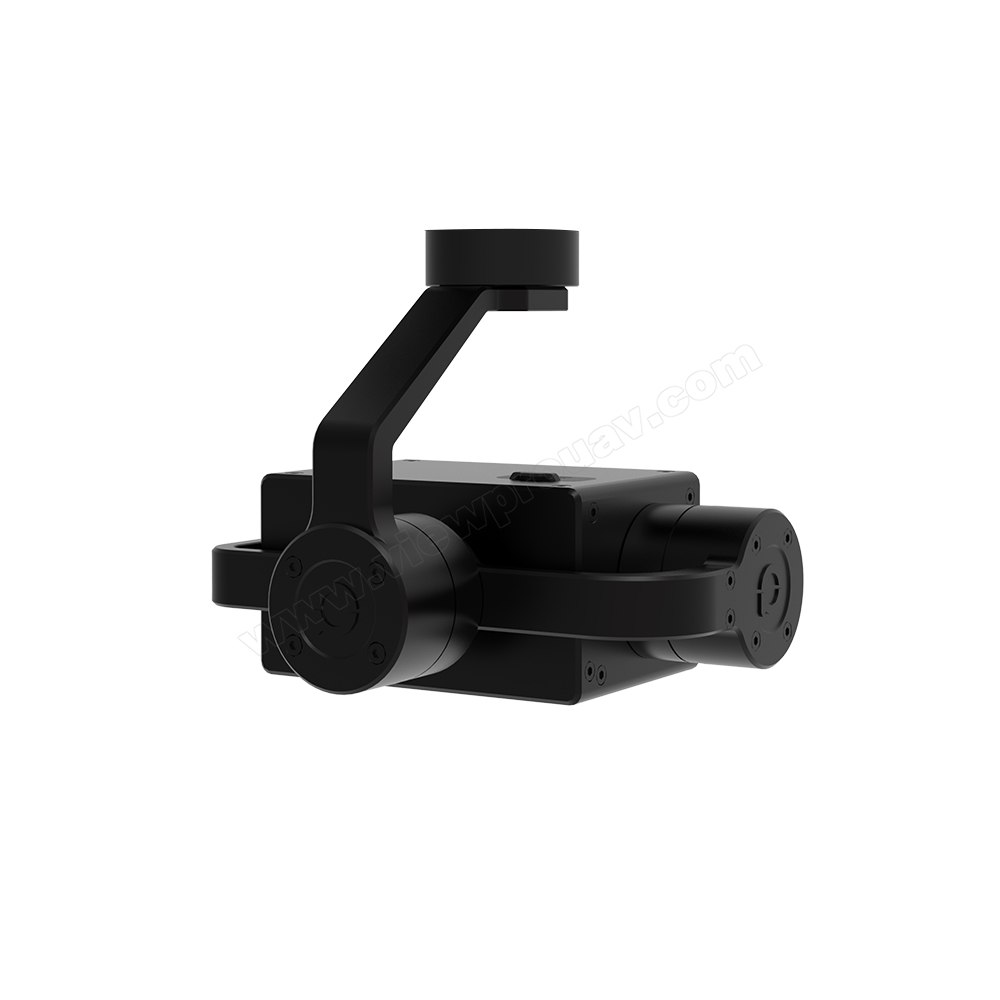

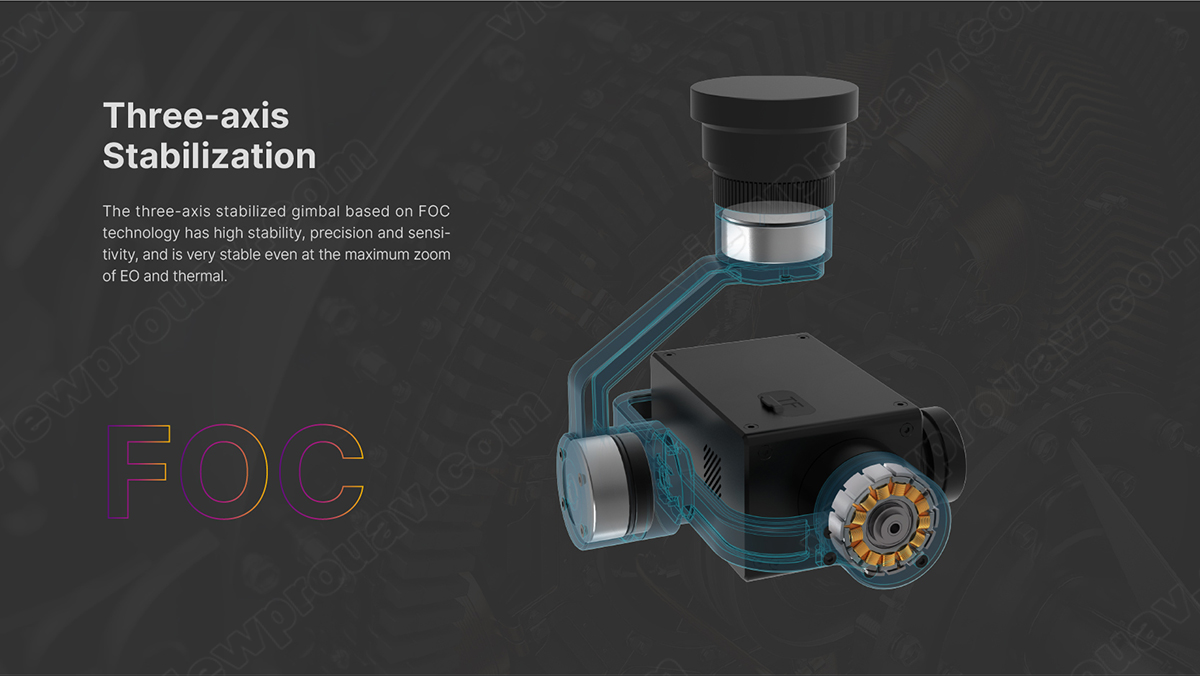

| Gimbal Spec |
| Mechanical Range |
Pitch/Tilt: -33°～110°, Roll: ±35°, Yaw/Pan: ±360°*N |
| Controllable Range |
Pitch/Tilt: -30°～90°, Yaw/Pan: ±360°*N |
| Vibration angle |
Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center |
√ |
| EO Camera Spec |
| Imager Sensor |
1/3-type CMOS(Progressive Scan) |
| Picture quality |
Full HD 1080 (1920*1080) |
| Effective pixel |
4.08MP |

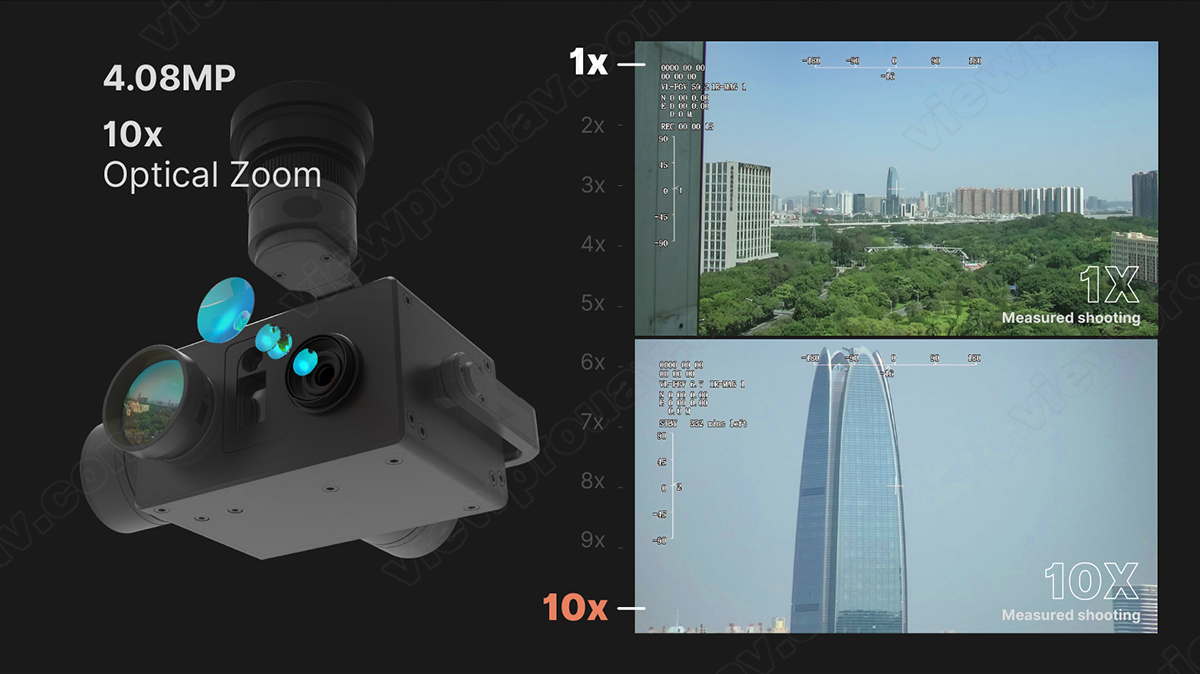

| Lens optical zoom |
10x, F=3.3~33.0mm, F1.8~3.4 |
| Digital zoom |
16x |
| Min object distance |
10mm(wide end) to 800mm(tele end) |
| Horizontal viewing angle |
58.2°(wide end) ~ 6.9°(tele end) |
| Sync system |
Internal |
| S/N ratio |
more than 50dB |
| Min illumination |
0.5 lx (1/30s, F1.8, 50%) |
| Gain |
Auto / Manual |
| White balance |
ATW1 (Narrow), ATW2 (Wide), One push, manual (B, R),indoor,outdoor |
| Shutter speed |
1/1s to 1/10,000s |
| Backlight compensation |
Yes |
| Aperture control |
16 steps |
| OSD |
Yes |

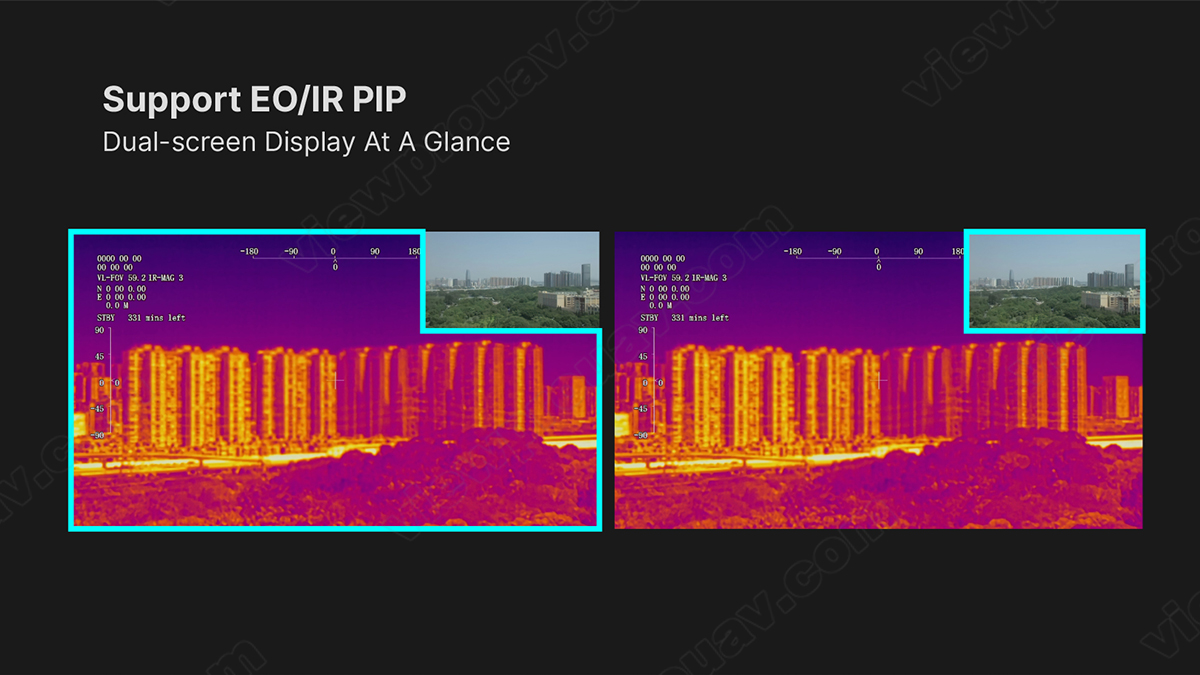

| IR Thermal imager spec |

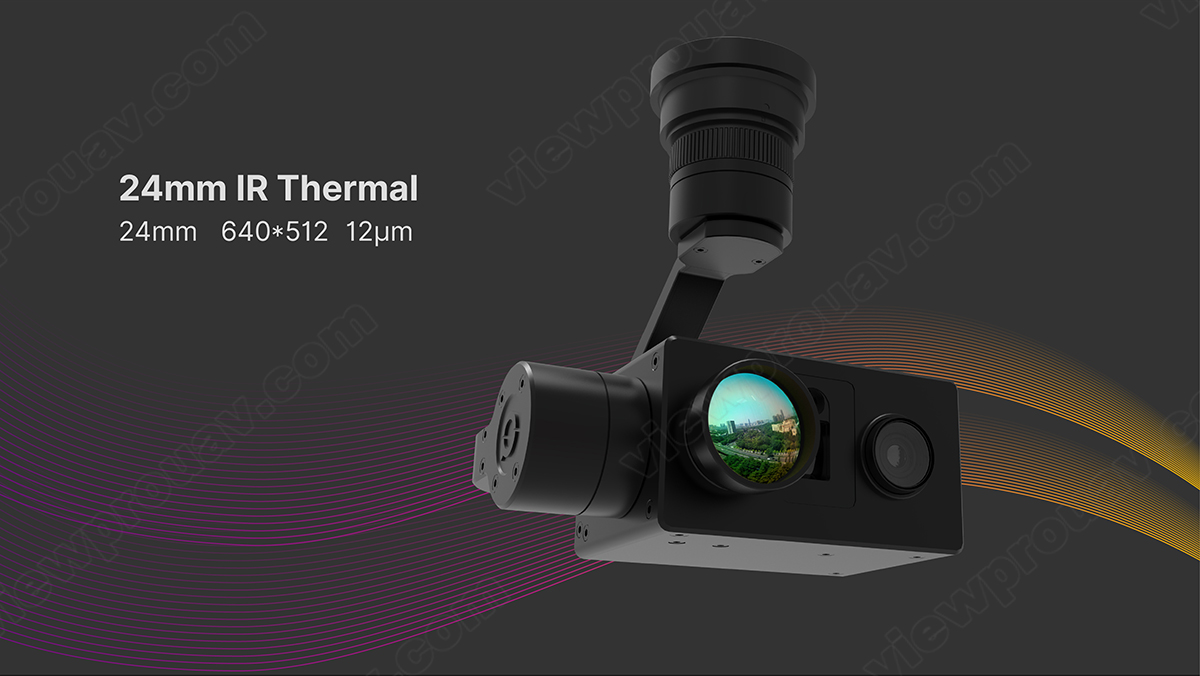

| Focus Length |
24mm |
| Horizontal FOV |
18.2° |
| Vertical FOV |
14.6° |
| Diagonal FOV |
23.2° |
| Detective Distance (Man: 1.8×0.5m) |
1000 meters |
| Recognize Distance (Man: 1.8×0.5m) |
250 meters |
| Verified Distance (Man: 1.8×0.5m) |
125 meters |
| Detective Distance (Car: 4.2×1.8m) |
3067 meters |
| Recognize Distance (Car: 4.2×1.8m) |
767 meters |
| Verified Distance (Car: 4.2×1.8m) |
383 meters |
| Working mode |
Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel |
640*512 |
| Pixel pitch |
12μm |
| Focusing method |
Athermal prime lens |
| Emissivity correction |
0.01~1 |
| NETD |
≤50mK (@25℃) |
| MRTD |
≤650mK (@characteristic frequency) |
| Image enhancement |
Auto adjust image brightness and contrast ratio |
| Color palette |
White, iron red, pseudo color |
| Auto Non-uniform correction |
Yes (no shutter) |
| Digital zoom |
1x ~ 12x |
| Sync correct time |
Yes |
| EO / IR Camera Object Tracking |
| Update rate of deviation pixel |
50Hz |
| Output delay of deviation pixel |
5ms |
| Minimum object contrast |
5% |
| SNR |
4 |
| Minimum object size |
32*32 pixel |
| Maximum object size |
128*128 pixel |
| Tracking speed |
±48 pixel/frame |
| Object memory time |
100 frames (4s) |
| The mean square root values of pulse noise in the object position |
< 0.5 pixel |

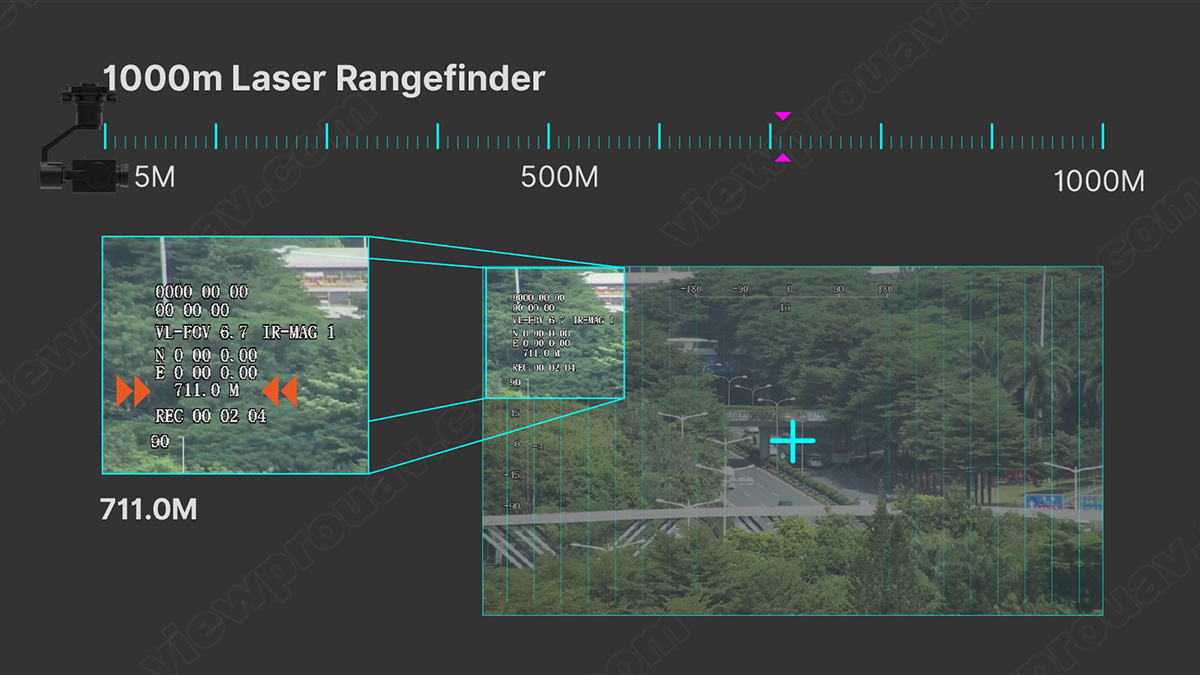

| IR Laser Rangefinder |
| Range |
5~1000 meters |
| Resolution |
1m：<400±1 2m：>400±0.4% |
| Light Beam |
905nm pulse laser |
| Divergent Angle |
12 mrad |
| Laser pulse frequency |
0.1–1Hz |

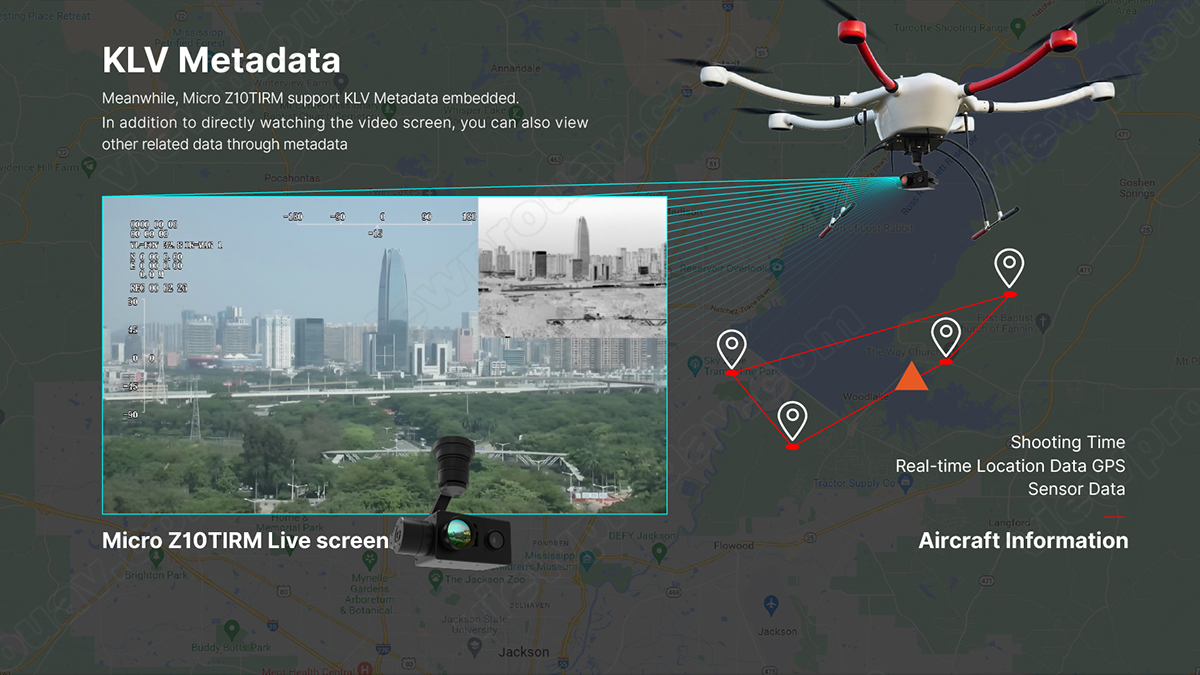

| Location Resolving |
Latitude and longitude of target |
| Ranefinder |
Target distance measuring |

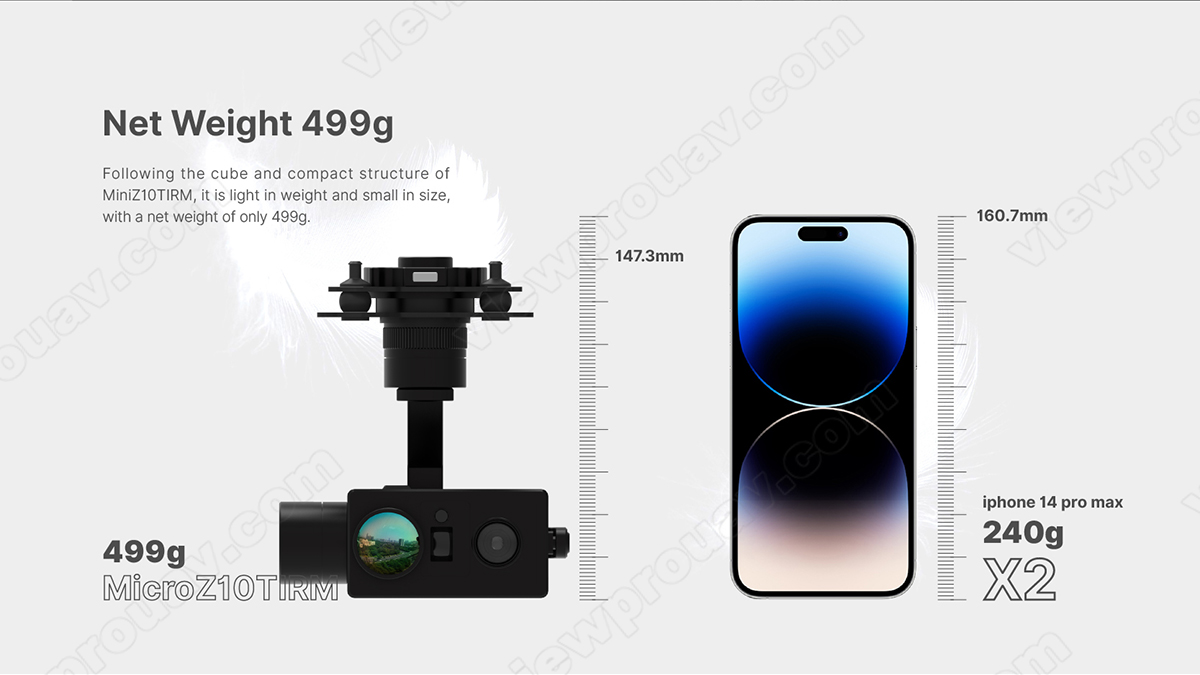

| Packing Information |
| N.W. |
499g |

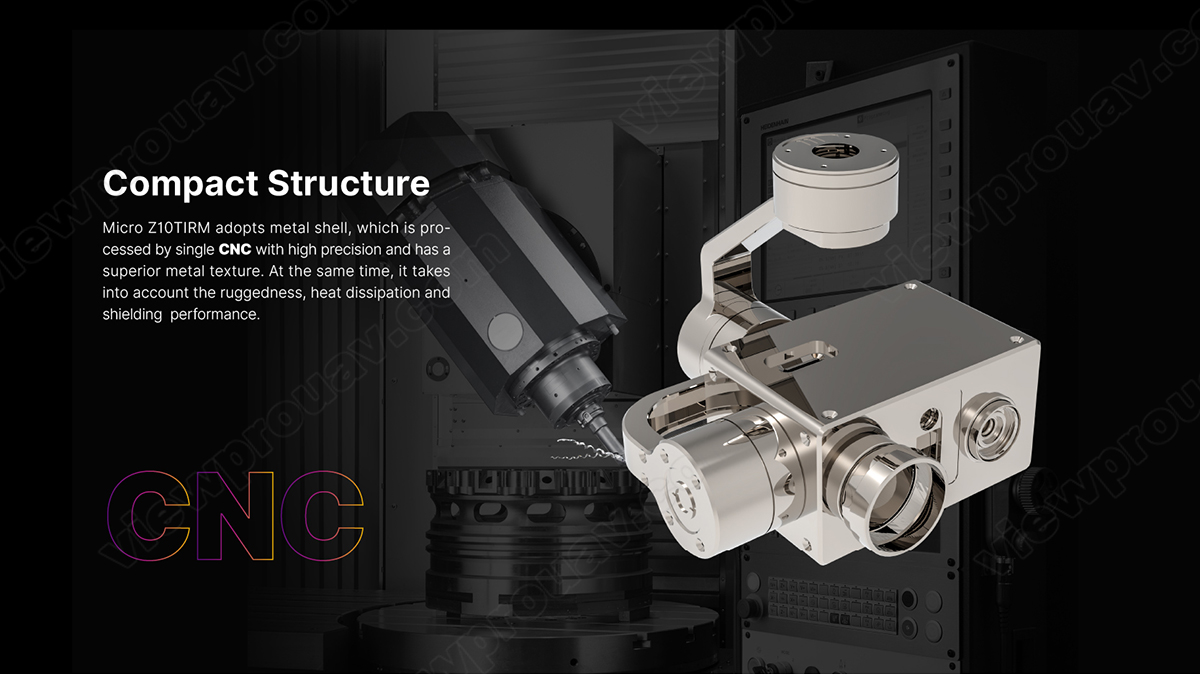

| Product meas. |

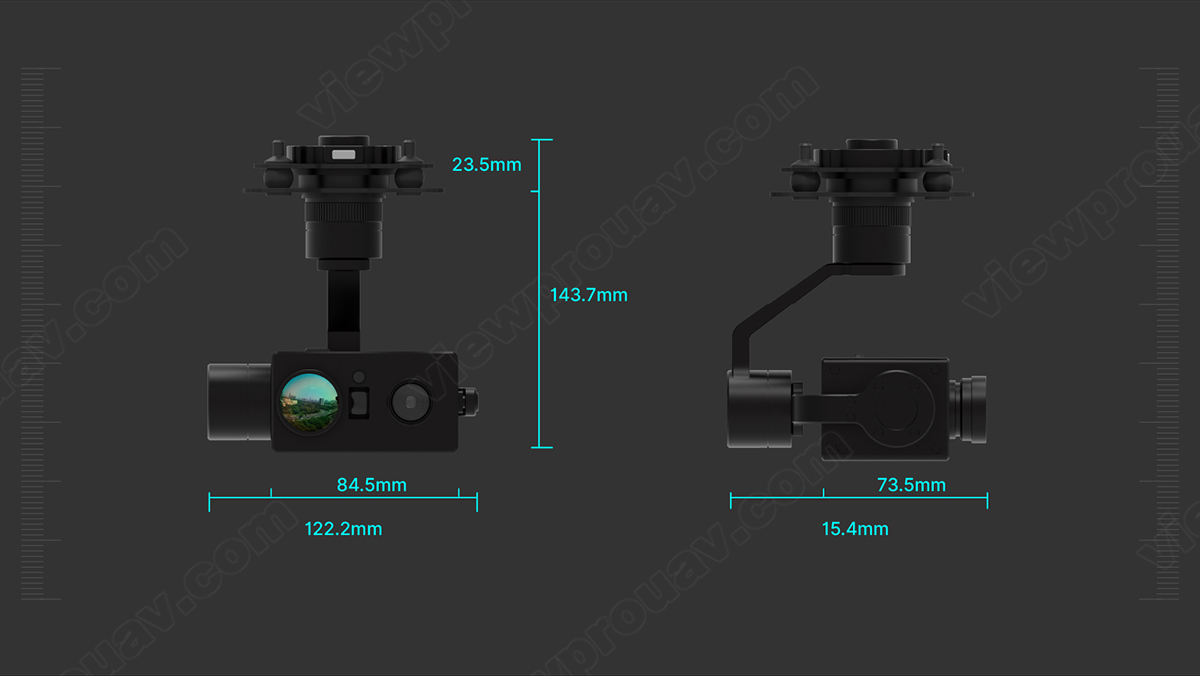

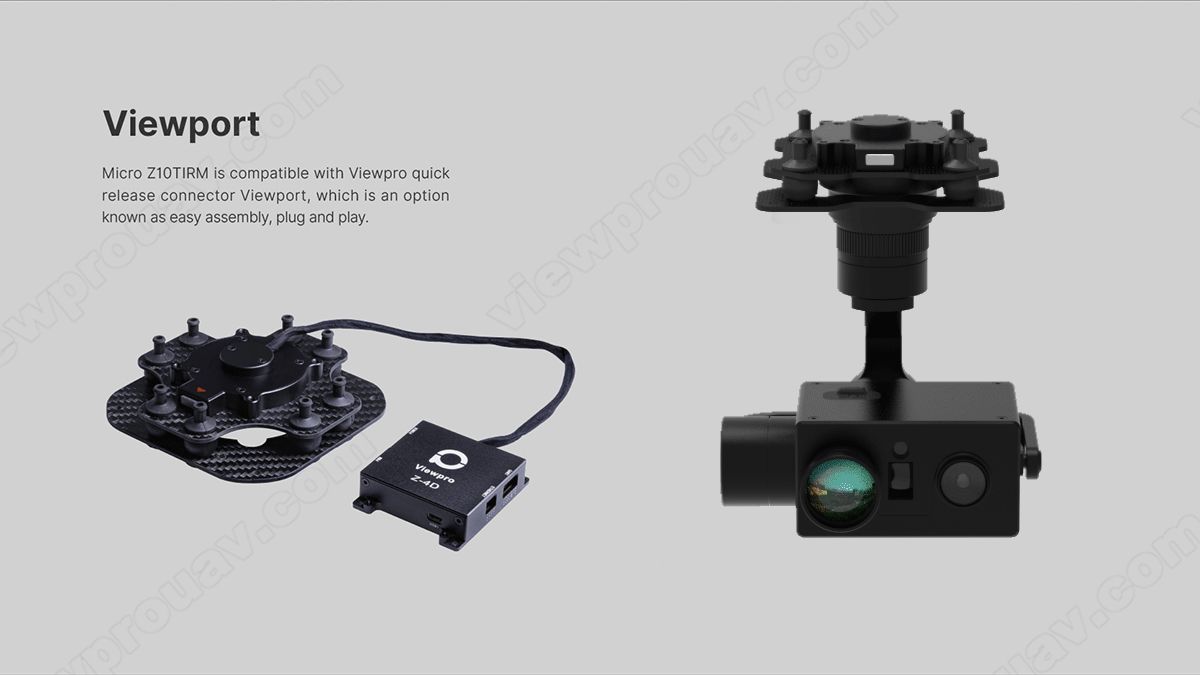

122.2*115.4*141.6 (Standard version) /122.2*115.4*147.3mm(Viewport version) |
| Accessories |
1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, TTL cable / Hight quality plastic box with foam cushion |
| Package meas. |

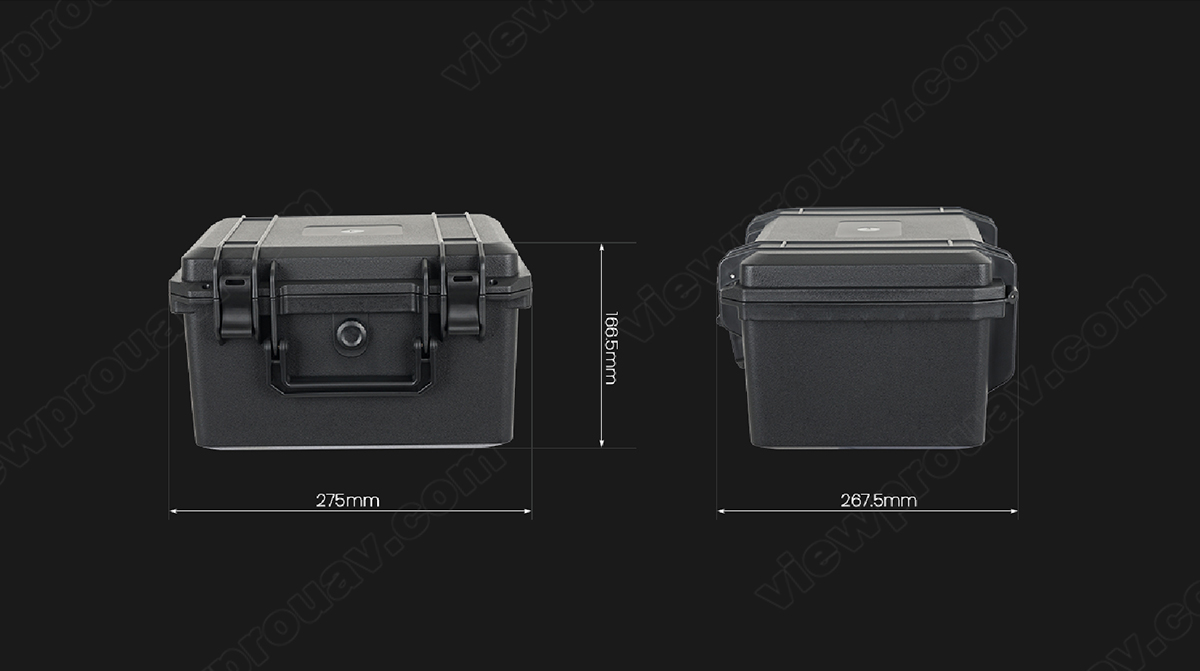

300*250*200mm |
