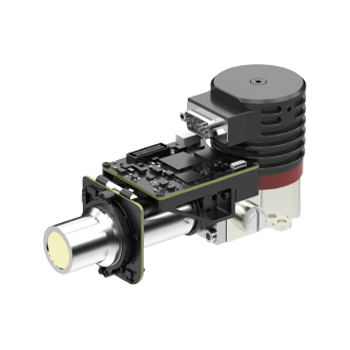

MP Series (OGI)
Cooled AD Module for Optical Gas Imaging
FEATURES
Simple development, easy integration
Cameralink interface outputs 16-bit RAW data, serial port control
Integrated structural design, the size is consistent with the detector
Integrated structural design, the size is consistent with the detector
Efficient & safe gas leak detection solution
Long-distance, non-contact, high reliability, and all-weather online monitoring visual gas leak detection
Effective leak detection includes alkanes, alkenes, alcohols, benzenes, ketones and other gases
Effective leak detection includes alkanes, alkenes, alcohols, benzenes, ketones and other gases
DESCRIPTION
The P Series cooled AD modules for optical gas imaging adopt high-performance signal processing circuits to realize the conversion of analog signal to digital signal. They are accelerators for integrators who have difficulty in starting fast optical gas imaging system integration.

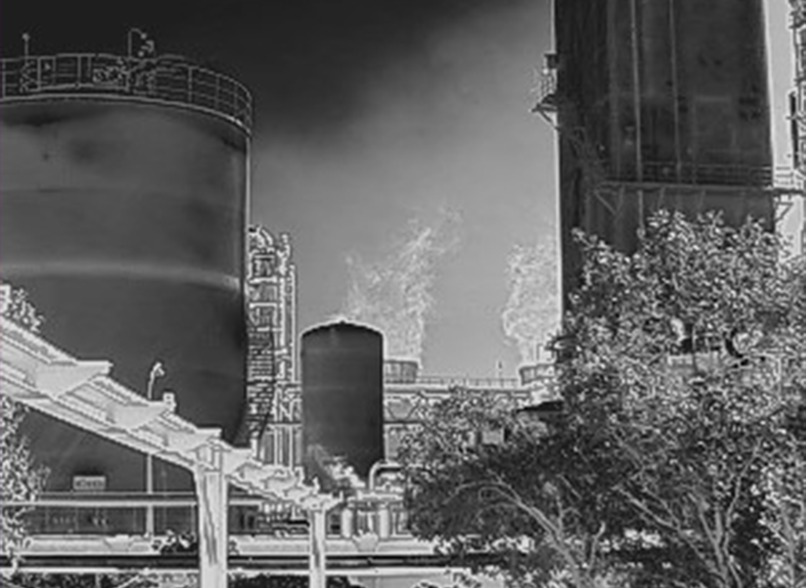

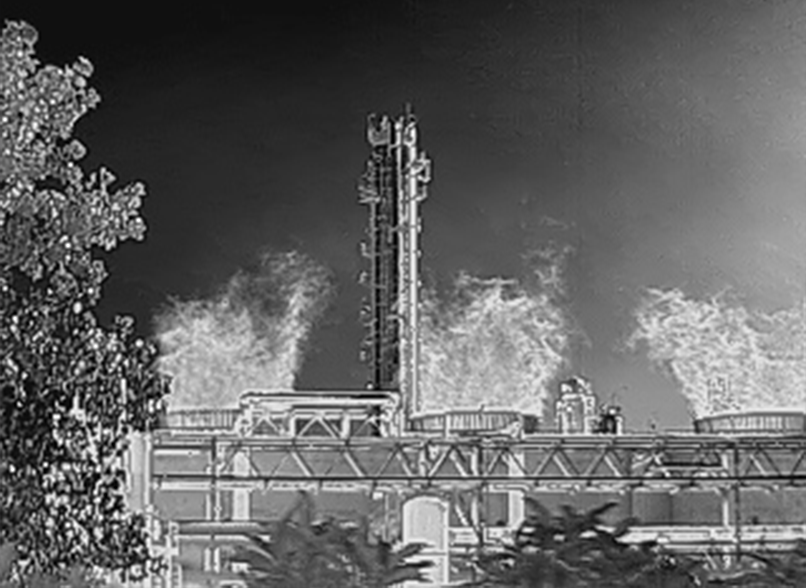

By utilizing the infrared technology, the invisible methane and other volatile organic compounds (VOCs) leaks could be quickly and effectively detected to ensure the safety in production, transportation and processing of petrochemical enterprises.
By utilizing the infrared technology, the invisible methane and other volatile organic compounds (VOCs) leaks could be quickly and effectively detected to ensure the safety in production, transportation and processing of petrochemical enterprises.
APPLICATIONS

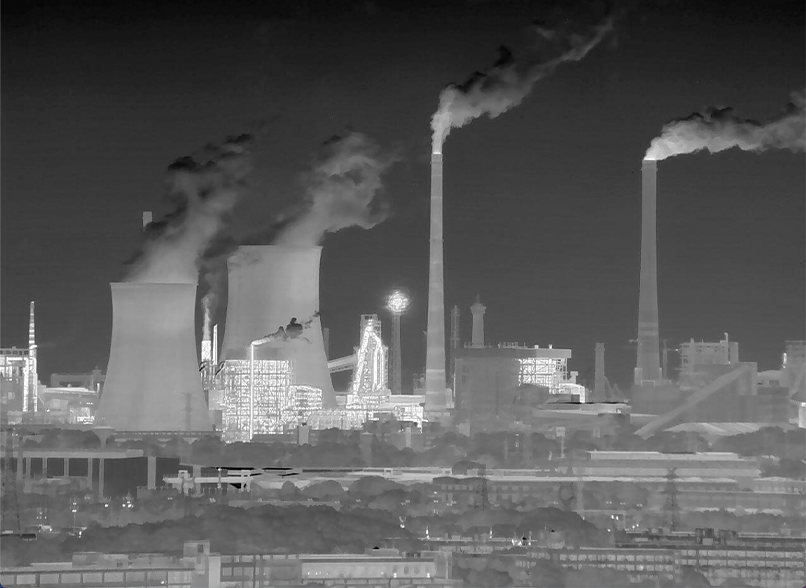

Petrochemical Industry
Environmental Monitoring
Safety Production
SPECIFICATIONS
| Model | P330Z3 |
| Resolution | 320×256 |
| Pixel Size | 30μm |
| Spectral Response | 3.2±0.1μm～3.5±0.1μm |
| Cryocooler | RC3 |
| Cooling Time (25℃) | ≤6.5min |
| NETD (25℃) | 10mK (F1.5) |
| Frame Rate | 1~200Hz (Adjustable） |
| Working Mode | Snapshot; ITR Integration Mode; Windows Mode; Anti-blooming |
| Standard External Interface | QSH60 |
| Digital Video | Cameralink: Output 16bit Raw Data |
| External Sync | CC1: INT/Frame External Sync CC2: MC External Sync |
| Communication | Cameralink Serial Port: TFG+/-, TC+/-; 9600bps |
| Power Supply | Channel 1 (Imaging Panel): 5V Channel 1 (Cryocooler): 12V |
| Steady Power Consumption | 7W |
| Size (mm) | 142×58.5×71 |
| Weight | ≤650g |
| Working Temperature | -40°C ~ +60°C |
