MPC264T1 Dual-Spectrum PTZ Camera
China Moneypro
The PC2 Series Dual-Spectrum PTZ Camera is a medium-range temperature measurement and monitoring product that integrates infrared thermal imaging, an HD visible light camera, and an intelligent PTZ into one.
Equipped with intelligent functions like fire point detection, tripwire intrusion, and regional intrusion detection, the product also integrates sophisticated industrial temperature measurement and analysis tools for analyzing temperature data and triggering alarms. It is suitable for device temperature monitoring, factory area, and park monitoring, as well as robot routine inspection.
Equipped with intelligent functions like fire point detection, tripwire intrusion, and regional intrusion detection, the product also integrates sophisticated industrial temperature measurement and analysis tools for analyzing temperature data and triggering alarms. It is suitable for device temperature monitoring, factory area, and park monitoring, as well as robot routine inspection.
Feature
12μm Uncooled Infrared Detector
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
Dual-Spectrum Imaging
All-weather, 24/7 security monitoring with dual thermal&visible light imaging.
Accurate Temperature Measurement
Measurement range from -20℃ to 550℃, accuracy ±2℃ or 2%.
Intelligent Fire Detection Algorithm
Features an integrated intelligent fire detection algorithm for efficient and accurate monitoring, as well as reduced false alarms.
Intelligent Video Analysis

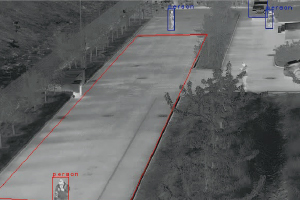

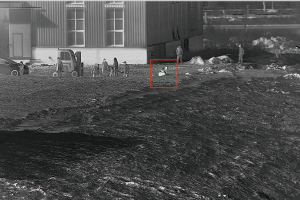

Support tripwire/intrusion detection, as well as intelligent detection of fire point.
Platform Integration
Support ONVIF, provide SDK&demo for development; provide NVR and VMS software for application.
Specification
| Thermal Module | |
| Detector Type | VOx, uncooled FPA detectors |
| Spectral Range | 8~14μm |
| NETD | ≤40mK(@25°C, F#1.0, 25 Hz) |
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Focal Length | 13mm/25mm |
| Optical Module | |
| Sensor | 4MP 1/1.8″ Progressive Scan CMOS |
| Resolution | 2688×1520 |
| Focal Length | 6.5~130mm, 20x |
| Image Function | |
| Picture in Picture | Support |
| PTZ | |
| Pan | 360° continuous，0.1°~100°/s |
| Tilt | -90°~+90°，0.1°~60°/s |
| Preset | 256 |
| Scan mode | Preset/Pattern Scan/Patrol Scan/ Linear Scan/Panorama Scan |
| Wiper | wiper |
| Temperature Measurement | |
| Temperature Range | -20℃~+550℃ |
| Temperature Accuracy | ±2℃ or ±2% |
| Temperature Measurement | Support 4 temperature measure ment rules(fullframe, point, line, area) |
| Smart Function | |
| Fire Detection | Support |
| VCA | Support Line Crossing&Intrusion detection |
| 2-Way Audio | Support |
| Linkage Action | Video/ Snapshot/Email/Alarm output/sound and light alarm |
| System Interface | |
| Power | DC 12V±25% |
| Network | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| Audio | 1 in/1 out |
| Alarm | 2 in/2 out |
| Storage | Micro SD memory（maximum 256G） |
| Reset | Support |
| Serial Port | 1 channel RS485, can support Pelco protocol |
| General | |
| Work Environment | -40℃~+70℃；<90%RH |
| Protection | IP66 |
| Power Consumption | max. 30w |
| Dimenstion(mm) | 358×166×203 |
| Weight | ≤5kg |

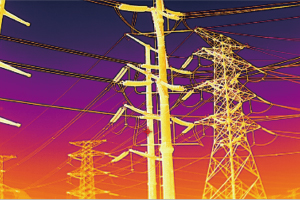

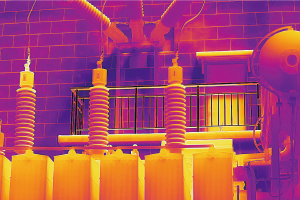

Application Scenariosa
