MPC464A1 Dual-Spectrum PTZ Camera
China Moneypro
The PC4 series is a medium-to-long-range observation and monitoring product that integrates infrared thermal imaging, an HD visible light camera, and an intelligent PTZ into one. The product, equipped with a self-developed AI recognition algorithm, can perform target recognition and tracking. It supports intelligent functions such as fire point detection, tripwire intrusion, and regional intrusion detection, enhancing target recognition accuracy during nighttime and adverse weather conditions. It is suitable for scenarios requiring medium-range and long-distance monitoring such as forest fire monitoring, medium-range perimeter security and perimeter monitoring.
Feature
12μm Uncooled Infrared Detector
Equipped with the latest generation 12um uncooled infrared detector, it is integrated with advanced infrared image algorithms, providing longer and clearer imaging.
Dual-Spectrum Imaging
Satisfy the all-weather 24-hour security monitoring requirements with its visible light and thermal imaging dual-spectrum imaging; a maximum thermal imaging resolution of 1.3 megapixels (1280×1024) and a maximum visible light resolution of 4 megapixels (2688×1520).
Multiple Lenses
Satisfy long-range detection needs with high-magnification visible light continuous zoom lens, electric focusing and continuous zoom infrared lens.
Intelligent Fire Detection Algorithm
Satisfy the need for Forest fire monitoring and perimeter security with intelligent smoke and fire detection and intelligent infrared video analysis.
Intelligent Video Analysis

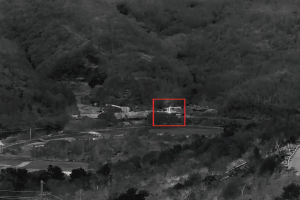

Support intelligent analysis of behaviors such as dual-spectrum tripwire intrusion and regional intrusion, support AI recognition and tracking of multiple targets such as passengers/vehicles, greatly improving the recognition distance.
Platform Integration
Support standard ONVIF interface protocol, and provide SDKs and supporting NVR software.
Specification
| Thermal Module | |
| Detector Type | Uncooled VOx infrared detector |
| Spectral Range | 8~14μm |
| NETD | ≤40mK @25°C, F#1.0 |
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Focal Length | 50mm/75mm/25~75mm/100mm Motorized lens |
| Optical Module | |
| Sensor | 1/1.8-inch 4 megapixel CMOS |
| Resolution | 2688×1520 |
| Focal Length | 6~360mm 60X |
| PTZ | |
| Pan | 360° continuous rotating |
| Tilt | -90°～+40° |
| Scan mode | Preset point/Patrol inspection group/Pattern/Area scanning/Linear scanning/Comprehensive patrol |
| Smart Function | |
| Smoke & Fire Detection | Support |
| Fire Detection | Support |
| Radar Linkage | Support |
| Coaxial Linkage Amplification | Support |
| Intelligent Video Taking | Video taking triggered upon alarms or network failures (continue to transmit after recovery) |
| Intelligent Alarm | Support abnormality detection and linkage alarm for network anomaly, IP address conflict, memory error, illegal access, and burn alarm |
| Intelligent Detection | Support intelligent analysis of videos like tripwire and regional intrusion detection, and support passenger and vehicle recognition |
| System Interface | |
| Communication | One RJ45 10M/100M adaptive Ethernet port, 1-channel RS485 |
| Audio | 1-channel audio input, 1-channel audio output |
| Alarm | 7-channel alarm input,2-channel alarm output |
| Storage | Support Micro SD card (up to 512G) |
| General | |
| Work Environment | -40℃~+70℃；<90%RH |
| Power Input | DC 24V士15% |
| Protection | IP66; TVS 6000v, lightning protection, surge protection, and spike protection |
| Power Consumption | Max.75W |
| Dimenstion(mm) | 250x472x360mm (W x H x L) |
| Peripherals | Heater, wiper and fan |
| Weight | <20kg |
| Storage | Support Micro SD card (Max.512G) |
| Serial Port | 1 channel RS485, can support Pelco protocol |
| General | |
| Work Environment | -40℃~+70℃；<90%RH |
| Protection | IP66, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Certification | CE,ROHS,CE-EMC Test Report, FIPS 140-3 Level 3 |
| Power Consumption | ≤300W |
| Dimenstion(mm) | 623.6×398.5×350 |
| Weight | 30KG |
