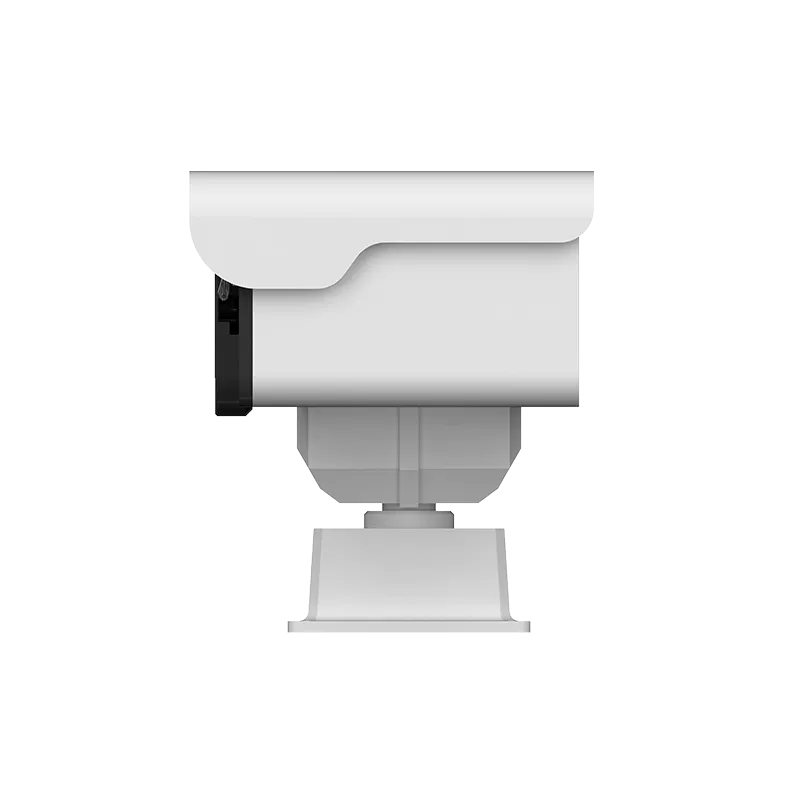

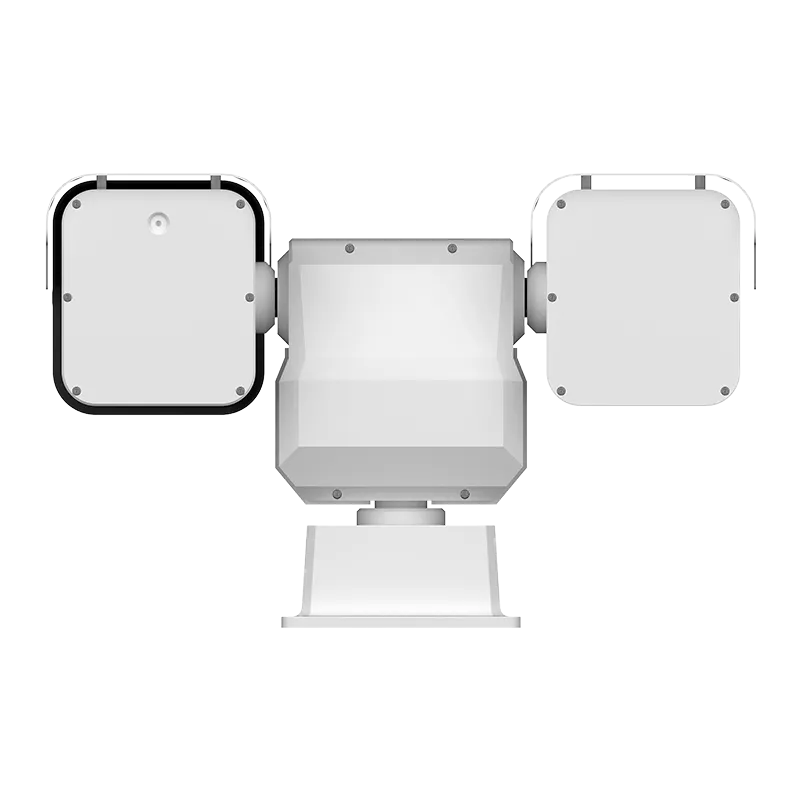

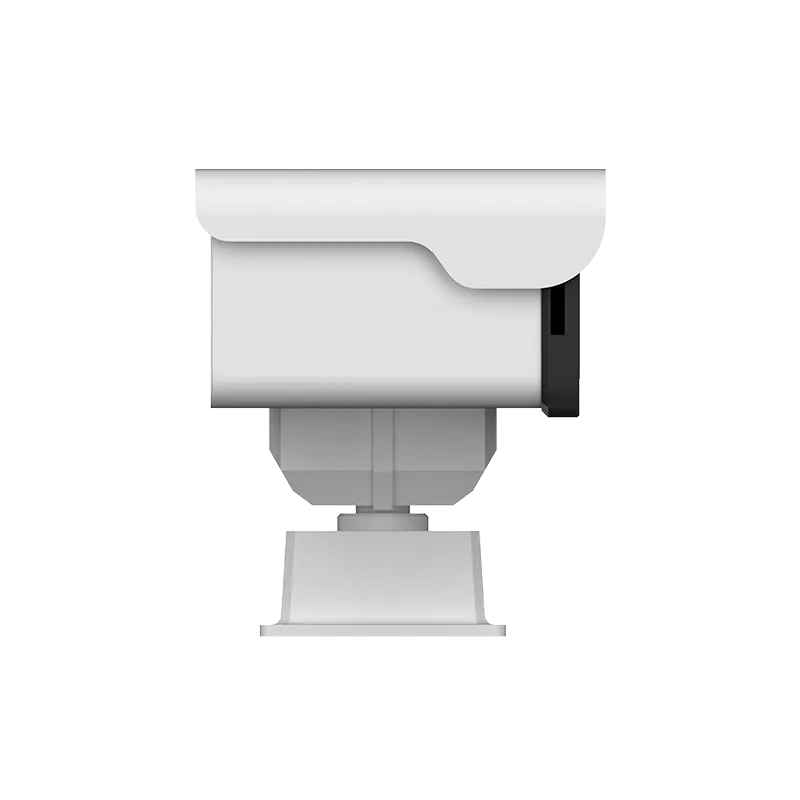

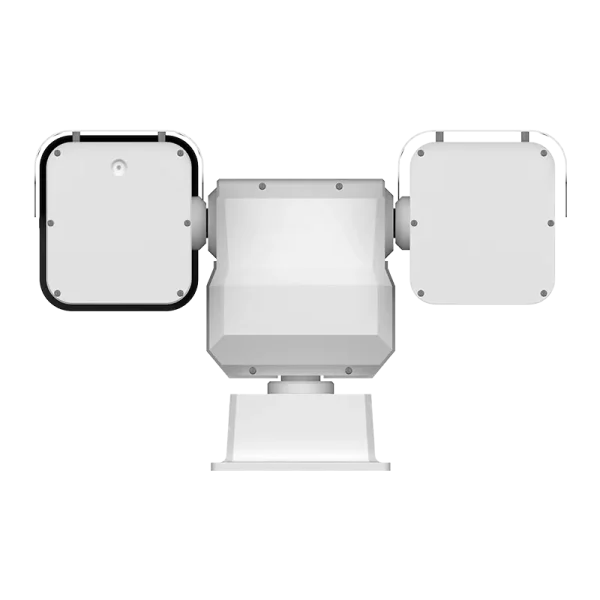

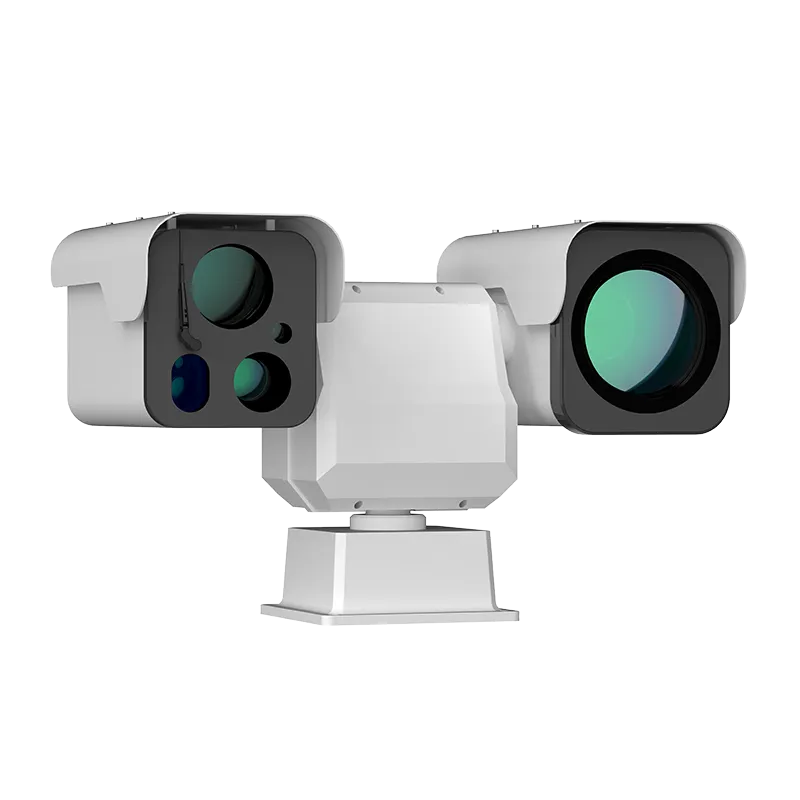

MPC564 Multi-Spectrum PTZ Camera
China Moneypro
PC5 multi-spectral PTZ network camera is designed for forest fire prevention and perimeter surveillance. PC5 is equipping a dual thermal/visible light imaging system, with maximum 150mm thermal lens. Laser rangefinder and laser illumination are optional.
PC5 is powered by NPU for AI-ISP to increase the performance in low light condition, as well as provides the capabilities to recognize the human, vehicle, vessel, smoke, fire point, working with various patrol mode to enable uninterrupted safety monitoring day and night.
Support TPM technology and meeting the FIPS 140-3 Level 3 standard.
PC5 is powered by NPU for AI-ISP to increase the performance in low light condition, as well as provides the capabilities to recognize the human, vehicle, vessel, smoke, fire point, working with various patrol mode to enable uninterrupted safety monitoring day and night.
Support TPM technology and meeting the FIPS 140-3 Level 3 standard.
Feature

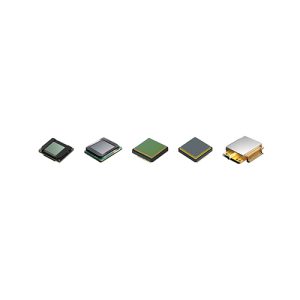

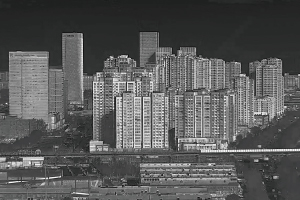

Industry-Leading Infrared Detector
Adopts the latest 12μm uncooled infrared detector and advanced infrared image algorithms to ensure clear imaging at greater distances.
Multi-Spectrum
Featuring both long range thermal and visible light imaging. addtionally with max. 1.5km laser illumination and 6km laser rangefinder.
Long-Range Detection
Supports 30~150mm continuous zoom lens for thermal imaging cameras and 10~550mm continuous zoom lens for visible light cameras.

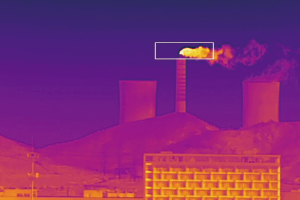

Intelligent Smoke&Fire Detection Algorithm
Support intelligent smoke and fire detection algorithm for efficient and accurate monitoring, as well as reduced false alarms.
AI-Powered Video Content Analysis
Using Al human/vehicle/vessel recognition for tripwire/intrusion
detection.
detection.
Platform Integration
Support ONVlF, provide SDK&demo for development; provide NVR and VMS software for application.
Specification
| Thermal Module | |
| Detector Type | VOx, uncooled FPA detector |
| Spectral Range | 8~14μm |
| NETD | ≤40mK(@25°C, F#1.0, 25 Hz) |
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Focal Length | 75/100/150/30~150mm |
| Optical Module | |
| Sensor | 1/1.8 inch 4MP CMOS/1/1.25 inch 4MP CMOS |
| Resolution | 2688×1520 |
| Focal Length | 6~336mm/10~550mm |
| IR Illuminator (Optional) | |
| Illuminating Distance | 1500m |
| Laser Wavelength | 808nm |
| LRF (Optional) | |
| Laser Wavelength | 1535nm |
| Measurement Distance | 3km |
| PTZ | |
| Pan | 360° continuous，0.1°~100°/s |
| Tilt | -90°~+90°，0.1°~60°/s |
| Scan mode | Preset/Tour/Area Scan/Linear Scan/Pattern Scan/Comprehensive Patrol |
| Smart Function | |
| Smoke & Fire Detection | Support |
| Fire Detection | Support |
| Radar Linkage | Support |
| Zoom Linkage | Support |
| Smart Record | Alarm trigger recording, disconnection trigger recording (continue transmission after connection) |
| Smart Alarm | Support alarm trigger of network disconnection, IP address conflict, full memory, memory error, illegal access and abnormal detection |
| Smart AI Detection | Support smart video analysis such as tripwire & area intrusion detection, support AI human/vehicle/vessel classification |
| Target tracking | Support |
| Alarm Linkage | Recording/Snapshot/Sending Email/PTZ linkage/Alarm output |
| System Interface | |
| Power | DC 48V±15% |
| Network | RJ45 self-adaptive 10M/100M Ethernet port |
| Audio | 1×input, 1×output |
| Alarm | 1×input, 1×output |
| Storage | Support Micro SD card (Max.512G) |
| Serial Port | 1 channel RS485, can support Pelco protocol |
| General | |
| Work Environment | -40℃~+70℃；<90%RH |
| Protection | IP66, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Certification | CE,ROHS,CE-EMC Test Report, FIPS 140-3 Level 3 |
| Power Consumption | ≤300W |
| Dimenstion(mm) | 623.6×398.5×350 |
| Weight | 30KG |
