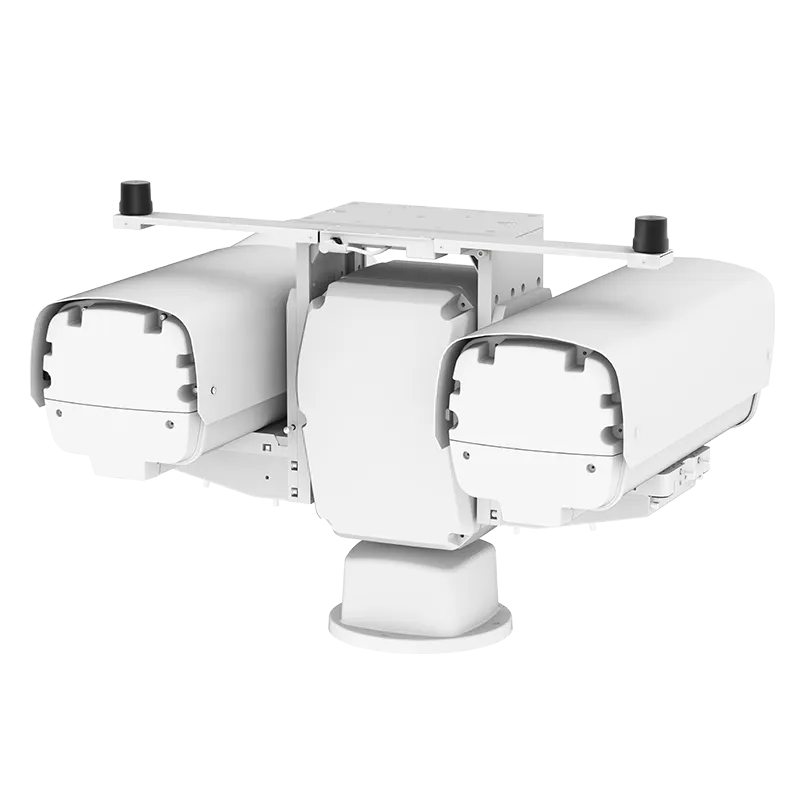

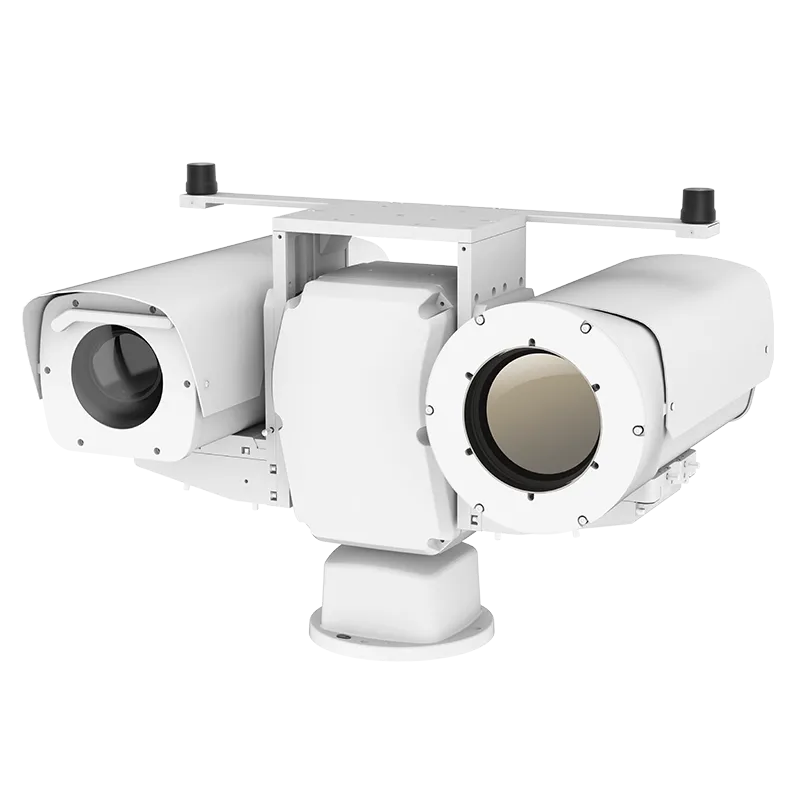

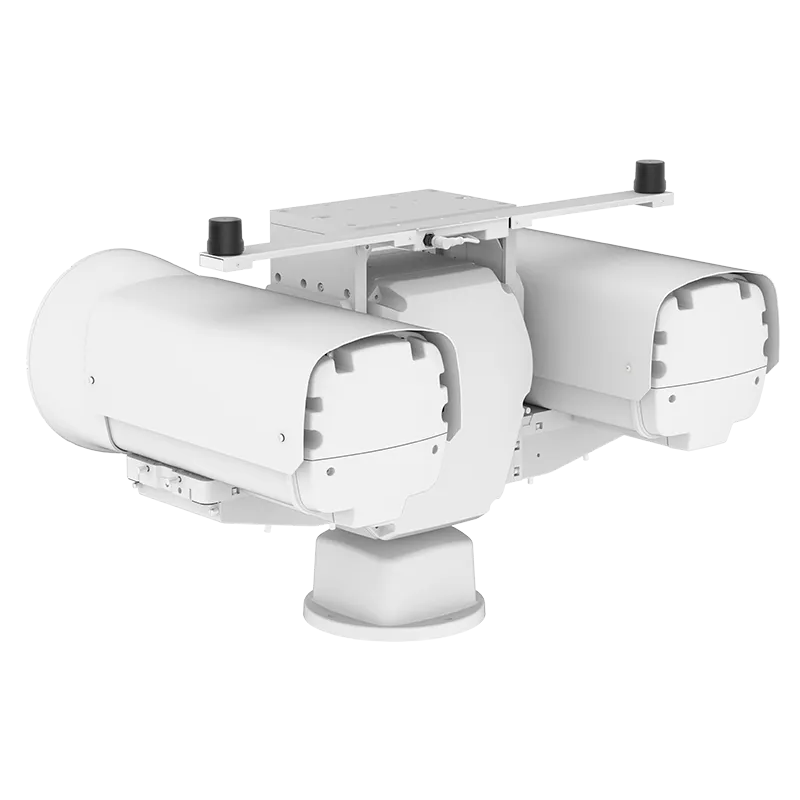

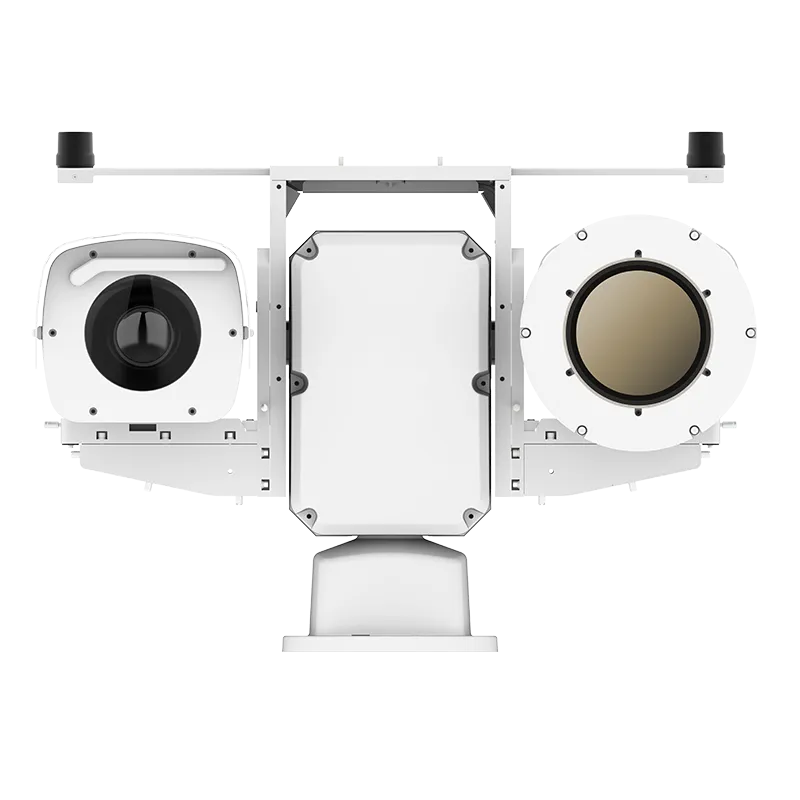

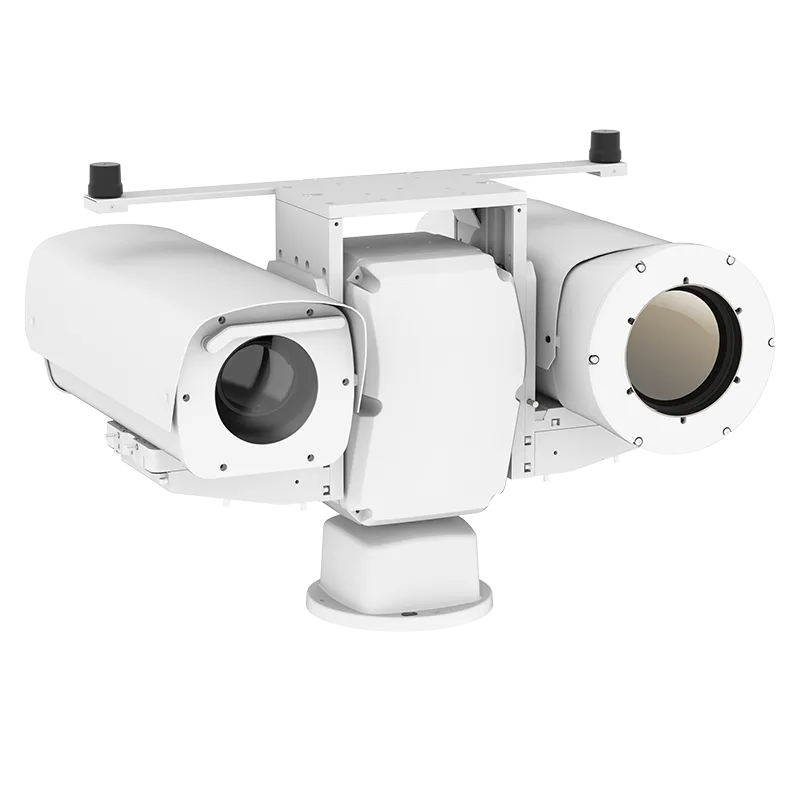

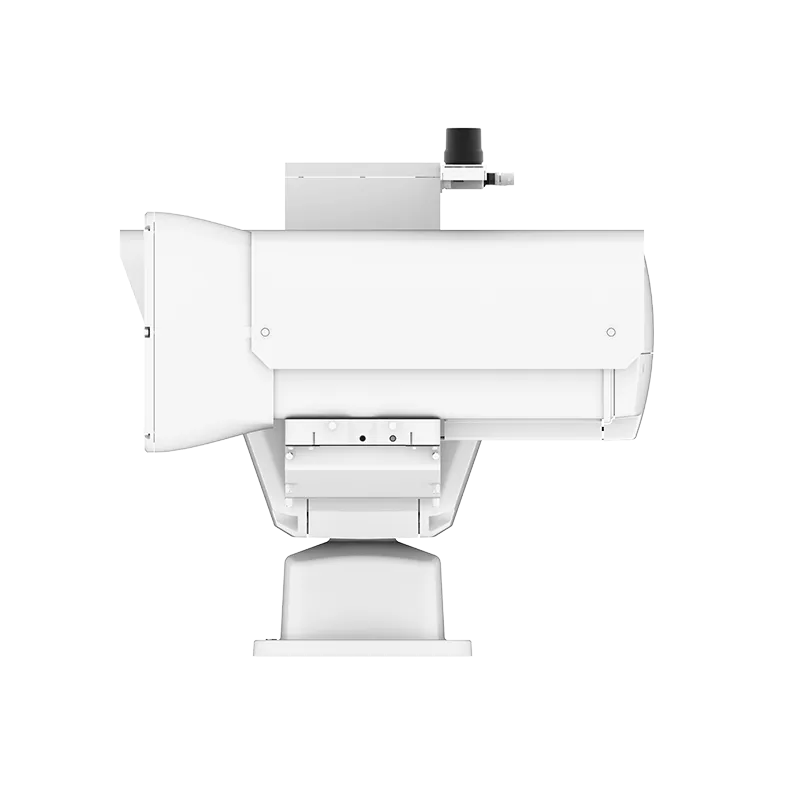

MPC6S4A1 Dual-Spectrum PTZ Camera
China Moneypro
The MPC6 Series Dual-Spectrum PTZ Camera is a medium-to-long-range observation product that integrates infrared thermal imaging, an HD visible light camera, and an intelligent PTZ into one.
It supports intelligent functions such as fire point detection, tripwire intrusion, and regional intrusion detection, enhancing target recognition accuracy during nighttime and adverse weather conditions.
It is suitable for scenarios requiring wide-range and long-distance monitoring, such as forest fire prevention, airports, and urban high-altitude observation.
Support TPM technology and meeting the FIPS 140-3 Level 3 standard.
It supports intelligent functions such as fire point detection, tripwire intrusion, and regional intrusion detection, enhancing target recognition accuracy during nighttime and adverse weather conditions.
It is suitable for scenarios requiring wide-range and long-distance monitoring, such as forest fire prevention, airports, and urban high-altitude observation.
Support TPM technology and meeting the FIPS 140-3 Level 3 standard.
Feature

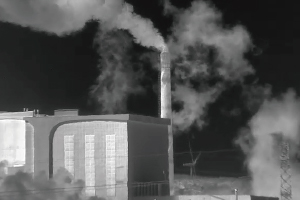

Industry-Leading Infrared Detector
Adopting the latest uncooled infrared detector or high-performance MWIR cooled infrared detector and integrated with advanced infrared image algorithms to provide clear imaging at greater distances.

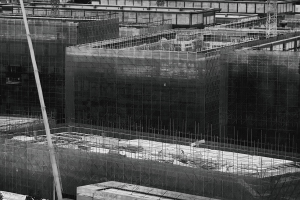

Dual-Spectrum Imaging
Supports a maximum thermal imaging resolution of 2 megapixels (1920×1080). Supports a maximum visible light resolution of 4 megapixels (2688×1520).
Long-Range Detection
Supports continuous zoom infrared lenses ranging from 25~225mm and 35~350mm to meet long-range detection needs.

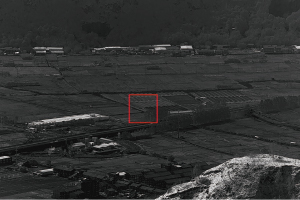

Intelligent Video Analysis

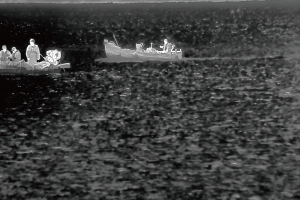

Intelligent video analysis, including multi-target Al recognition of humans, vehicles, vessels, UAVs, and fire points, and supporting the video analysis of intrusions, border-crossing intrusions, and area entry/exit detection.
Centimeter-Level Satellite Positioning
Centimeter-level positioning for elevation, latitude, and longitude; supports RTK; azimuth orientation accuracy 0.3°.
Platform Integration
Support ONVIF, provide SDK&demo for development; provide NVR and VMS software for application.
Specification
| Thermal Module | |
| Detector Type | Uncooled VOx infrared detector |
| Spectral Range | 8~14μm |
| NETD | ≤40mK(@25°C, F#1.0, 25 Hz) |
| Resolution | 1280×1024 |
| Pixel Pitch | 12μm |
| Focal Length | 25~225mm/35~350mm |
| Optical Module | |
| Sensor | 1/1.8-inch 4 megapixel CMOS image sensor |
| Resolution | 2688×1520 |
| Focal Length | 15~775mm/20~1200mm |
| GNSS | |
| Satellite Positioning | Satellite location module |
| PTZ | |
| Pan | 360° continuous，0.01°~120°/s |
| Tilt | -90°~+90°，0.01°~60°/s |
| Scan mode | Preset point/Patrol inspection group/Patrol inspection scan/Linear scan/Pattern scan |
| Smart Function | |
| Fire Detection | Support |
| Alarm Linkage | Video taking/Image capture/Email/Linked PTZ/Alarm output |
| Fire Point Detection | Support |
| Intelligent Alarm | Abnormality detection and linkage alarm for network cable disconnection, IP address conflict, full memory, memory error, and illegal access |
| Intelligent Detection | Tripwire detection, regional intrusion, and other intelligent video analysis functions |
| Intelligent Recognition | Recognition and tracking of people, vehicles, ships, UAVs |
| System Interface | |
| Power | DC 48V±15% |
| Audio | 1-channel audio input, 1-channel audio output |
| Alarm | 7-channel input, 2-channel output |
| Storage | Micro SD card (up to 1 TB) |
| Serial Port | 1-channel RS485 interface |
| Network | One RJ45 10 M/100 M adaptive Ethernet port |
| General | |
| Work Environment | -40℃~+70℃；<90%RH |
| Protection | IP66, TVS 6000V, lightning protection, surge protection, and spike protection |
| Power Consumption | Max.270W |
| Dimenstion(mm) | 805.6×661.5×585.3mm(W×H×L) |
| Weight | 80kg |
| Serial Port | 1 channel RS485, can support Pelco protocol |
| General | |
| Work Environment | -40℃~+70℃；<90%RH |
| Protection | IP66, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Certification | CE,ROHS,CE-EMC Test Report, FIPS 140-3 Level 3 |
| Power Consumption | ≤300W |
| Dimenstion(mm) | 623.6×398.5×350 |
| Weight | 30KG |
