MPD464T Dual-Spectrum Speed Dome Camera
China Moneypro
The MPD2 Series Dual-Spectrum Speed Dome Camera integrates 256×192 thermal imaging with 5MP HD visible light.
It comes with built-in industrial temperature measurement and analysis tools, supports 360° circular scanning for patrol inspection and temperature measurement (-20°C~+550°C), and allows independent setting of temperature measurement areas for preset points.
Leveraging smoke and fire detection algorithms and intelligent intrusion detection algorithms, it can promptly detect fire hazards and intrusion targets in real time, trigger audible and visual alarms, and enable comprehensive all-weather security monitoring and fire warnings.
The PD2 series can be widely used in intelligent security and fire protection scenarios such as park perimeters, river monitoring, electrical power temperature measurement, and warehouse equipment rooms.
It comes with built-in industrial temperature measurement and analysis tools, supports 360° circular scanning for patrol inspection and temperature measurement (-20°C~+550°C), and allows independent setting of temperature measurement areas for preset points.
Leveraging smoke and fire detection algorithms and intelligent intrusion detection algorithms, it can promptly detect fire hazards and intrusion targets in real time, trigger audible and visual alarms, and enable comprehensive all-weather security monitoring and fire warnings.
The PD2 series can be widely used in intelligent security and fire protection scenarios such as park perimeters, river monitoring, electrical power temperature measurement, and warehouse equipment rooms.
Feature
12μm Uncooled Infrared Detector
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
Dual-Spectrum Imaging

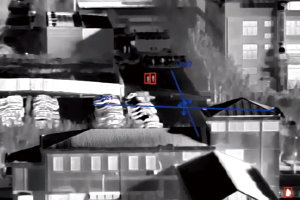

All-weather, 24/7 security monitoring with dual thermal&visible light imaging.
Accurate Temperature Measurement
Measurement range from -20°C to 550°C, accuracy ±2°C or 2%
Long-Range Observation
Supports a 50mm motorized lens for detecting fire points up to 3km away and individuals up to 1km away.
AI Target Recognition

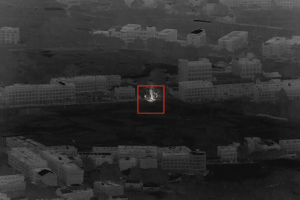

Smart video content analysis, human/vehicle recognition on thermal channel for crossline/intrusion detection.
Platform Integration
Support ONVIF, provide SDK&demo for development; provide NVR and VMS software for application.
Specification
| Thermal Module | |
| Detector Type | VOx, uncooled FPA detectors |
| Spectral Range | 8~14μm |
| NETD | ≤40mK(@25°C, F#1.0, 25 Hz) |
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Focal Length | 9.1mm/13mm/25mm/50mm Athermalized/Motorized lens |
| Optical Module | |
| Sensor | 4MP 1/1.8″ Progressive Scan CMOS |
| Resolution | 2560×1920 |
| Focal Length | 6.5~240mm, 37x |
| IR distance | 200m |
| Image Function | |
| Bi-Spectrum Image Fusion | Support |
| PTZ | |
| Pan | 360° continuous，0.1°~200°/s |
| Tilt | -27°~+90°，0.1°~120°/s |
| Preset | 1024 |
| Scan mode | Preset/Pattern Scan/Patrol Scan/ Linear Scan/Panorama Scan |
| Wiper | Auto-wiper |
| Temperature Measurement | |
| Temperature Range | -20℃~+550℃ |
| Temperature Accuracy | ±2℃ or ±2% |
| Temperature Measurement | Support 4 temperature measure ment rules(fullframe, point, line, area) |
| Smart Function | |
| Fire Detection | Support |
| VCA | Support Line Crossing&Intrusion detection with AI human/Vehicle recognition |
| 2-Way Audio | Support |
| Linkage Action | Video/ Snapshot/Email/Alarm output |
| System Interface | |
| Power | DC 24V±25% |
| Network | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| Audio | 1 in/1 out |
| Alarm | 7 in/2 out |
| Storage | Micro SD memory（maximum 256G） |
| Reset | Support |
| Serial Port | 1 channel RS485, can support Pelco protocol |
| General | |
| Work Environment | -40℃~+70℃；<95%RH |
| Protection | IP66 |
| Certification | CE,ROHS,CE-EMC Test Report, FIPS 140-3 Level 3 |
| Power Consumption | ≤8W |
| Dimenstion(mm) | Φ250×413 |
| Weight | ≤8kg |
Application Scenariosa
