MPF210 Pocket-sized Thermal Camera

China Moneypro
The PF Series pocket-sized thermal camera is a non-contact inspection tool for diagnosing problems and finding hidden deficiencies of electrical equipment, thanks to its 256 × 192 pixel infrared detector, -20°C to 550°C temperature range, 5 MP visible light camera and 3.5-inch LCD touchscreen. The extraordinary thermal imaging detail, easy operation and built-in Wi-Fi allow users to quickly and easily share the professional reports that document the problem.

256x192IR resolution
-20℃ to 550℃Measurement Range
56° × 48°Field of view
0.3 mMinimum object distance

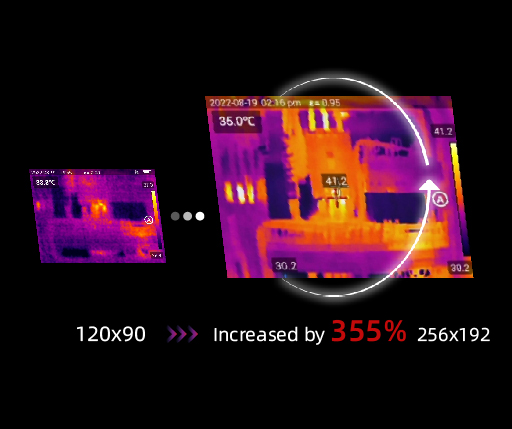

Outstanding thermal imagery

The self-developed WLP infrared module with 256×192 resolution and the new noise reduction algorithm ensure the PF Series produces the more crisp, easier-to-identify images.

Real-time temperature information

Get accurate maximum, minimum and center-point temperature readings on a full screen in four modes.

Easy and fast search

Enter a keyword, find the function setting without difficulty and perform the function you need quickly.

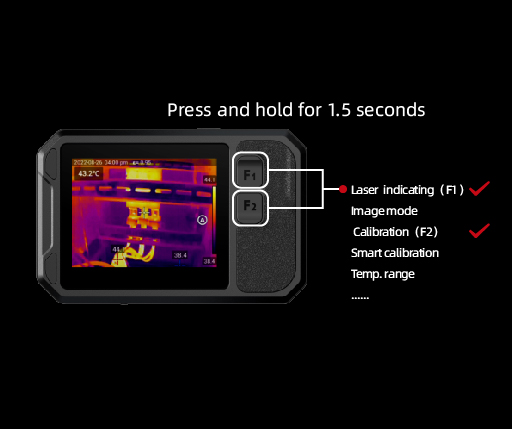

Customized function buttons

Two physical buttons keep you free from looking for the most commonly used functions so that a one-button transfer into the desired function can be realized.

Take and view

When images are captured, taping the thumbnails on the upper right corner helps you view the images again and find a hidden deficiency facilely.

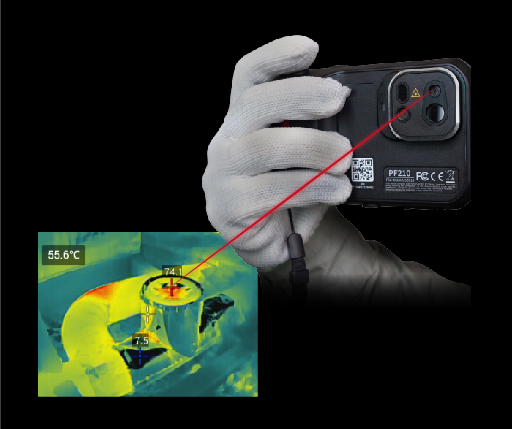

Built-in lasers for fast temperature tracking

Laser indicator

Provide precise location and accurate temperature measurement of targets.

Laser rangefinder

Accurate range-to-target and intelligent area calculation of a rectangle object.

Technical Parameters

Imaging and optics
Detector typeVOx, 7.5 to 14μm
Infrared resolution256×192@12μm
NETD45mK
Frame rate25Hz/9Hz
Focal length3.2mm
Field of view56°×48°
IFOV3.75mrad
Min. object distance0.3m
D:S266:1
Focusing modeFocus-free
Digital zoom1.1x to 8x
Measurement and analysis
Measurement rangeSupport auto-switching: -20°C to 150°C, 100°C to 550°C
Measurement accuracy±2°C or ±2%, whichever is greater
Analyzed targetSpot×2 ( Include Center spot), Area×3
AlarmFull screen temperature threshold alarm (image and flash)
Parameter settingsEmissivity, reflected temperature, target distance
OthersCustomized physical button×2
Image display
Display screen3.5″ LCD

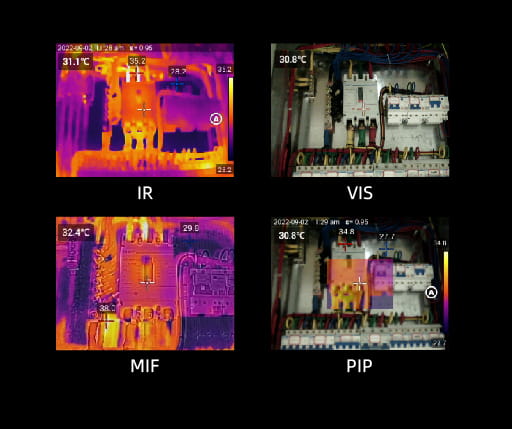

Image modeIR, VIS, MIF and PIP
Color palettes6: White Hot, Black Hot, Iron Red, Hot Iron, Rainbow, Arctic
Image adjustmentLevel span mode: Automatic, Semi-automatic, Manual
Digital camera5MP
Functions
LaserLaser (Indication, Ranging)
Recording functionPhoto
Cloud ServicesAvailable
Storage and transmission
Storage mediaBuilt-in (16 GB)
Image storageJPG with temp info
External interfaceUSB-C, Tripod socket
WIFIYes, it can be connected to the mobile terminal for image transmission
Power system
Battery typeRechargeable lithium-ion battery, non-removable
Operating time4 hours
Charging modeUSB-C charging; PC/portable charger; Capable of charging while using
Charging time90% of full charge in 2.5 hours
Environmental parameters
Working temperature-10°C to 50°C
IP ratingIP54
Drop1m drop test
CertificationCE, FCC, RoHS, KC, Anatel, IP54, 1m drop test, Damp heat test, Vibration test, Shock test, Impact test, UN38.3, MSDS
Physical parameters
HardwareIlluminator
Weight296g
Size138×89×34mm
Software kitPC: ThermoTools; Mobile: Thermography (iOS/Android)
StandardA device, Wrist strap, Carrying bag, Quick Start Guide, Power adapter, Adapter plug, USB-A to USB-C Cable, Data download card, Certificate of approval
OptionsTripod
