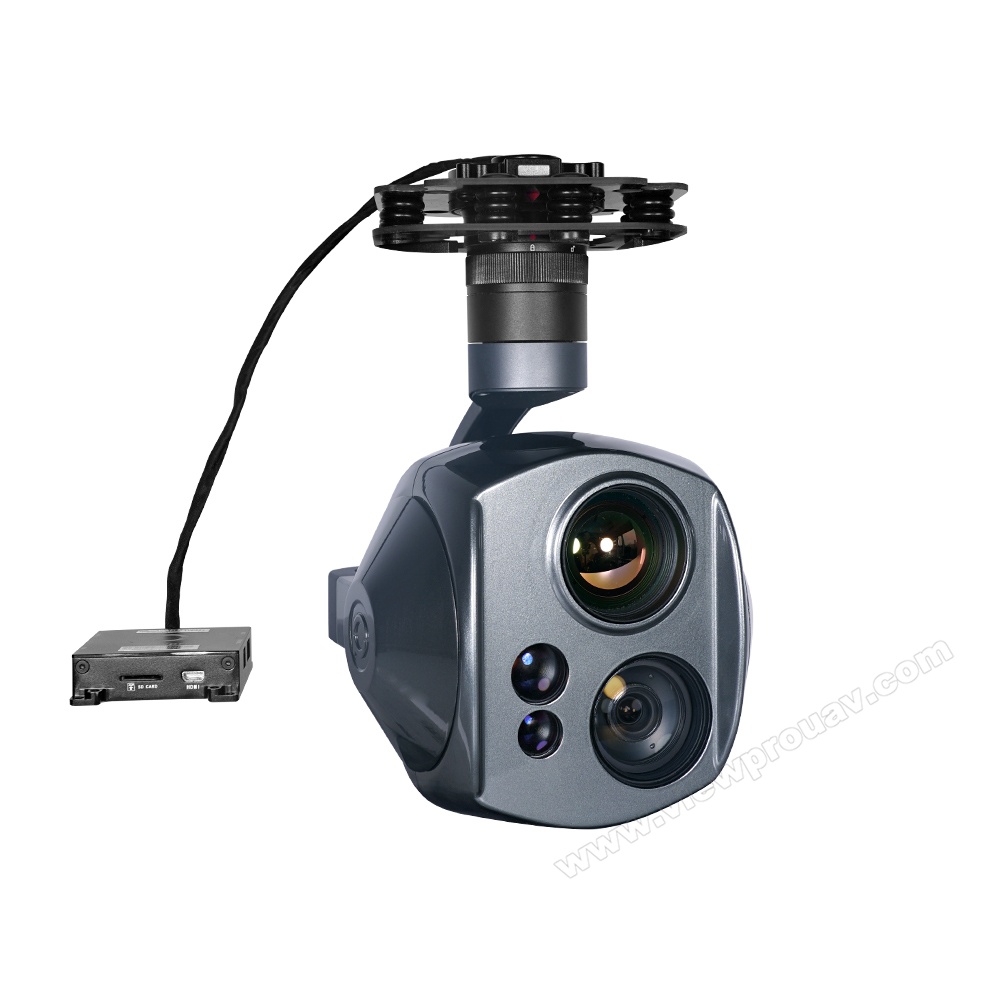

MQ30TIRM pro 3-axis Gimbal Camera 3KM IR Laser Rangefinder 30x Optical Zoom SONY Camera IR+EO Dual Sensors Object Tracking
China Moneypro
Professional 3-axis High-precise FOC Program

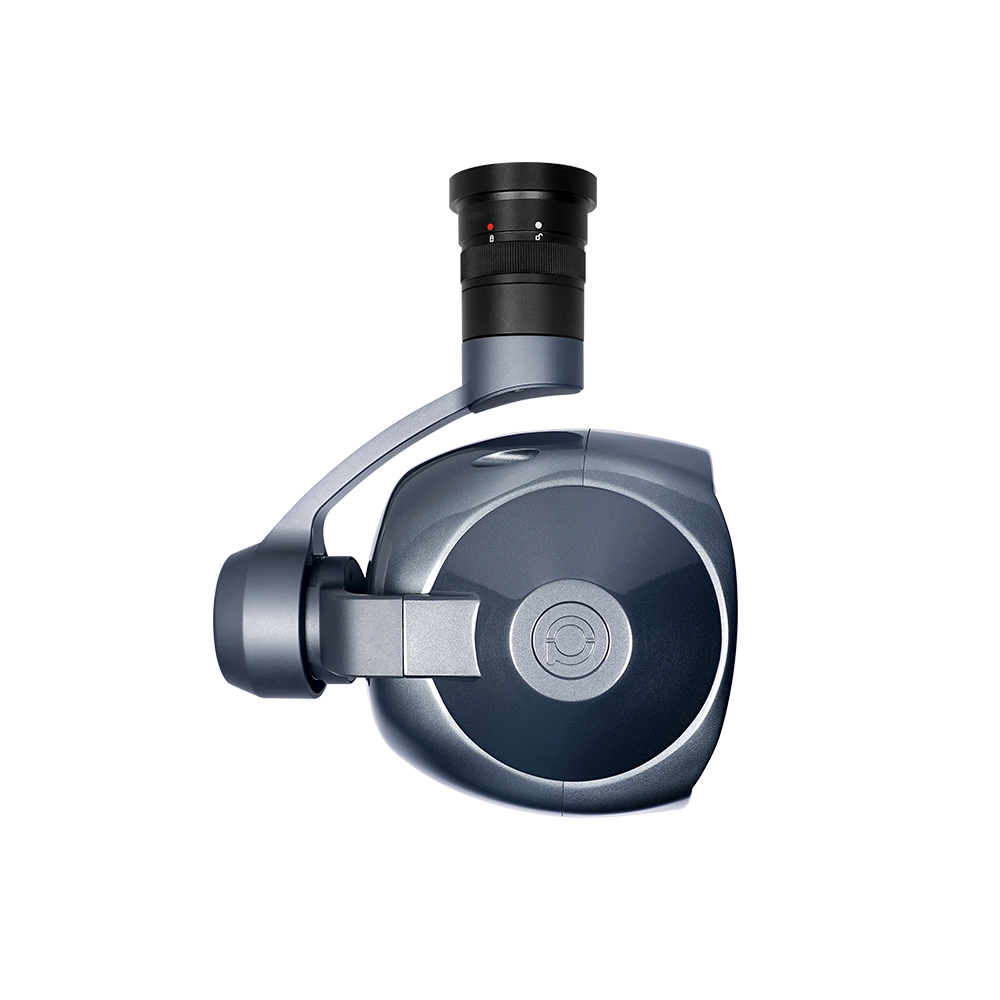

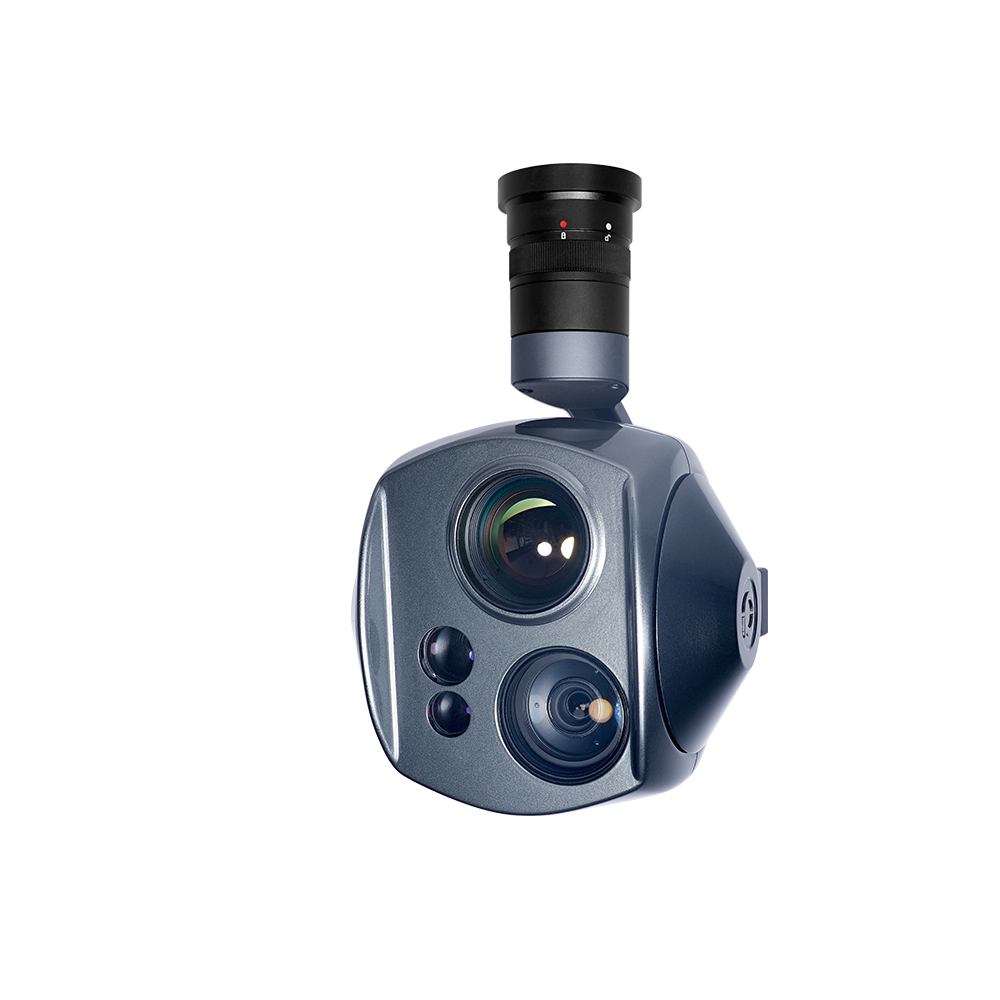

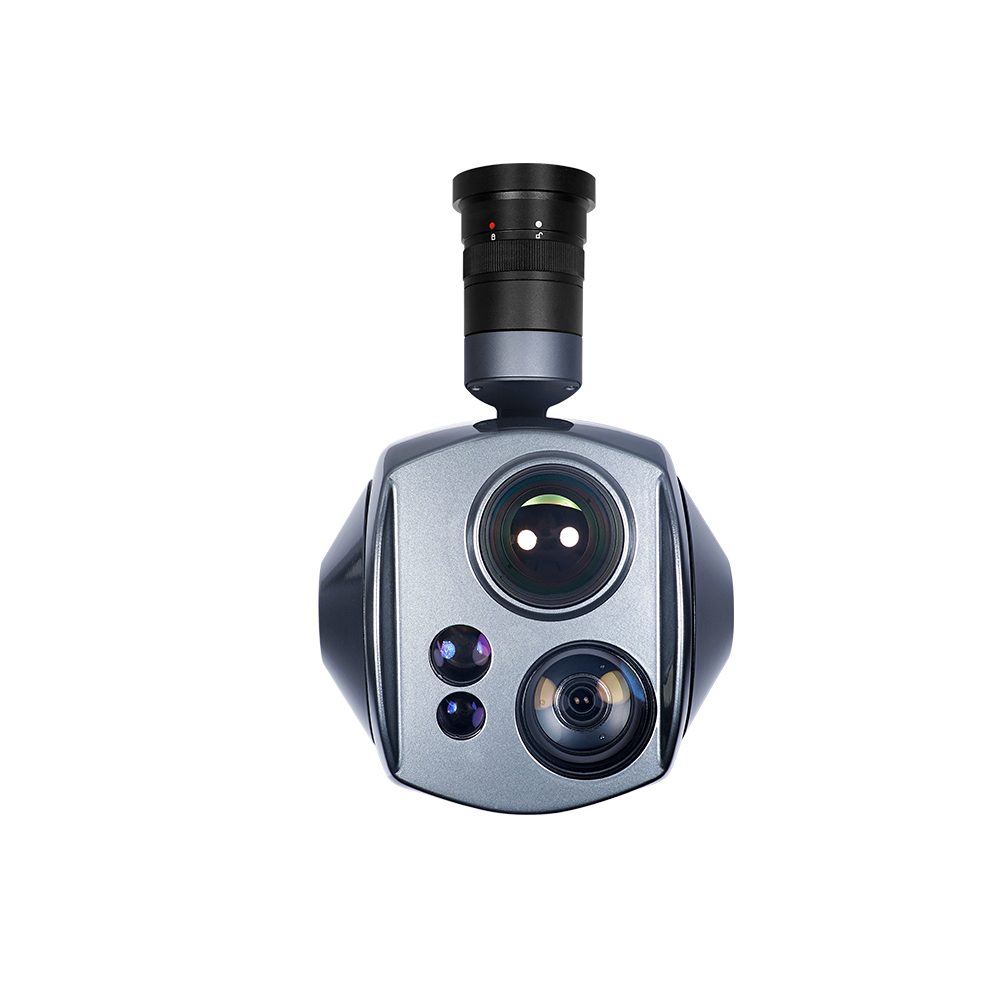

Q30TIRM pro is a powerful 3-axis gimbal camera which integrates a 30x optical zoom SONY camera, a 640×480 thermal camera and a laser rangefinder. The 3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity. The image is very stable even at 30 times optical zoom. Detecting by heat source, the 25mm thermal camera can reveal the damage of buildings, fire spark in forest, the location of people or animal and more.The high-precision laser rangefinder can accurately resolve the GPS location and distance of the object within 3000 meters, this information will display on screen automatically.

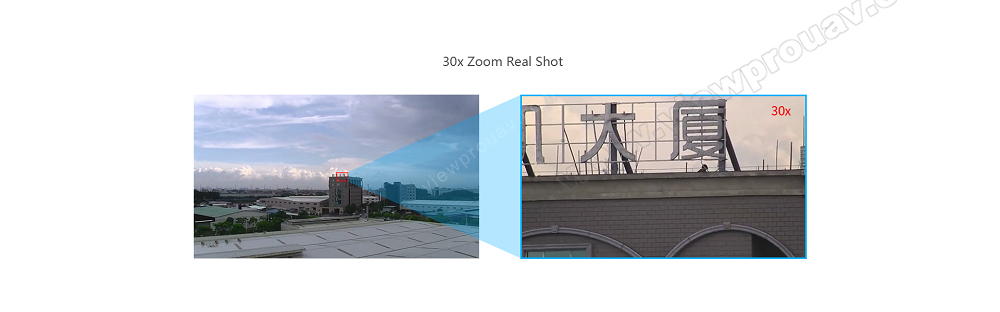

SONY 30x Zoom Starlight Camera
Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Q30TIRM pro can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.
IR+EO Dual Sensors Object Tracking
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 192pixel/frame,object size range is from 32*32 pixel to 128*128 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.

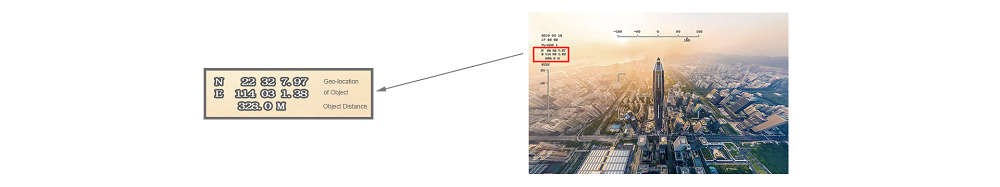

Laser Rangefinder and GPS Location Resolving
The advanced location calculating algorithm is used to calculate the distance of the object within 3000 meters, accurately analyze the longitude and latitude of the object, and display the on the screen. It has a great auxiliary role in the enforcement of military .

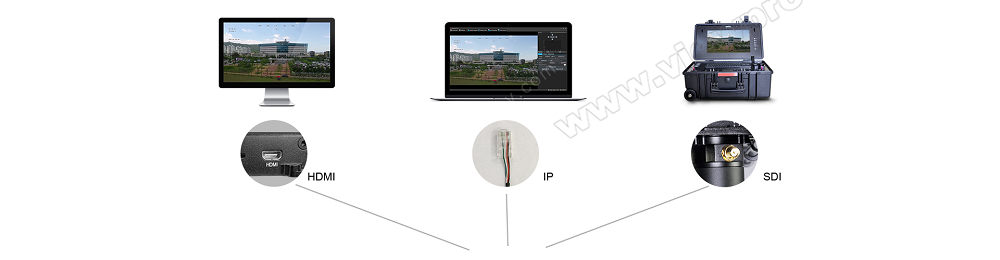

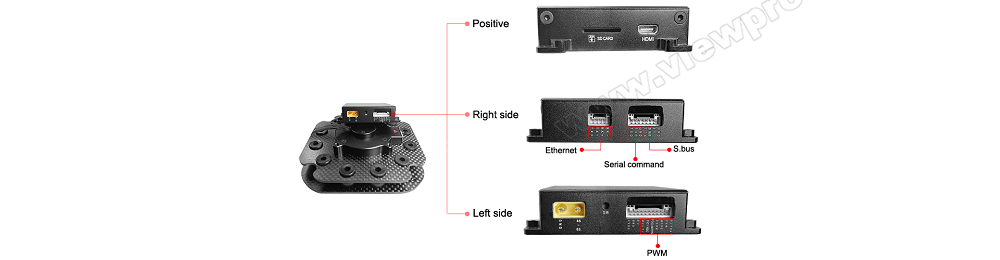

Multi Output Methods Optional
Q30TIRM pro supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.

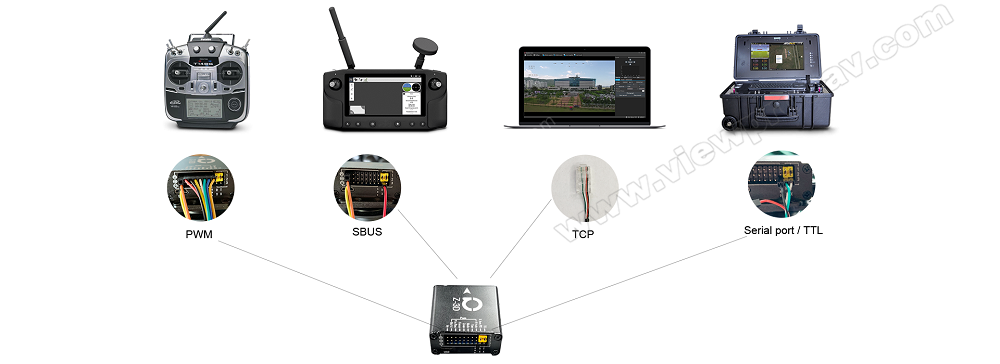

Multi Control Methods

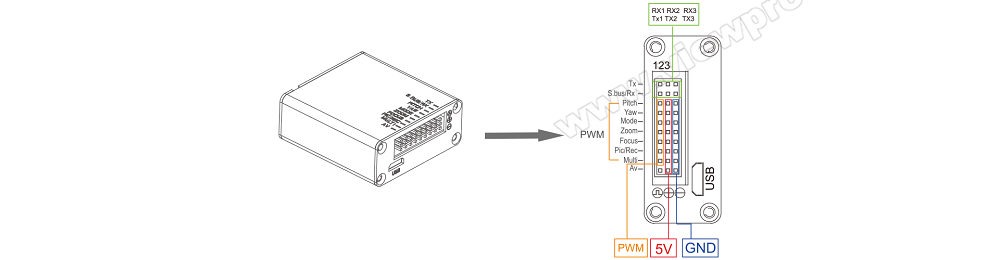

Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.
Multi Control Methods
Multi Control Methods
Q30TIRM pro is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
For more information about Viewport, please check below video instruction:
Application
Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.

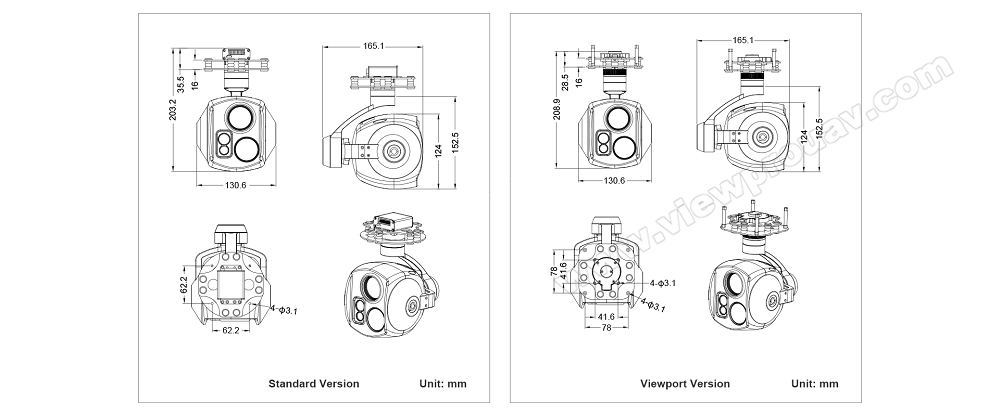

Dimensions
