| Hardware Parameter |
| Working voltage |
12V |
| Input voltage |
3S ~ 6S |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
750mA @ 12V |
| Idle current |
650mA @ 12V |
| Working environment temp. |
-20℃ ~ +60℃ |
| Output |
micro HDMI(1080P 60fps) / IP (720p) / SDI (1080P 30fps) |
| Local-storage |
TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format |
JPG(1920*1080) |
| Video storage format |
MP4 (1080P/720P 25fps/30fps) |
| Control method |
PWM / TTL / S.BUS / TCP(IP output) |

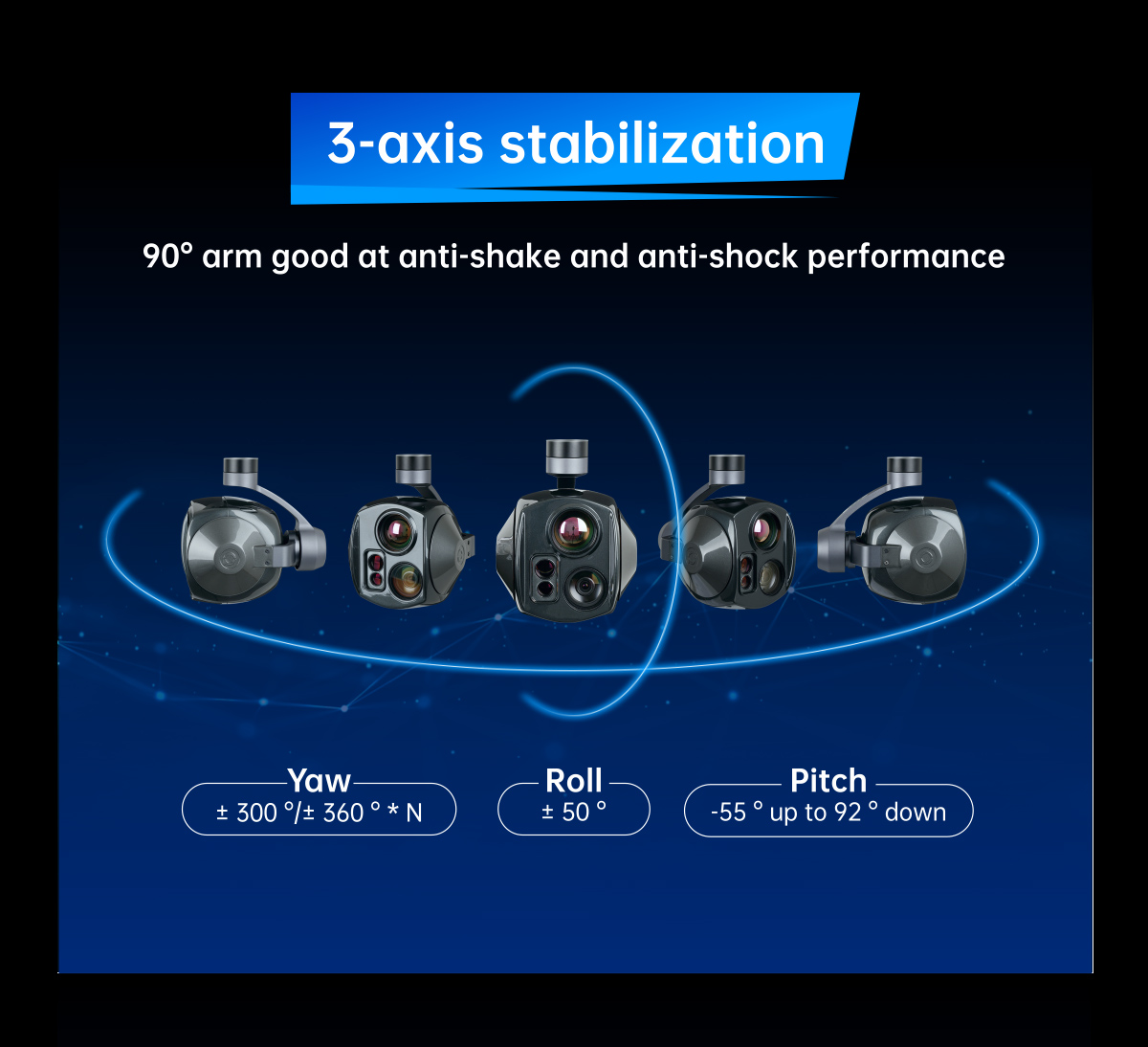

| Gimbal Spec |
| Mechanical Range |
Pitch/Tilt: -100°~120° , Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range |
Pitch/Tilt: -45°~90°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle |
Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center |
√ |
| Camera spec |
| Imager Sensor |
SONY 1/2.8″ “Exmor R” CMOS |
| Picture quality |
Full HD 1080 ( 1920*1080) |
| Effective pixel |
2.13MP |

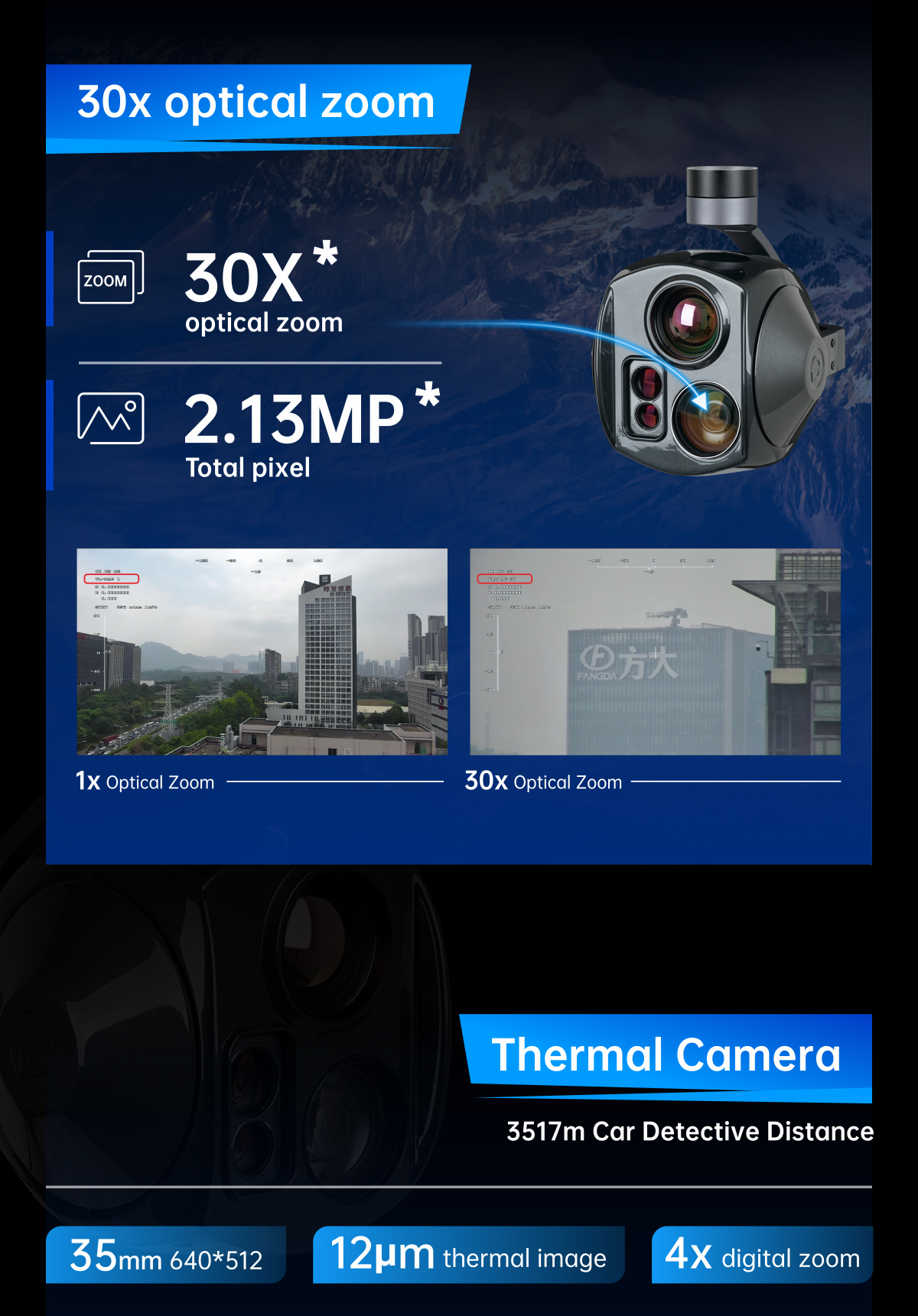

| Lens optical zoom |
30x, F=4.3~129mm |
| Digital zoom |
12x (360x with optical zoom) |
| Min object distance |
10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle |
1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
| 720p mode: 63.7°(wide end) ~ 2.3°(tele end) |
| SD: 47.8°(wide end) ~ 1.7°(tele end) |
| Sync system |
Internal |
| S/N ratio |
more than 50dB |
| Min illumination |
Color 0.01lux@F1.6 |
| Exposure control |
Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain |
Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance |
Auto, ATW , Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp
(Fix/Auto/Outdoor Auto) |
| Shutter speed |
1/1s to 1/10,000s, 22 steps |
| Backlight compensation |
Yes |
| Aperture control |
16 steps |
| Defog |
Yes |
| OSD |
Yes |

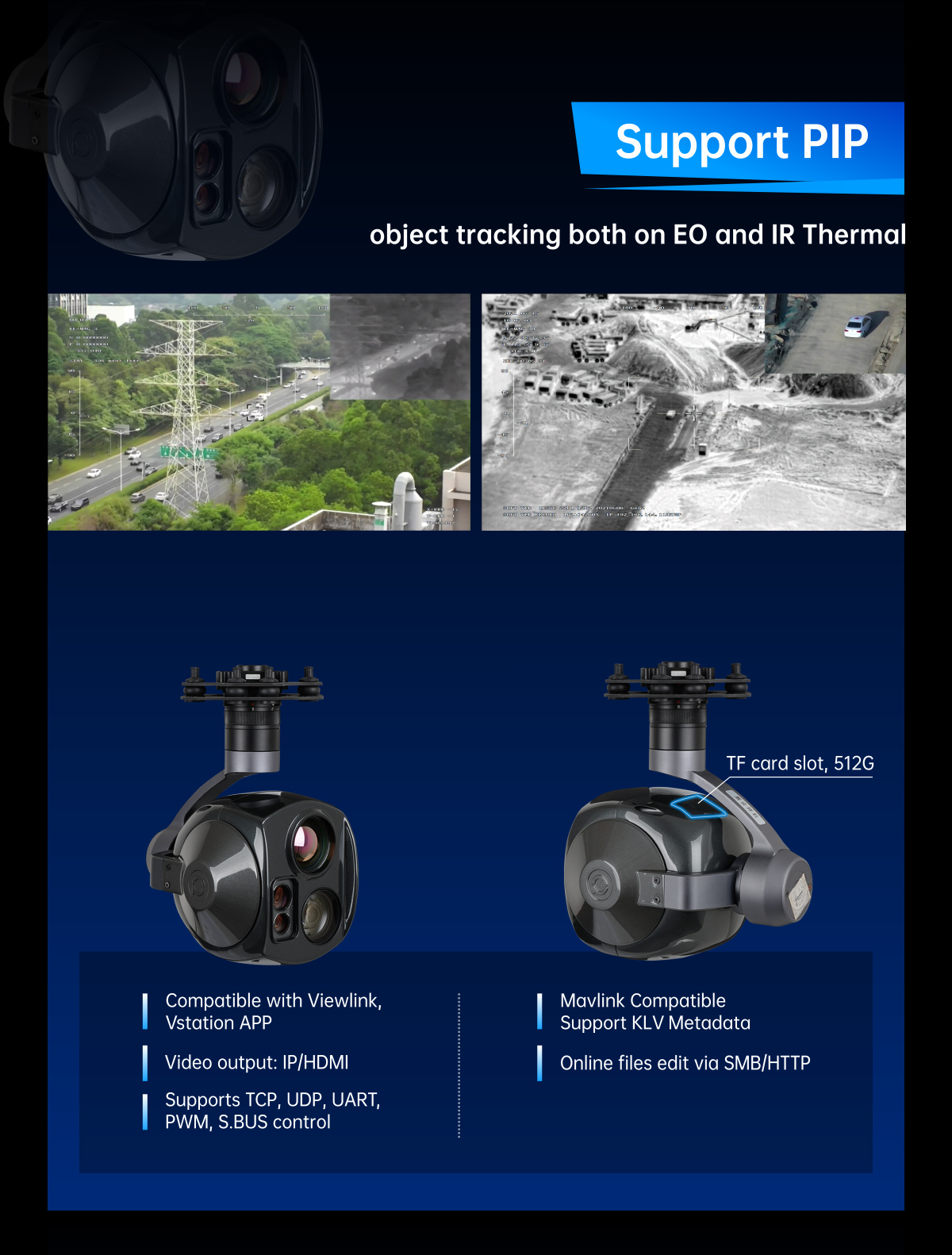

| Camera Object Tracking |
| Update rate of deviation pixel |
50Hz |
| Output delay of deviation pixel |
5ms |
| Minimum object contrast |
5% |
| SNR |
4 |
| Minimum object size |
32*32 pixel |
| Maximum object size |
128*128 pixel |
| Tracking speed |
32 pixel/frame |
| Object memory time |
100 frames (4s) |
The mean square root values of pulse
noise in the object position |
< 0.5 pixel |

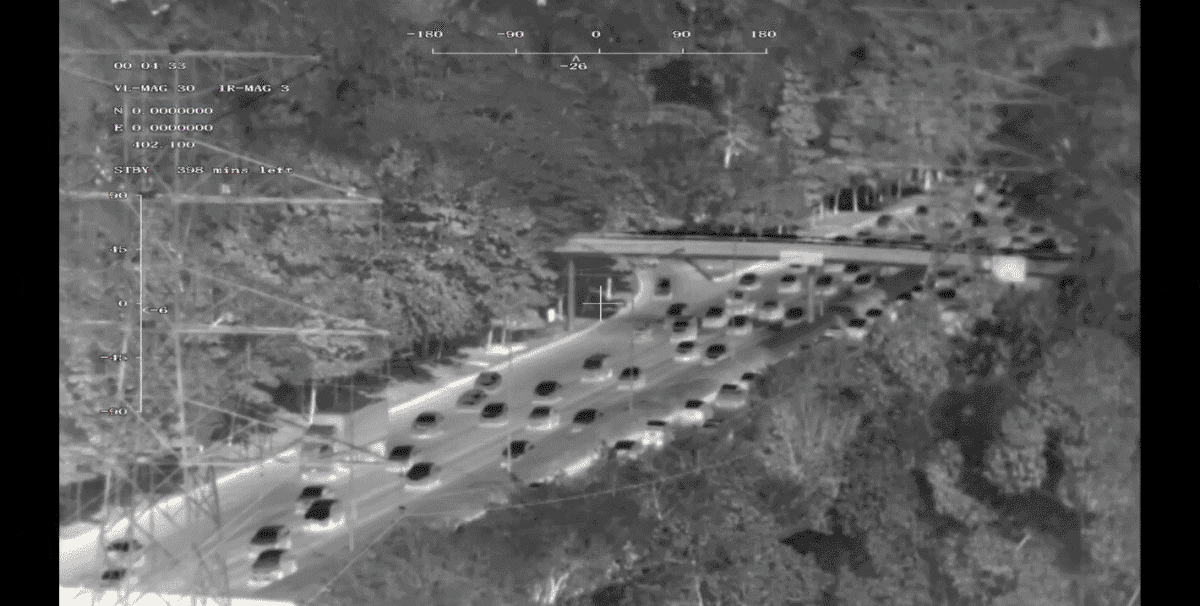

| Thermal Imager Spec |
| Lens size |
35mm |
| Horizontal FOV(°) |
17.7° |
| Vertical FOV(°) |
13.3° |
| Diagonal FOV(°) |
22° |
| Detective Distance (Man: 1.8×0.5m) |
1029 meters |
| Recognize Distance (Man: 1.8×0.5m) |
257 meters |
| Verified Distance (Man: 1.8×0.5m) |
129 meters |
| Detective Distance (Car: 4.2×1.8m) |
3157 meters |
| Recognize Distance (Car: 4.2×1.8m) |
789 meters |
| Verified Distance (Car: 4.2×1.8m) |
395 meters |
| Working mode |
Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel |
640*480 |
| Pixel size |
17μm |
| Focusing method |
Athermal prime lens |
| Emissivity correction |
0.01~1 |
| NETD |
≤50mK (@25℃) |
| MRTD |
≤650mK (@characteristic frequency) |
| Image enhancement |
Auto adjust image brightness and contrast ratio |

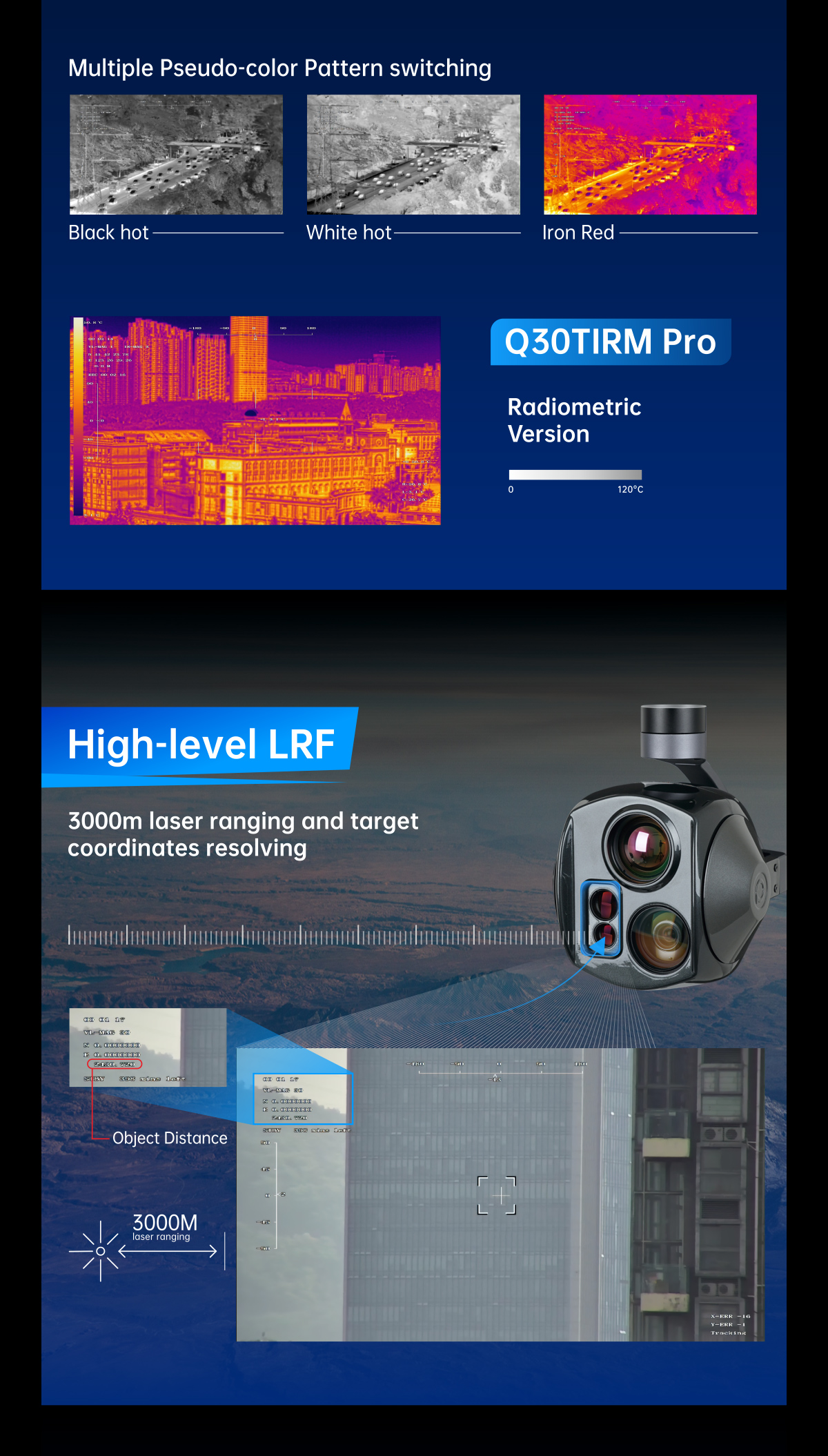

| Color palette |
White, iron red, pseudo color |
| Auto Non-uniform correction |
Yes (no shutter) |
| Digital zoom |
1x ~ 4x |
| Sync correct time |
Yes |
| Thermometry type |
Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning |
0℃~120℃ (For thermometry version only) |
| Thermal Imager Object Tracking |
| Update rate of deviation pixel |
50Hz |
| Output delay of deviation pixel |
5ms |
| Minimum object size |
32*32 pixel |
| Maximum object size |
128*128 pixel |
| Tracking speed |
32 pixel/frame |
| Object memory time |
100 frames (4s) |
| IR Laser Rangefinder |
| Laser Wavelengths |
1550nm |
| Optical aperture |
Transmit 13mm / Receive17 mm |
| Resolution |
0.75m |
| Measure ability |
3000m (Typical value 1:
· Object size: the target surface is larger than the laser spot area
· Reflectivity: 60%
· Accuracy rate: 90%
· Visibility: 10 km
· Environment temperature: 20℃
· Atmospheric pressure: 1013 mbar) |
| Vehicle target measuring |
2300m (Typical value 2:
· Object size: 2.3*2.3 m
· Emissivity: 30%
· Others same as Typcial value 1) |
| Eye-safe |
Class 1【Standard IEC 60825-1, Second Edition (2007-03)】 |
| Laser beam angle (Typical value) |
1.0 mrad |
| Accuracy (Typical value) |
± 0.75m |
| Accuracy (In harsh condition) |
± 2m |
| Measurement frequency |
2Hz |
| Multi-target measuring |
Max.3 targets distance values returning |
| Object resolution (Typical value) |
30m |

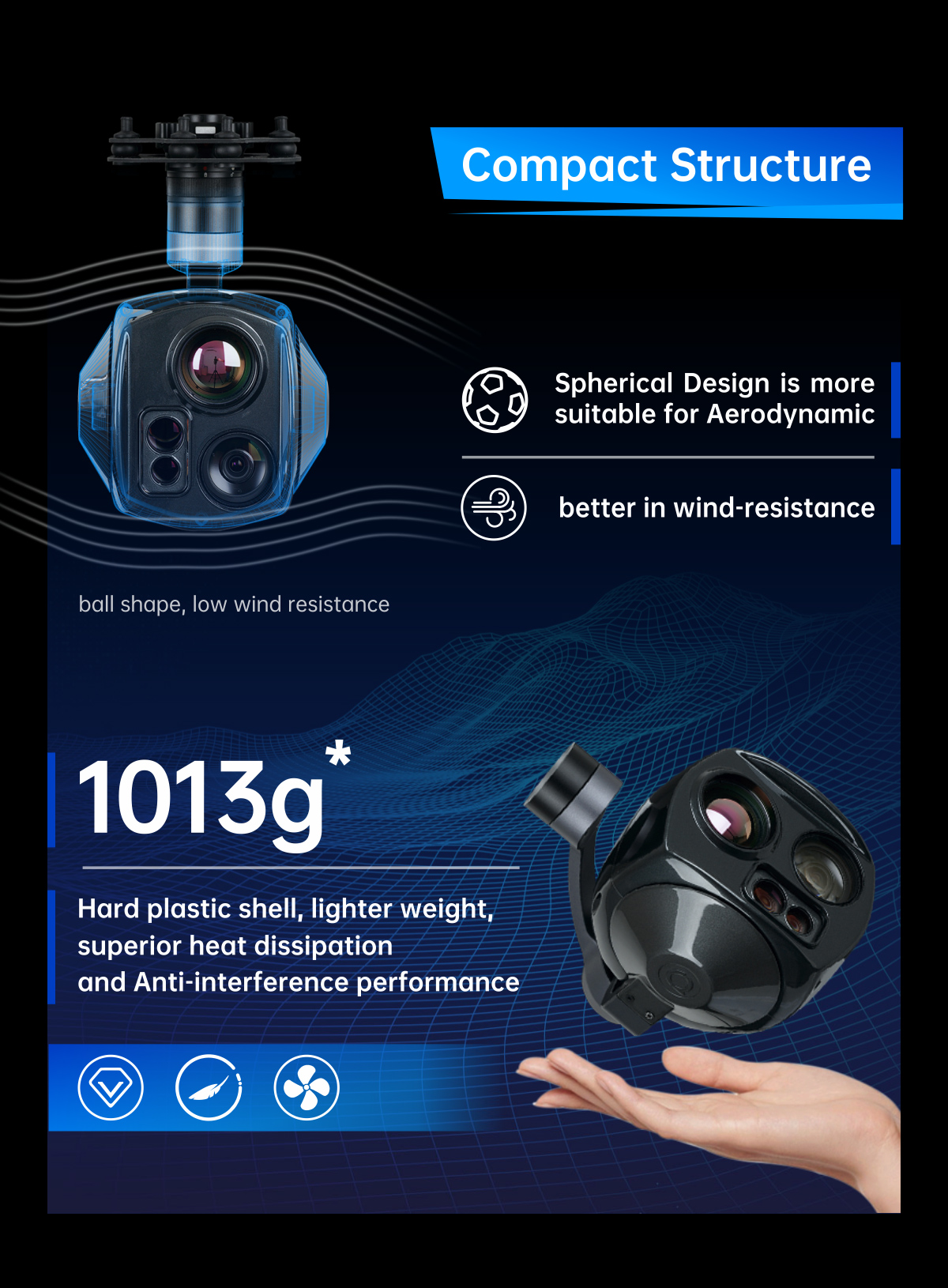

| Packing Information |
| N.W. |
1110g / 1180g (Viewport version) |

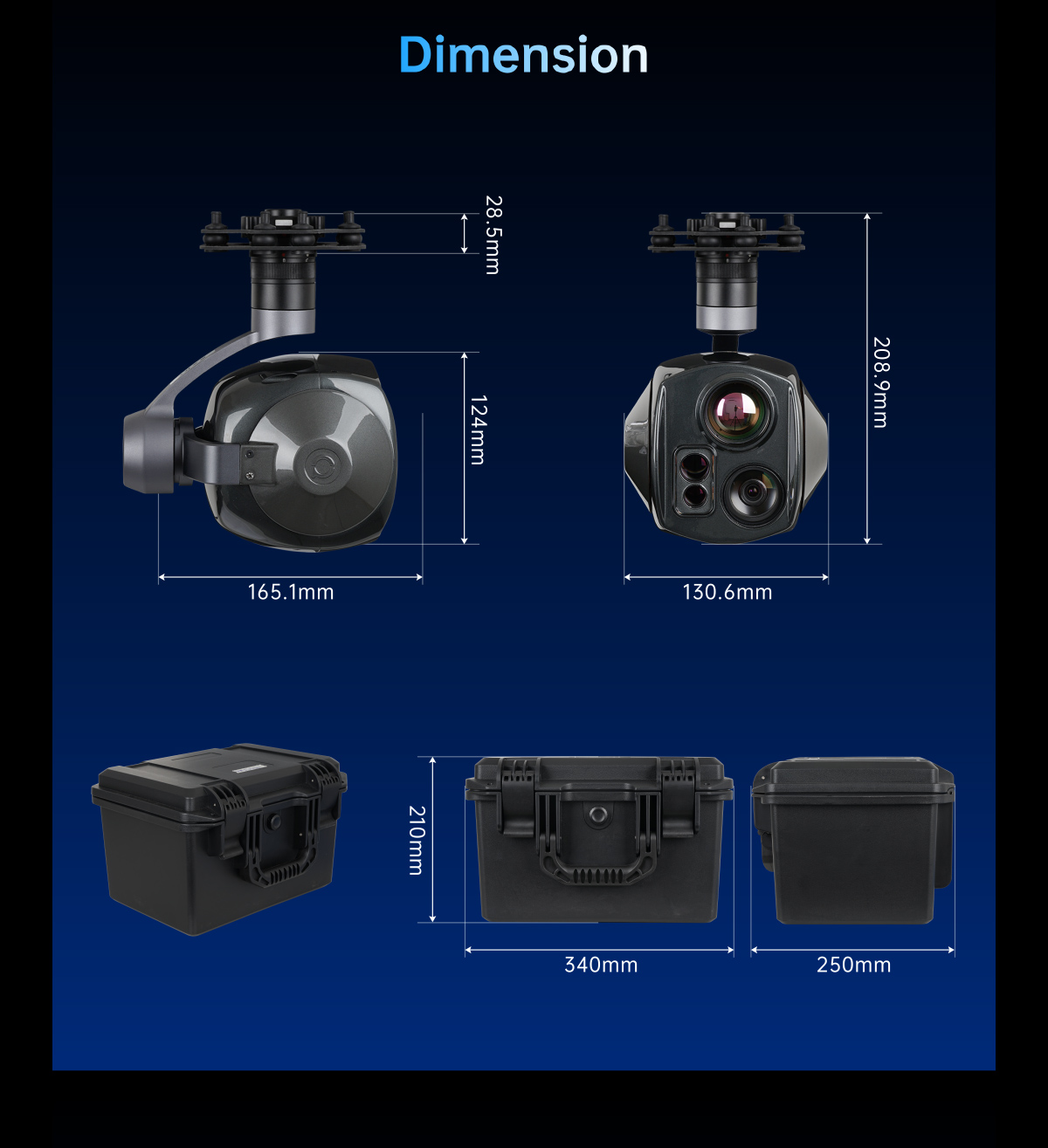

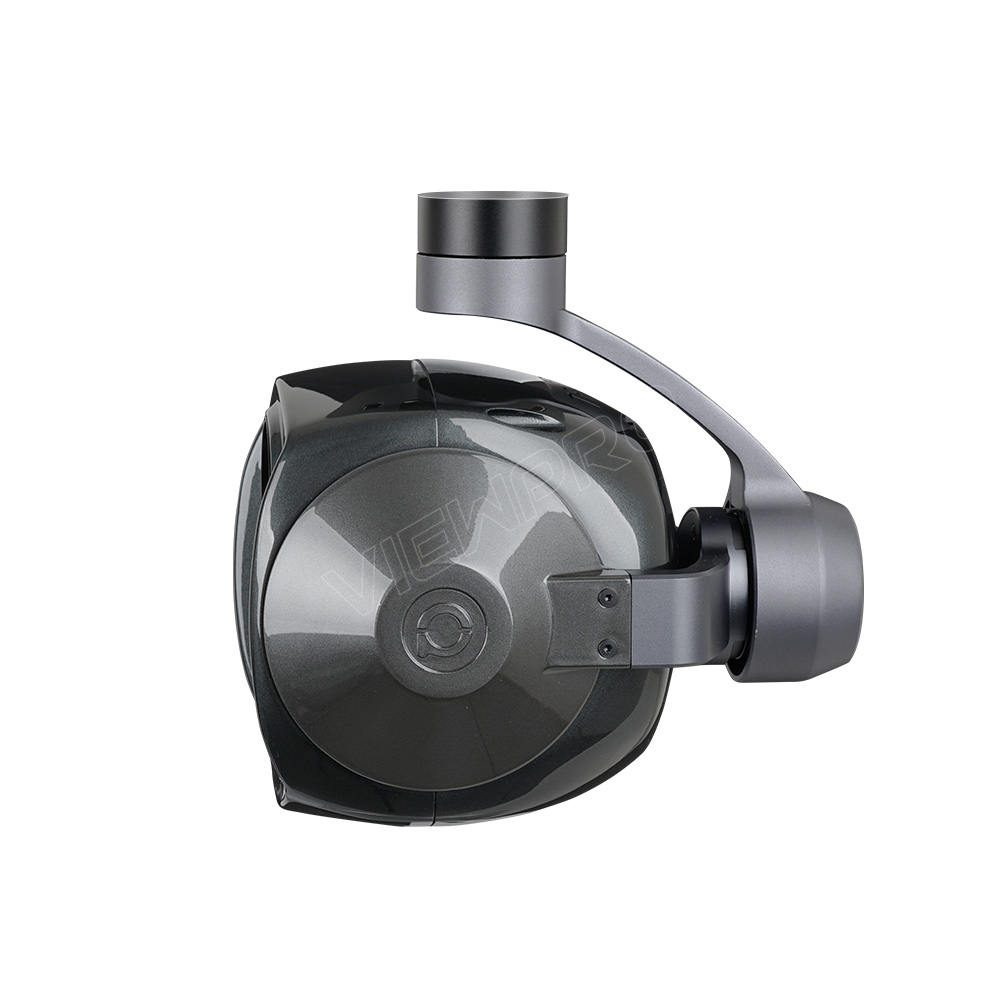

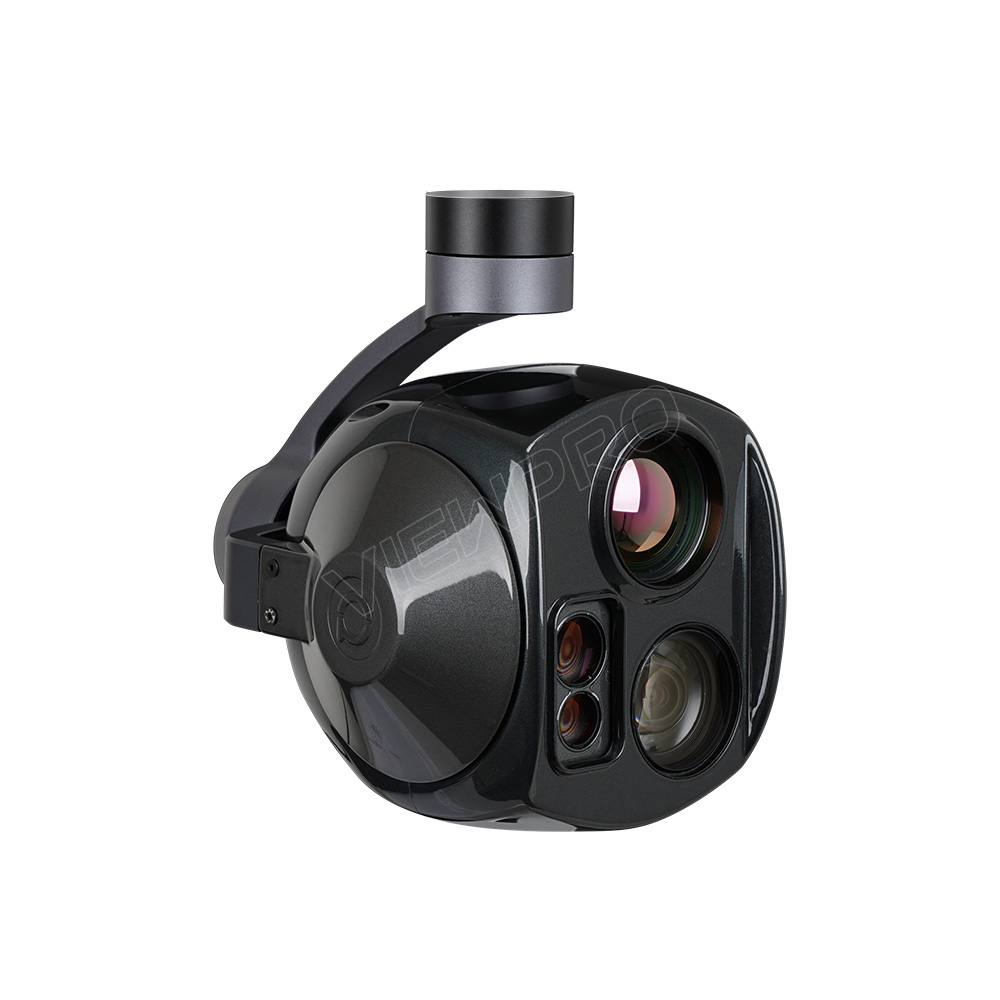

| Product meas. |
203*131*165mm / 209*131*165mm (Viewport version) |

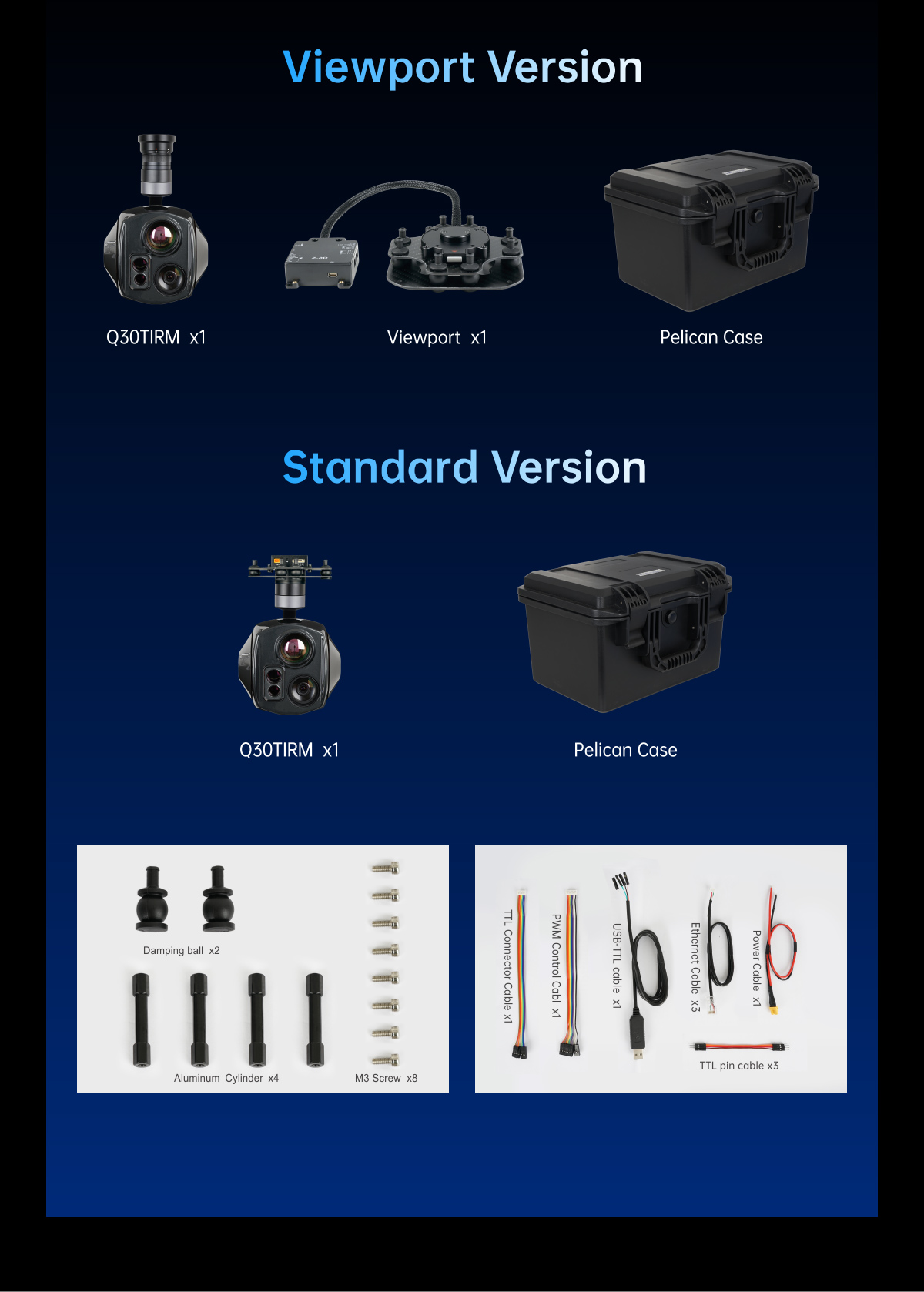

| Accessories |
1pc gimbal camera device, 8pcs screws, 4pcs copper cylinders, 12pcs damping balls, 1pc USB
to TTL cable / Hight quality plastic box with foam cushion |
| G.W. |
3521g |
| Package meas. |
360*300*250mm |
