| Hardware Parameter |
| Working voltage |
16V |
| Input voltage |
4S ~ 6S (14.8V~25.2V) |
| Dynamic current |
460~700mA @ 16V |
| Power consumption |
Average 7.36W, Max 11.2W |
| Working environment temp. |
-20℃ ~ +50℃ |

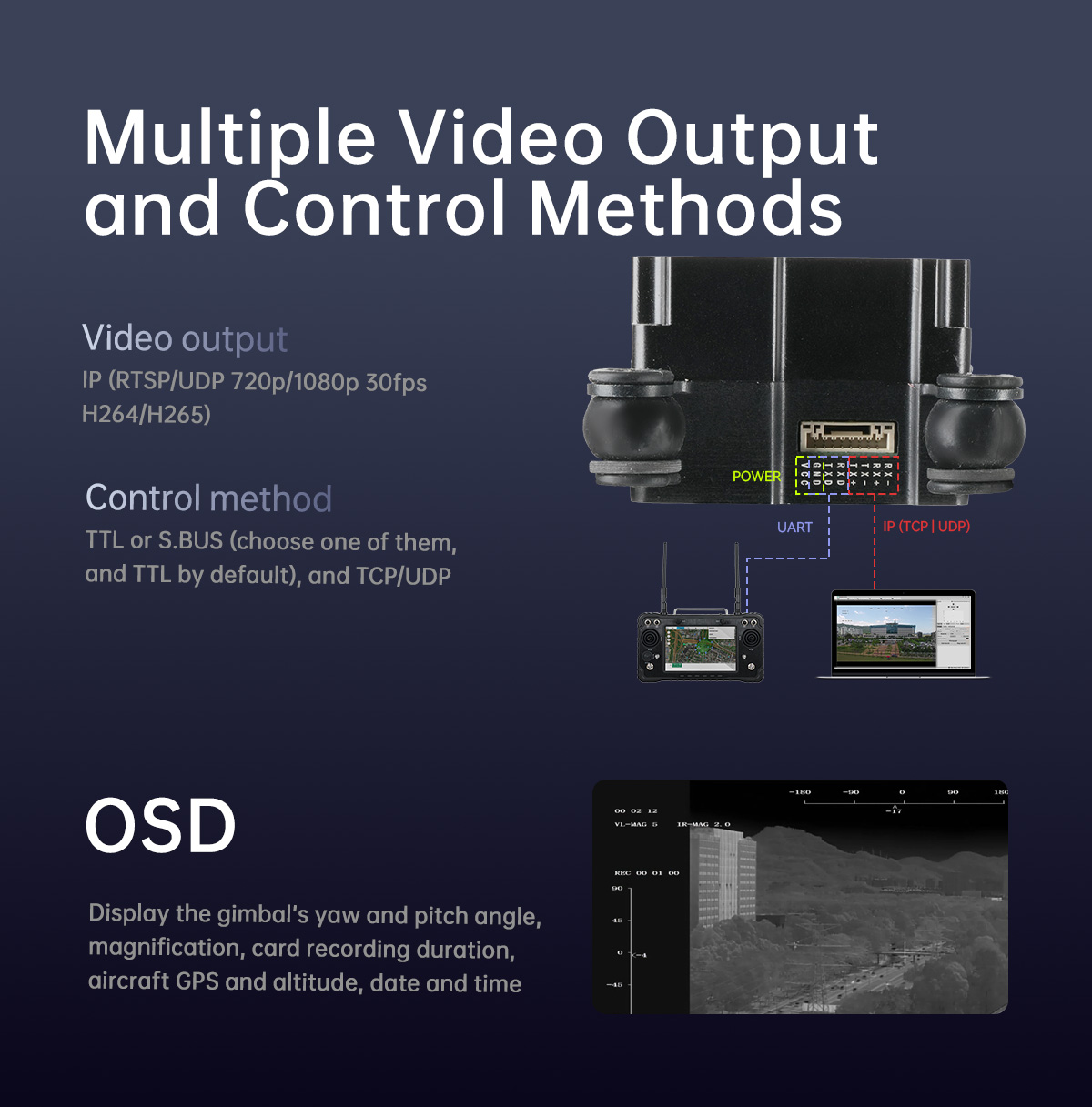

| Output |
IP (RTSP/UDP 720p/1080p 30fps H264/H265) |

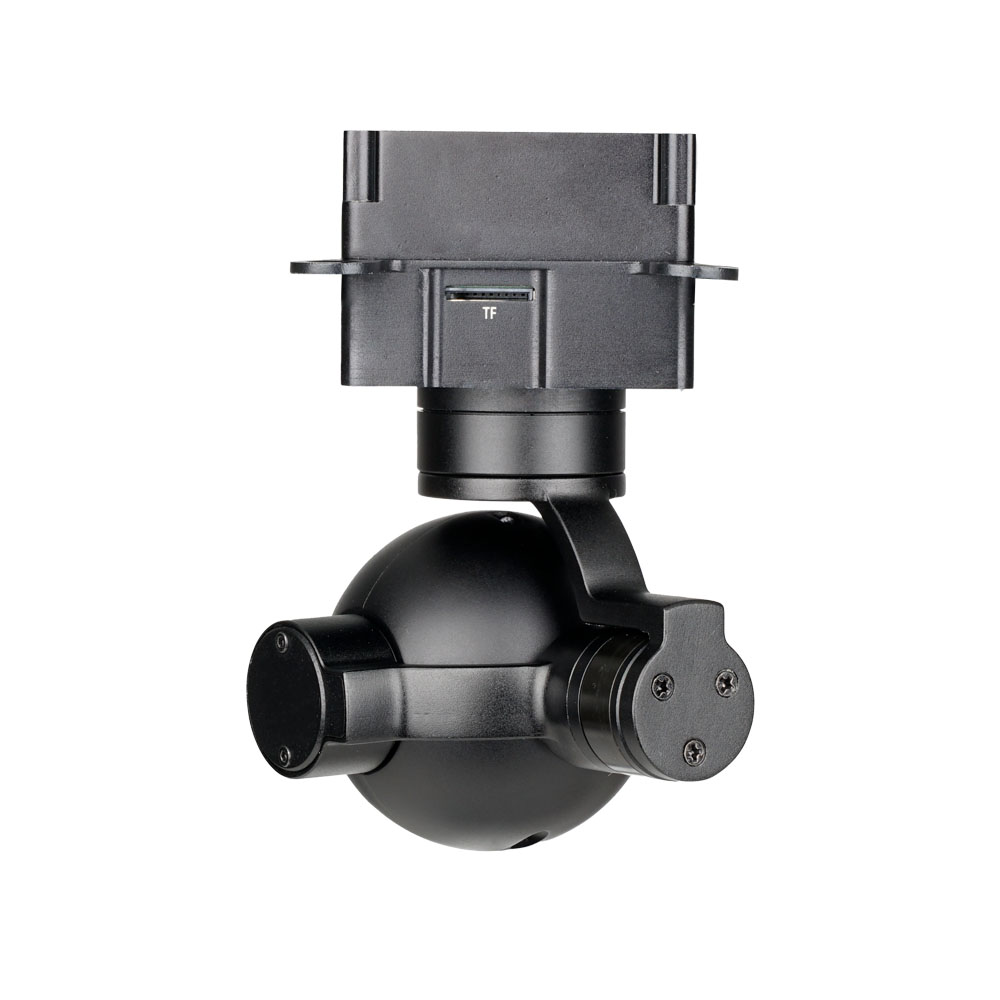

| Local-storage |
TF card (Up to 512G,class 10, FAT32 format) |
| Picture storage format in TF card |
JPG(1920*1080) |
| Video storage format in TF card |
MP4(1080P 30fps) |
| Control method |
TTL or S.BUS (choose one of them, and TTL by default), and TCP/UDP |

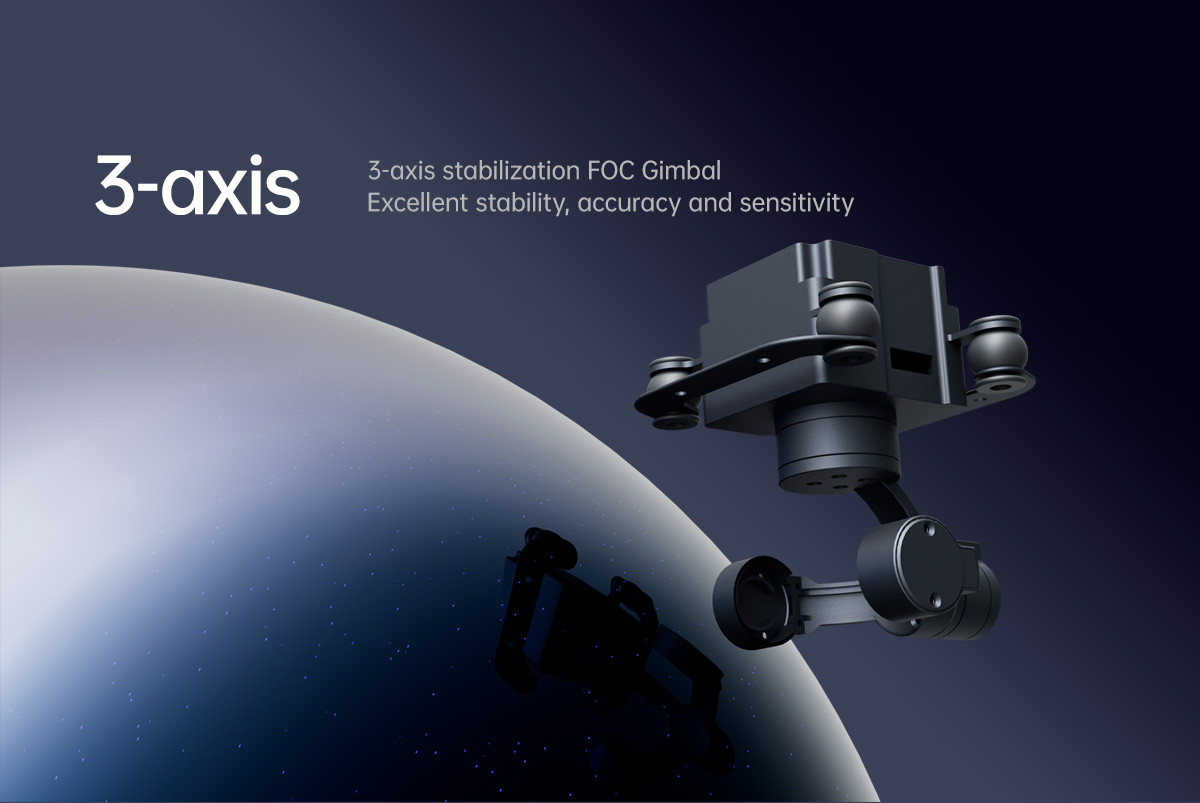

| Gimbal Spec |
| Mechanical Range |
Pitch/Tilt: -50°(Up)～130°(Down), Roll: ±40°, Yaw/Pan: ±150° |
| Controllable Range |
Pitch/Tilt: -45°～125°, Yaw/Pan: ±145° |
| Vibration angle |
Pitch/Roll/Yaw: ±0.02° |
| One-key to center |
√ |
| EO Camera 1 Spec |
| Resolution |
1920*1080 |

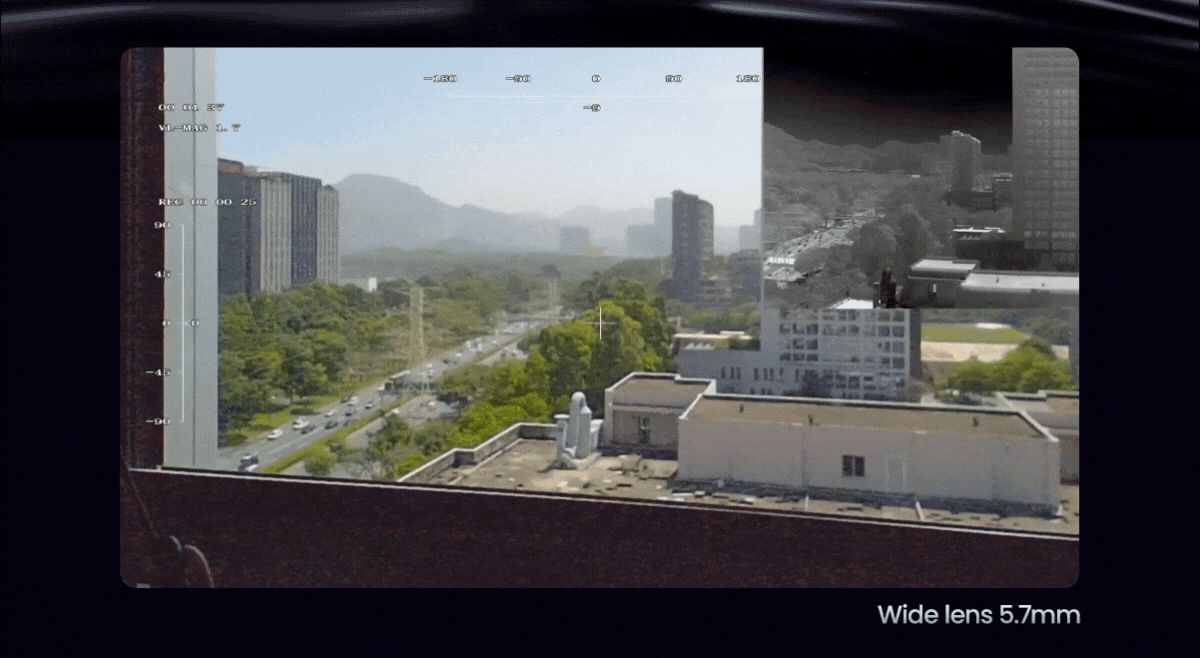

| Focus Length |
5.7mm |
| Angle of View |
66°*40° |
| Digital zoom |
1x ~ 5x |
| EO Camera 2 Spec |
| Resolution |
1920*1080 |

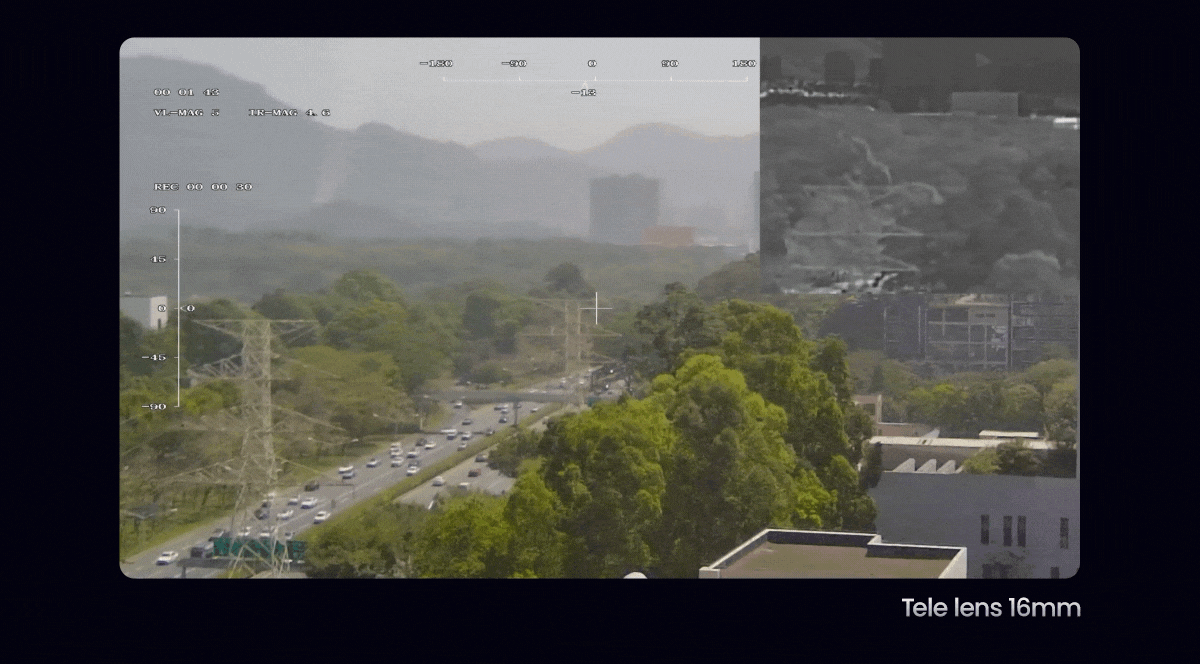

| Focus Length |
16mm |
| Angle of View |
26°*14° |
| Digital zoom |
1~8x (Hybrid Zoom: 5*8=40x) |
| IR Thermal Imager Spec |
| Focus Length |
18mm |
| Horizontal FOV |
24° |
| Vertical FOV |
18.1° |
| Working mode |
Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel |
640*512 |
| Pixel size |
12μm |
| Focusing method |
Athermal prime lens |
| NETD |
≤50mK@25℃ |
| Color palette |
White hot, black hote, pseudo color |
| Digital zoom |
1x ~ 16x |

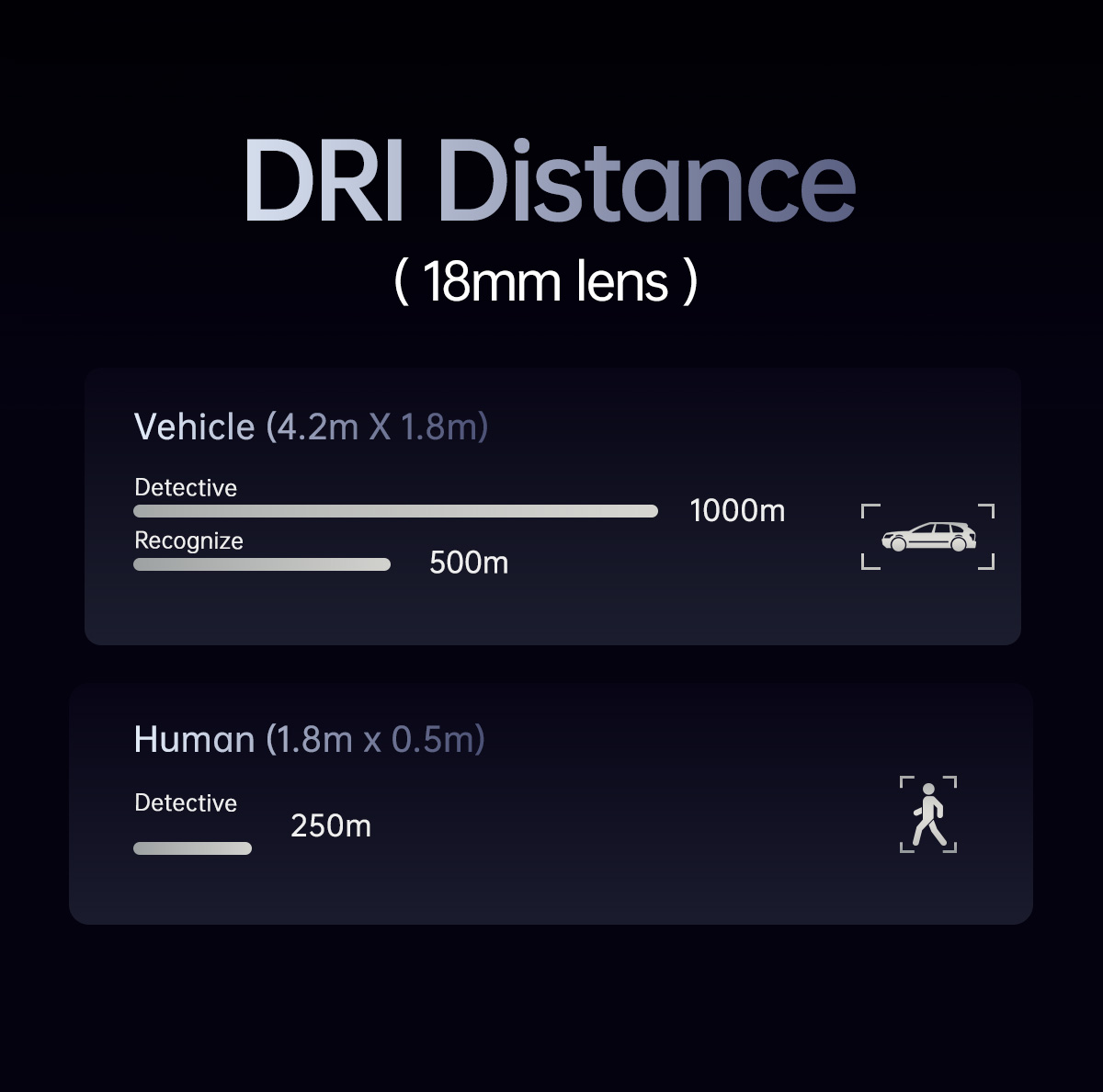

| Detective Distance (Car: 4.2×1.8m) |
1000m |
| Recognize Distance (Car: 4.2×1.8m) |
500m |
| Recognize Distance (Man: 1.8×0.5m) |
250m |

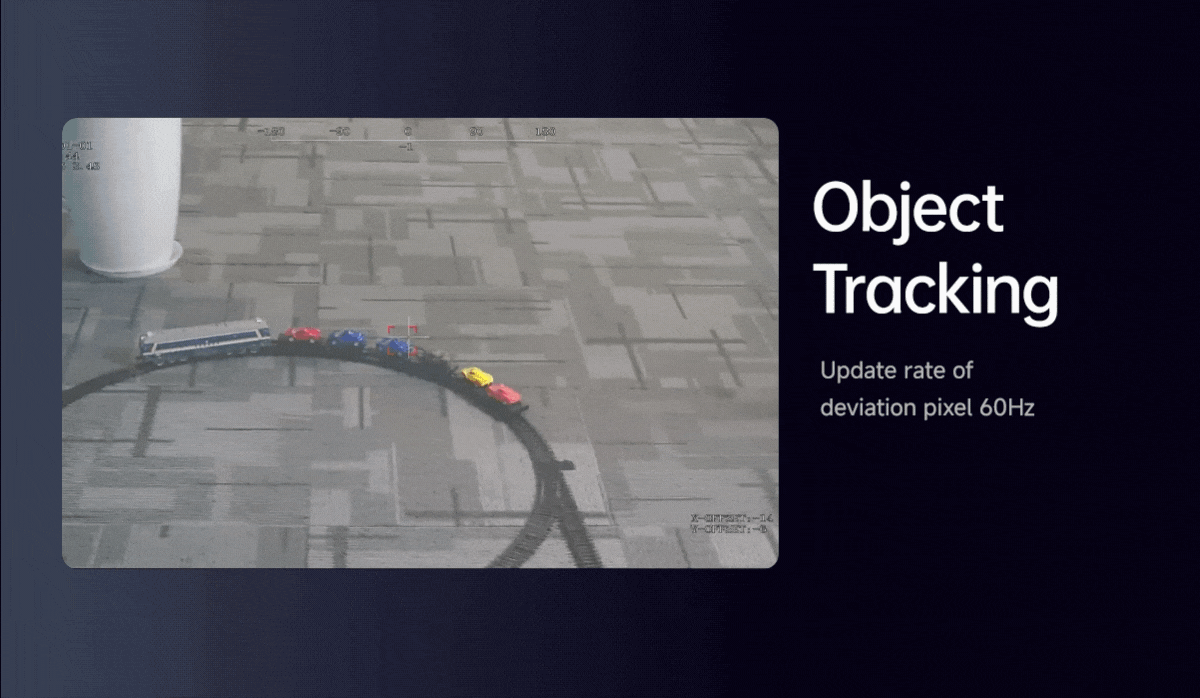

| EO / IR Camera Object Tracking |
| Update rate of deviation pixel |
60Hz |
| Minimum object contrast |
5% |
| Minimum object size |
32*32 pixel |
| Maximum object size |
128*128 pixel |
| Tracking speed |
±48 pixel/frame |
| Object memory time |
100 frames |
| Features |

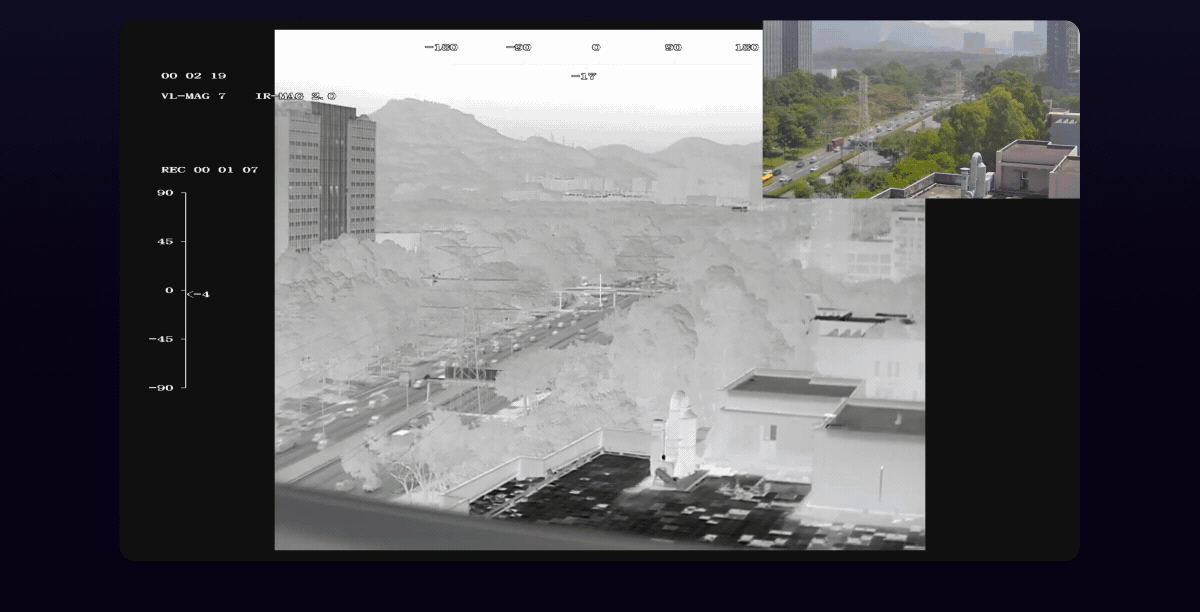

| OSD |
Display the gimbal’s yaw and pitch angle, magnification, card recording duration, aircraft GPS and altitude, date and time |
| Geotagging |
Display time and GPS coordinate in picture exif |
| Card reading online |
SMB read pictures or videos / HTTP read pictures or videos |
| KLV (UDP) |
Card recording or Viewlink video playback |
| ArduPilot / PX4 |
Support(Mavlink protocol )
Optional: Support Ardupilot Follow me feature |

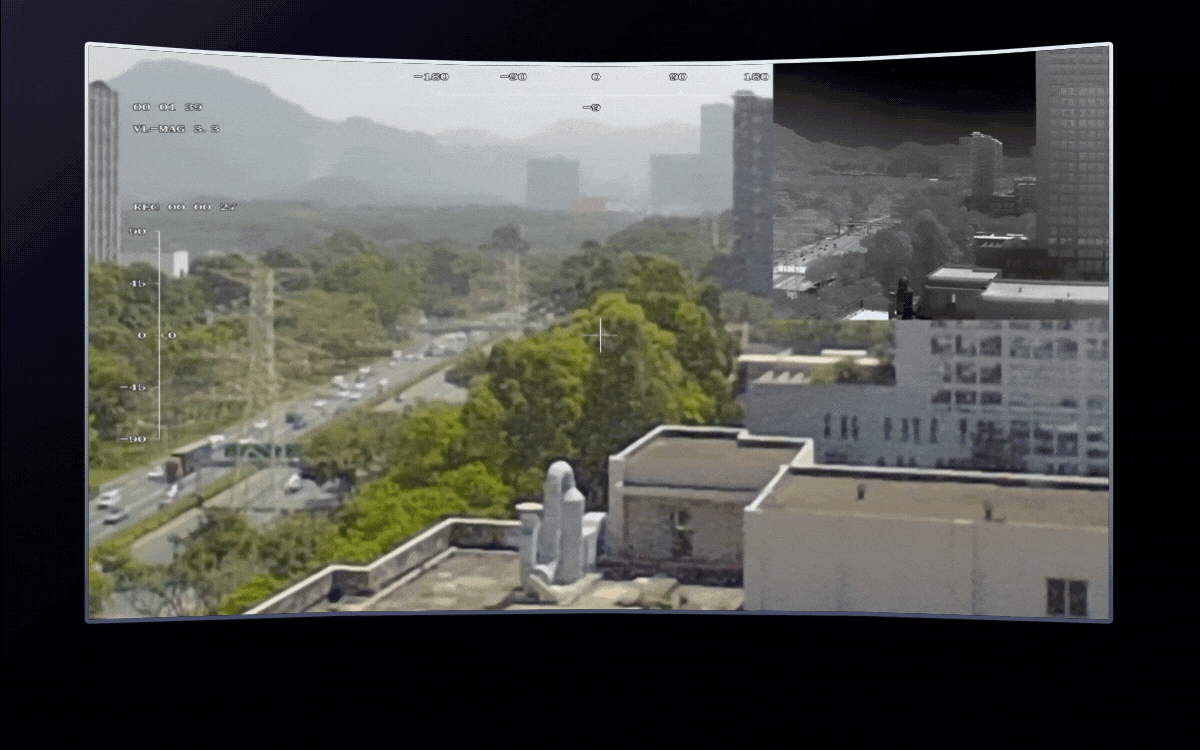

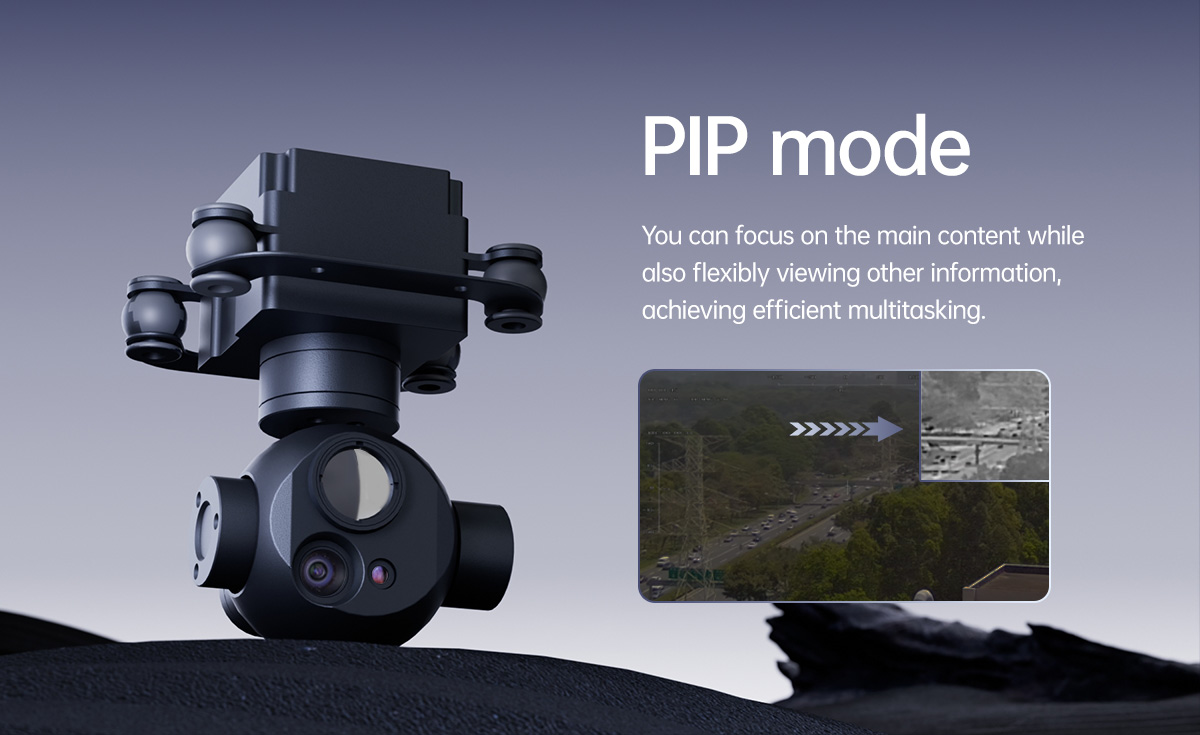

| Video switching |
EO+IR /IR+EO /EO /IR |
| Dual video stream output |
Not support(EO and IR two stream output) |
| Packing Information |
| N.W. |
215±10g (with damping system) |

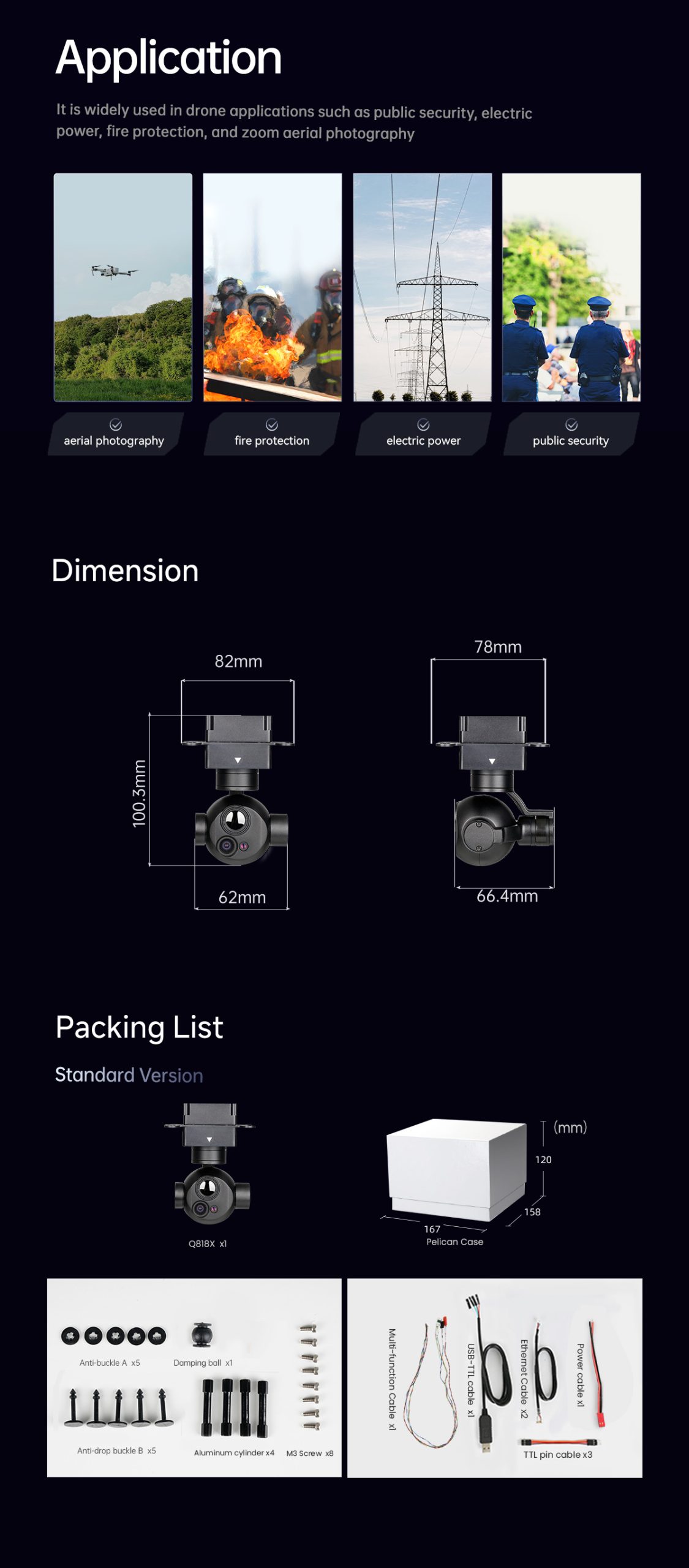

| Product meas. |
66.4*62*100.3mm |
| Accessories |
screws, USB to TTL cable,power cable,Multi-function cable,Ethernet cable, Hight quality box with foam cushion |
| G.W. |
About 590g |
| Package meas. |
162*132*100mm |
