MQT200T Portable Smart Sight
I. Product Introduction
The MQT200T portable smart sight adopts an integrated design of a three-light optoelectronic module and an image tracker, featuring lightweight, high precision, and high integration. It can be installed on various firearms for day and night reconnaissance, surveillance, and target locking.
Target detection and tracking can be achieved around the clock using infrared and visible light, and infrared and visible light images can be output in real time. The laser rangefinder can measure and output the distance to the target in real time.
I. Photos of the actual product
Figure 1. Product image of portable smart sight
II. Product Functions
a) Equipped with infrared and visible light imaging and laser ranging;
b) Features visible light focusing and zoom capabilities;
c) Equipped with a pickup truck interface;
d) It has image overlay function;
e) It has the function of generating cursors based on instructions;
f) Possesses image tracking capabilities;
g) Possesses the ability to identify typical targets (people);
h) It has the ability to automatically identify (people) under indoor conditions without light.
III. Installation Platform
Various firearms.
IV. Main Technical Parameters
| model | QT200T |
| Infrared thermal imager | |
| Detector type | Uncooled focal plane detector |
| Operating band | 8μm～14μm |
| Detector resolution | 640×512 |
| Pixel size | 12μm |
| Lens focal length | 75mm |
| Field of view | 5.9°×4.7° |
| Pseudo-color | 10 types |
| Numbers multiplied | 1.0～4.0X |
| Noise equivalent temperature difference | NETD≤50mK |
| Minimum distinguishable temperature difference | MRTD≤500mK |
| Visible light camera | |
| resolution | 1920×1080 |
| Response band | 0.4μm to 0.9μm |
| Pixel size | 2.6μm |
| Optical zoom | 30 times |
| focal length | 6.5mm～162.5mm |
| Field of view | 58.1°×32.6°～2.3°×1.3° |
| zoom mode | Autofocus, manual focus |
| Minimum Illumination | 0.01 Lux (Black and White) |
| Laser rangefinder | |
| wavelength | 1535nm |
| Maximum ranging distance | ≥6000m (under conditions of visibility ≥15km) |
| Minimum ranging distance | ≤20m |
| Distance measurement accuracy | ±0.5m |
| Ranging frequency | 1～5Hz |
| System Indicators | |
| Image tracking | Automatically track selected target |
| Power supply voltage | DC 18V～30V |
| power | Stable power consumption: ≤40W |
| weight | ≤3.6kg |
| volume | 195.1mm×177mm×166.7mm |
| interface | |
| Control Interface | RS422 |
| Video interface | HD-SDI/100Mbps Ethernet |
| Storage interface | ≤128G memory card (Mini SD card) |
| Storage format | .avi format |
| Environmental adaptability | |
| Operating temperature | -40℃～＋60℃ |
| Storage temperature | -45℃～＋65℃ |
| Protection level | IP67 |

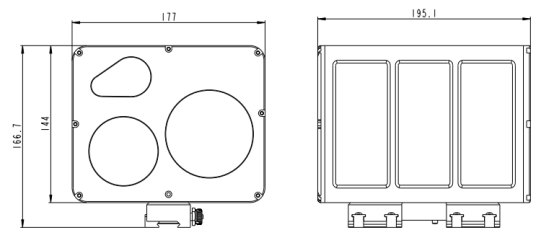

V. Mechanical Dimensions and Installation Interfaces
Figure 2 Product Dimensions
