MSilentW-U6 Series Infrared Panoramic Camera

China Moneypro
SilentW-U6 is a solution for large area monitoring by using a 12μm 640×512 thermal detector and capturing 360° panoramic image.
SilentW is able to detect mulitple objects at same time and can be widely used in oil/gas fiels and mines to make a comprehensive security solution.

Feature

Industry-Leading Infrared Detector

Adopts the latest 12μm uncooled infrared detector or high-performance MWIR cooled detector, and advanced infrared image algorithms to ensure clear imaging at greater distances.

360° Panoramic Monitoring

Detects a full circle in approximately 2 seconds and delivers real-time panoramic video images, enabling comprehensive visual monitoring without blind spots.

Multi-Target Detection

apable of simultaneously detecting&tracking up to 128 targets, detection range up to 8km.

Link with PTZ Camera

Easy calibration, link with dual-spectrum PTZ camera to track the target. Using zoom lens to view more details from long distance.

Intelligent Detection Algorithm

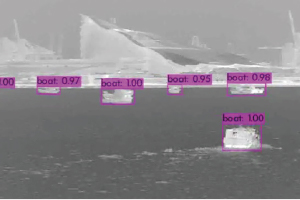

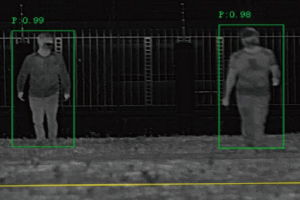

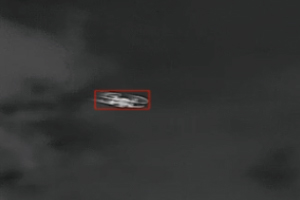

Deep learning AI algorithm to recognize human, vehicle, ship, and UAV targets.

Low Power Consumption

Low power cunsumption, can be powered by solar, reduce the needs of infrastructure.

Specification

Thermal Module
Detector TypeVOx, uncooled FPA detectors
Spectral Range8~14μm
Resolution640×512
Pixel Pitch12μm
Focal Length55mm/75mm
PTZ
Pan360° continuous,180°/s or 133°/s
Tilt-20°~+35°,motorized
Scan modePanorama Scan
Smart Function
Fire DetectionSupport
VCAMotion Target Detection/AI Detection
Linkage ActionLinkage of PTZ camera
System Interface
PowerDC 30V 5A
Network1000M Ethernet port
General
Work Environment-40℃~+70℃
ProtectionIP66
Power Consumption≤30W
Dimenstion(mm)327×260×377
Weight20kg

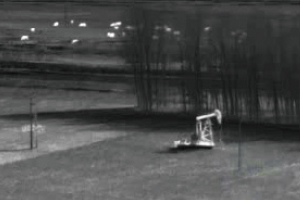

Application Scenariosa
