MSilentW-UM6 Series Mini Infrared Panoramic Camera
China Moneypro
SilentW-UM is a compact solution for 360° panoramic monitoring.
It’s only 2 kg but equiped the latest 12μm thermal detector.
It is very convenient to carry and to deploy the camera to create a perimeter security solution easily.
It’s only 2 kg but equiped the latest 12μm thermal detector.
It is very convenient to carry and to deploy the camera to create a perimeter security solution easily.
Feature
Industry-Leading Infrared Detector
Adopts the latest 12μm uncooled infrared detector or high-performance MWIR cooled detector, and advanced infrared image algorithms to ensure clear imaging at greater.
Compact for Rapid Deployment
Only weighs 2.1kg, easy for deployment.
360° Panoramic Monitoring
Detects a full circle in approximately 2 seconds and delivers real-time panoramic video images, enabling comprehensive visual monitoring without blind spots.
Multi-Target Detection
Capable of simultaneously detecting & tracking up to 128 targets, detection range up to 1.5km.
Intelligent Detection Algorithm

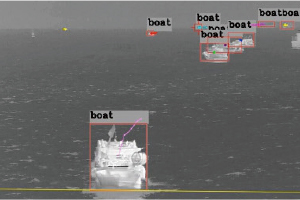

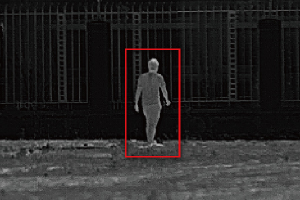

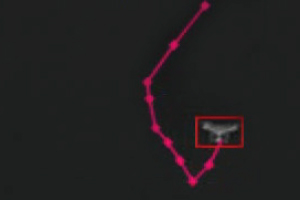

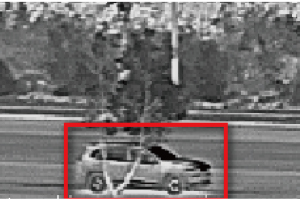

Deep learning AI algorithm to recognize human, vehicle, ship, and UAV targets.
Link with PTZ Camera
Easy calibration, link with dual-spectrum PTZ camera to track the target. Using zoom lens to view more details from long
Specification
| Thermal Module | |
| Detector Type | VOx, uncooled FPA detectors |
| Spectral Range | 8~14μm |
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Focal Length | 19mm/25mm |
| PTZ | |
| Pan | 360° continuous，200°/s or 160°/s |
| Tilt | -5°~+5°，manually |
| Scan mode | Linear Scan/Panorama Scan |
| Smart Function | |
| Fire Detection | Support |
| VCA | Motion Target Detection/AI Detection |
| Linkage Action | Linkage of PTZ camera |
| System Interface | |
| Power | DC 24V |
| Network | 100M/1000M Ethernet port |
| General | |
| Work Environment | -40℃~+60℃ |
| Protection | IP66 |
| Power Consumption | 15w |
| Dimenstion(mm) | 108×112×175 |
| Weight | 2.1kg |

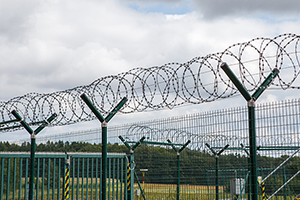

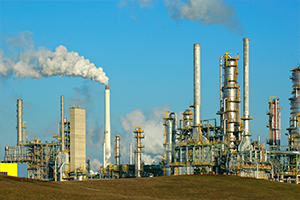

Application Scenariosa
