MTB1250LP Thermal Imaging Attachment
China Moneypro
After an in-depth hardware upgrade and software optimization, the TB LRF Pro Series combines precision and portability. Its appearance remains light without reducing professionalism at all: built-in laser rangefinder can reach an ultra-long distance of up to 1,500 meters; two batteries empower a longer operating time; full HD AMOLED display brings a rich and detailed visual experience; it also supports intelligent functions such as image tracing, automatic recording after each shot, etc.
1280×1024@12μmSensor
18mKNETD
50mm F1.0Lens
1500mLaser rangefinder
1280×1024@12μmSensor
18mKNETD
50mm F1.0Lens
1500mLaser rangefinder
Mega-Pixel infrared detector, NETD reaches 18mK
TB LRF Pro Series adapts the high-sensitive 12μm detector of 1280×1024 infrared resolution with NETD down to 18mK. The advanced detector can distinguish the slightest differences and changes in temperature.
Ultra-long laser ranging, 1500m built-in LRF
The built-in LRF module provides a long laser rangefinder of up to 1500m/1630yd, enabling users to detect and locate the targets quickly and precisely.

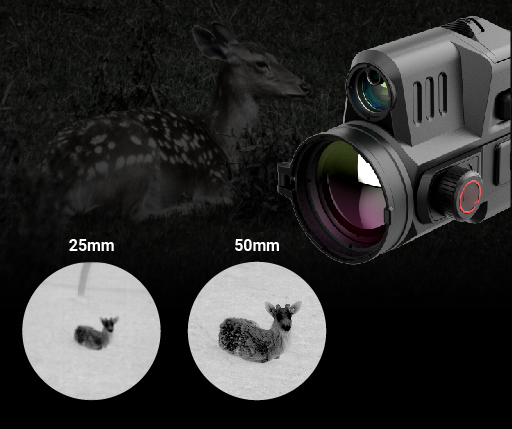

50mm lens for more image details
TB LRF Pro Series utilizes a longer focal length of 50mm to provide a longer observation distance and more image details than the common lens.
Stunning visual experience, Full-HD AMOLED display
TB LRF Pro Series has a 0.39” AMOLED 1920×1080 display screen, presenting a vivid image with more details for users.
Target detection range up to 2600m
A maximum detection range of 2600m/2800yd, can detect targets in a long distance, which will help you see farther and observe more outdoors.

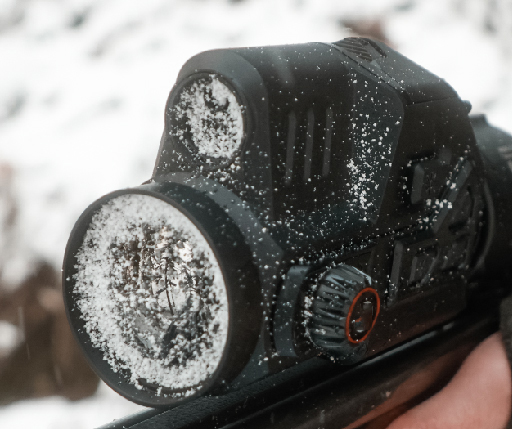

IP68 waterproof, durable quality
Compact and rugged, portable and powerful, the TB LRF Pro Series shares the high protective features of IP68, to support your outdoor adventures in the harsh environment.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 1280×1024@12μm | |||
| NETD | 18mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F1.0 | |||
| Field of view | 17.5°×14.0° | |||
| FOV m@100m | 31×25 | |||
| Magnification | 1x | |||
| Detection range | 2600m/2800yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39” AMOLED 1920×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 20mm; Zoom: 13.3x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1500m/1630yd | |||
| WIFI | 2.4G, 5G | |||
| Interface | USB Type-C (Power supply/USB2.0) | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 256GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 2 replaceable 18650 batteries | |||
| Operating time | 6 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Shock | 1000G at 1ms half sine pulse (as per IEC60068-2-27) | |||
| Encapsulation | IP68 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 617/21.76 | |||
| Size (mm/in) | 161×89×97/6.34×3.50×3.82 | |||
| Standard | A device, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card | |||
| Optional | 18650 battery, Bluetooth remote control, Cover ring adapter | |||
