MTB430 Clip-on Thermal Imaging Attachment
China Moneypro
The TB Series bridges the gap between precision and portability. The magnesium alloy housing decreases weight while increasing precision. The weights are over 20% lighter than those of other similar products. It is also more compact than our previous clip-on. Meanwhile, a Full-HD AMOLED display is capable, a wider viewing angle, and richer color. It is the ideal partner for relax hunting.
High sensitivityNETD<25mK
Display1920x1080
Operating time12h
EncapsulationIP68
High sensitivityNETD<25mK
Display1920x1080
Operating time12h
EncapsulationIP68
12μm high sensitivity infrared detector
By utilizing a highly sensitive IR detector with a NETD<25mK, even the slightest temperature differences can be distinguished, resulting in sharper and clearer imaging.
1920×1080 AMOLED Display
The eyepiece features a 1920×1080 high-definition AMOLED screen, allowing for a visual experience with vibrant colors and excellent image quality. This significantly enhances the comfort of observation.

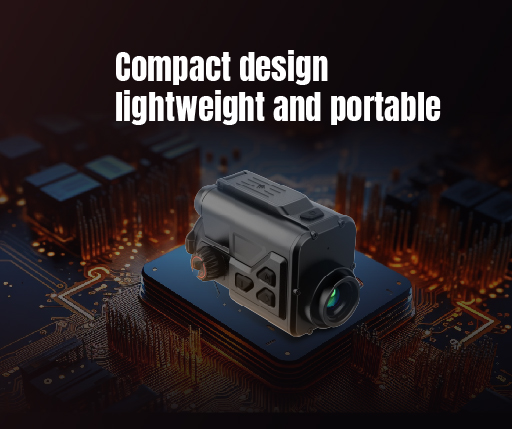

Compact design, lightweight and portable
The body shell is made of a lighter magnesium alloy, making it more compact and easier to carry and install.

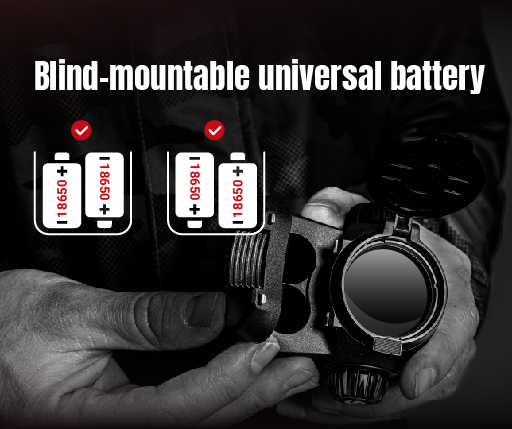

Blind-mountable universal battery
Utilizing standard 18650 batteries, equipped with a safety circuit protection design. When replacing the batteries, simply ensure that the positive and negative poles of the two cells are oriented oppositely, reducing the burden of identification and memory.

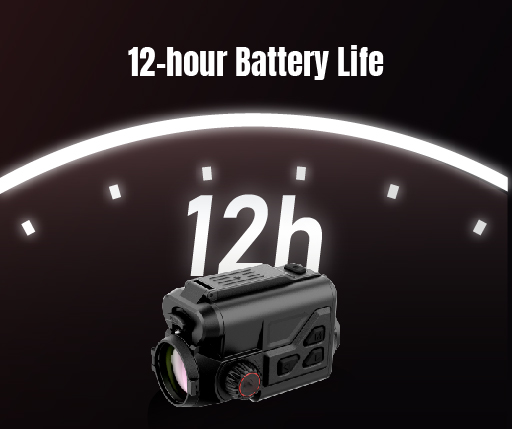

12-hour Battery Life
Experiencing wild adventures with power energy consumption, lightweight design, and enduring performance.

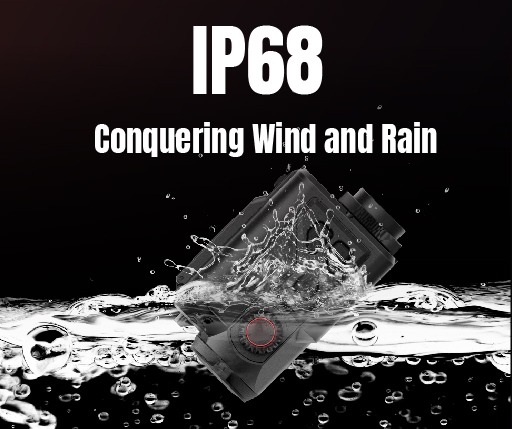

IP68 Conquering Wind and Rain
Superior waterproof performance ensures reliable operation in the harshest conditions. Shock resistance up to 1000G/ms.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@12μm | |||
| NETD | 25mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 7.8°×5.9° | |||
| FOV m@100m | 14×10 | |||
| Magnification | 1x | |||
| Detection range | 1800m/1950yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39” AMOLED 1920×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 20mm; Zoom: 6.4x | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G, 5G | |||
| Interface | USB Type-C (Power supply/USB2.0) | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 32GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 2 replaceable 18650 batteries | |||
| Operating time | 12 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Shock | 1000G at 1ms half sine pulse (as per IEC60068-2-27) | |||
| Encapsulation | IP68 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 425/14.99 | |||
| Size (mm/in) | 128×79×79/5.04×3.11×3.11 | |||
| Standard | A device, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card | |||
| Optional | 18650 battery, Bluetooth remote control, Cover ring adapter | |||
