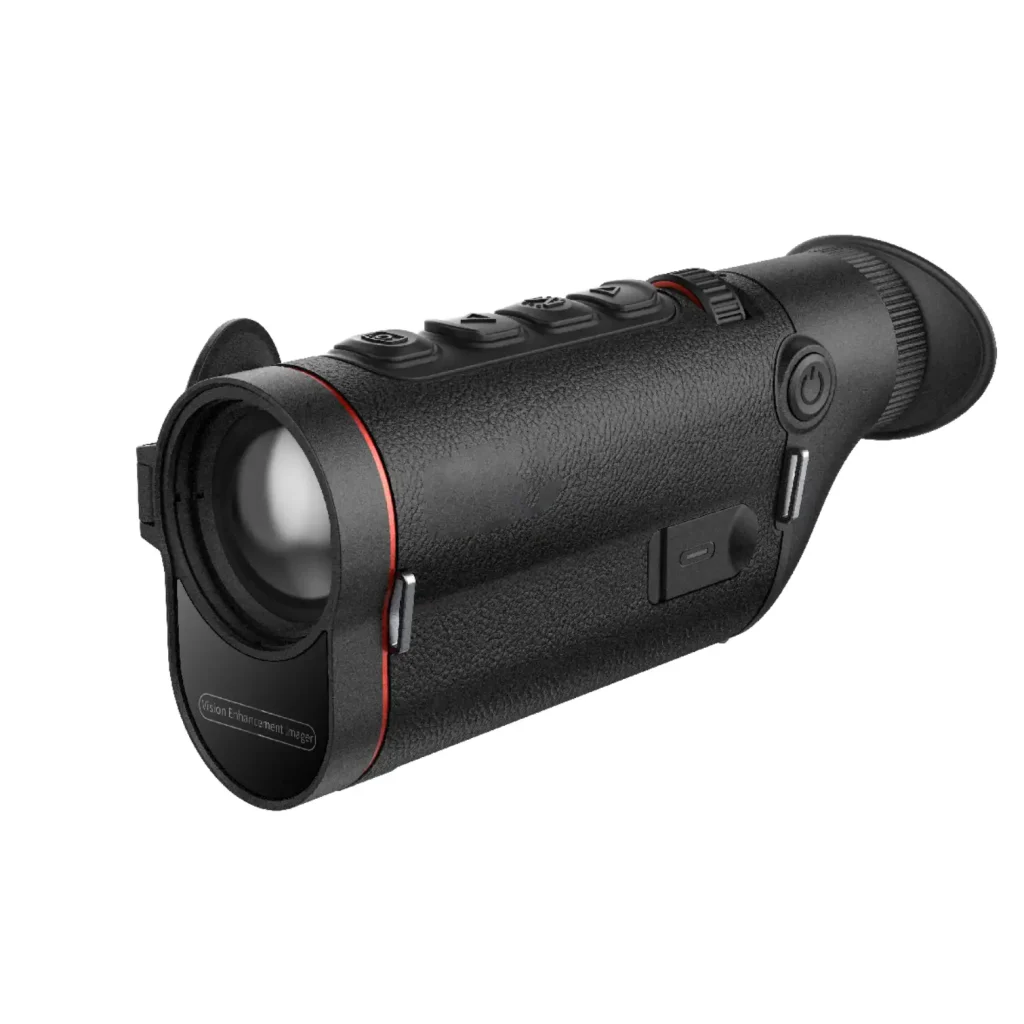

MTD433Handheld Thermal Imaging Monocular
China Moneypro
The TD Gen3 Series handheld thermal imaging monocular, compact in design, yet powerful in function. The focusing roller allows for convenient one-handed operation, while the symmetrical ergonomic design enables flexible handling with either hand. With an impressive 12-hour battery life and IP67, it is well-equipped to handle various outdoor challenges. Featuring Wi-Fi connection, it enhances the efficiency and enjoyment of your exploration.
400×300@12μmIR Resolution
25mKNETD
1800m/1950ydDetection range
IP67Encapsulation
400×300@12μmIR Resolution
25mKNETD
1800m/1950ydDetection range
IP67Encapsulation
High-sensitivity detector, NETD down to 20mK
The TD Gen3 Series features 12μm infrared detector with 600×512 and 400×300 resolutions, and offers multiple focal lengths, delivering impressively crisp images even in complete darkness.
Ambidextrous design, one-handed operation
The symmetrical housing design allows for easy operation with both left and right hands. Its button layout is ergonomically crafted to suit user habits, enabling one-handed operation.
Fine-tuning focus, scroll with fingers
The mini focusing roller design offers a unique experience of fast and precise fine-tuning, allowing users to adjust the focus with a simple scroll of one finger.
Upgraded visuals, enlarged AMOLED Display
Building on the previous generation, the TD Gen3 Series features a 0.36” AMOLED display with a 1280×960 resolution, delivering more vivid details and a more comfortable viewing experience.
Extended battery life, uninterrupted power
During observation, exploration and stalking in the field, the TD Gen3 Series offers an impressive 12-hour runtime. The replaceable 18650 battery supports blind installation in the dark, with no need to distinguish between the positive and negative terminals.
Smart recording, expanded built-in storage
The upgraded smart recording function can capture videos with sound. It’s built-in storage of up to 32GB allows users to store over 100,000 pictures without worrying about running out of space.
Technical Parameters
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 7.9°×5.9° | |||
| FOV m@100m | 14×10 | |||
| Magnification | 2.9x~11.6x | |||
| Detection range | 1800m/1950yd | |||
| Focus | Manual | |||
