MTE211MHandheld Mini Thermal Imaging Monocular
China Moneypro
TE Mini Series handheld thermal imaging monocular, your pocket-sized night vision companion, is equipped with a 256×192 infrared detector and a 10mm lens, providing a detection range of up to 500 meters. The integrated 1.43” AMOLED full-color touchscreen allows you to view infrared images clearly without pressing your eyes against the eyepiece, reducing eye fatigue during extended use. With just a 10-minute quick charge, it offers up to 1 hour of continuous use, making it the ideal companion by your side.
256×192@12μmResolution
Only 205gUltra-Lightweight
One-button controlSmooth Operation
IP67Encapsulation
256×192@12μmResolution
Only 205gUltra-Lightweight
One-button controlSmooth Operation
IP67Encapsulation
High-sensitivity detector, NETD down to 20mK
The TD Gen3 Series features 12μm infrared detector with 600×512 and 400×300 resolutions, and offers multiple focal lengths, delivering impressively crisp images even in complete darkness.

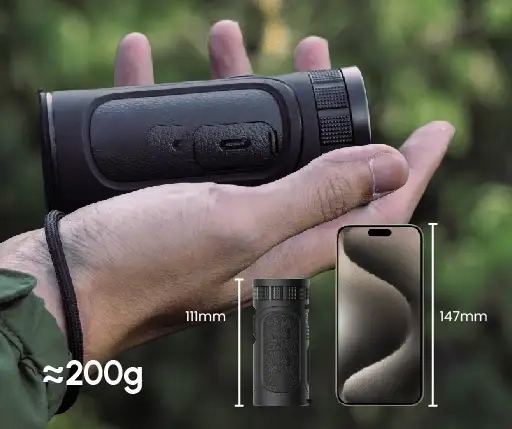

Ultimate lightweight Effortlessly portable
The TE Mini weighs only about 200 grams and features a compact, pocket-sized design that is smaller than a mobile phone and thinner than a wristwatch, offering a comfortable grip and exceptional portability.

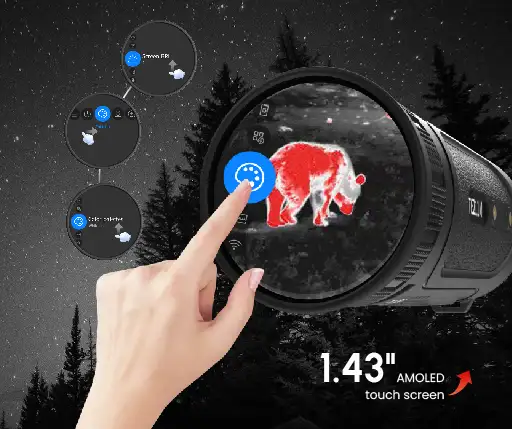

Game-changing Large touch screen
The TE Mini features an innovative large touch screen that provides direct ultra-clear viewing and seamless touch control. Users can easily swipe the menu and select functions with simple touch operations.

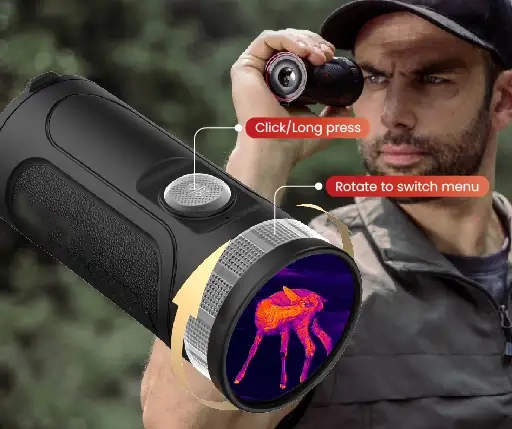

Smooth operation Simplified interaction
Drawing on years of outdoor experience, the TE Mini offers an extremely streamlined button design. With just one button and one ring, users can easily access the menu and perform various functions.

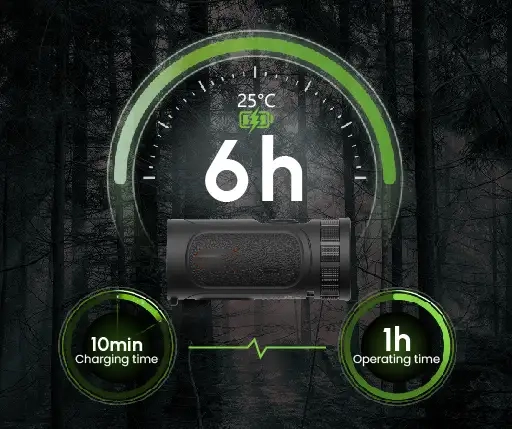

Extended battery 20W quick charge
The TE Mini integrates a built-in rechargeable battery that provides up to 6 hours of runtime. It features an advanced 20W quick charge function. With just 10-minute quick charging, you can enjoy 1 hour of continuous use, ensuring worry-free power.

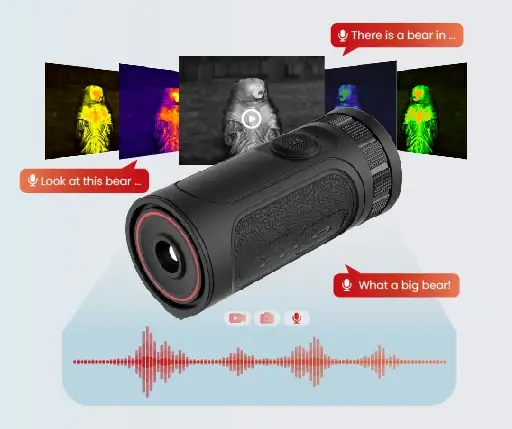

Audio-visual sync
Photos, videos, and audio recordings are all available. With 16GB built-in storage, you can flexibly capture and share exciting moments in the wild anytime and anywhere.

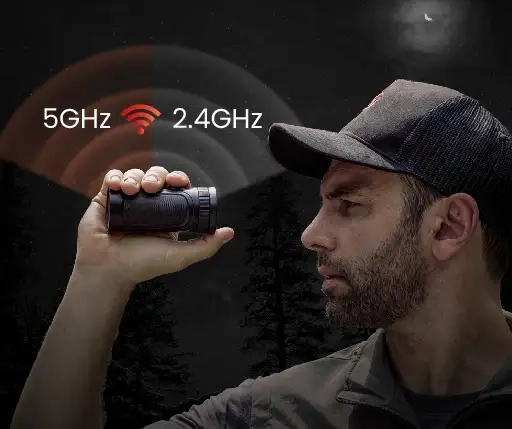

Dual-band WiFi connection
The WiFi function has been upgraded to dual-band, providing stronger connectivity. The TE Mini features faster transmission speeds and longer distances, with upgrade packages downloading in just 10 seconds and a maximum transmission distance of 26.5 meters.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 256×192@12μm | |||
| NETD | 30mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 10mm, F1.0 | |||
| Field of view | 13.1°×13.1° | |||
| FOV m@100m | 23×23 | |||
| Magnification | 0.4x~1.6x | |||
| Detection range | 500m/550yd | |||
| Focus | Focus-free | |||
