MTE365 Dual-Spectrum Explosion-Proof Bullet Camera
China Moneypro
MTE365 dual-spectrum explosion-proof bullet camera equipped with an HD visible light camera and a 640×512 thermal imaging camera. 304 or 316 stainless steel is using for housing to let the camera operate in hazardous area.
Feature
12μm Uncooled Infrared Detector
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
Dual-Spectrum Imaging
All-weather, 24/7 security monitoring with dual thermal&visible light imaging.
Dual Explosion-Proof Certification
Certified with dual explosion-proof ratings for dust and gas: Ex db IIc T6 Gb and Ex tb IIc T80°C D.
Accurate Temperature Measurement
Measurement range from -20℃ to 550℃, accuracy ±2℃ or 2%.
Fire Point Detection
Features an integrated intelligent fire detection algorithm for efficient and accurate monitoring.
Intelligent Video Analysis
Support tripwire/intrusion detection, as well as intelligent detection of fire point.
Specification
| Thermal Module | |
| Detector Type | VOx, uncooled FPA detectors |
| Spectral Range | 8~14μm |
| NETD | ≤40mK@25℃,F#1.0 |
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Focal Length | 9.1mm / 13mm |
| Optical Module | |
| Sensor | 5MP 1/2.8″ Progressive Scan CMOS |
| Resolution | 2560×1920 |
| IR distance | 50m |
| PTZ | |
| Pan | 360° continuous rotation |
| Tilt | -90°~+90° |
| Temperature Measurement | |
| Temperature Measurement | Support 4 temperature measure ment rules(fullframe, point, line, area) |
| Smart Function | |
| Fire Detection | Support |
| VCA | Support Line Crossing&Intrusion detection |
| 2-Way Audio | Support |
| Linkage Action | Video/ Snapshot/Email/Alarm output/sound and light alarm |
| System Interface | |
| Power | AC100~260V |
| Network | 1 RJ45 10M / 100M self-adaptive Ethernet port |
| Audio | 1 in/1 out |
| Alarm | 2 in/2 out |
| Storage | Micro SD memory（maximum 256G） |
| Reset | Support |
| Serial Port | 1 channel RS485, can support Pelco protocol |
| General | |
| Work Environment | -40℃~+70℃；<95%RH |
| Protection | IP68 |
| Power Consumption | ≤8W |
| Dimenstion(mm) | 275.5×186×203 |

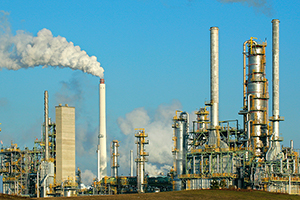

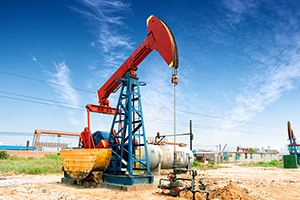

Application Scenariosa
