MTE464G1 Explosion-Proof Gas Imaging PTZ

China Moneypro

MTE464G1 is a high-performance dual-spectrum gas imaging camera featuring an advanced uncooled infrared detector with a thermal sensitivity of less than 20mK.

It holds dual explosion-proof certifications and has a stainless steel body with an IP68 ingress protection rating.

The device supports multiple protocols, such as Modbus TCP, ONVIF, and GB28181, and supports secondary development.

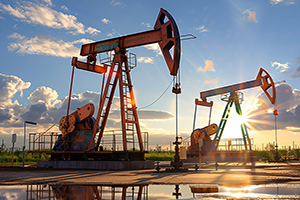

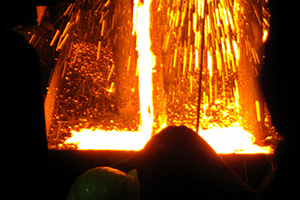

It can detect Methane (CH₄), Sulfur Dioxide (SO₂), Freon (R-134a, R-152a) and other gases, and has significant applications in industries such as petroleum extraction and coal processing.

Get in Touch

Feature

Highly-Sensible Uncooled Detector for Non-Contact Gas Imaging Monitoring

The new-generation highly-sensible uncooled detector offers a thermal sensitivity of less than 20mk.
An integrated gas imaging algorithm enables passive, non-contact gas imaging detection, swiftly locating leakage positions.

Dual-Spectrum Imaging for 24/7 Monitoring

Combines visible light and thermal imaging for dual-spectrum imaging, catering to both gas imaging and industrial temperature measurement.
Supports professional temperature analysis and intelligent fire point detection, providing continuous 24/7 monitoring services for industrial facilities.

Dual Explosion-Proof Certifications and Stainless Steel Body for Enhanced Safety

Ex d ⅡC T6 Gb/Ex tD A21 IP68 T80℃ dual explosion-proof certifications
304/316L stainless steel body of IP68 ingress protection rating

Specification

Thermal Imaging Parameters
Detector Type	VOx uncooled focal plane detector
Spectral Band	7~8.5μm
Thermal Sensitivity	≤20mK(@25°C,F#1.0)
Infrared Resolution	640×512
Pixel Pitch	12μm
Lens Focal Length	25mm
Focus Mode	Athermalized prime lens/Electric focusing
FOV	17.5°×14°
IFOV	0.48mrad
Palettes	Black-hot/White-hot/Rainbow/Other palettes optional (20 modes in total)
Visible Light Parameters
Sensor	1/1.8″ 4-megapixel CMOS image sensor
Maximum Image Resolution	2688×1520
Lens Focal Length	6.4mm~128mm
Focus Mode	Automatic/Manual/Semi-automatic
FOV	Horizontal: 59.6°~3.5°
Gas Parameters
Gas Type	Methane (CH₄), Sulfur Dioxide (SO₂), Freon (R-134a, R-152a) and other gases
PTZ Parameters
Horizontal Range	360° horizontal continuous rotation
Vertical Range	-90°~+90°
Number of Presets	256
Scan Mode	Preset point/Patrol scan/Pattern scan/Area scanning/Linear scanning
Temperature Measurement Function
Measurement Range	-20℃~+550℃
Measurement Accuracy	±2°C or ±2%
Temperature Analysis	Supports global, point, line, and area temperature measurement rules as well as alarm linkage.
PTZ Function
Fire Warning	Supports fire point detection.
Intelligent Video Taking	Video taking triggered upon alarms or network failures
Intelligent Alarm	Detects abnormalities, including network cable disconnections, IP address conflicts, memory errors, unauthorized access, and burn warnings, and triggers an alarm in response.
Intelligent Detection	Supports intelligent analysis of events such as tripwire intrusions and regional intrusions.
Alarm Linkage	Video taking/Image capture/Email/Linked PTZ/Alarm output
System Interface
Power Supply	85V～260V AC/24V DC 3A (optional)
Communication Interface	1 RJ45 10M/100M adaptive Ethernet port; 1-channel RS485 interface, supporting Pelco protocol.
Alarm Interface	1-channel alarm input, 1-channel alarm output
General Specifications
Operating Temperature and Humidity	-40°C～+60°C; <90%RH
Ingress Protection Rating	IP68
Power Consumption	≤100W (thermostat activated)
Dimensions	436×296×406 mm
Weight	27kg
Explosion-proof Mark	Exd IIC T6 Gb/Ex tD A21 IP68 T80℃
