MTJ630 Handheld Thermal Imaging Monocular
China Moneypro
Embark on nighttime explorations with the TJ Series, a top pick for hunters. Equipped with exceptional thermal imaging technology, this device features a high-sensitivity infrared detector that enables clear night vision. The Full-HD display enhances these benefits, while two-hand operation, video recording, and a 12-hour battery life make it the perfect companion for nighttime escapades.
NETD 20mKDetector
12 hrsBattery
Full-HD 1920x1080AMOLED display
IP67Encapsulation
NETD 20mKDetector
12 hrsBattery
Full-HD 1920x1080AMOLED display
IP67Encapsulation
12um high sensitivity infrared detector
By utilizing a highly sensitive lR detector with a NETD of 25mK, even the slightest temperature differences can be distinguished, resulting in sharper and clearer imaging.

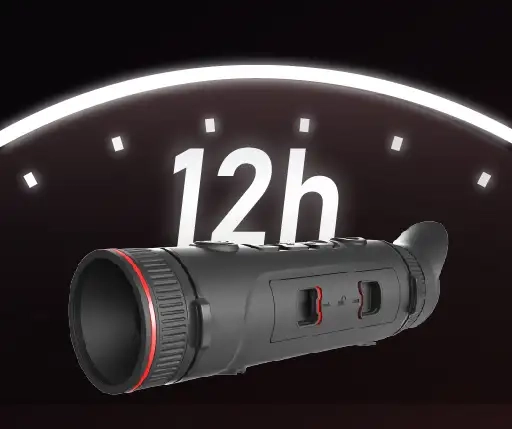

12h operating time
To support outdoor observation and hunting continuously, TJ Series provides a long 12-hour battery life at -20℃ to 50℃ (-4°F to 122°F). The standard 18650 batteries can be replaced in the dark, ensuring a delightful user experience without fear of power outages.

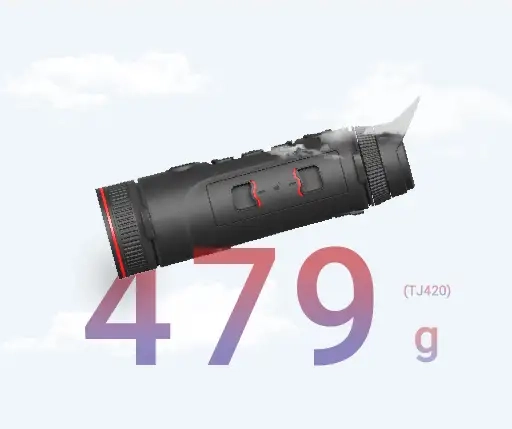

Lightweight
The whole device weighs around 500g, which reduces the burden of equipment and is easy to carry and use outdoors. lts compact design and portable size together bring con-venience to your nighttime explorations.
Full-HD 1920×1080 AMOLED display
The eyepiece features a 1920×1080 high-definition AMOLED screen, allowing for a visual experience with vibrant colors and excellent image quality. This significantly enhances the comfort of observation.
IP67 Waterproof rating
Equipped with an IP67 waterproof rating, ensuring it can withstand the most challenging weather conditions. With this robust protection, you can confidently take your thermal imaging monocular on any adventure.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 12.5°×10.0° | |||
| FOV m@100m | 22×17 | |||
| Magnification | 2.66x~21.28x | |||
| Detection range | 1800m/1950yd | |||
