MTJ630LP Handheld Thermal Imaging Monocular
China Moneypro
TJ LRF Pro Series has fully upgraded its hardware configuration and software functions, bringing it to new heights in picture clarity, observation comfort, and intelligent operation. It is equipped with a 12μm high-sensitivity infrared detector, making your targets in the dark clearly visible and lifelike. 0.5″ ultra-large AMOLED display presents you with a stunning visual effect like a home theater. Built-in 1500m laser rangefinder, triggered with one button, makes your adventure more secure and smooth
20mKNETD
640×512@12μmResolution
0.5” AMOLED 1600×1200Display
1800m/1950ydDetection range
20mKNETD
640×512@12μmResolution
0.5” AMOLED 1600×1200Display
1800m/1950ydDetection range
Advanced 12μm IR detector, NETD down to 20mK
The upgraded TJ LRF Pro Series utilizes an advanced 12μm infrared detector with a NETD down to 20mK, even the slightest temperature differences can be distinguished in complete darkness.
0.5” AMOLED display, top-notch visual effect
The ultra-large 1600×1200 AMOLED display presents you with a stunning visual effect like a 90” home theater at a 2.5-meter distance, bringing it to new heights in picture clarity and observation comfort.
Game-changing 1500m laser ranging
The laser rangefinder module of the TJ LRF Pro Series has been upgraded to achieve a remarkable breakthrough, extending the maximum measurement distance to 1500 meters.
35/50mm F1.0 lens, 2600m detection range
Multiple focal lengths give TJ LRF Pro Series convenience for long-distance observation and hunting, the 50mm F1.0 lens can detect targets up to 2600m.

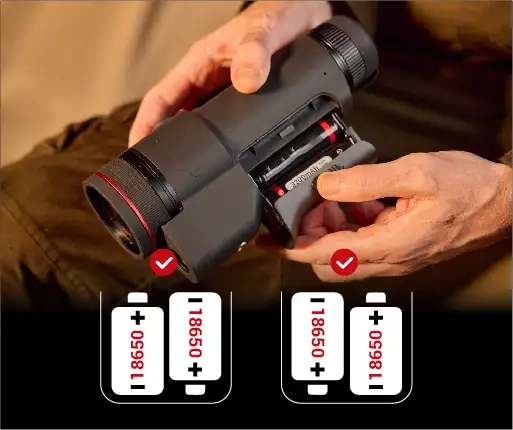

Blind-mountable universal battery
Utilizing standard 18650 batteries, equipped with a safety circuit protection design. When replacing the batteries, simply ensure that the positive and negative poles of the two cells are oriented oppositely, reducing the burden of identification and memory.
Ambidextrous design
Both left and right hands can operate easily. Left/right eye masks and hand straps can be switched in one step.
Video recording including sound
The device supports both photo and video capture, featuring a built-in microphone to ensure audio is included in your recordings.
Technical Parameters
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 12.5°×10.0° | |||
| FOV m@100m | 22×17 | |||
| Magnification | 3.31x~26.48x | |||
| Detection range | 1800m/1950yd | |||
