MTZ130TA-HNV230T635L305 Tri-axis Tri-light pod
The MTZ130TA-HNV230T635L305 optoelectronic pod consists of an uncooled infrared thermal imager, a 30x continuously zoom visible light camera, a laser rangefinder , a three-axis servo stabilization platform, and an image processing component (autonomous recognition and tracking) . It features lightweight construction, high stability and accuracy, high integration, automatic target recognition, and automatic tracking, and can be applied to medium and small-sized UAVs to perform day and night reconnaissance and surveillance missions over target areas.
The pod has been adapted to several mainstream flight control platforms in China, enabling seamless integration with flight control systems; it can also be connected to the ViewControlStudio display and control software platform of our organization, assisting the overall unit in quickly completing the development of the UAV system.
The optoelectronic pod uses an uncooled infrared thermal imager and a visible light camera to detect, identify, and track ground targets around the clock, and outputs infrared and visible light video in real time for mission personnel to view.
Optical pods are mainly used in scenarios such as reconnaissance, border patrol, personnel search and rescue, and forest fire prevention.
I. Photos of the actual product

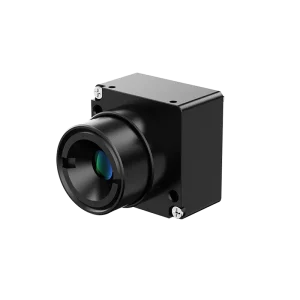

Figure 1 Product Image
II. Product Functions
a) It has the function of automatic identification and tracking of typical targets;
b) It has self-testing and fault reporting functions;
c) It has a 30x optical zoom function for visible light ;
d) It has the capability to detect long-wave uncooled infrared and visible light bands and can output infrared and visible light images;
e) Equipped with laser ranging capability;
f) Visible light has optical zoom, autofocus, manual focus, fog penetration and low-light functions;
g) The infrared sensor features 1.0 to 4.0x electronic amplification and six pseudo-color switching functions;
h) Possesses the ability to perform three degrees of freedom of motion: azimuth, pitch, and roll;
i) It has multiple working modes such as heading lock /manual search/follow-up/attitude stabilization/tracking;
j) Possesses the ability to isolate carrier disturbances and stabilize the line of sight;
k) It has the function of locking /unlocking targets, and after locking the target, the pod outputs an image with a tracking frame;
l) It has an automatic target tracking function, which can automatically track targets and has the ability to resist natural interference;
m) It has a memory tracking function, which can recapture the target in a short time after it is briefly lost;
n) It has the function of adjusting the gate size;
o) Features tracking point switching functionality;
p) It can calculate target coordinates based on laser ranging, UAV position and attitude information;
q) It can communicate bidirectionally with the control station via serial port /100Mbps Ethernet (UDP) and can output information such as system working status, camera working status, and optical axis position;
r) Equipped with a 100Mbps Ethernet video interface ( RTSP protocol);
s) It has photo and video recording functions ;
t) The product has a quick-release function;
III. Mounting Platform
Vertical take-off fixed-wing drones, rotary-wing drones, tethered drones, etc.
IV. Main Technical Parameters
| model | TZ130TA-HNV230T635L305 |
| Infrared thermal imager | |
| Detector type | Uncooled focal plane detector |
| Operating band | 8μm～14μm |
| Detector resolution | 640×512 |
| Pixel size | 12μm |
| Lens focal length | 35mm |
| Field of view | 12.5°×10°（±5%） |
| Pseudo-color | 6 types |
| Numbers multiplied | 1.0～4.0X |
| Noise equivalent temperature difference | NETD≤50mK |
| Minimum distinguishable temperature difference | MRTD≤500mK |
| Visible light camera | |
| resolution | 1920×1080 |
| Response band | 0.4μm to 0.9μm |
| Pixel size | 2.8μm |
| Optical zoom | 30 times |
| Mixed Variable Multiplication | 60 times |
| focal length | 4.3mm～129mm |
| Field of view | 63.7°×35.8°～2.3°×1.3°(±5%) |
| zoom mode | Autofocus, manual focus |
| Minimum Illumination | 0.01 Lux (Black and White) |
| Laser rangefinder | |
| wavelength | 1535nm |
| Maximum ranging distance | ≥3km (under conditions of visibility ≥15km) |
| Minimum ranging distance | 20m |
| Distance measurement accuracy | ±2m |
| Ranging frequency | 1～5Hz |
| Servo Platform | |
| Orientation angle | 360°×n (360° continuous rotation) |
| Pitch angle | -110°～+90° (positive for upward) |
| Roll angle | -40° +40° |
| Frame corner accuracy | ≤0.3°（1σ） |
| Stable accuracy | ≤0.1mrad (1σ) |
| Maximum turning speed | Azimuth ≥ 50°/s, Pitch ≥ 50°/s |
| Maximum turning acceleration | Azimuth ≥ 20°/s², Pitch ≥ 20°/s² |
| System Indicators | |
| Image tracking | Automatically track selected target |
| AI recognition | Automatic detection and identification of typical targets |
| Rated operating voltage | 24VDC |
| Power supply voltage range | 12V to 32VDC |
| power | Stable power consumption: ≤30W (peak current ≤5A when powered on at 24VDC) |
| weight | ≤1.1Kg |
| volume | ≤130mm×153mm×212mm |
| interface | |
| Control Interface | RS232/TTL/RS422/100Mbps Ethernet (optional) |
| Video interface | 100M network |
| Storage interface | ≤128G memory card (Mini SD card) |
| Image format | JPG format |
| Video format | AVI format |
| Arm type | straight arm |
| quick-release type | With quick release |
| Environmental adaptability | |
| Operating temperature | -20℃～+55℃ (-40℃ optional) |
| Storage temperature | -40℃～＋60℃ |
| Vibration conditions | The acceleration is 2g; 30 minutes each in the vertical, horizontal and longitudinal directions. |
| Impact conditions | Peak acceleration 20g, duration 11ms |
| Protection level | Can fly in light rain |
V. Mechanical Dimensions and Installation Interface Diagram
Figure 2 Product mechanical dimensions diagram
