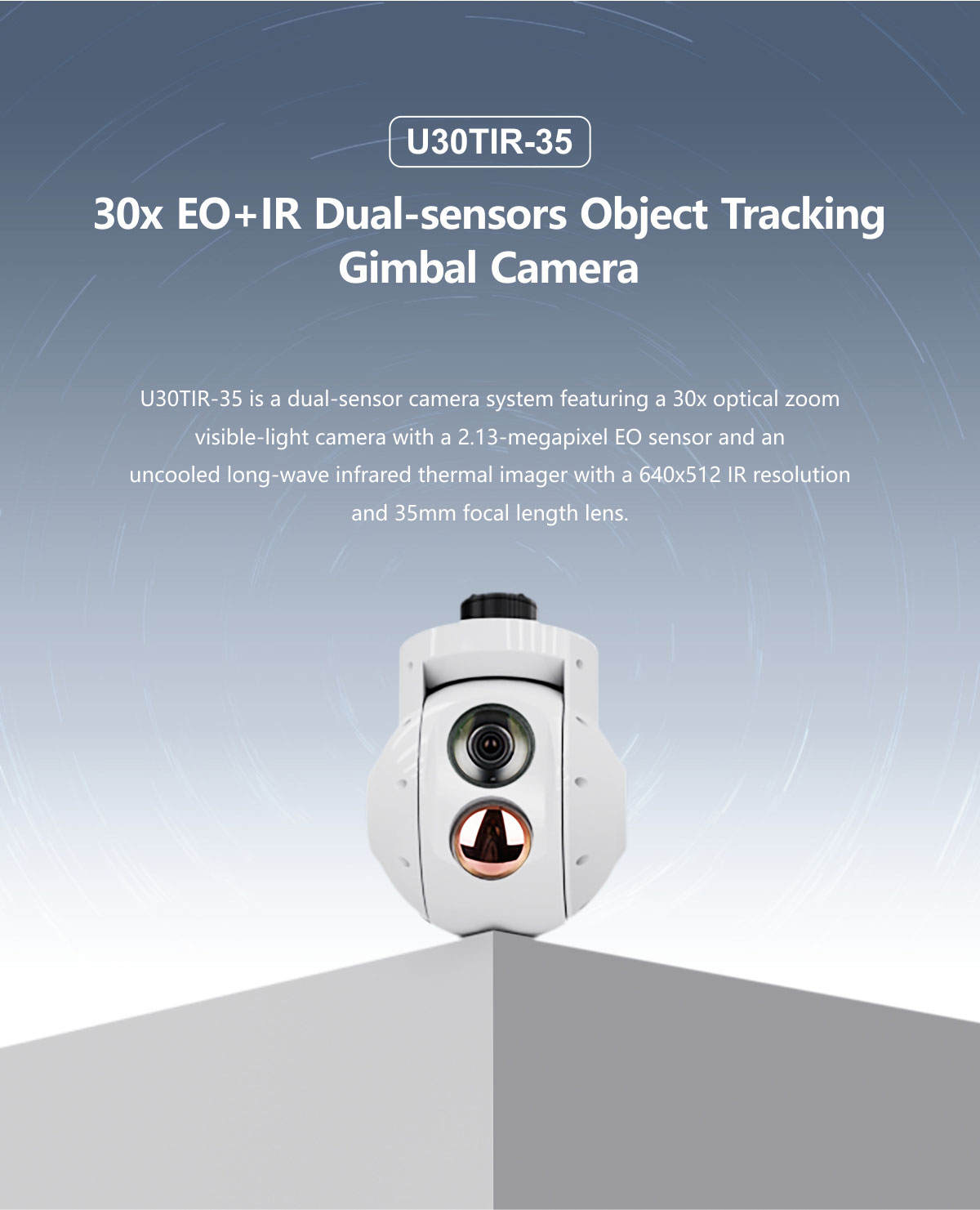

| Hardware Parameter |
| Working voltage |
16V |
| Input voltage |
4S ~ 6S (14.8V~25.2V) |
| Output voltage |
5V (connect with PWM) |
| Dynamic current |
650~1250mA @ 16V |
| Power consumption |
Average 10.4W, Max 20W |
| Working environment temp. |
-20℃ ~ +50℃ |

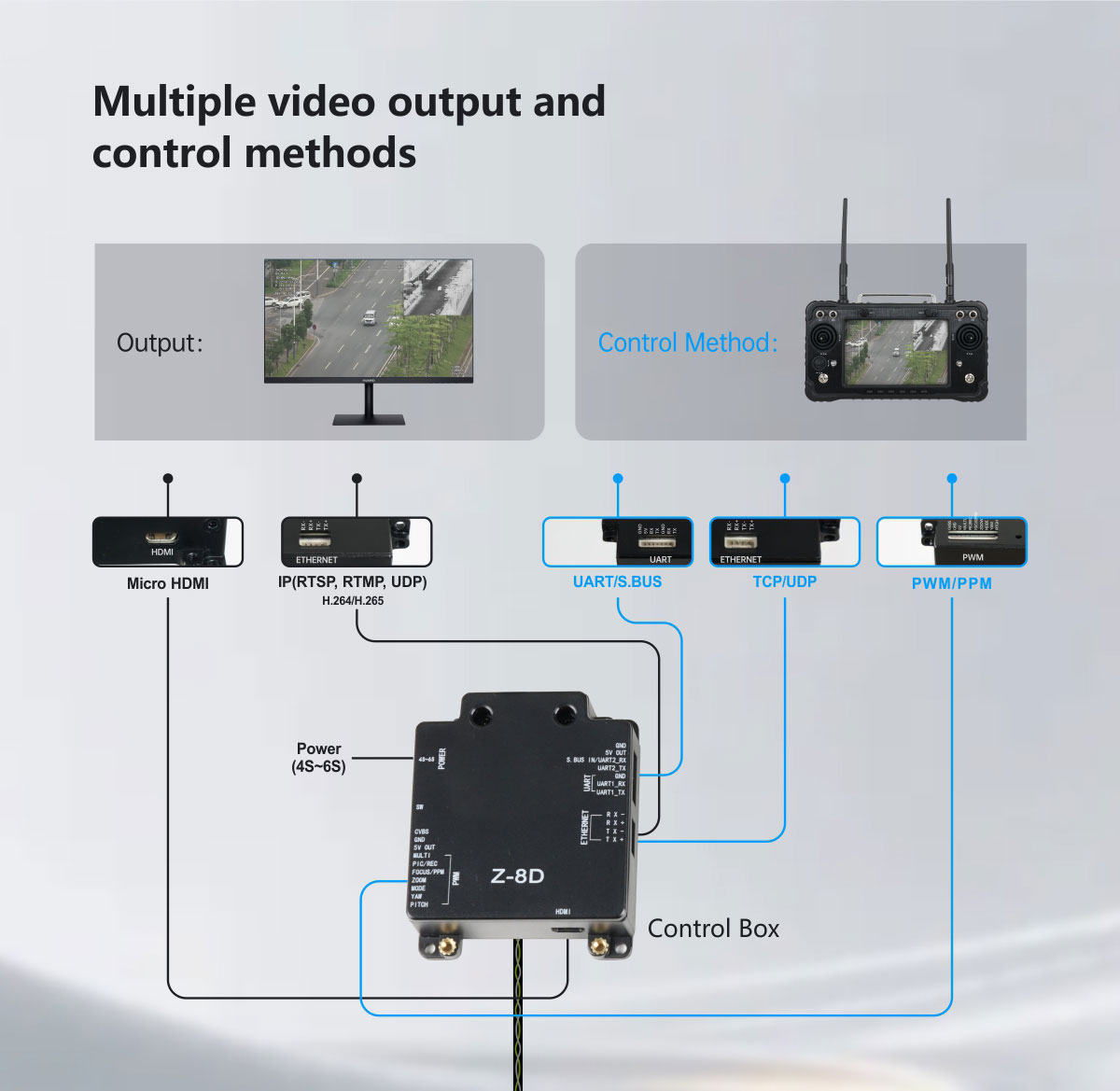

| Output (optional) |
Micro HDMI(1080P 60fps) / IP (RTSP/UDP 720p/1080p 25fps/30fps H264/H265)
|
| Local-storage |
TF card (Up to 512G,class 10, FAT32 format) |
| Picture storage format in TF card |
JPG(1920*1080) |
| Video storage format in TF card |
MP4(1080P 30fps) |
| Control method |
PWM / TTL / S.BUS / TCP / UDP |

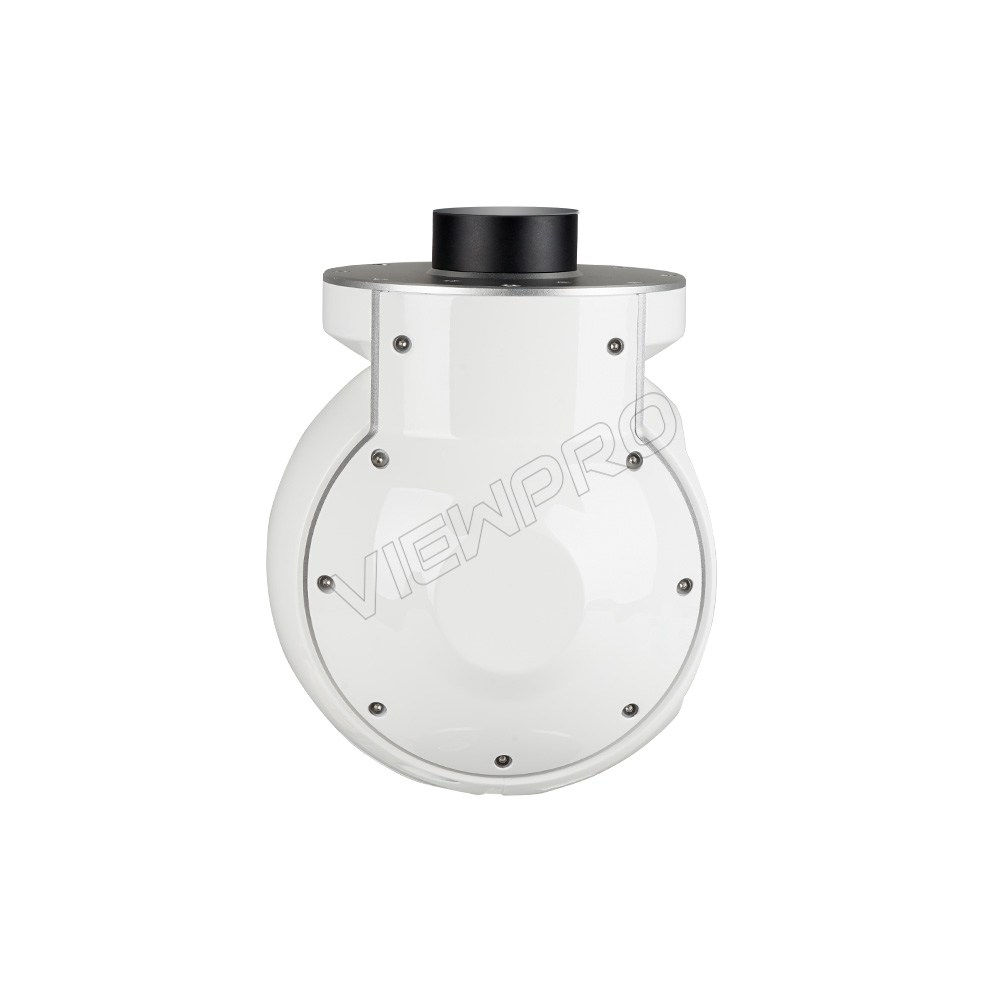

| Gimbal Spec |
| Mechanical Range |
Pitch/Tilt:-45°(Up)～120°(Down), Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range |
Pitch/Tilt: -30°～115°, Yaw/Pan: ±290° / ±360°*N (IP output version) |

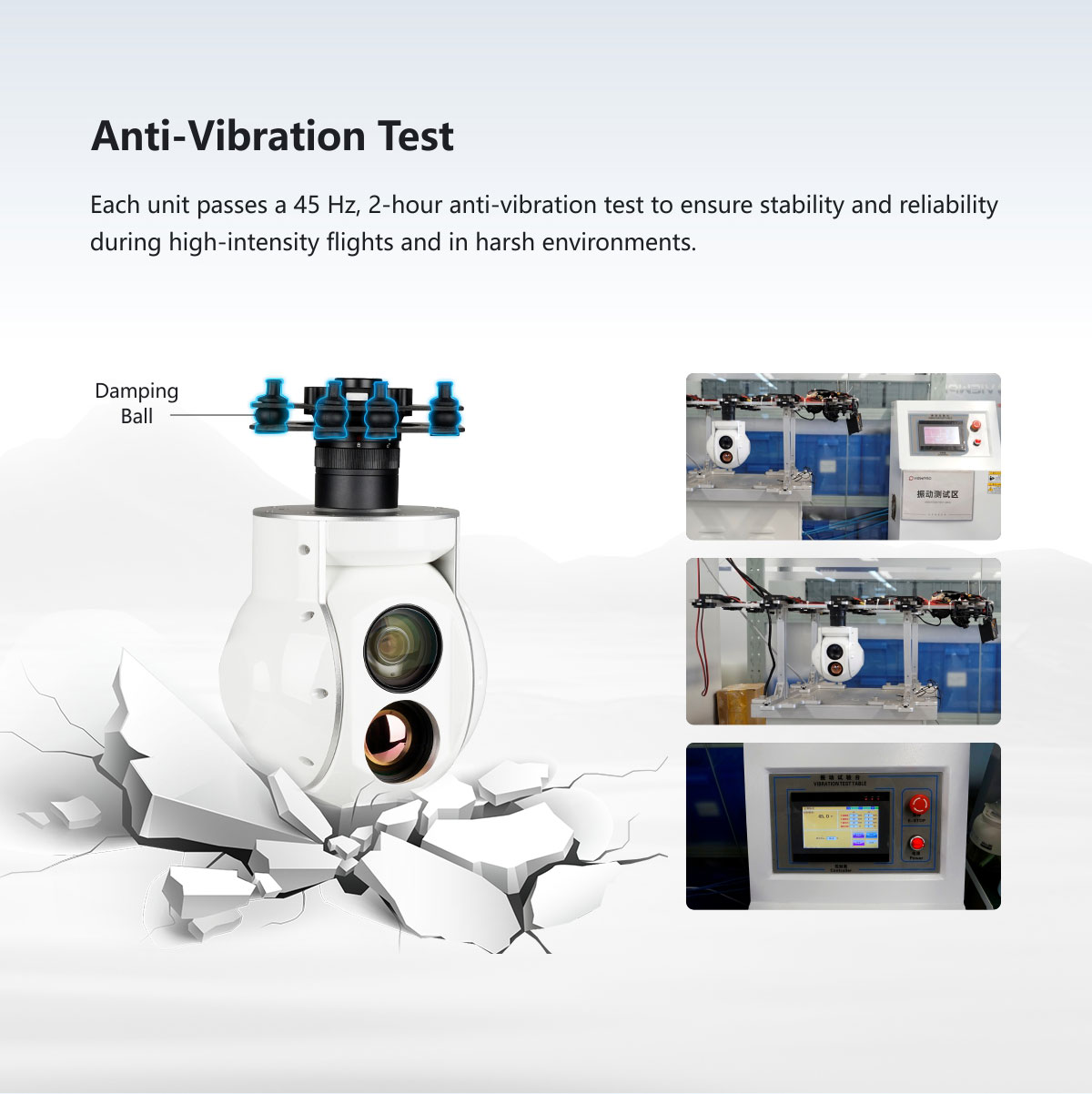

| Vibration angle |
Pitch/Roll/Yaw: ±0.02° |
| One-key to center |
√ |

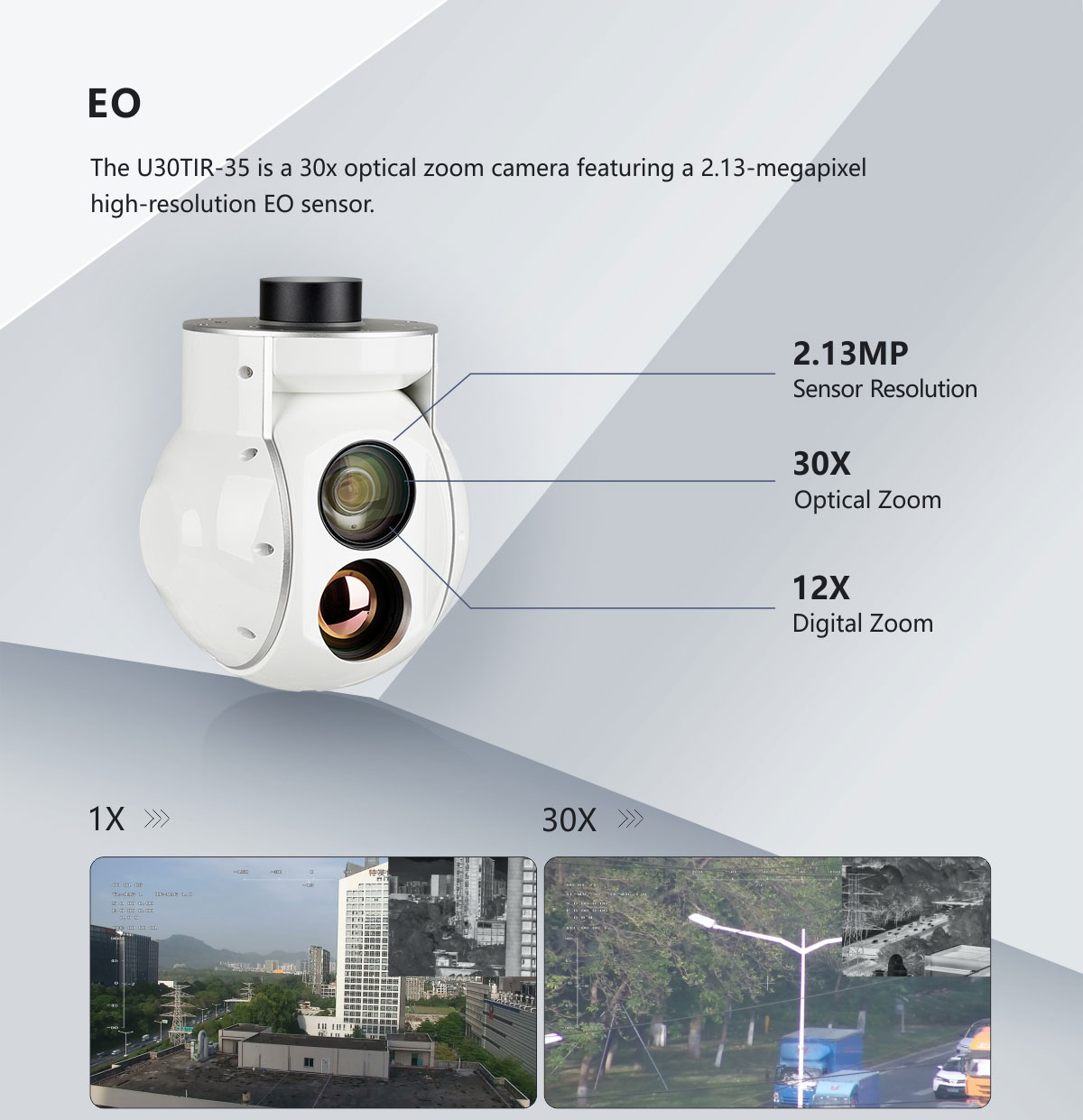

| EO Camera spec |
| Imager Sensor |
1/2.8 Type STARVIS2 CMOS Sensor |
| Picture quality |
Full HD 1080 (1920*1080) |
| Effective pixel |
2.13MP |
| Lens optical zoom |
30x, F=4.3~129mm |
| Digital zoom |
12x (360x with optical zoom) |
| Min object distance |
10mm(wide end) to 1200mm(tele end) |
| Horizontal viewing angle |
64.0°(wide end) ~ 2.4°(tele end) |
| Sync system |
Internal |
| S/N ratio |
more than 50dB |
| Min illumination |
Color 0.009 lux (1/30 sec, 50%, High Sensitivity mode On) |
| Color 0.09 lux (1/30 sec, 50%, High Sensitivity mode Off ) |
| Exposure control |
Auto, Manual, Priority mode(shutter priority & iris priority), EV compensation, Slow AE |
| Gain |
Auto/Manual 0dB to 50.0dB(0 to 28 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps) |
| White balance |
Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto) |
| Shutter speed |
1/1s to 1/10,000s, 22 steps |
| Backlight compensation |
Yes |
| Defog |
Yes |

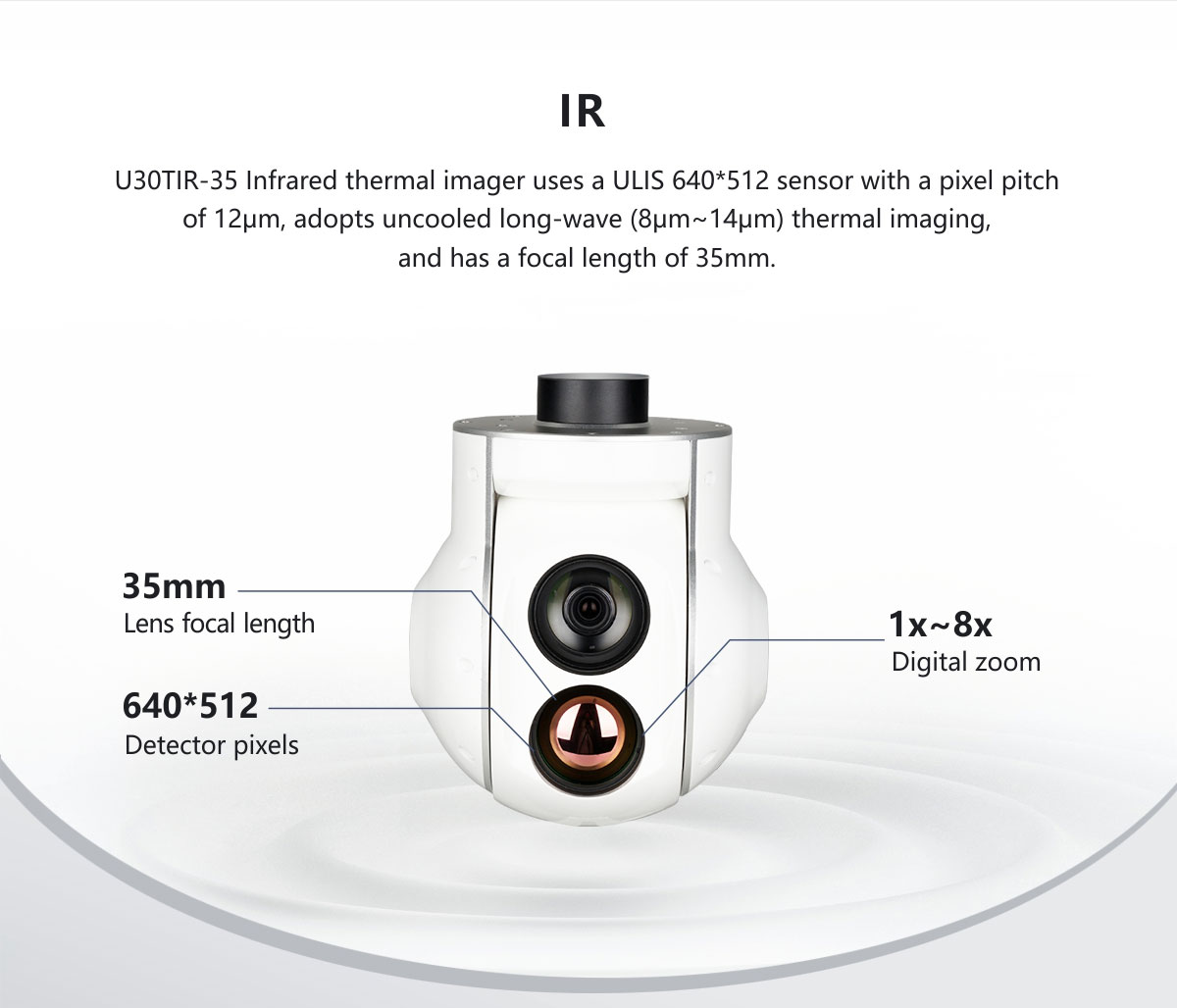

| IR Thermal Imager Spec |
| Focus Length |
35mm |
| Horizontal FOV |
12.5° |
| Vertical FOV |
10.0° |
| Diagonal FOV |
16.0° |

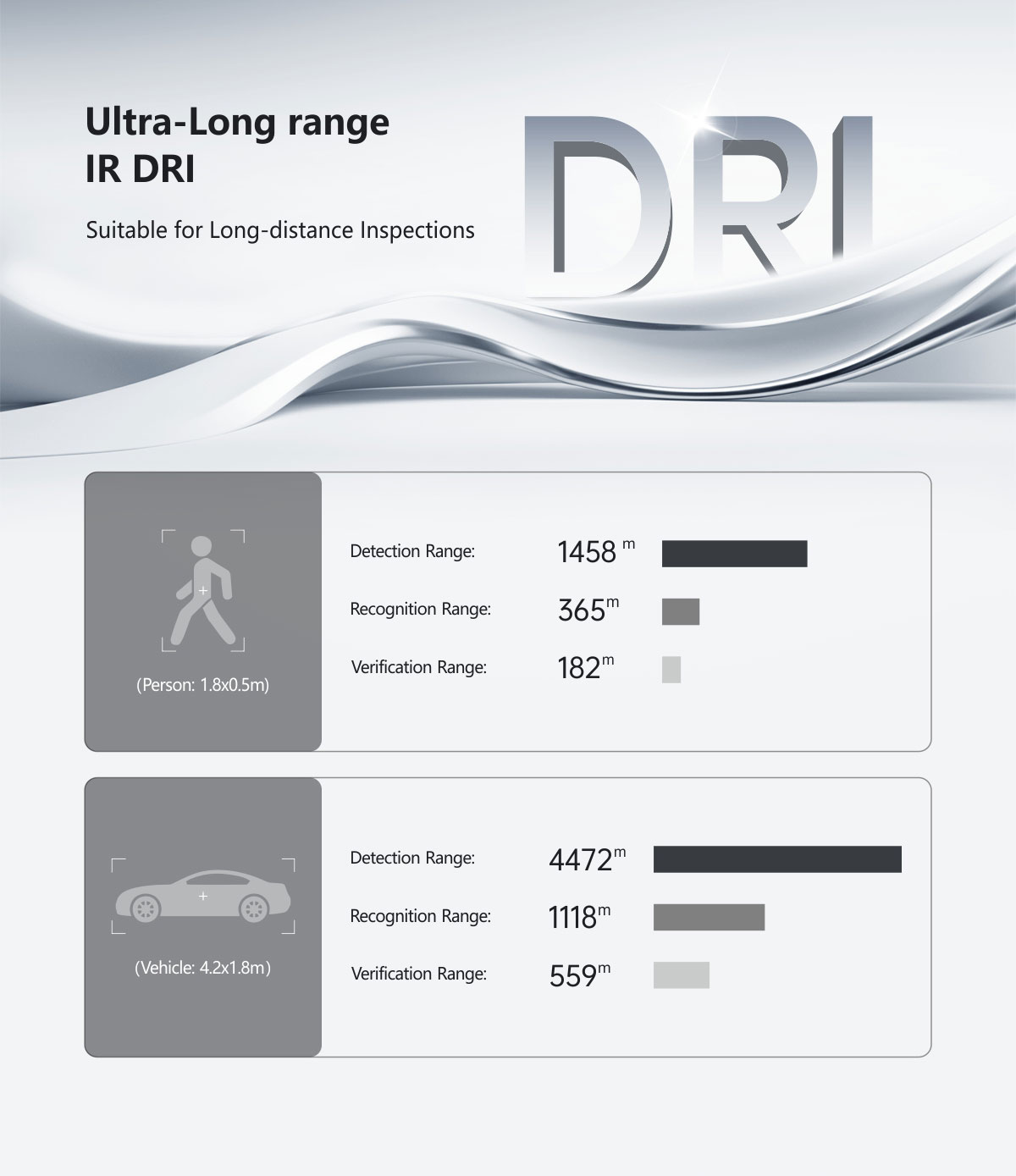

| Detective Distance (Man: 1.8×0.5m) |
1458 meters |
| Recognize Distance (Man: 1.8×0.5m) |
365 meters |
| Verified Distance (Man: 1.8×0.5m) |
182 meters |
| Detective Distance (Car: 4.2×1.8m) |
4472 meters |
| Recognize Distance (Car: 4.2×1.8m) |
1118 meters |
| Verified Distance (Car: 4.2×1.8m) |
559 meters |
| Working mode |
Uncooled VOx long wave (8μm~14μm) thermal imager |
| Detector pixel |
640*512 |
| Pixel pitch |
12μm |
| Focusing method |
Athermal prime lens |
| NETD |
≤50mK@F1.0 @25℃ |

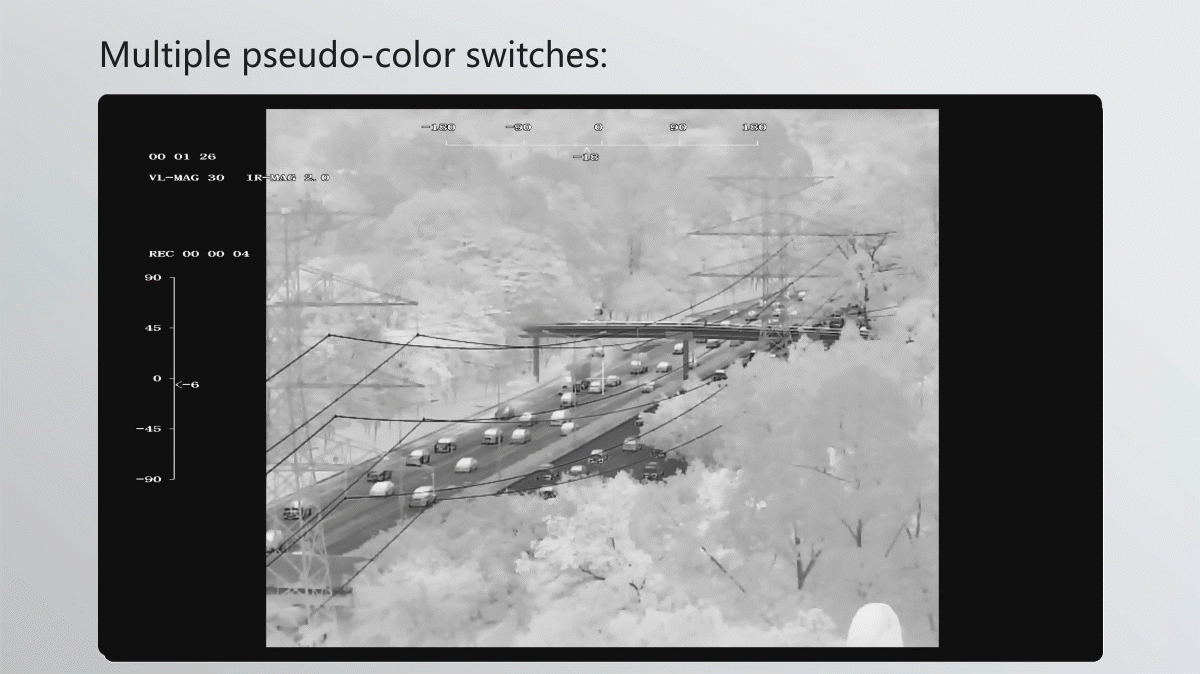

| Color palette |
White, iron red, pseudo color |
| Digital zoom |
1x ~ 8x |

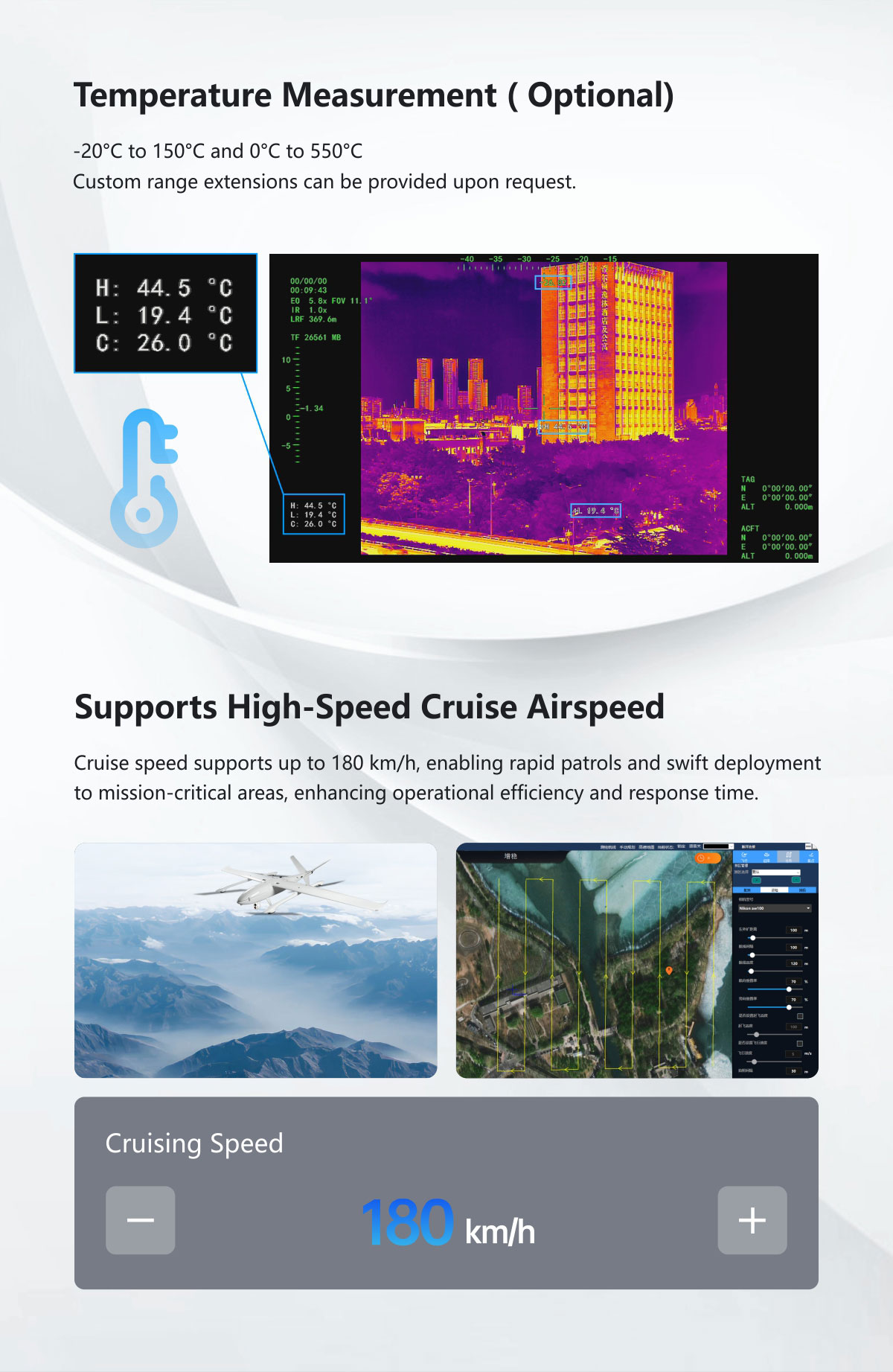

| Radiometric function(optional) |
Thermometry range optional：-20℃~+150℃, 0℃~+550℃ |
| Thermometry accuracy: ±3℃ or +3%(take larger value)@23℃±3℃, Thermometry range 5m |
| EO/IR Camera Object Tracking |
| Update rate of deviation pixel |
50Hz |
| Output delay of deviation pixel |
5ms |
| Minimum object contrast |
5% |
| SNR |
4 |
| Minimum object size |
32*32 pixel |
| Maximum object size |
128*128 pixel |
| Tracking speed |
±48 pixel/frame |
| Object memory time |
100 frames (4s) |
| The mean square root values of pulse noise in the object position |
< 0.5 pixel |
| Features |
| OSD |
Display the gimbal’s yaw and pitch angle, magnification, card recording duration, aircraft GPS and altitude, date and time |
| Geotagging |
Display time and GPS coordinate in picture exif |
| Card reading online |
SMB read pictures or videos / HTTP read pictures or videos |
| KLV (UDP) |
Card recording or Viewlink video playback |
| ArduPilot / PX4 |
Support(Mavlink protocol ) |

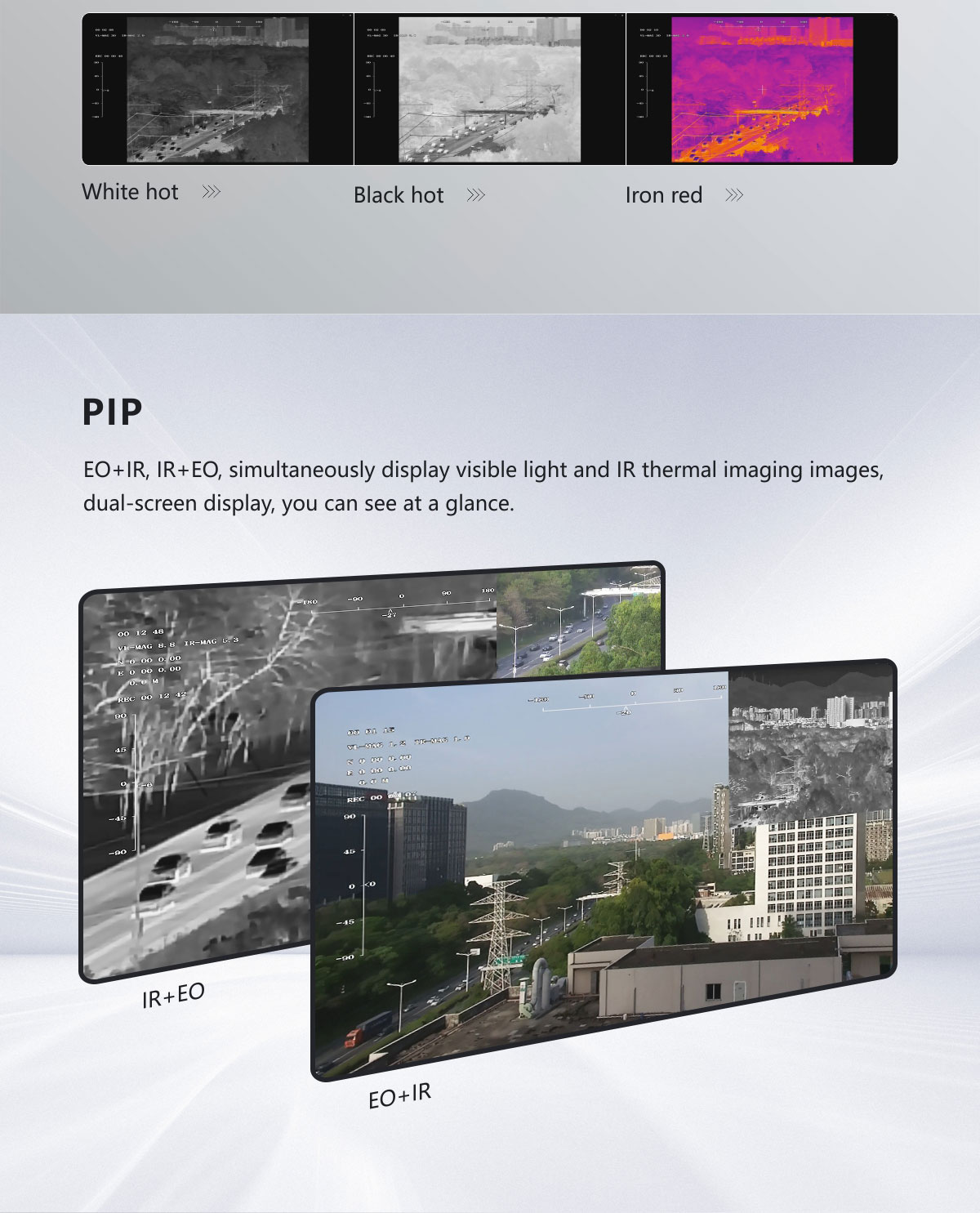

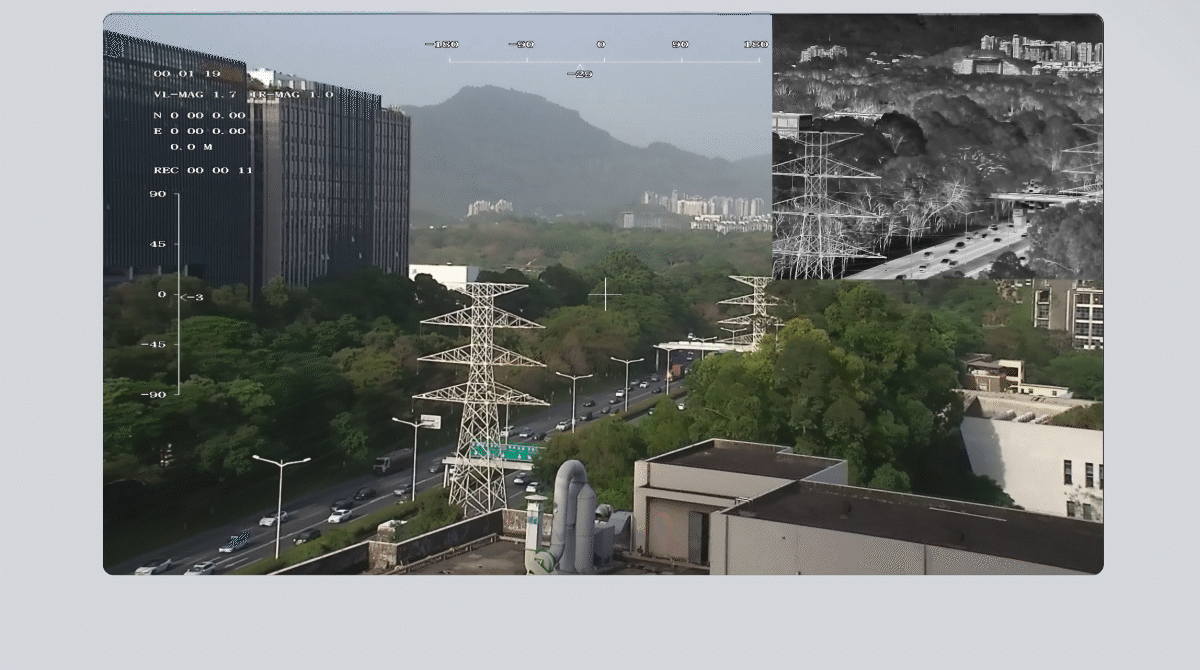

| Video switching |
EO+IR /IR+EO /EO /IR |
| Dual video stream output |
Not support(EO and IR two stream output) |

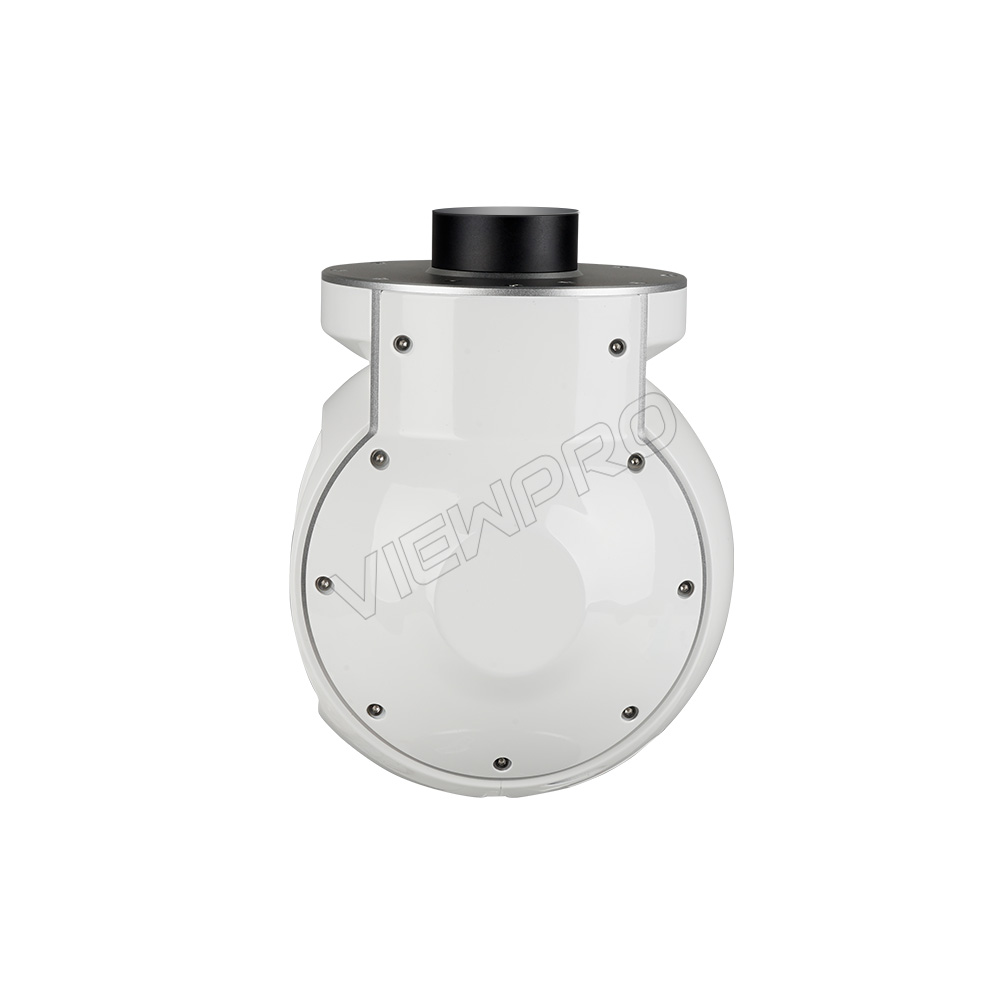

| Packing Information |
| N.W. |
1085±10g(Viewport version with Viewport) |

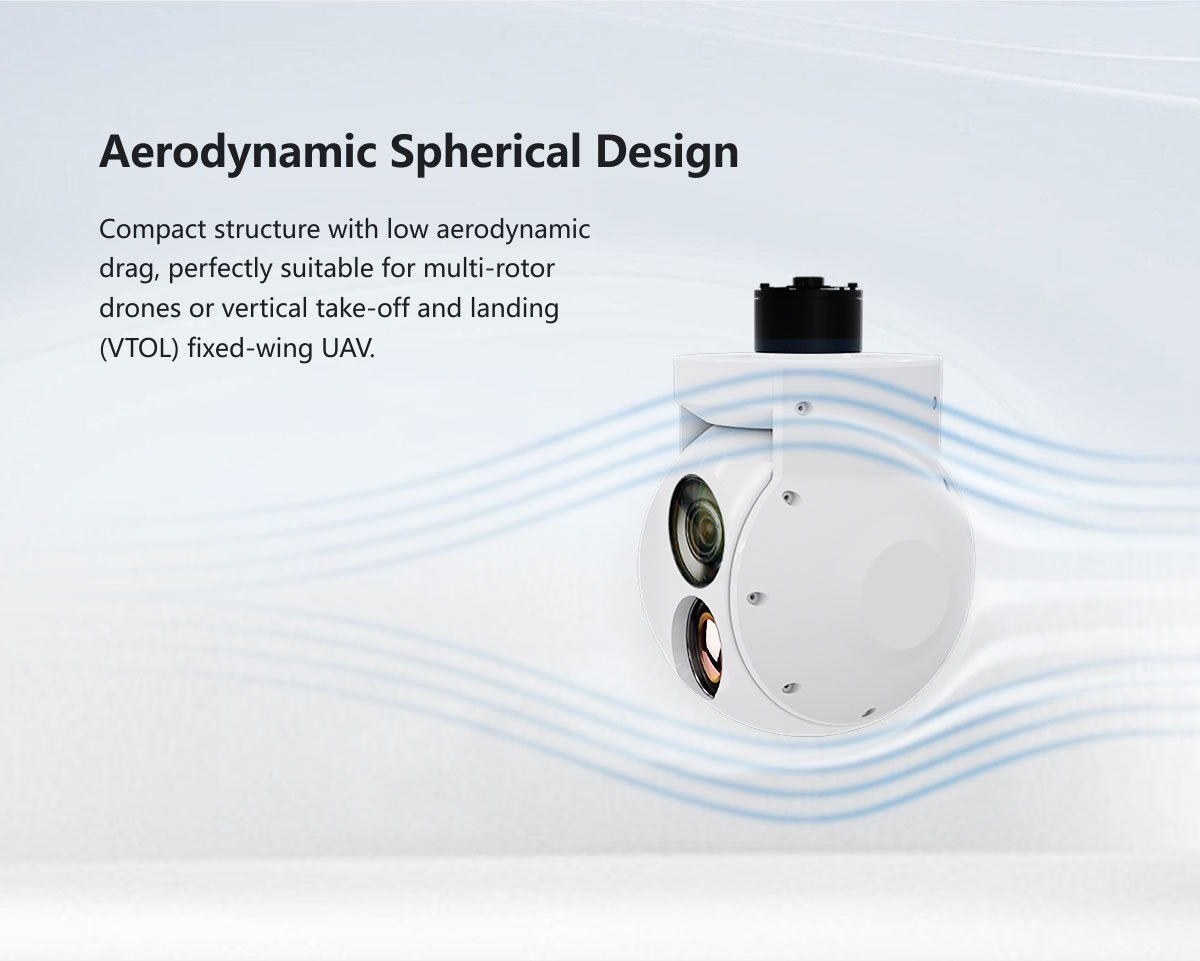

| Product meas. |
127*130*202.5mm / 127*130*211.5mm (Viewport version with Viewport) |

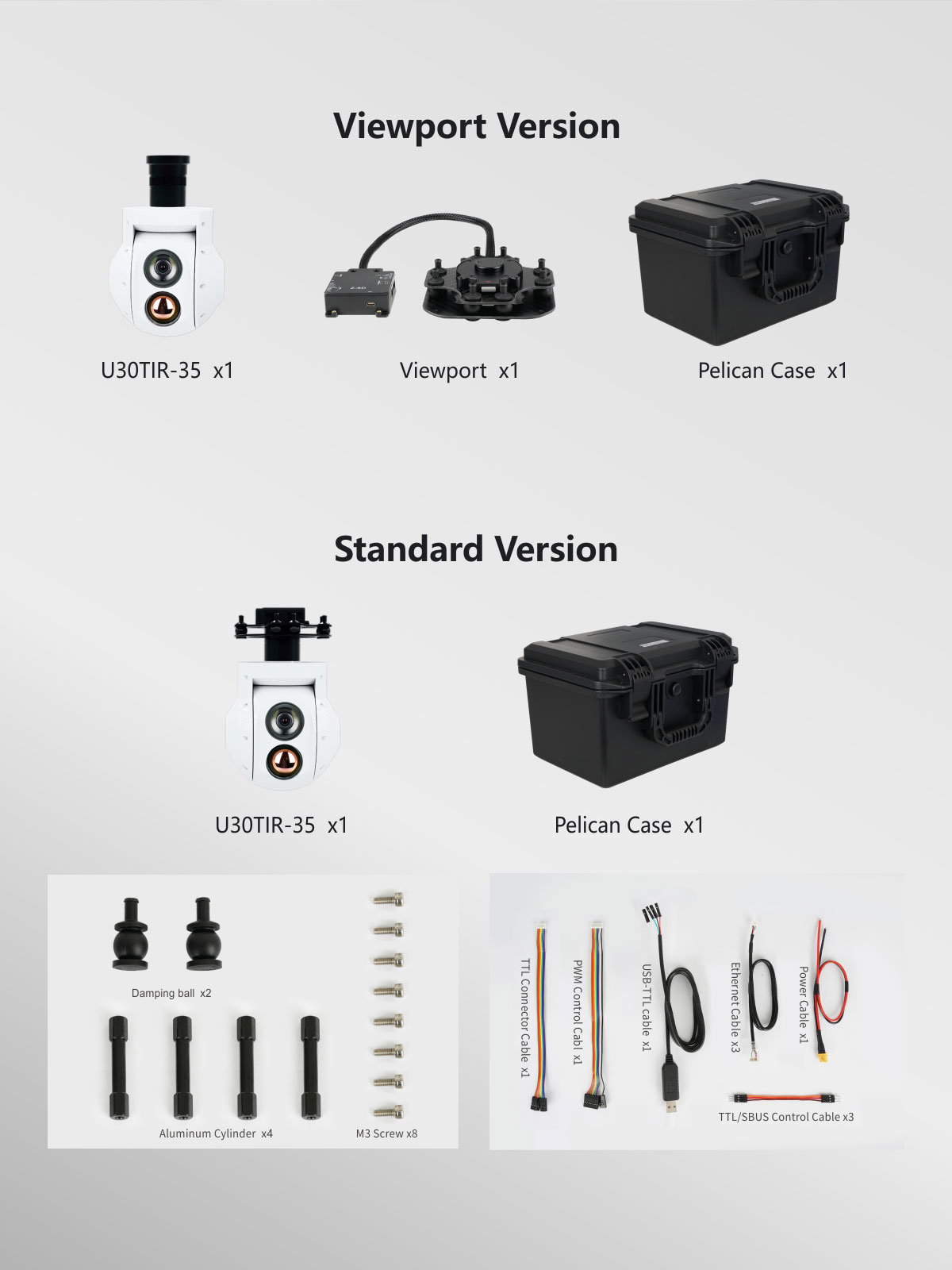

| Accessories |
1pc gimbal camera device, screws, aluminum cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
| G.W. |
About 2185g |
| Package meas. |
300*250*200mm |
